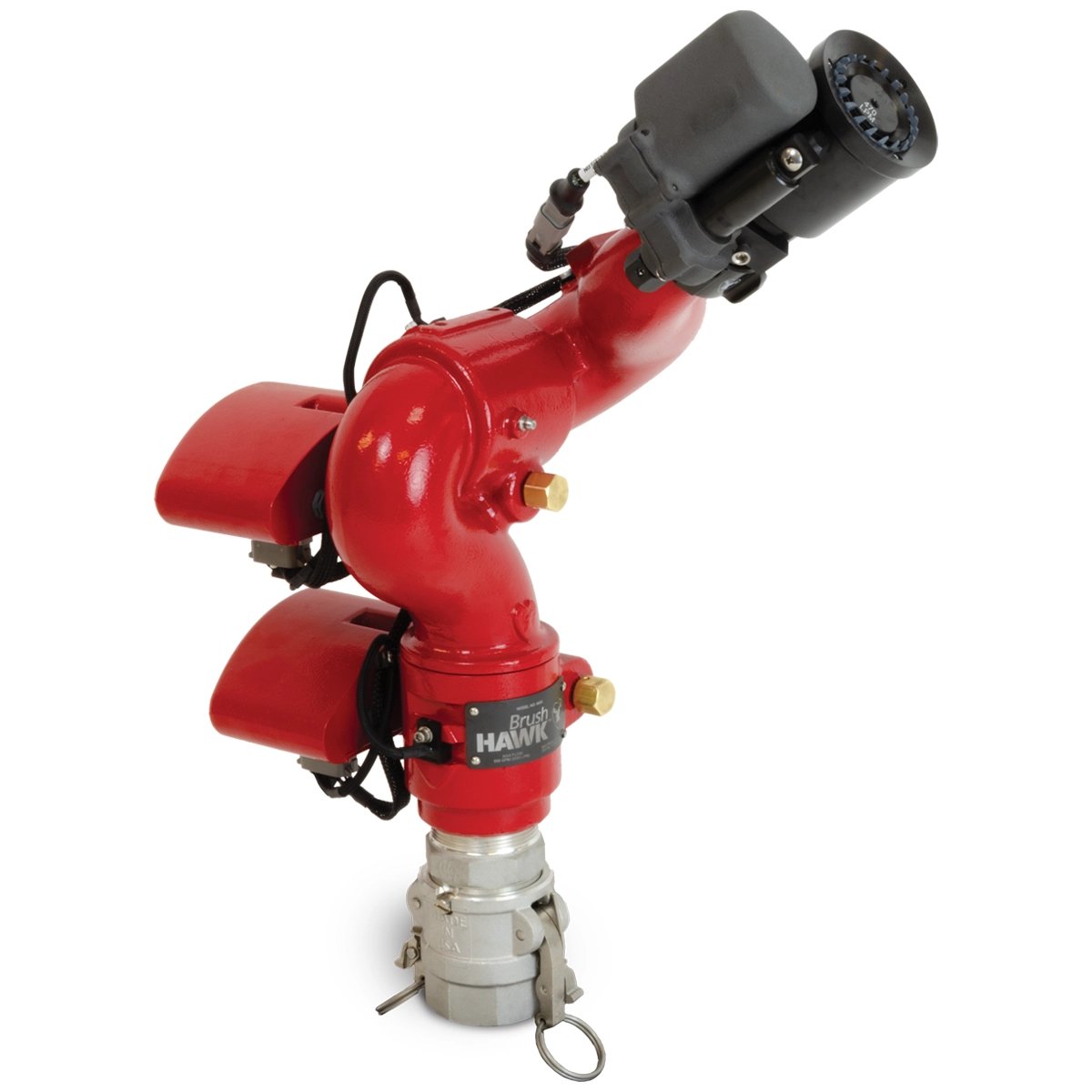

The BrushHawk Electric Monitor Package is a state-of-the-art firefighting solution designed for precision and reliability. This package includes an intuitive joystick control, allowing for seamless operation in high-pressure situations. Ideal for both urban and wildland firefighting, the BrushHawk Electric Monitor ensures optimal performance and safety.

 Features

• Electric Hardwired Control: Provides reliable and consistent operation.
• Joystick Included: Easy-to-use joystick for precise control.
• Versatile Mounting Options: Can be mounted on various firefighting vehicles and equipment.
• Rated for 500 GPM (1900 LPM): Ensures high performance in demanding situations.
• 200 PSI (14 BAR) Maximum Pressure Rating: Handles high-pressure operations with ease.
• Durable, Lightweight Aluminum Construction: Provides strength and durability while being easy to handle.
• Travel Range: Extensive travel range for optimal coverage and flexibility in firefighting operations.
  • 350° Horizontal (L175° to R175°) and 120° Vertical (-30° to +90°)
  • 180° Horizontal (L90° to R90°) and 120° Vertical (-30° to +90°)
  • 180° Horizontal (L90° to R90°) and 90° Vertical (-45° to +45°)

Configuration Options

Monitor Size:

• 1.5-inch FNPT inlet/1.5-inch MNHT outlet: Ideal for smaller firefighting vehicles or applications requiring a compact setup.
• 2.0-inch FNPT inlet/1.5-inch MNHT outlet: Suitable for medium-sized firefighting operations, offering a balance between size and flow rate.
• 1.5-inch FNPT inlet/1.5-inch MNHT outlet with quick disconnect: Provides easy and quick connection/disconnection for rapid deployment and storage.
• 2.0-inch FNPT inlet/1.5-inch MNHT outlet with quick disconnect: Combines the benefits of a larger inlet with the convenience of quick disconnect functionality.

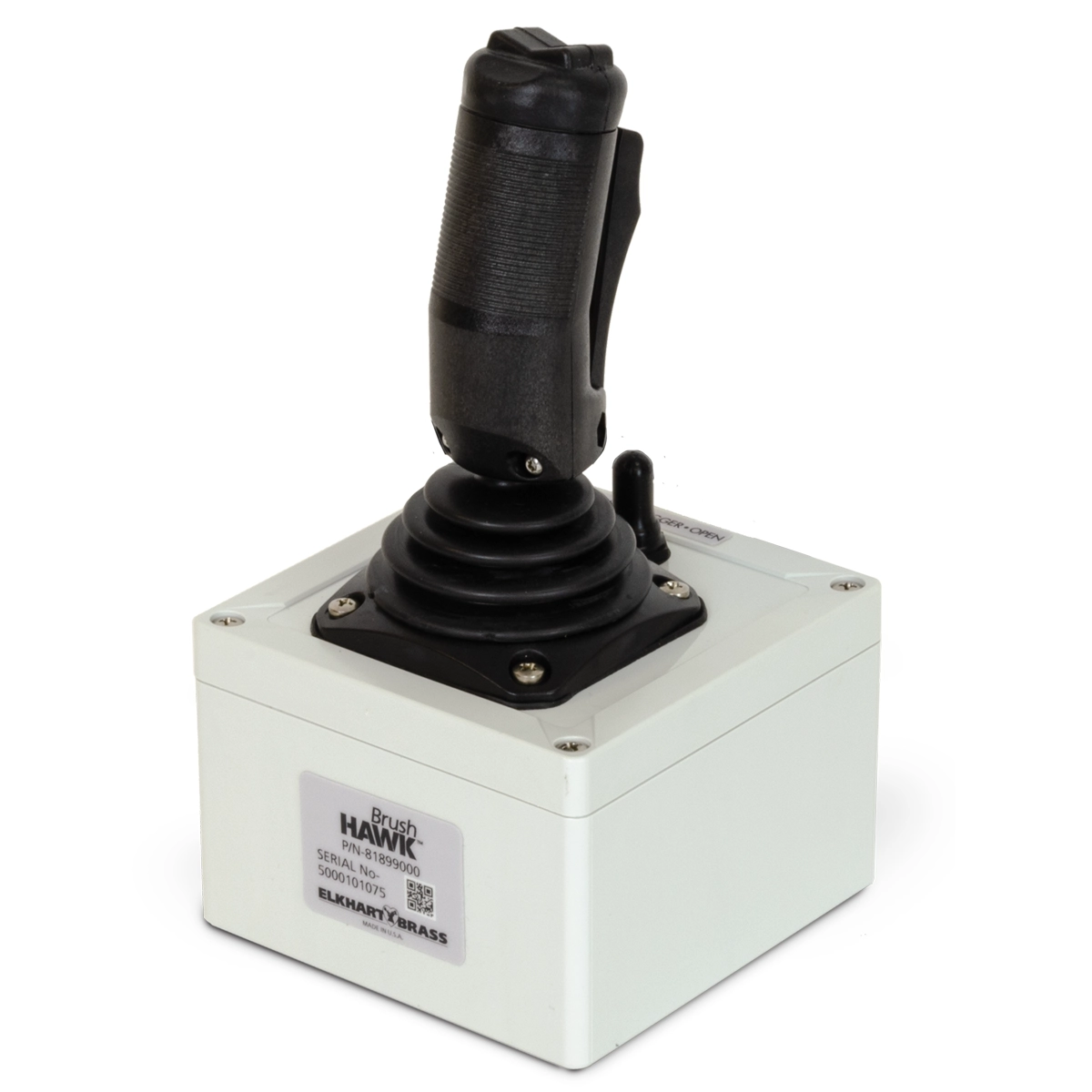

Joystick:

• Proportional joystick and mounting enclosure: Ensures precise control over the monitor’s movements, allowing for accurate targeting of water or foam streams.

Nozzle Type:

• Fixed-Flow nozzle (15-475 GPM options): Offers a consistent flow rate, available in various capacities to match different firefighting needs.
• Selectable Flow nozzle (15/30/45/60/95/125/150/200 GPM): Allows for adjustable flow rates, providing flexibility to adapt to changing firefighting conditions.
• Select-O-Matic De-icing nozzle (20-120 GPM): Designed for de-icing applications, with a range of flow rates to handle different levels of ice buildup.
• CAFS nozzle (187 Smooth Bore tip): Compatible with Compressed Air Foam Systems (CAFS), delivering effective foam streams for fire suppression.

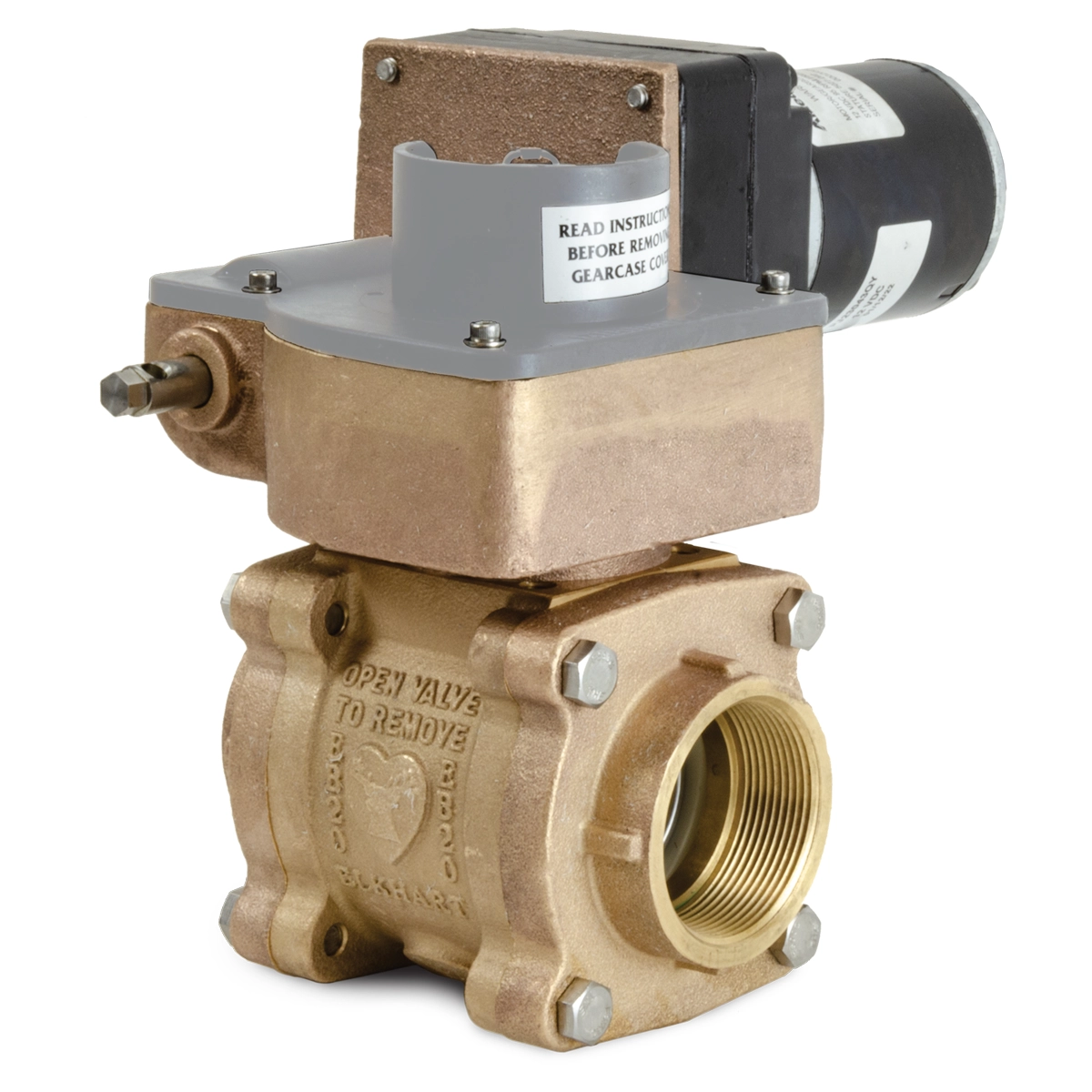

Optional Water Valve Kit:

• 1.5-inch FNPT Electric Valve Kit: Integrates seamlessly with the monitor and joystick for precise water flow control.
• 2.0-inch FNPT Electric Valve Kit: Provides enhanced flow control for larger setups, ensuring efficient water delivery.

CAN Harness Length Options:

• 2’ Harness: Suitable for close-proximity installations where minimal cable length is required.
• 15’ Harness: Ideal for medium-range installations, offering flexibility without excessive slack.
• 20’ Harness: Provides additional length for installations requiring more distance between components.
• 30’ Harness: Suitable for larger vehicles or setups where components are spread out.
• 40’ Harness: Offers maximum length for extensive installations, ensuring all components are connected without strain.

Order Form

• To start your order, please fill out the Order Form with your specific configuration preferences. Order Form
