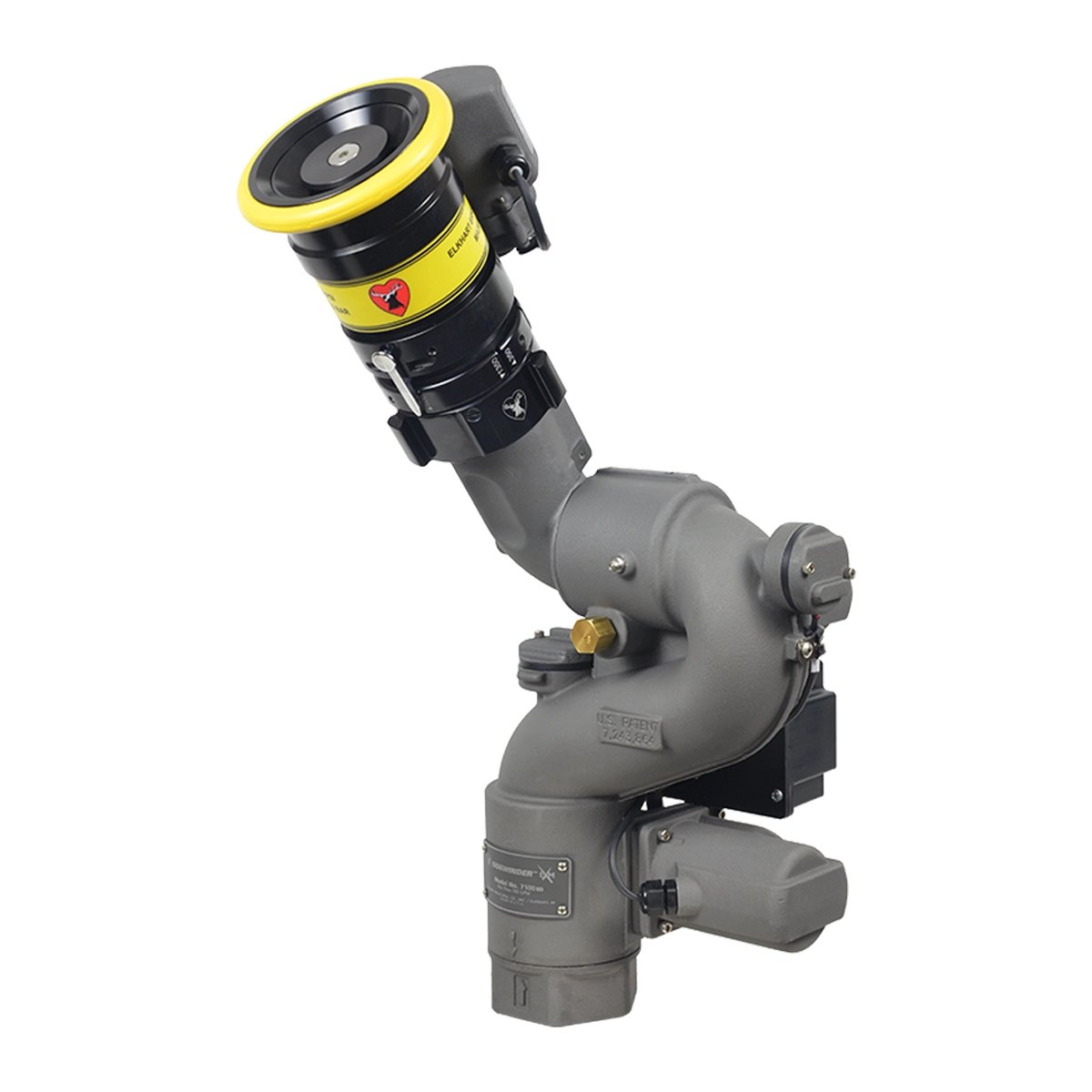

The Sidewinder EXM2 is a high-performance monitor designed for rugged applications, offering configurable options to meet diverse needs. With advanced features and robust construction, it ensures reliable operation in demanding environments.

Features

• Flow Rate: Rated for 700 GPM (2800 LPM)
• Pressure Rating: Maximum pressure of 500 PSI (34.5 BAR)
• Material: Teflon impregnated, hard-coated aluminum finish
• Connectivity: Built-in Wi-Fi for simple programming and setup
• Control: EXM2™ controls (wired and wireless) for improved performance and operator control
• Durability: Heavy-duty swivel joints and thrust rods for unprecedented durability
• Travel Range:
  • Vertical: -45° to +90° (135°)
  • Horizontal: L175° to R175° (350°)

Control Features

• Voltage: 12 or 24VDC Compatible
• Control Options: Wired or wireless
• Compatibility: CANBUS J1939 compatible
• Programmability: STOW, DEPLOY, and OSCILLATION
• Travel Limits: Programmable travel limits and keep-out zones
• Travel Speeds: Programmable travel speeds
• Water Valve Control: Integrated

Mechanical Features

• Sealing: Motors and control components sealed to NEMA 4
• Durability: Axially aligned thrust bearings for extreme durability
• Control: Absolute position sensors for precise control
• Manual Override: Control in the event of power failure
• Motors: Extreme torque motors

Configurable Options

Monitor

• Sidewinder Standard Duty: 750 GPM (3000 LPM)

Inlet Options

• 2.5" 150# Flange: Standard flange connection
• 2.5" NPT F: National Pipe Thread Female
• 2.5" BSPP F: British Standard Pipe Parallel Female
• 2.5" BSPT F: British Standard Pipe Taper Female

Outlet Option

• 2.5" NHT M: National Hose Thread Male
• 2.5" BSPP M: British Standard Pipe Parallel Male

Recommended Stream Shaper

• 282A-Mini: 2.5" (64 mm) length, reduces turbulence and improves stream quality and reach

Nozzle Options

• 6000-200E (D):
  • Selectable GPM: 15/30/45/60/95/125/150/200/Flush
  • Selectable LPM: 60/120/170/250/360/500/550/750/Flush
• 6000-700E (D):
  • Selectable GPM: 250/350/500/700
  • Selectable LPM: 1000/1350/2000/2700/Flush
• 181-A Smoothbore Tip: 2.5" NHT x 11/8" discharge (recommended to add stream shaper for optimal performance)

Input Controllers

• 7010X2 Panel Mount Controller: Fixed control panel for easy access
• 7030X2 Proportional Joystick: Precision control with proportional joystick
• 7015X2 Wireless Handheld Package: Portable control with wireless connectivity (select FCC or CE version)
  • FCC Application: 915 MHz
  • CE Application: 868 MHz

Accessory Options

• 7150 Quick Connect: Allows for quick removal of bumper monitor for tilt cab situations
• 7051X2 Position Display: Provides horizontal and vertical monitor position via LED display
• Recommended Water Valve: EB20 or EB25 Unibody Valve for reliable water flow control

CAN Extension Harnesses

• 2’ CAN Extension Harness: Short extension for close-range connections
• 10’ CAN Extension Harness: Medium extension for moderate-range connections
• 15’ CAN Extension Harness: Extended range for flexible installations
• 20’ CAN Extension Harness: Long extension for distant connections
• 30’ CAN Extension Harness: Extra-long extension for extensive setups
• 40’ CAN Extension Harness: Maximum extension for the longest reach
• CAN Splitter: Allows for multiple CAN connections
• CAN Termination Plug: Ensures proper network termination

Order Form

To place your order, please reach out to a Darley sales representative or fill out the Order Form with your specific configuration preferences below.
