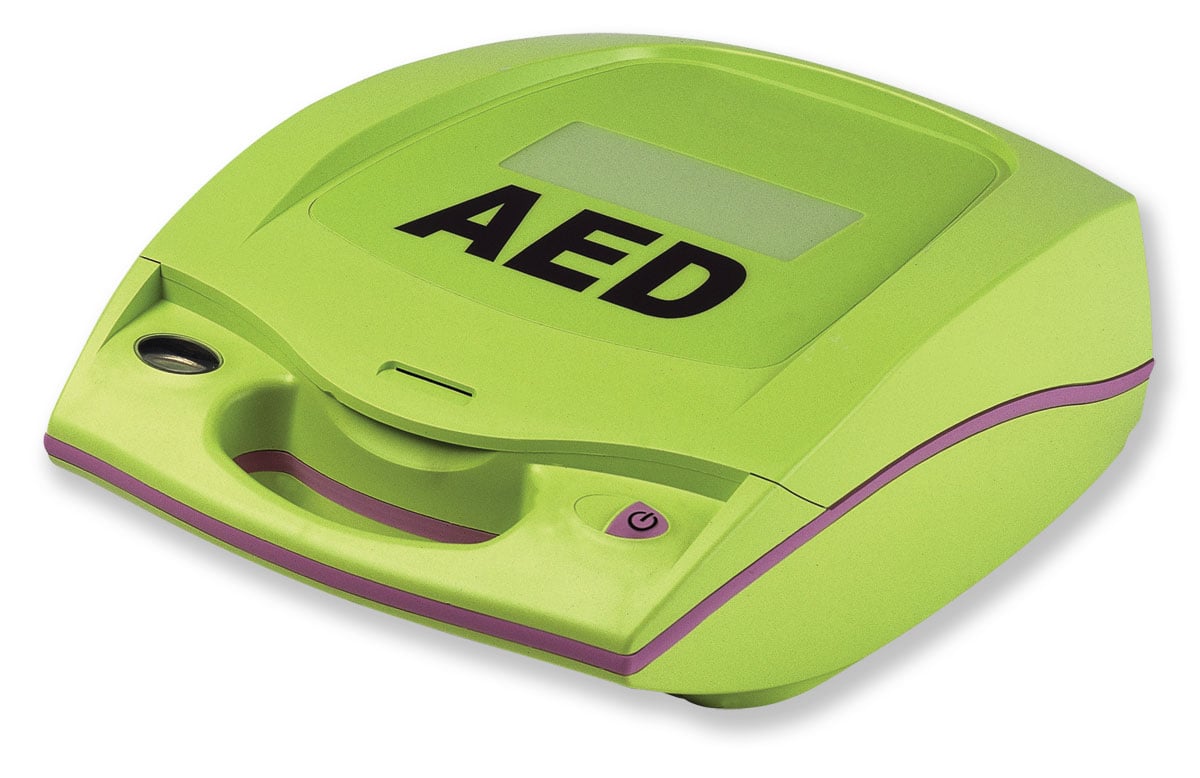

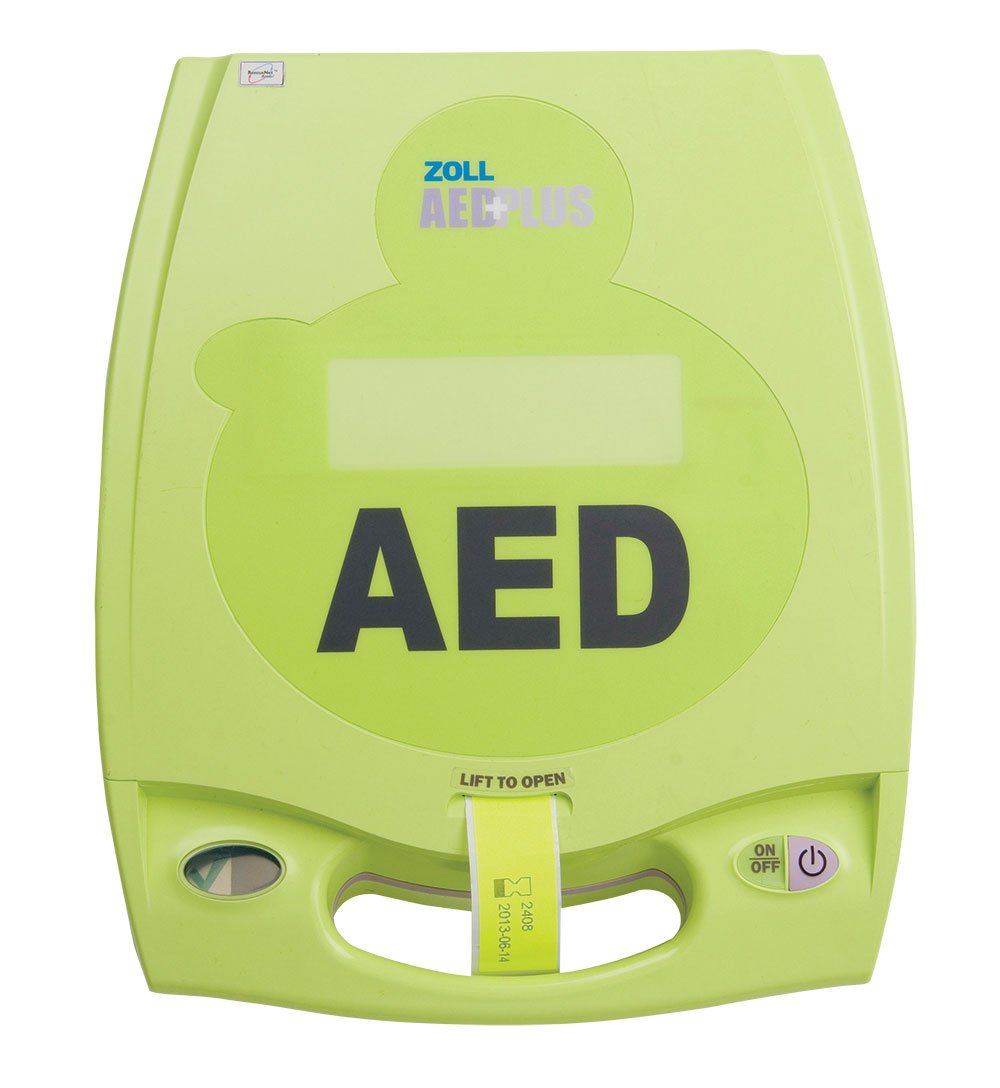

Zoll® AED Plus® Defibrillator

Features

• Real CPR Help® Technology: Provides real-time feedback on the rate and depth of chest compressions.
• CPR Coaching: Audio and visual prompts guide rescuers throughout the rescue.
• One-Piece CPR-D-padz® Electrode: Simplifies pad placement and enables continuous CPR monitoring.
• Easy-to-Follow Rescue Guidance: Supports both trained responders and lay rescuers during emergencies.
• Long-Life Consumables: Batteries and electrodes have up to a 5-year lifespan before replacement.
• Automatic Self-Testing: Performs routine self-checks to ensure readiness.
• Ready Status Indicator: Displays a green check mark when the unit is rescue ready.
• Rugged Design: Built to withstand moisture, vibration, shock, and extreme temperature environments.
• User-Replaceable Batteries: Powered by readily available lithium batteries.
• Data Recording Capability: Includes software for post-event review and data management.
• IP55-Rated Protection: Resistant to dust and water intrusion.

What Is It?

The ZOLL AED Plus is a portable automated external defibrillator designed to analyze heart rhythm and deliver a potentially life-saving shock when appropriate during a sudden cardiac arrest emergency. Beyond defibrillation, it serves as a CPR coach, helping rescuers perform effective chest compressions through real-time feedback and guided instructions.

Why Choose the ZOLL AED Plus?

Not all AEDs provide CPR feedback. The ZOLL AED Plus combines defibrillation technology with integrated CPR coaching that helps rescuers maintain proper compression depth and rate. This additional guidance can improve CPR quality and support better emergency response outcomes.

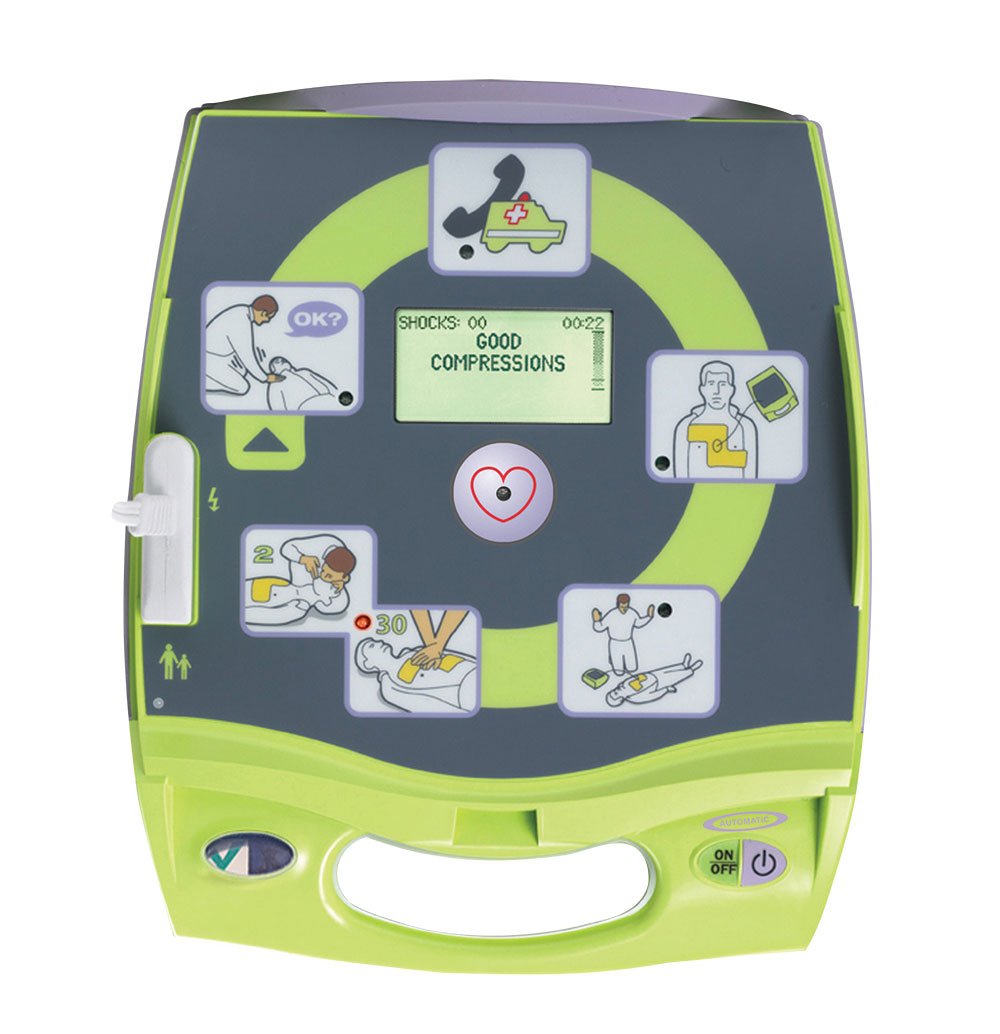

How Does Real CPR Help® Work?

The ZOLL AED Plus utilizes a one-piece CPR-D-padz electrode that monitors chest compressions during CPR. The device evaluates compression rate and depth and provides immediate audio and visual prompts to help rescuers adjust their technique.

Examples of coaching prompts include:

• Push harder when compressions are too shallow.
• Good compressions when appropriate depth is reached.
• Compression rate guidance to help maintain effective CPR.

This real-time coaching continues throughout the rescue process.

How Is It Used?

1. Turn on the AED.
2. Follow the voice prompts.
3. Apply the CPR-D-padz electrode to the patient.
4. Allow the AED to analyze the heart rhythm.
5. Deliver a shock if instructed by the device.
6. Perform CPR following the AED's coaching prompts.
7. Continue following voice and visual instructions until emergency responders arrive.

Better Preparedness for Sudden Cardiac Arrest

Sudden cardiac arrest can occur without warning in virtually any environment. The ZOLL AED Plus is designed to help organizations prepare for these emergencies by providing clear guidance that enables rescuers to act quickly and confidently.

Common installation locations include:

• Schools
• Office buildings
• Manufacturing facilities
• Warehouses
• Churches
• Sports complexes
• Community centers
• Government buildings
• Hotels
• Retail locations
• Airports
• Emergency vehicles

Who Uses It?

Healthcare and Medical Personnel

• Hospitals
• Clinics
• Physician offices
• Dental offices
• Ambulatory surgery centers

Public Safety Organizations

• Fire departments
• EMS agencies
• Law enforcement agencies
• First responder teams

Businesses and Organizations

• Corporate offices
• Manufacturing facilities
• Construction companies
• Retail locations
• Hospitality venues

Educational Facilities

• K-12 schools
• Colleges
• Universities
• Athletic facilities

Setup Instructions

Initial Setup

1. Install all ten lithium batteries.
2. Press the battery reset button when prompted.
3. Connect the electrode cable to the AED unit.
4. Store the sealed electrodes inside the AED cover.
5. Close the cover and power on the unit.
6. Verify the proper startup messages are issued.
7. Power the unit off.
8. Wait approximately two minutes.
9. Confirm the green readiness indicator appears.
10. Place the AED into service.

Self-Testing

The ZOLL AED Plus automatically performs internal self-tests to verify operational readiness.

Readiness Indicator

• Green check mark indicates the AED is ready for use.
• Absence of the green check indicates the unit requires inspection.

Battery Management

• Battery Type: Type 123A Lithium Batteries
• Quantity Required: 10 Batteries
• User Replaceable: Yes
• Typical Battery Life: Up to 5 years

Electrode Management

• CPR-D-padz electrode lifespan: Up to 5 years
• Monitor expiration dates regularly.
• Replace electrodes before expiration occurs.

Recommended Maintenance Tasks

• Check readiness indicator regularly.
• Inspect electrodes for expiration.
• Verify battery expiration dates.
• Ensure accessories remain with the AED.
• Maintain inspection records.
• Replace expired consumables promptly.

Durability and Environmental Performance

The AED Plus is engineered for challenging environments and demanding applications.

Environmental Features

• Moisture Resistant
• Dust Resistant
• Shock Resistant
• Vibration Resistant
• Temperature Resistant

Ideal for Harsh Environments

• Fire stations
• Industrial operations
• Manufacturing facilities
• Fleet vehicles
• Outdoor venues
• Transportation facilities

Frequently Asked Questions

• Does the AED Plus provide CPR instructions?
  • Yes. The AED provides real-time audio and visual CPR coaching throughout a rescue.
• Are the batteries replaceable?
  • Yes. The AED uses ten user-replaceable lithium batteries.
• How often must batteries and pads be replaced?
  • Both batteries and CPR-D-padz electrodes have a lifespan of up to five years before replacement is required.
• Does the unit self-test?
  • Yes. The AED conducts automatic self-tests and displays a readiness indicator when operational.
• Can the AED be used by non-medical personnel?
  • The AED provides step-by-step voice and visual prompts designed to assist rescuers during an emergency.

Benefits

• Improved CPR quality through real-time feedback
• Easy-to-understand rescue guidance
• Long-life batteries and electrodes
• Reduced maintenance requirements
• Rugged, durable construction
• Automatic self-testing for readiness
• Suitable for a wide variety of public access and workplace environments

What's Included in the Box?

Every ZOLL AED Plus package includes:

• ZOLL AED Plus AED Unit
• One-Piece CPR-D PADZ® Electrodes
• Duracell® Lithium Battery Set
• Soft Carry Case
• Data Review Software
• Demonstration and Set-Up CD
• "AED Equipped" Window/Wall Decal
• AED Inspection Tag
