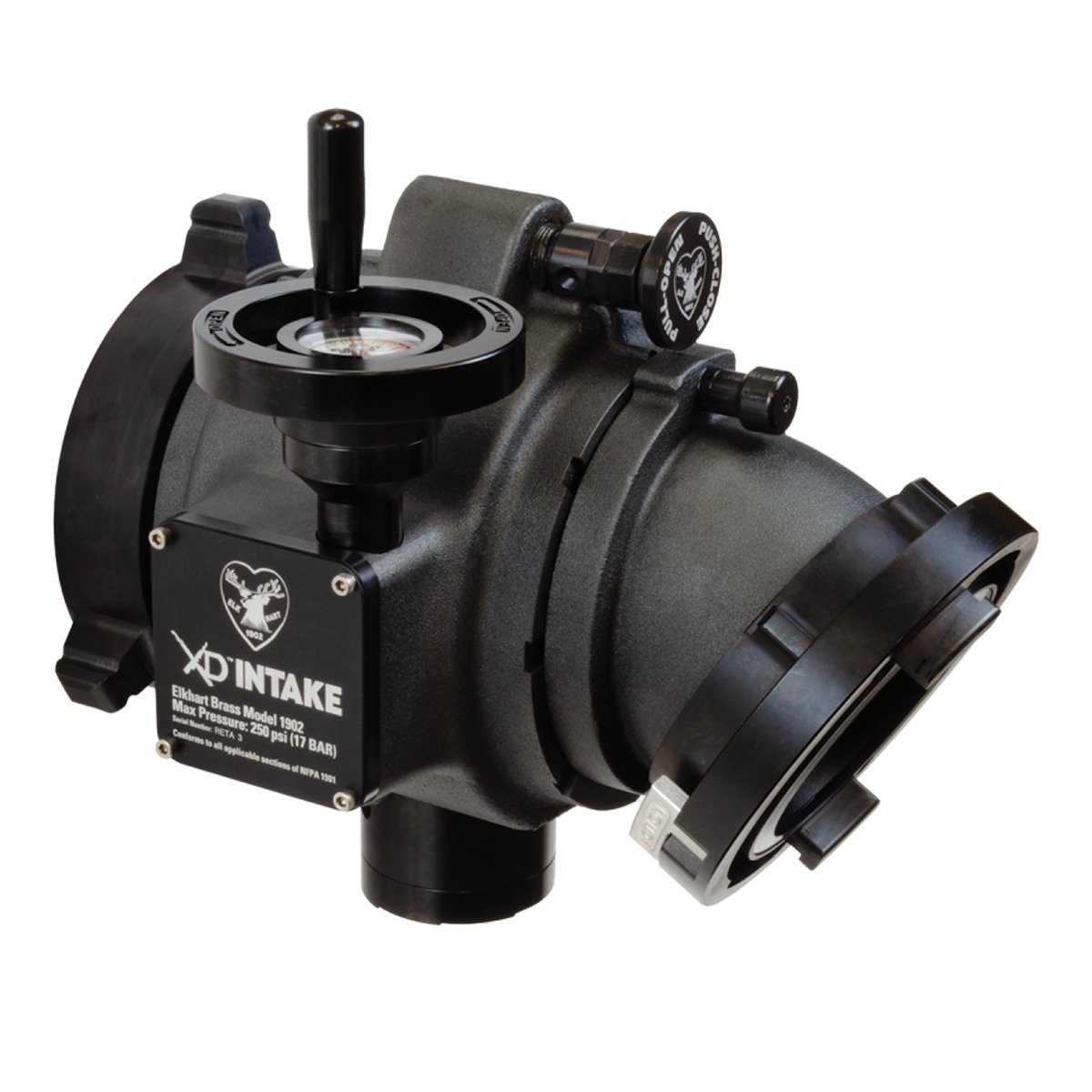

XD Intake Model 1902

The XD Intake Model 1902 by Elkhart Brass is a testament to over a century of innovation and excellence in firefighting equipment. This heavy-duty valve is designed to regulate water supply intake to your pump, ensuring optimal performance in the most demanding situations. With its robust design and cutting-edge technology, the Model 1902 is built to last, featuring three layers of superior corrosion resistance.

Features

• Configurations: Available in both Low Profile and Straight configurations, with left-hand or right-hand mounted control wheel locations to suit any fire truck pump panel layout.
• Visibility: Top-positioned indicator for optimal visibility, allowing firefighters to quickly assess the valve position status.
• Corrosion Resistance: Three layers of superior corrosion resistance, including Mil Spec Hard Coat, Zinc, and Powder Coating.
• Pressure Loss: Minimizes pressure loss during high flow rates, ensuring a swift and reliable water supply.
• Flow Capacity: Maximum flow capacity of 3000 gallons per minute (gpm) with a minimum waterway size of 5.12 inches (133 mm).
• Efficiency: Engineered for maximum efficiency in water delivery operations on the fire ground.

Advanced Capabilities

• Handwheel Control: Straight or Low Profile and Left-Hand or Right-Hand handwheel control configurations.
• Indicator: Strategically positioned indicator on top for easy monitoring and operation.
• Bleeder Valve: Large Push/Pull pressure-balanced bleeder valve for efficient operation.
• Construction: Primarily aluminum construction for a lightweight yet durable design.
• Critical Components: All-metal construction in critical components like the Handwheel and Pressure Relief Mechanism.
• Safety: Smooth-operating handwheel designed to minimize pinch points.
• Installation: 3-lug pump side swivel outlet simplifies installation.
• Seat Material: Cutting-edge UHMWPE Seat versus traditional Rubber Seats for enhanced durability and performance.
• Pressure Relief Valve: Low Profile configuration includes a front-mounted Pressure Relief Valve (PRV) for convenient adjustment and accessibility.
• Pressure Loss Performance:
  • 2 psi at 2000 gpm (.14 BAR @ 7550 LPM) for the 5" inlet x 6" Low Profile configuration.
  • 1 psi at 2000 gpm (.07 BAR @ 7550 LPM) for the 5" inlet x 6" Straight Profile configuration.

Usage

The XD Intake Model 1902 is used by firefighters to regulate water supply intake to their pumps during firefighting operations. Its design ensures precision control, durability, and ease of use, making it an indispensable asset for firefighting apparatus.

Maintenance

Regular maintenance includes checking the valve for any signs of wear or damage, ensuring the handwheel operates smoothly, and verifying the pressure relief valve settings. Periodic cleaning and inspection of the corrosion-resistant coatings are recommended to maintain optimal performance.

Storage

Store the XD Intake Model 1902 in a dry, cool place when not in use. Ensure the valve is drained and kept within the storage temperature range of -25°F to 135°F (-32°C to 57°C).

Included Components

• XD Intake Model 1902 valve
• Handwheel
• Pressure Relief Valve (PRV)
• Push/Pull bleeder valve
• 3-lug pump side swivel outlet
