VersaMist® Misting Fan
The Schaefer VersaMist® 18″ Misting Fan (Model PVM18) delivers powerful evaporative cooling—reducing air temperature by up to 30 °F. Available in both standard and wheeled (PVM18C) versions, with built-in water reservoir and 3-speed fan.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- Evaporative Cooling: Low-pressure mist reduces ambient air temp up to 30 °F
- High Flow Rate: Up to 2,600 CFM airflow for personal cooling
- 3-Speed Fan: Adjustable speeds for custom comfort
- Onboard Reservoir: 10 gal (standard) or 14 gal (wheeled) for 5–7 hours continuous use
- Tip-Switch Safety: Automatic shut-off if tipped beyond 35°
- UL507 Rated: Suitable for safe indoor/outdoor use
- Portable Design:

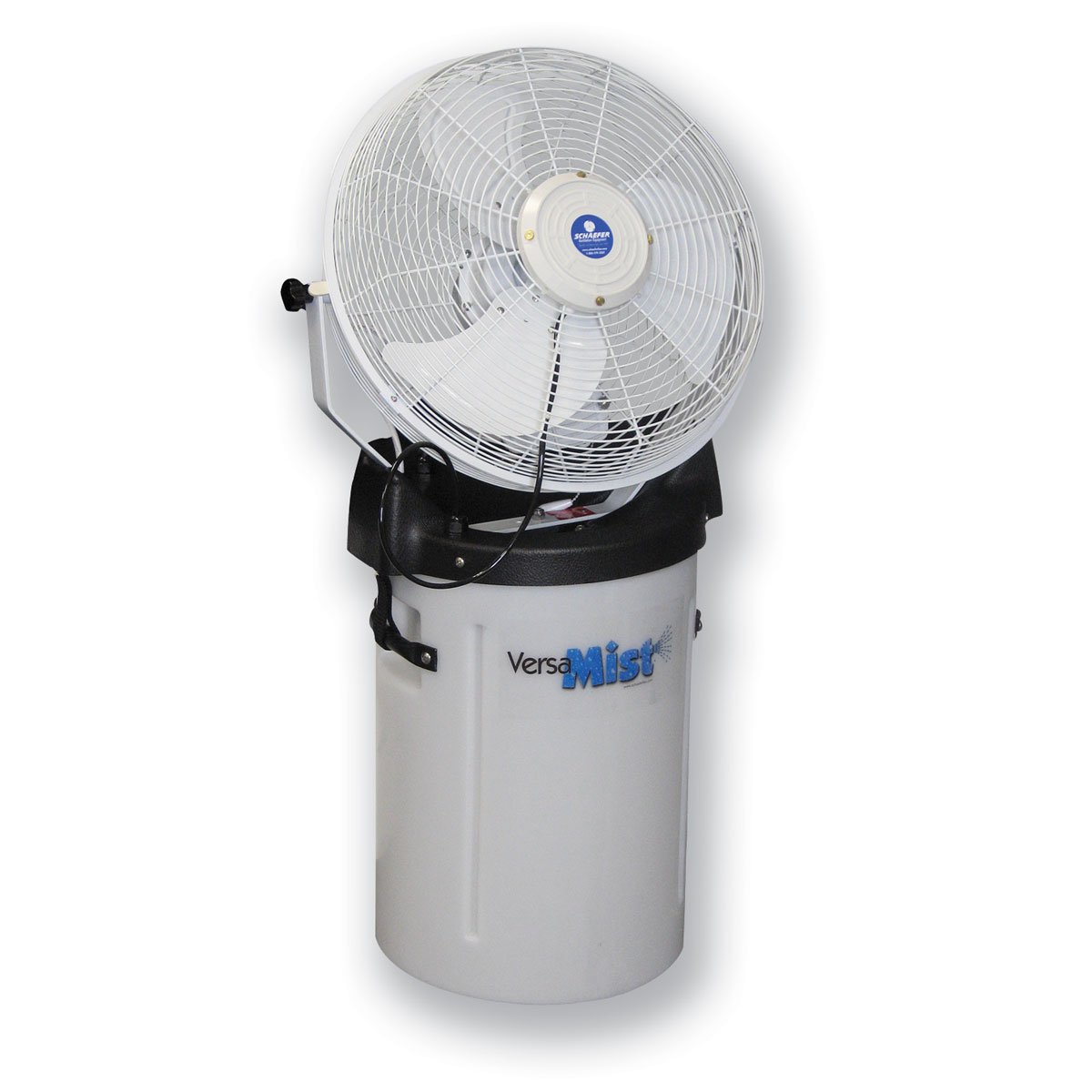

- Standard PVM18: 35 lb, compact dimensions

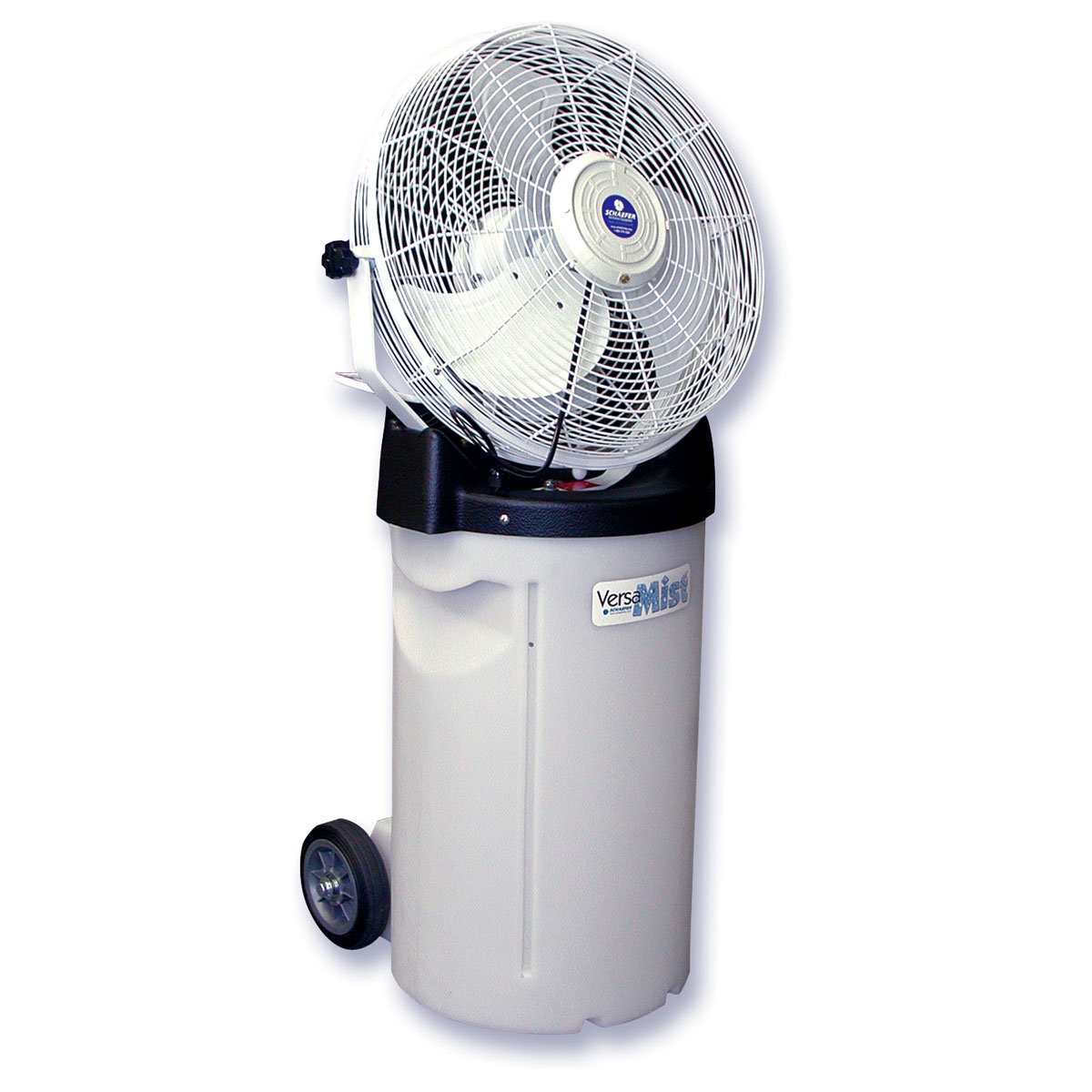

- PVM18C Wheeled: 43 lb, includes handle + 6″ wheels for easy transport
- Durable Build: Powder-coated steel fan guard, aluminum blades
What is it?
The VersaMist® 18″ Misting Fan is a portable evaporative cooling system combining fine water mist and high-speed airflow, designed for targeted “person cooling” in hot environments—ideal for industrial, emergency, athletic, and recreational settings.
How is it used?
Fill reservoir with clean water (ice optional for extra cooling)
- Plug into standard 115 V outlet (25 ft GFCI-rated cord)
- Activate fan and pump; adjust speed as needed
- Position unit facing downwind for best effect
- Use tip-switch safety to prevent accidental operation
Who uses it?
- Industrial workers and assembly lines
- Emergency rehab stations
- Outdoor events, patios, pool decks
- Athletic training and sidelines support
Maintenance Information
- Drain and refill reservoir after each use
- Clean or replace nozzles to avoid clogging from hard water
- Wipe down exterior components; separate pump/fan for deep cleaning
- Ensure tip-switch and GFCI are functioning properly
- Store upright in cool, dry area
What is it used with?
- Compatible with standard garden hose or direct fill
- Optional accessories: replacement nozzles/plugs, remote cart (for standard version)
- Complements any misting or cooling station setup
Material
- Guard: Powder-coated steel
- Blades: Heavy-duty aluminum
- Reservoir: High-capacity plastic tank
- Frame/Base: Rugged steel & durable composite
- Pump: Enclosed low-pressure mist assembly
Additional Information
- Cooling Coverage: Best for spot cooling in areas up to 300 sq ft
- Noise Level: Approx. 60–65 dB at high speed (conversation level)
- Warranty: 1-year limited manufacturer warranty
- Ideal Environments: Warehouses, garages, outdoor workstations, sports sidelines
- Safety Note: Use only with clean water; do not add chemicals or fragrances
- Energy Use: Approx. 2.5 amps at high speed
- Cfm (free Air): 2200
- Cooling Capacity (1000 Btu): 16
- Drive: Direct
- Operating Temperature (high) F: 40C
- Phase: 1
- Speeds: 3
- Watts: 250
- Cfm/watt (free Air): 13
- Cord: Included - Wired
- Diameter (inches): 18
- Frequency (hz): 60
- Guard Color: White
- Nameplate Amps: 2.2
- Number Of Wings: 3
- Cfm (medium): 1800
- Operating Temperature (low) F: 0C
- Power (hp): 1/4
- Product Net Weight (lbs): 35
- Switch: On product
- Voltage: 115
- Blade Material: Aluminum
- Cfm (high): 2200
- Cfm Calculation Standard: ANSI/AMCA Standard 230-99
- Product Shipping Dimensions (in): (FAN) 22 X 22 X 25 / (TANK) 16 X 16 X 21
- Speed Control Compatible: No
- Able To Ship Small Parcel: Yes
- Cfm (low): 1400
- Cfm Range (free Air): 1001 - 2500
- Cord Length (feet): 25
- Distinguishing Feature: Cools Air via Evaporative Cooling
- Fixed Or Portable: Portable
- Guard Material: Powder Coated Steel
- Maximum Water Pressure (psi): TBD
- Oscillating: No
- On Board Reservoir: Yes
- Country Of Origin: US
- Guard Spacing (inches): 1/2 OSHA
- Housing Color: White
- Product Color: White
- Blade Color: White
- With or without Wheels
- Model: PVM18/PVM18C
