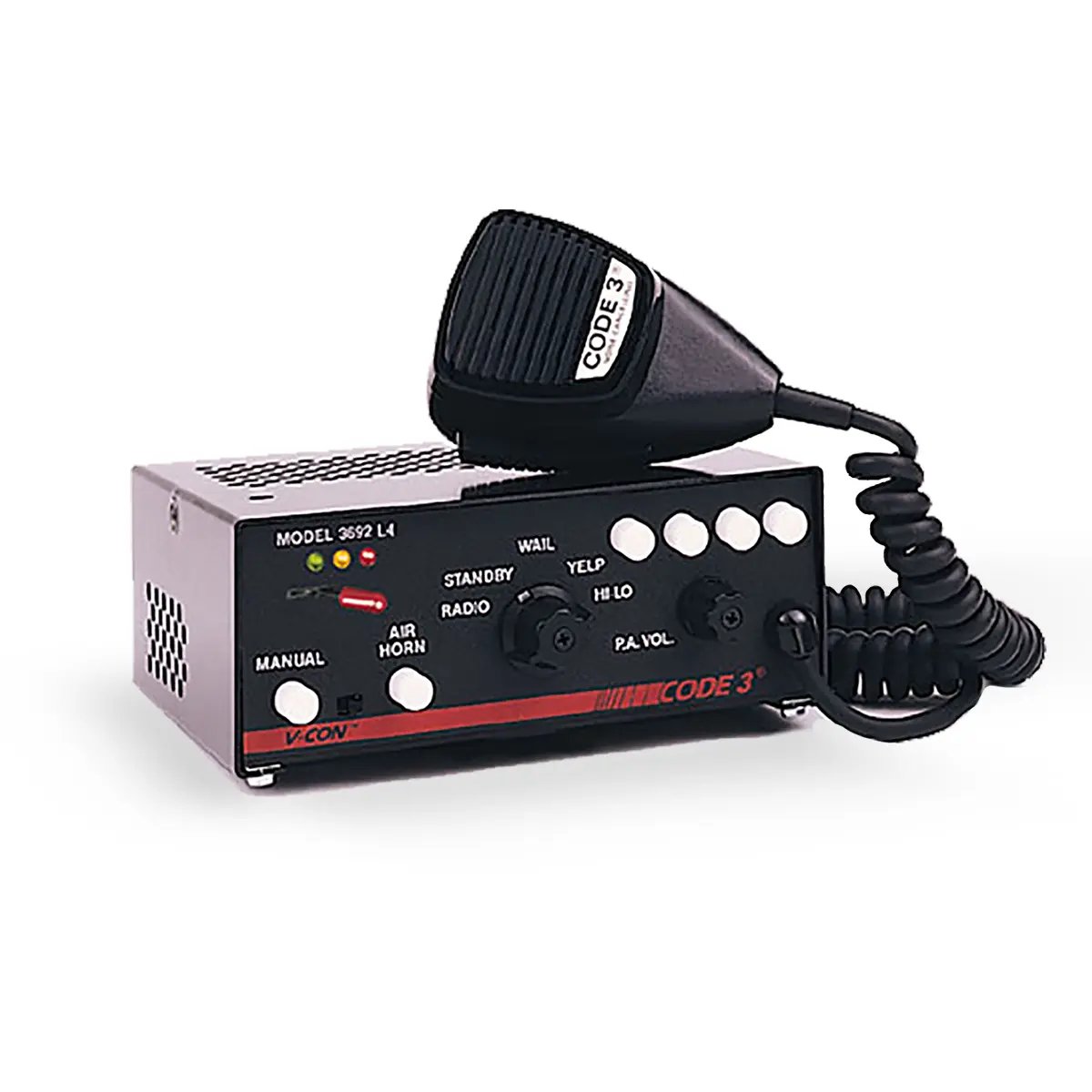

V-Con Siren

Features

• Siren Tones:
  • 3672S: Wail, Yelp, HyperYelp, Air Horn
  • 3692S: Wail, Yelp, Hi-Lo, Air Horn.
  • 3692L4S: Wail, Yelp, Hi-Lo, Air Horn, with Light Control.
• Compact Design: Fits easily in undercover or nontraditional emergency vehicles.
• Handheld Controller: Backlit for easy night operation.
• Public Address: Integrated PA system for clear communication.
• Radio Rebroadcast: Broadcasts two-way radio reception over siren speakers.
• Automatic Short Circuit Protection: Ensures the siren goes to standby mode if a short circuit is detected.
• Hit-N-Go Mode: Provides a seven-second override for all tones when activated.
• Auxiliary Switches: Four push-on/push-off auxiliary switches for additional control.
• Remote Siren Switching: Allows remote activation of siren functions.

How is it used?

The V-Con® Siren is installed in emergency vehicles to provide audible warnings and communication capabilities. It is used by first responders, including police, fire, and medical personnel, to alert the public and communicate during emergencies.

What's Included?

• V-Con® Siren Unit
• Handheld Controller
• Mounting Hardware
• Installation Instructions

Installation Process for Code 3 Inc V-Con® Siren

Tools Needed

• Wire stripper
• Screwdriver
• Drill (if mounting holes are not pre-drilled)
• Mounting hardware (included in the package)

Steps for Installation

• Mounting the Siren Unit:
  • Choose a suitable location in the vehicle for the siren unit. Common locations include under the dashboard or in the trunk.
  • Secure the siren unit using the provided mounting hardware. If necessary, drill holes to accommodate the mounting screws.
• Wiring the Siren:
  • Power Connection: Connect the siren unit to the vehicle's power supply (12V). Ensure the positive and negative terminals are correctly connected.
  • Speaker Connection: Connect the siren unit to the external speakers. Ensure the connections are secure and properly insulated.
  • Control Wires: Connect the control wires from the handheld controller to the siren unit. Follow the wiring diagram provided in the installation instructions.
• Mounting the Handheld Controller:
  • Choose a convenient location for the handheld controller, such as the dashboard or center console.
  • Secure the controller using the provided mounting hardware. Ensure it is easily accessible for the driver.
• Connecting Auxiliary Switches:
  • If using auxiliary switches, connect them to the siren unit as per the wiring diagram. These switches can be used to control additional functions such as lights or other equipment.
• Testing the System:
  • Once all connections are made, turn on the vehicle's power and test the siren system.
  • Verify that all siren tones (Wail, Yelp, Hi-Lo, HyperYelp, Air Horn) are functioning correctly.
  • Test the PA system and radio rebroadcast functions to ensure clear communication.
  • Check the auxiliary switches to ensure they are operating as intended.

Safety Precautions

• Disconnect Battery: Before starting the installation, disconnect the vehicle's battery to prevent any electrical shorts or shocks.
• Secure Connections: Ensure all electrical connections are secure and properly insulated to prevent short circuits.
• Follow Instructions: Adhere to the installation instructions provided with the siren unit to ensure proper installation and operation.

Maintenance Tips

• Regularly inspect the connections and wiring for any signs of wear or damage.
• Test the siren tones and PA system periodically to ensure they are functioning correctly.
• Clean the handheld controller and siren unit to prevent dust and debris buildup.
