Kussmaul

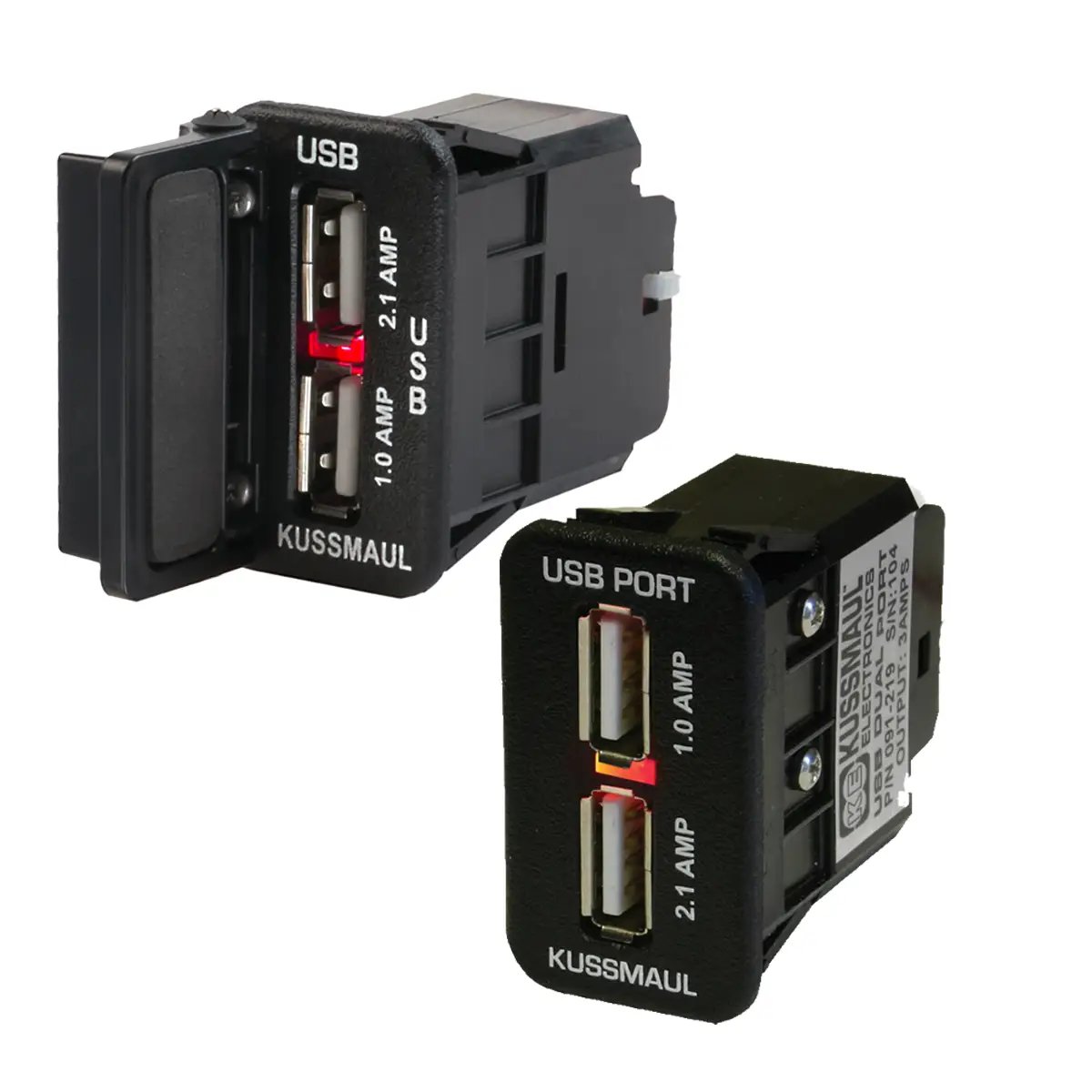

USB Dual Port - 4.8

The USB Dual Port 4.8 by Kussmaul Electronics is a versatile and efficient charging solution designed for vehicles. With a maximum output of 4.8 Amps, this dual USB port allows you to charge two devices simultaneously, making it perfect for keeping your electronic devices powered on the go. Available with or without weatherproof cover.

Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.

Enter a value between 1 and 100000000 in increments of 1.

Earn Darley Dollars with this purchase

Questions? Contact Us

Features

  • Dual USB Charging Ports: Charge two devices at the same time, including smartphones, tablets, and other USB-powered devices.
  • High Output: Provides up to 4.8 Amps, allowing for fast charging of two iPads or tablets simultaneously.
  • Built-In LED Indicator: Indicates when the device is powered and ready to use.
  • Weatherproof (091-219-5-WP): Comes with an additional protective door to shield the ports from weather elements.
  • Easy Installation: Designed to fit into standard SVR type vehicle switch panels.
  • Reverse Polarity Protection: Ensures safe installation and operation.
  • Versatile Power Connection: Can be connected to 12V or 24V switched ignition or directly to the battery.
  • 3-Year Warranty: Provides peace of mind with a reliable warranty.


How is it Used?

The USB Dual Port 4.8 is used to charge electronic devices in vehicles. It is ideal for use in cars, trucks, RVs, and other vehicles where keeping devices charged is essential. Simply plug your USB cables into the ports to start charging your devices.


Who Uses It?

This product is perfect for

  • Drivers and Passengers: Who need to keep their devices charged during long trips.
  • Fleet Operators: Who require reliable charging solutions for their vehicles.
  • Emergency Services: Where maintaining charged devices is critical.
  • Outdoor Enthusiasts: Who need a weather-proof charging solution for their adventures.


Tools Needed for Installation

  • 3 Amp Fuse: Required for connecting the device to the power source.


How to Install

  1. Panel Cutout: Ensure the panel cutout size is 1.45” x 0.83”.
  2. Connect Wires:
    1. Red Wire: Connect to either +12 Volts continuous (battery positive) or switched 12/24 Volt power (ignition) using a 3 Amp fuse.
    2. Black Wire: Connect directly to chassis ground (battery negative).
  3. Secure the Device: Fit the USB Dual Port into the panel cutout and secure it in place.
  4. Power On: Once connected, the built-in LED indicator will light up, indicating the device is powered and ready for use.

  • Input Voltage: 10 to 30 VDC
  • Output Voltage: 4.8 to 5.2 VDC
  • Output Current: 4.8 Amps Max
  • Cutout Size: 1.45” x 0.83”
  • Weight: 0.1 lbs
  • Warranty: 3 years
  • Weather Resistance: Yes (for 091-219-5-WP)
  • Models:
    • 091-219-5-WP (Weather Proof)
    • 091-219-5
