Through-the-Pump Foam Eductor/Mixer
SKU#: AJ253
Typically ships in 1-2 days
Ships via Standard Ground
An economical and easy-to-use through-the-pump foam eductor/mixer that inducts foam concentrate into the hose lines of portable fire pumps.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- Through-the-Pump Foam Induction: Educts foam concentrate into hose lines through a pump’s suction and discharge sides, also known as an “around-the-pump” system.
- Adjustable Foam Percentage: Inducts foam concentrate at percentages from 0% to 3.75%.
- Wide Flow Range: Operates at flow rates from 15 to 125 gallons per minute.
- High Operating Pressure: Designed for use at 100 psi with a maximum operating pressure of 300 psi.
- Portable Pump Compatible: Intended for foam induction into hose lines of portable fire pumps.
- Included Connection Components: Supplied with hoses and cast aluminum connecting tee for setup.
What is it?

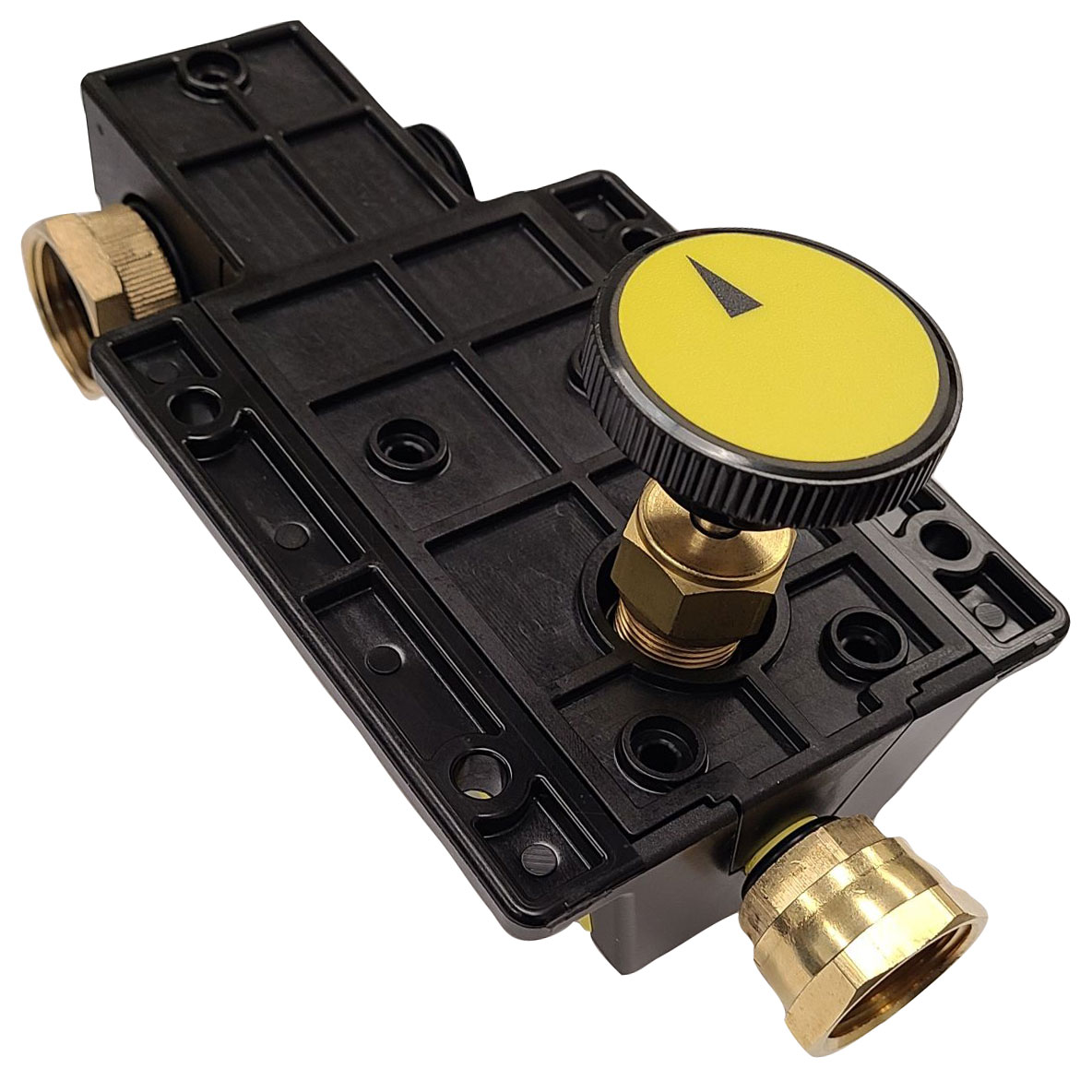

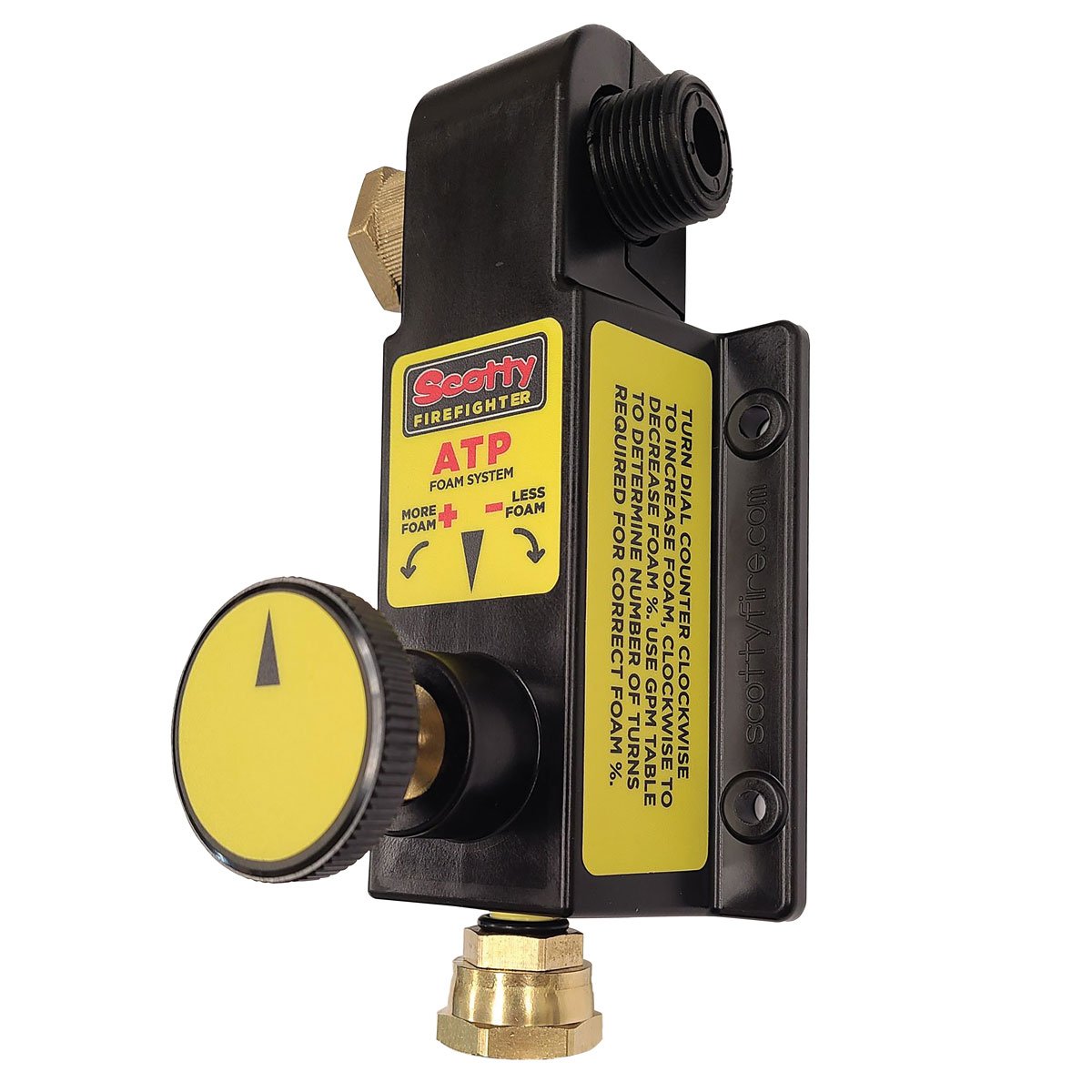

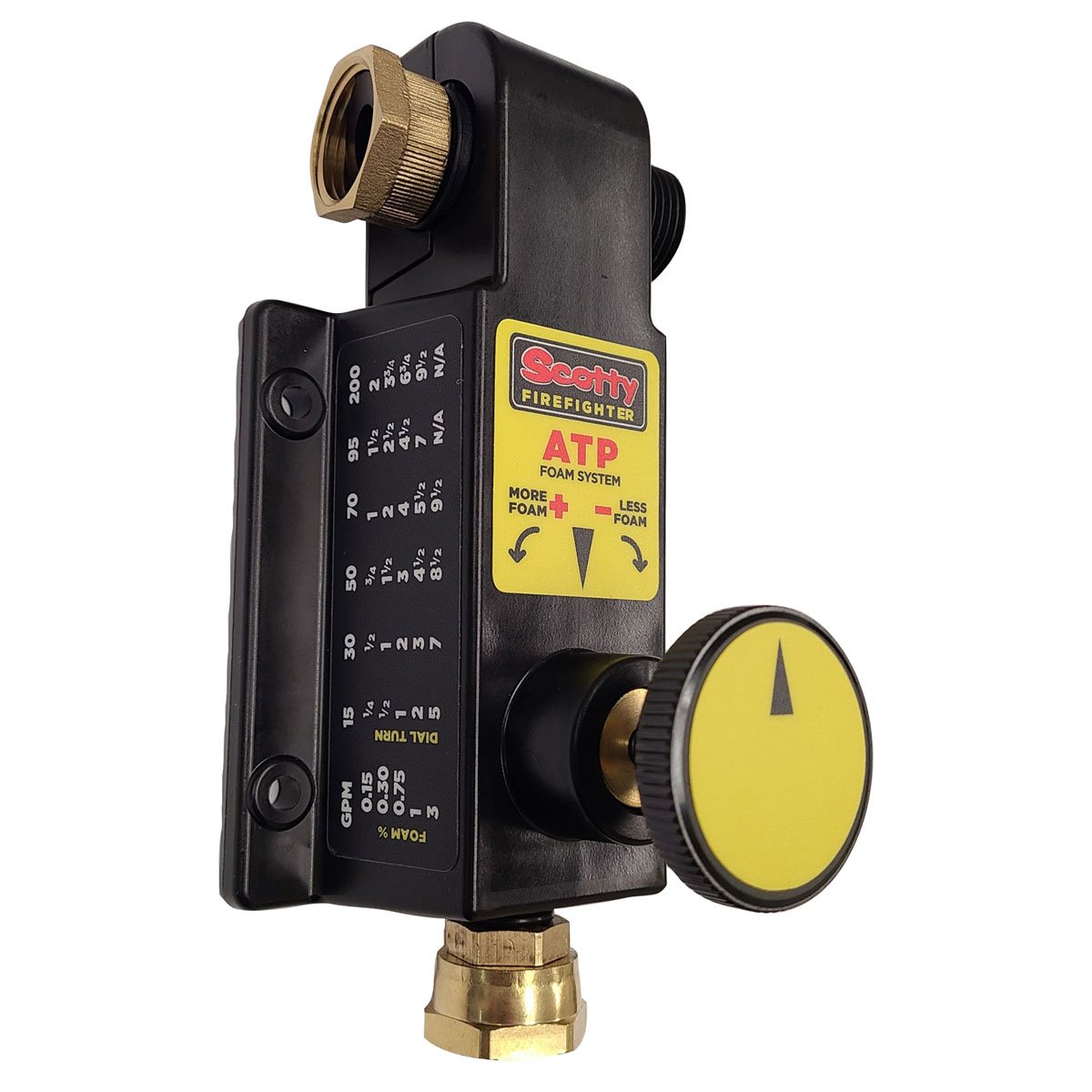

The Through-the-Pump Foam Eductor/Mixer, model 4171, is a firefighting foam induction device that educts foam concentrate into water streams by routing concentrate through a pump’s suction and discharge sides.
How is it used?
The unit is installed as an around-the-pump system on a portable fire pump. Foam concentrate is educted through the system and mixed into the water flow, delivering foam solution through connected hose lines at selected percentages.
Who uses it?
This foam eductor/mixer is used by first responders, including firefighters and emergency response teams, who require controlled foam induction during fire suppression operations.
What is it used with?
- Portable fire pumps
- Fire hose lines
- Foam concentrate
- Firefighting foam application equipment

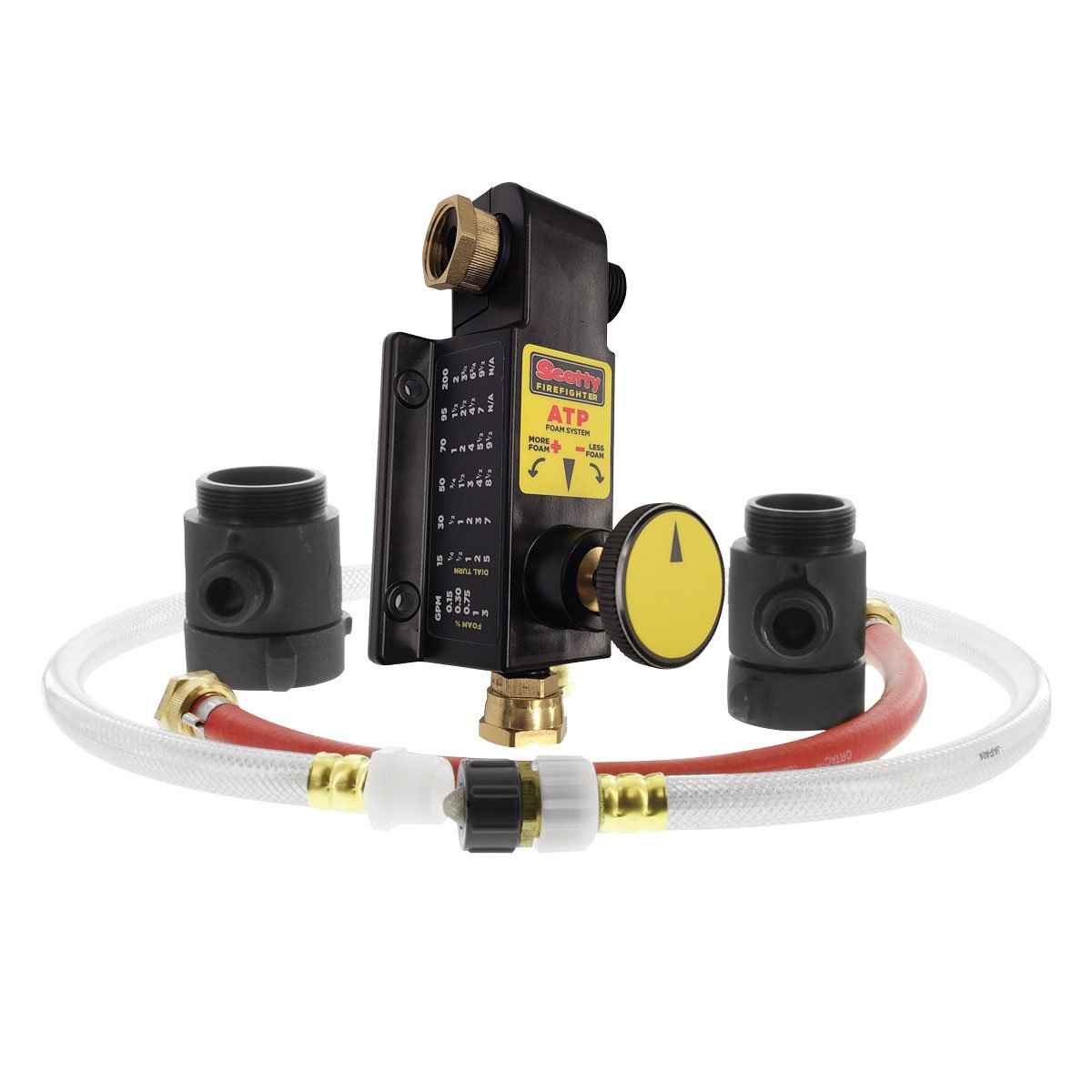

What’s Included?
- 18-inch pressure hose
- 48-inch foam pick-up hose
- 1.5-inch cast aluminum connecting tee
- 2-inch cast aluminum connecting tee
- Foam Induction Method: Through-the-pump / around-the-pump
- Foam Percentage Range: 0% to 3.75%
- Flow Rate Range: 15–125 gallons per minute
- Operating Pressure: 100 psi
- Maximum Operating Pressure: 300 psi
- Pressure Hose Length: 18 inches
- Foam Pick-Up Hose Length: 48 inches
- Connecting Tee Sizes: 1.5-inch and 2-inch
- Connecting Tee Material: Cast aluminum
- Model: 4171
