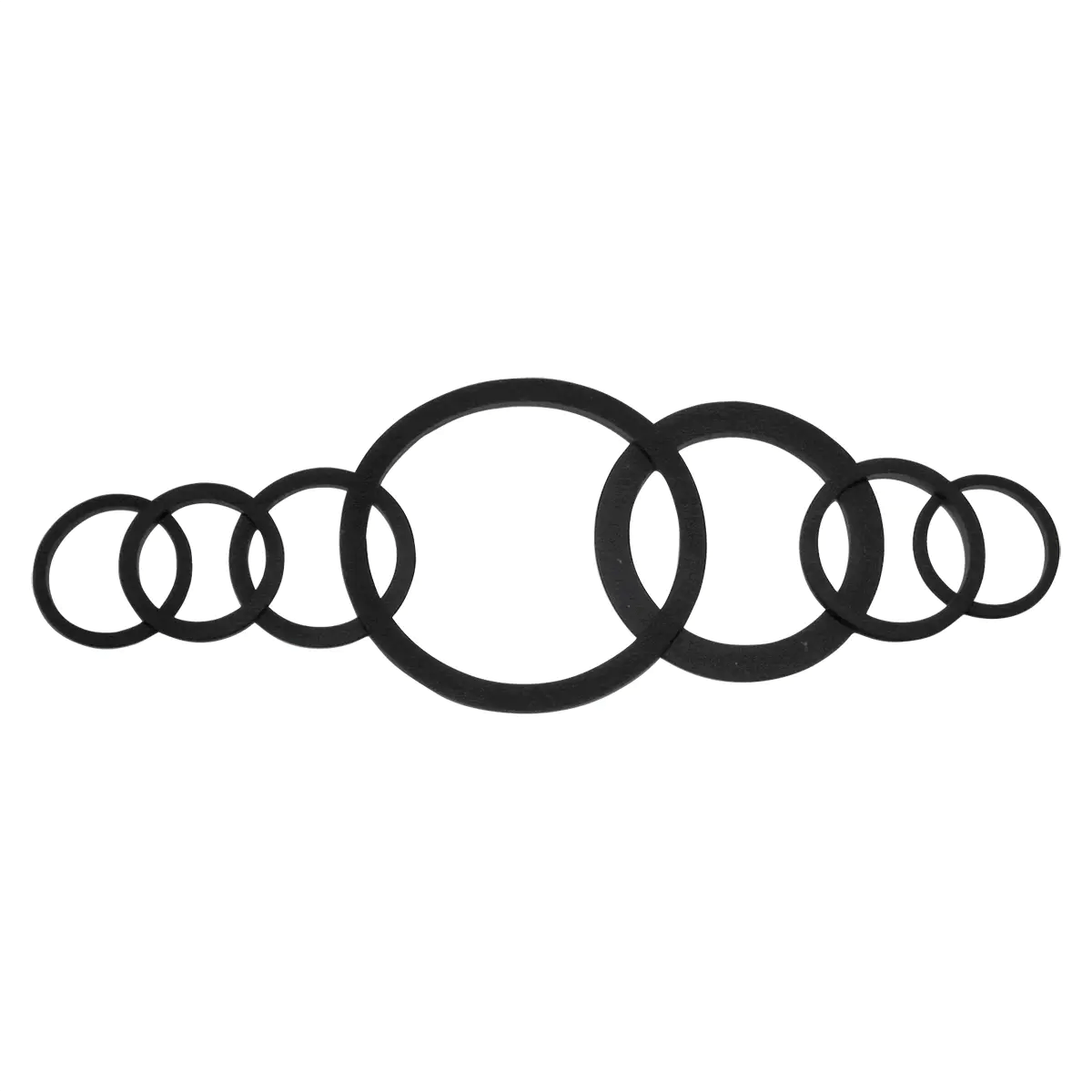

Tail Gaskets - Single or Double Jacket

Features

• High Durability: Made from high-quality materials to withstand extreme conditions.
• Versatile Sizes: Available in multiple sizes to fit various hose diameters.
• Leak-Proof Seal: Ensures a tight seal to prevent leaks and maintain pressure.
• Easy Installation: Designed for quick and straightforward installation.
• Resilient Materials: Resistant to wear, tear, and environmental factors.

How is it used?

These gaskets are used to create a tight seal between hoses and couplings. They are placed inside the coupling before attaching the hose, ensuring that the connection is secure and leak-proof. This is crucial in maintaining the integrity of the hose assembly, especially in high-pressure situations.

Who uses it?

Action Coupling and Equipment Tail Gaskets are used by:

• Firefighters: For connecting hoses in firefighting operations.
• Industrial Workers: In various industrial applications where secure hose connections are necessary.
• Maintenance Personnel: For routine maintenance and replacement of hose assemblies.

Maintenance Information

Regular inspection and maintenance are essential to ensure the gaskets remain in good condition. Check for signs of wear, cracks, or deformation and replace the gaskets as needed to maintain a secure seal. Clean the gaskets and the coupling surfaces regularly to prevent debris buildup.

What is it used with?

These gaskets are used with hoses and couplings in firefighting, industrial, and maintenance applications. They are compatible with various hose types and sizes, making them versatile for different uses.

Material

• Double Jacket Models: Made from durable rubber with a double-layered jacket for added strength and resilience.
• Single Jacket Models: Made from high-quality rubber with a single-layered jacket.

Installation Tips

1. Inspect Before Installation: Always inspect the gasket for any signs of damage or wear before installation.
2. Clean Surfaces: Ensure that both the coupling and hose surfaces are clean and free from debris to achieve a proper seal.
3. Proper Alignment: Align the gasket correctly within the coupling to avoid misalignment, which can cause leaks.
4. Secure Fit: Tighten the coupling securely to ensure the gasket is compressed evenly, creating a tight seal.
5. Regular Checks: Periodically check the connections for any signs of leaks or wear and replace the gaskets as needed.

Single vs. Double Jacket

Single Jacket Gaskets:

• Construction: Made with a single layer of material.
• Flexibility: More flexible and easier to handle.
• Weight: Lighter in weight.
• Use Case: Ideal for applications where the hose assembly is not subjected to extreme conditions or heavy wear and tear.

Double Jacket Gaskets:

• Construction: Made with two layers of material for added strength.
• Durability: More durable and resistant to abrasion and wear.
• Weight: Heavier and slightly less flexible.
• Use Case: Suitable for demanding applications, such as firefighting, where the hose assembly is exposed to harsh conditions and requires extra protection.

Why Choose One Over the Other?

• Single Jacket: Choose single jacket gaskets if you need a lighter, more flexible option for less demanding applications. They are easier to handle and install, making them suitable for general industrial use.
• Double Jacket: Opt for double jacket gaskets if you require enhanced durability and resistance to wear. They are ideal for high-pressure and high-abrasion environments, providing extra protection and a longer lifespan.

Common Applications for Each Type

Single Jacket Gaskets

Applications:

• General Industrial Use: Ideal for connecting hoses in factories, workshops, and other industrial settings where the conditions are not overly harsh.
• Agricultural Irrigation: Used in irrigation systems where flexibility and ease of handling are important.
• Temporary Connections: Suitable for temporary hose connections that require frequent assembly and disassembly.
• Light-Duty Firefighting: Can be used in less demanding firefighting scenarios where the hose is not subjected to extreme wear and tear.

Double Jacket Gaskets

Applications:

• Firefighting: Essential for firefighting hoses that need to withstand high pressure and abrasive conditions.
• Heavy Industrial Use: Used in heavy-duty industrial applications where hoses are exposed to rough handling and harsh environments.
• Construction Sites: Ideal for construction sites where hoses are frequently dragged over rough surfaces and need extra protection.
• High-Pressure Systems: Suitable for high-pressure water delivery systems where a secure and durable connection is critical.

Choosing the right type of gasket depends on the specific requirements of your application, including the level of durability needed, the environmental conditions, and the frequency of use.

How to Test Gasket Integrity

Testing the integrity of gaskets is crucial to ensure they provide a reliable seal and prevent leaks. Here are some steps to follow:

Visual Inspection

1. Check for Damage: Look for any visible signs of wear, cracks, or deformation on the gasket.
2. Surface Condition: Ensure the gasket surface is smooth and free from any debris or contaminants.
3. Uniformity: Verify that the gasket is uniform in thickness and shape.

Compression Test

1. Install the Gasket: Place the gasket in the coupling and tighten it as you would during regular use.
2. Apply Pressure: Gradually apply pressure to the hose assembly.
3. Observe for Leaks: Check for any signs of leaks around the gasket. If there are no leaks, the gasket is likely in good condition.

Pressure Test

1. Set Up: Connect the hose assembly with the gasket to a pressure source.
2. Increase Pressure: Gradually increase the pressure to the maximum operating level.
3. Monitor: Observe the gasket for any signs of leakage or deformation under pressure.
4. Hold Pressure: Maintain the pressure for a set period (e.g., 10-15 minutes) to ensure the gasket can sustain the pressure without failing.

Functional Test

1. Operational Check: Use the gasket in its intended application and monitor its performance.
2. Check for Consistency: Ensure the gasket maintains a consistent seal during regular operation.
3. Periodic Inspection: Regularly inspect the gasket during use to catch any early signs of wear or failure.

Replacement Criteria

• Visible Damage: Replace the gasket if you notice any cracks, tears, or significant wear.
• Leakage: If the gasket fails to maintain a leak-proof seal during testing, it should be replaced.
• Deformation: Replace the gasket if it becomes deformed or loses its shape.
