Tactical Pumper™ - Ford F550
SKU#: Ford-F550

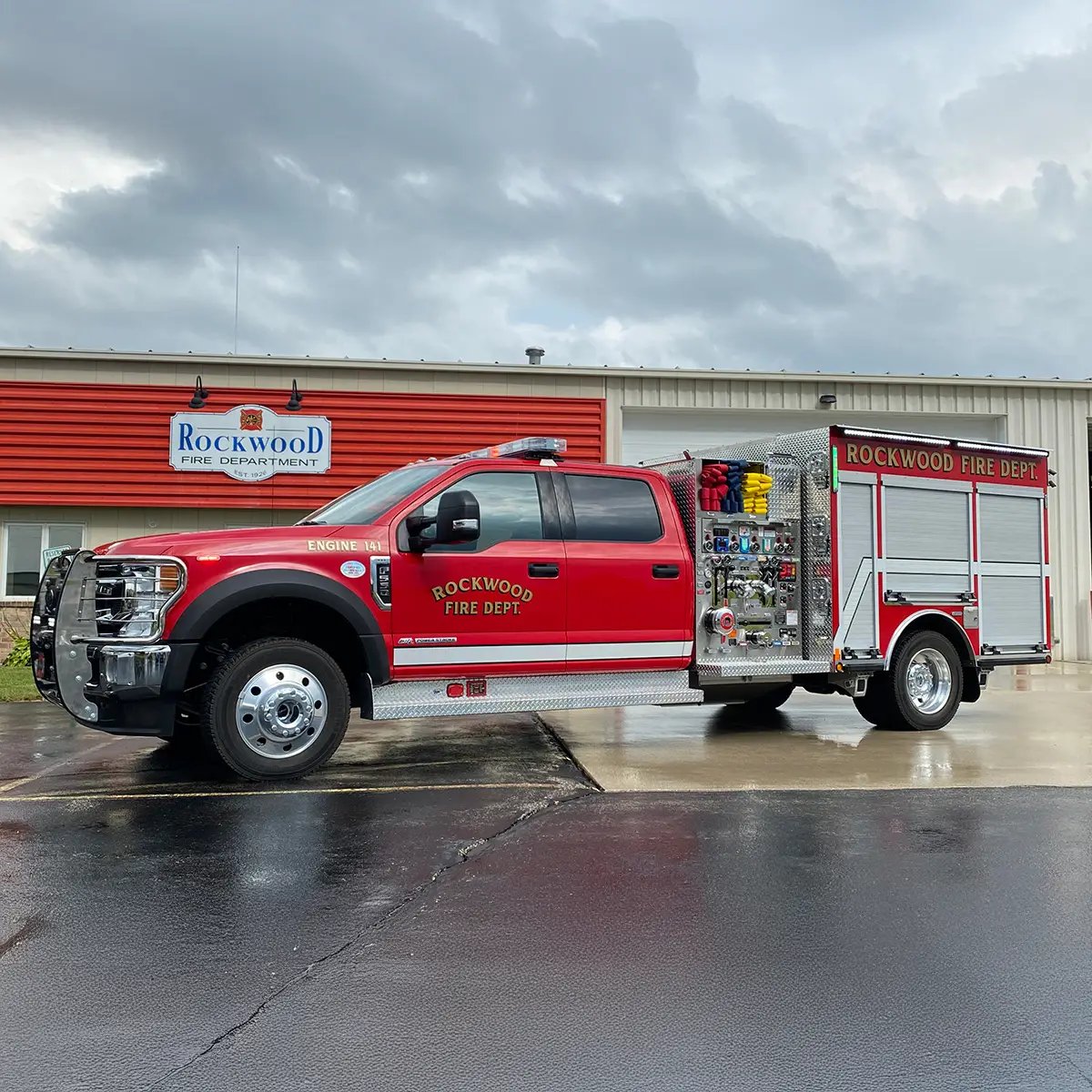

Darley’s Tactical Pumper™ on the Ford F550 chassis is designed for rapid response and maneuverability in challenging environments where larger pumpers can’t reach. This NFPA-compliant vehicle features a powerful 6.7L diesel engine, “shift on the fly” 4-wheel drive, and seating for four, including two SCBA seats. Equipped with a Darley PSMC midship pump rated at 1500 gpm, a 300-gallon water tank, and a FoamPro 2001 foam proportioner, it ensures efficient firefighting capabilities. The Tactical Pumper™ also boasts low maintenance costs, ease of driver training, and multiple storage compartments, making it an ideal choice for fire departments seeking reliability and performance.
Contact Us for Price
Features
- NFPA compliant
- The rear receiver hitch has trailer wiring and optional portable winch power leads.
- Includes a 2-1/2" Darley AutoFill™ - Once connected to a pressurized source of water, this direct fill feature keeps the water tank between 1/2 and "FULL" automatically
- Low cost of maintenance
- Ease of driver training - Drivers report having greater confidence when driving this vehicle over larger trucks
Chassis
- Ford F550
- 4 door 4×4 chassis (203″ wheelbase, 84″ CA)
- 6.7 L diesel engine rated at 330 hp
- “Shift on the fly” 4-wheel drive
- Automatic transmission
- Seating for four with two SCBA seats (Both rear SCBA seats)
- Battery conditioner with AutoEject™
- Polished aluminum wheels
- Optional Super Single Tire & Wheel Package available

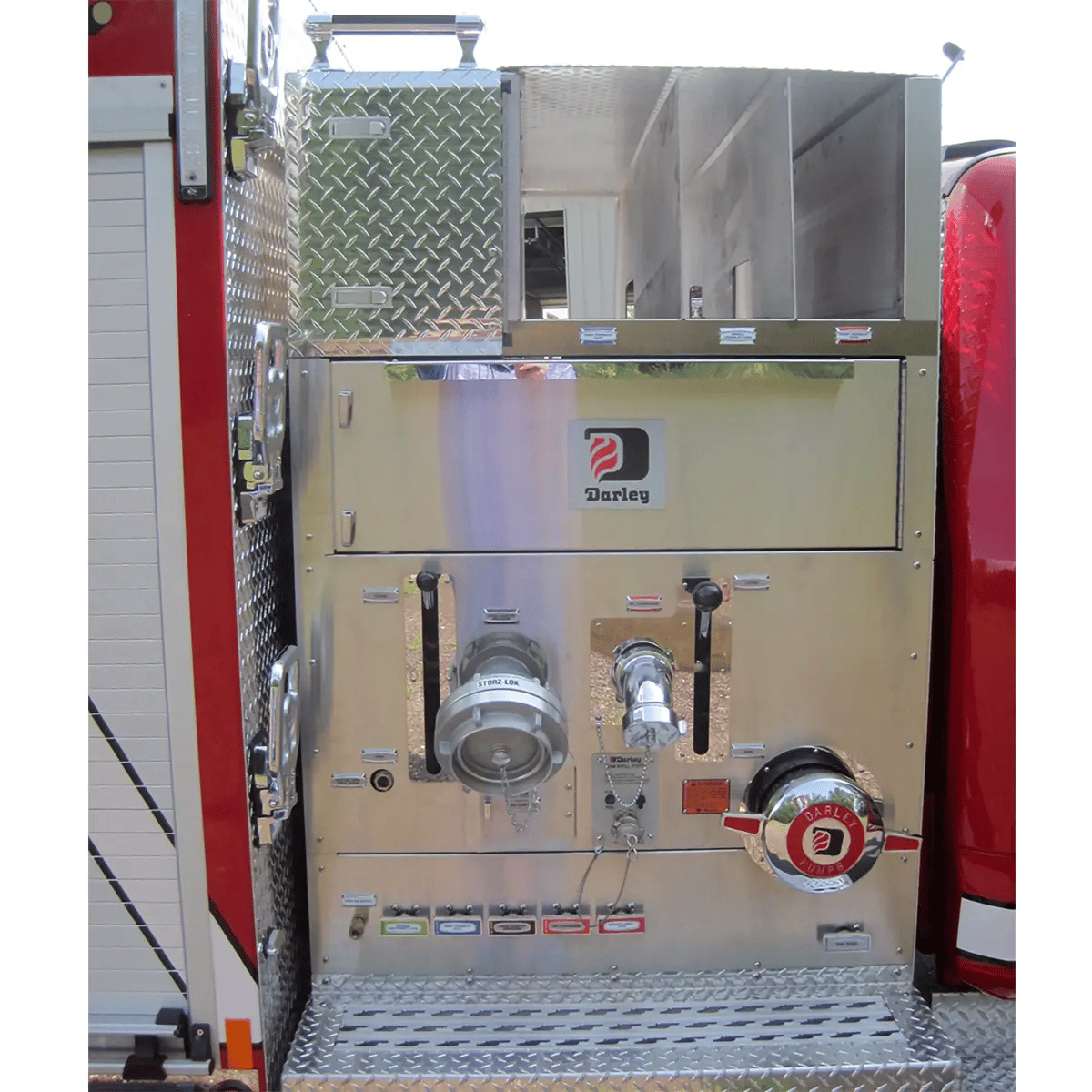

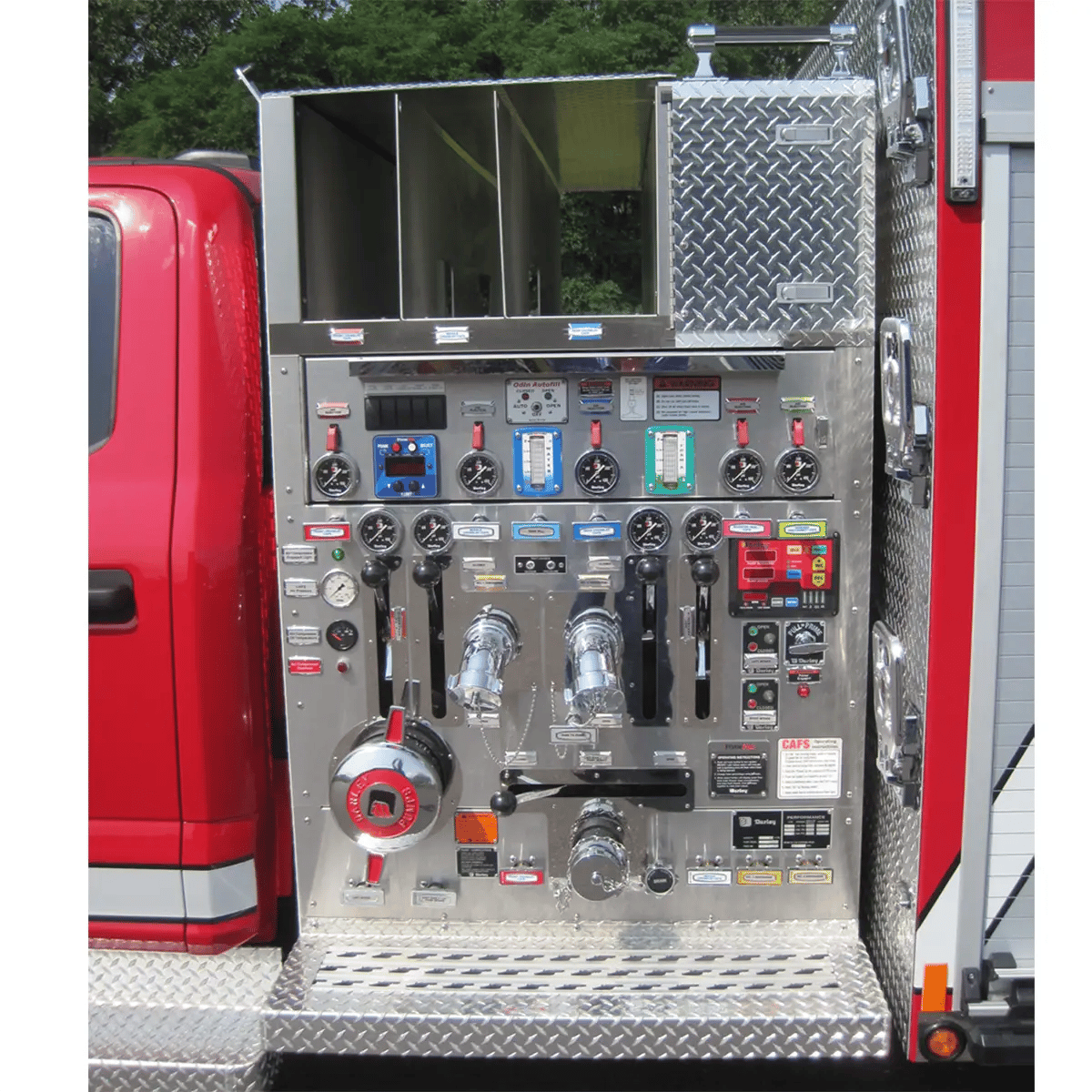

Fire Pump
- Darley model PSMC midship pump with a UL rating of 1500 gpm
- at 150 psi
- Gear-driven 120 cfm rotary screw air compressor for the AutoCAFS® pumping system with a FoamPro 2001 foam proportioned
- All stainless steel plumbing package
- Maintenance-free, reliable mechanical seal
- 3 CAFS crosslay discharges (2 – 1-1/2″ NSTM and 1 – 2-1/2″ NSTM)
- Rear preconnect and/or deck gun (Optional)

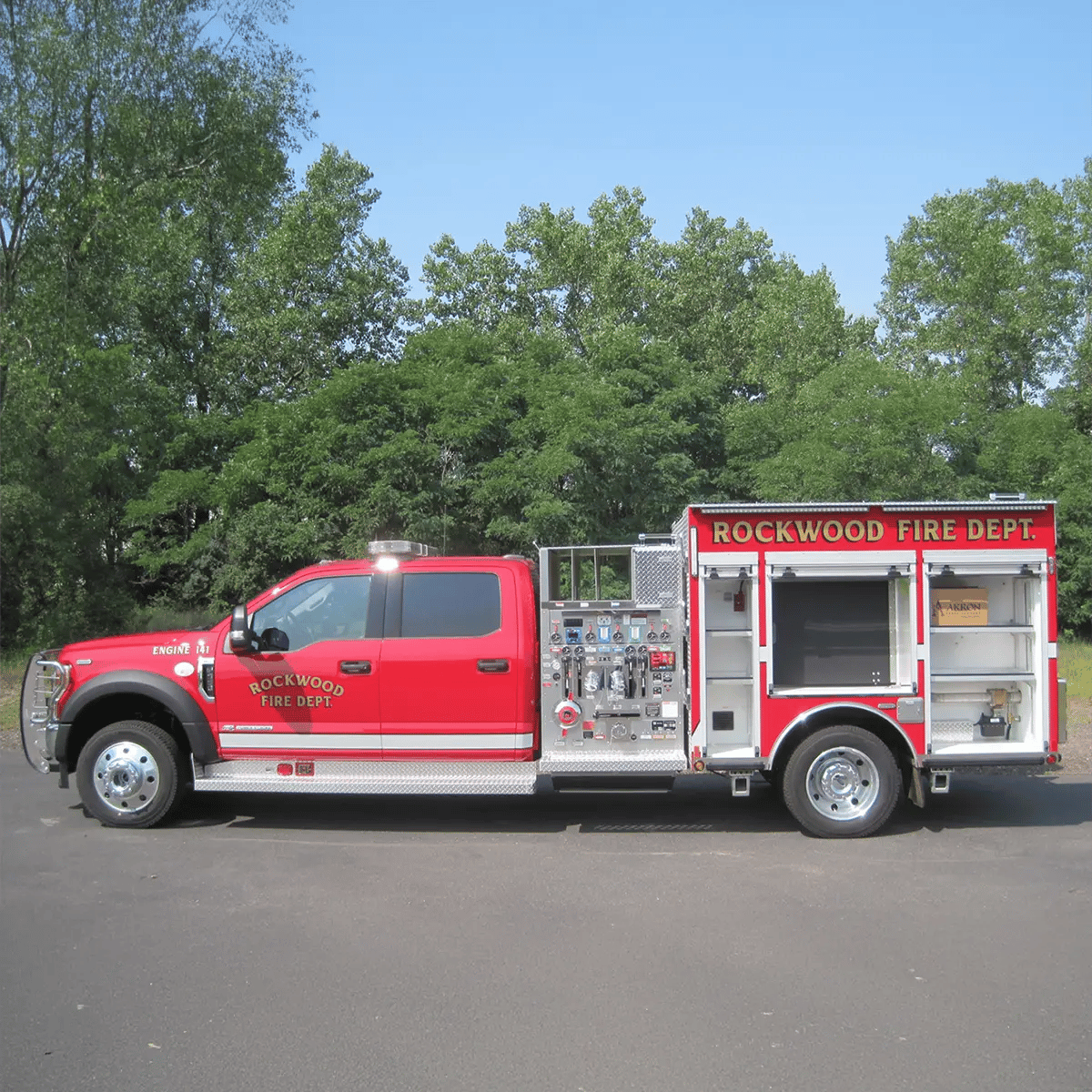

Body
- PolyBilt™ copolymer
- Integral 300-gallon water tank (25-gallon foam tank)

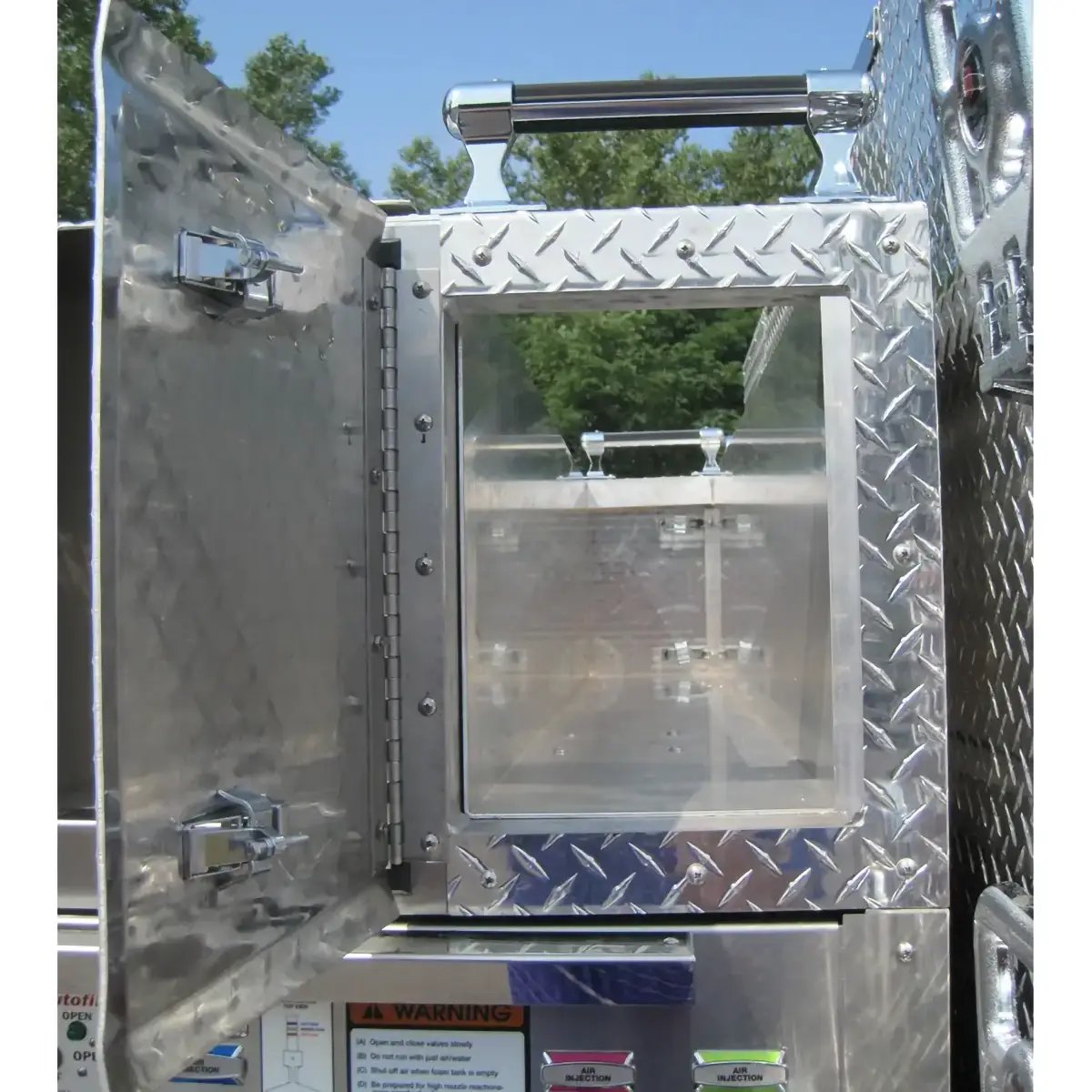

- 7 large compartments with roll-up doors
- Enclosed ladder and suction hose storage

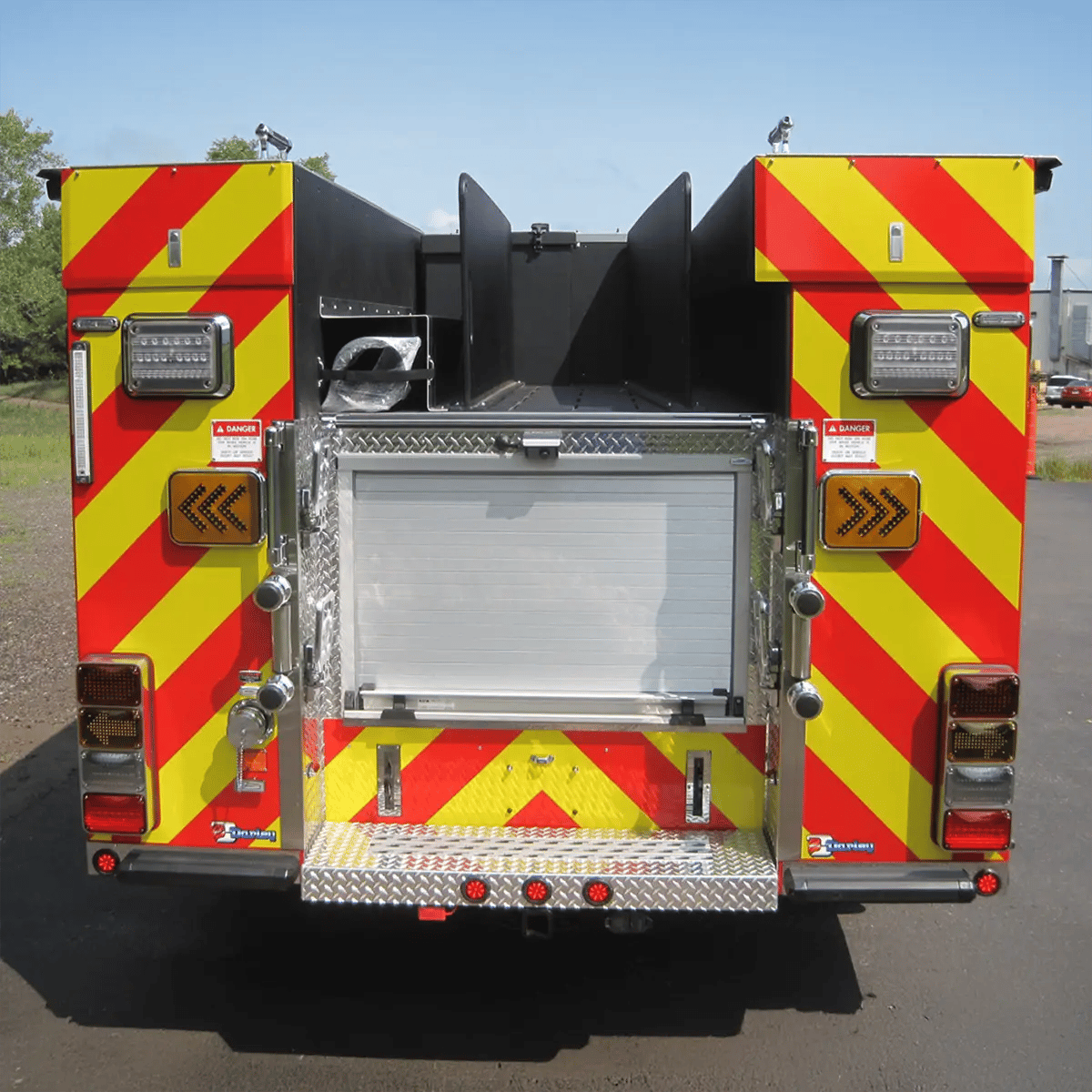

- Rear compartment (Can be used for optional 150′ booster reel)
