Swing Check Valve
Swing Check Valve prevents backflow in plumbing systems with a durable brass body and self-actuated swinging gate.
Get it while supplies last!
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

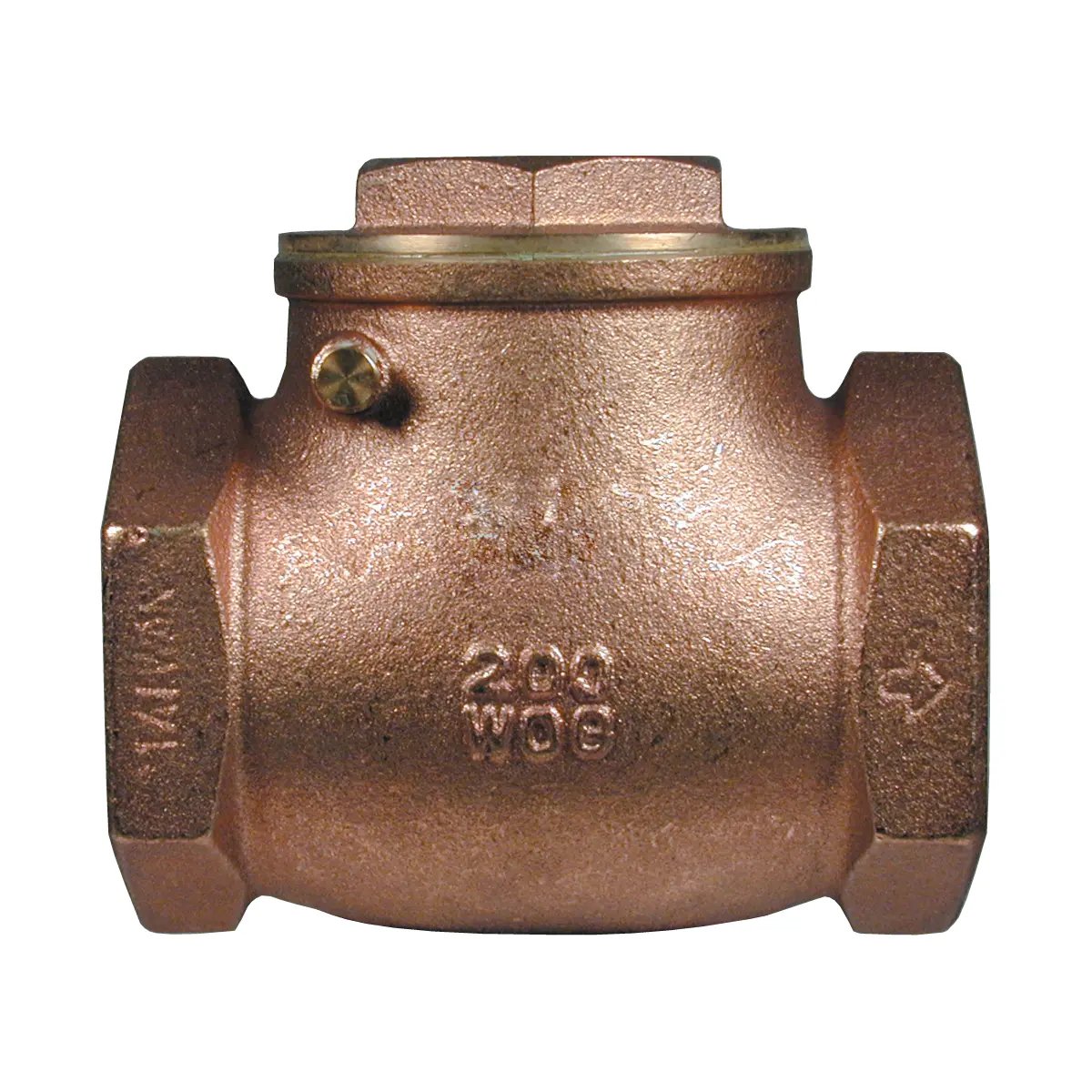

The Swing Check Valve is designed to prevent backflow in plumbing systems, making it an essential component for both residential and commercial applications. Constructed from durable brass, this valve features a swinging gate mechanism that opens to allow water flow and closes to prevent reverse flow. An arrow molded onto the side of the valve ensures correct installation and operation.
Features
- Solid Brass Construction: Ensures durability and longevity.
- Swinging Gate Mechanism: Opens with water flow and shuts to prevent backflow.
- Directional Arrow: Molded onto the valve for proper installation.
- Self-Actuated: Operates automatically without the need for manual intervention.
- Threaded Ends: Complies with ANSI B1.20.1 standards for secure connections.
- Versatile Use: Suitable for water, oil, and gas applications with a maximum pressure of 200 PSI.
Usage
The Swing Check Valve is used to prevent backflow in plumbing systems, ensuring that water flows in the correct direction. It is ideal for both residential and commercial settings, providing reliable performance in potable water systems, heating systems, and other fluid handling applications.
Who Uses It?
This valve is commonly used by plumbers, contractors, and maintenance professionals who require a reliable solution to prevent backflow in various plumbing systems. It is suitable for both residential homeowners and commercial property managers.
Maintenance Information
Regular inspection is recommended to ensure the valve is functioning correctly. Check for any signs of wear or damage and replace the valve if necessary. Ensure that the valve is free from debris and sediment that could affect its operation.
Storage Information
Store the Swing Check Valve in a dry, cool place to prevent corrosion and damage. Keep it away from direct sunlight and extreme temperatures. Ensure that the valve is stored in a clean environment to avoid contamination.
What's Included?
- 1 x Swing Check Valve (available in 1-1/2" or 2-1/2" sizes)
- Inlet Diameter: 1-1/2" or 2-1/2"
- Inlet Connection: FIP
- Outlet Diameter: 1-1/2" or 2-1/2"
- Outlet Connection: FIP
- Product Length: 3.15"
- Product Height: 2.20"
- Product Width: 3.50"
- Product Weight: 1.4990 lbs
- Minimum Pressure: 8 PSI
- Working Pressure: 170 PSI
- Maximum Pressure: 200 PSI
- Minimum Temperature: 33ºF
- Working Temperature: 72ºF
- Maximum Temperature: 190ºF
- Unit of Measure: EA
- Prop65 ID: Lead and Lead Compounds
- Product Type: Check Valves
- Product Material: Brass
- Standards: NSF/ANSI 61, AB 1953, MSS-SP80
