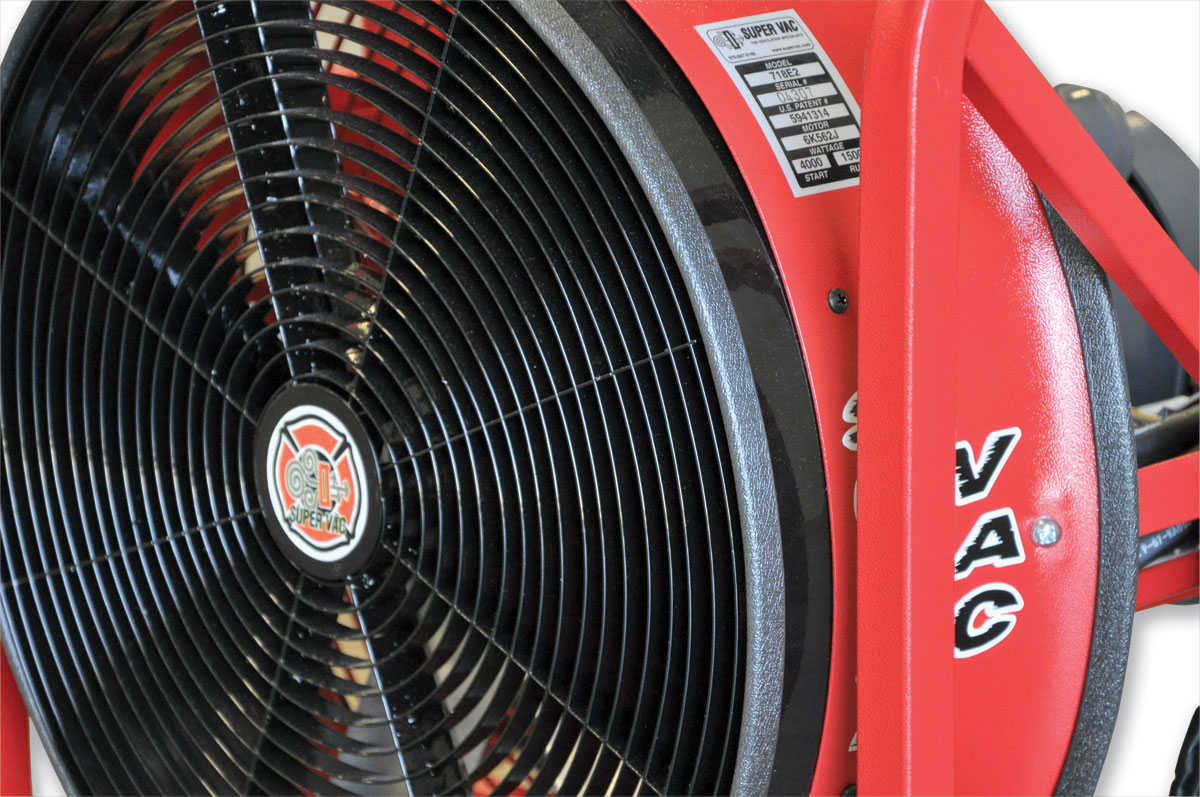

Stream Shaper Guard

Features

• Narrower Air Stream: Produces a more focused air stream, creating higher pressure in front of the shroud.
• Versatile Sizes: Available in 16″, 18″, 20″, 24″, and 30″ sizes to fit different Super Vac PPV fans.
• Enhanced Airflow Control: Ideal for precise airflow management in complex environments.
• Flexible Placement: Can be set farther from the building entrance, typically around 18 feet, allowing personnel to enter and exit the building easily.

How is it used?

The Stream Shaper Guard is used to direct and control the airflow produced by the Super Vac PPV fans. By creating a narrower air stream, it increases the pressure in front of the shroud, making it ideal for environments that require precise airflow management. This is particularly useful in high-rise buildings and floorplans with numerous small rooms.

Who uses it?

The StreamShaper Guard is primarily used by fire departments and emergency response teams. These professionals rely on the guard to manage airflow effectively during ventilation operations, ensuring that smoke and heat are efficiently expelled from buildings.

Installation Instructions for Super Vac Stream Shaper Guard

Tools Needed

• Wrenches: Various sizes depending on the bolts used.
• Screwdrivers: Both flathead and Phillips.
• Thread Sealant or Teflon Tape: To ensure a leak-free connection.
• Protective Gloves: For safety during installation.
• Cleaning Cloth: To clean the area before installation.

Installation Steps

• Preparation
  • Ensure the fan is turned off and disconnected from any power source.
  • Clean the area around the shroud where the Stream Shaper Guard will be installed.
• Remove the Old Guard
  • If replacing an existing guard, use the appropriate wrenches and screwdrivers to remove the bolts and screws holding the old guard in place.
  • Carefully remove the old guard and set it aside.
• Install the New Stream Shaper Guard
  • Align the new Stream Shaper Guard with the mounting points on the fan shroud.
  • Insert the bolts and screws through the guard and into the mounting points.
  • Use wrenches and screwdrivers to tighten the bolts and screws securely. Be careful not to over-tighten, as this could damage the threads.
• Seal the Connections
  • Apply thread sealant or Teflon tape to any threaded connections to ensure a leak-free installation.
• Final Checks
  • Ensure all bolts and screws are tightened securely.
  • Check that the guard is properly aligned and does not obstruct the fan blades.
  • Reconnect the fan to the power source and test it to ensure the guard is functioning correctly.

Maintenance Information

Regular maintenance of the Stream Shaper Guard involves:

• Inspection: Regularly check for any signs of wear or damage.
• Cleaning: Clean the guard to remove any debris or buildup that could affect performance.
• Replacement: Replace the guard if it shows significant signs of wear or damage to ensure optimal performance.

What is it used with?

The StreamShaper Guard is used with Super Vac PPV fans, specifically the Valor battery and electric models, as well as the 7 Series gas and electric models. It enhances the performance of these fans by providing more precise airflow control.

Real-Life Examples

• High-Rise Buildings: In high-rise buildings, the StreamShaper Guard helps direct airflow to specific areas, ensuring that smoke and heat are expelled efficiently.
• Complex Floorplans: In buildings with numerous small rooms, the guard allows for precise airflow management, making it easier to ventilate specific areas without affecting others.
• Emergency Situations: During fire emergencies, the guard can be set farther from the building entrance, providing a clear path for personnel to enter and exit while maintaining effective ventilation.
