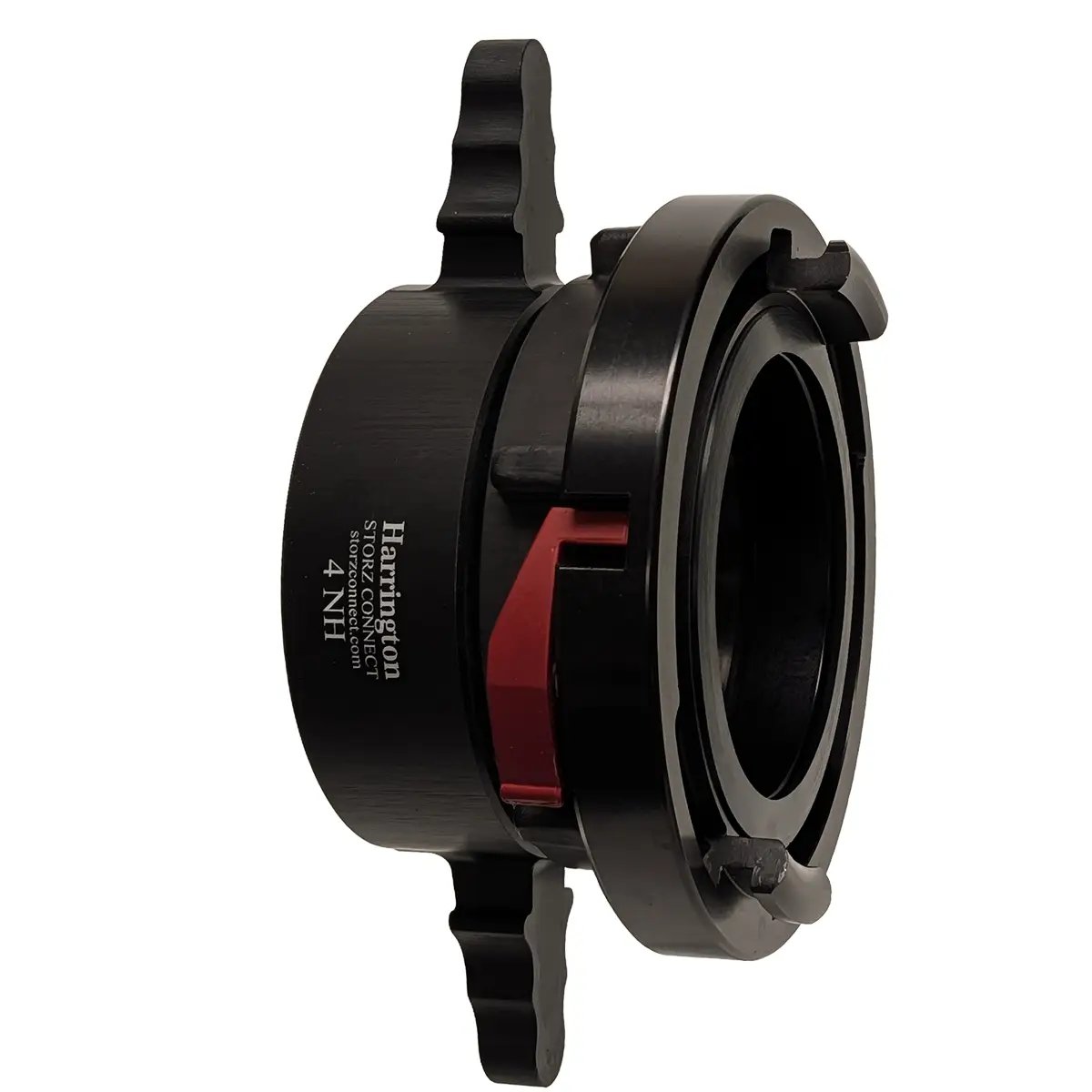

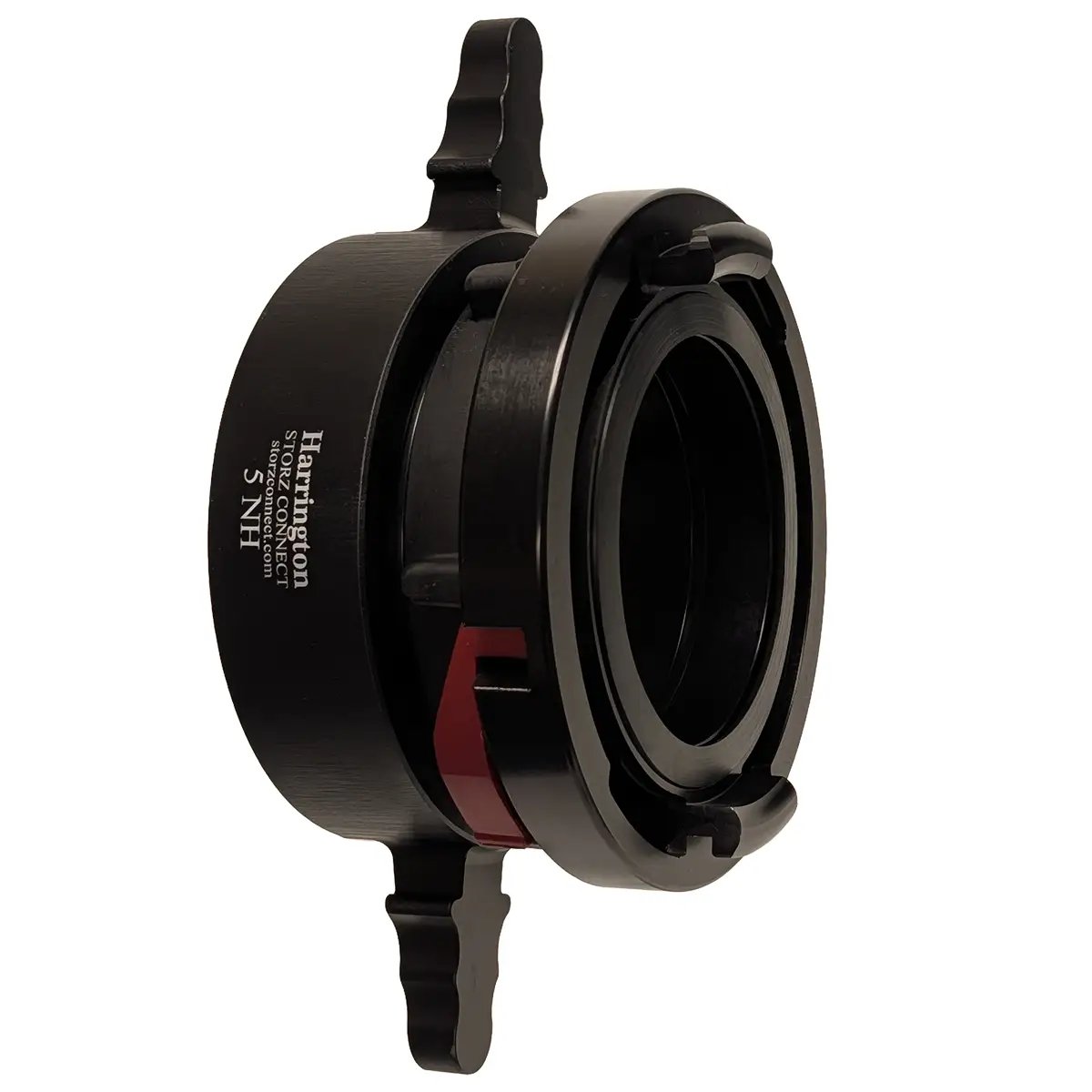

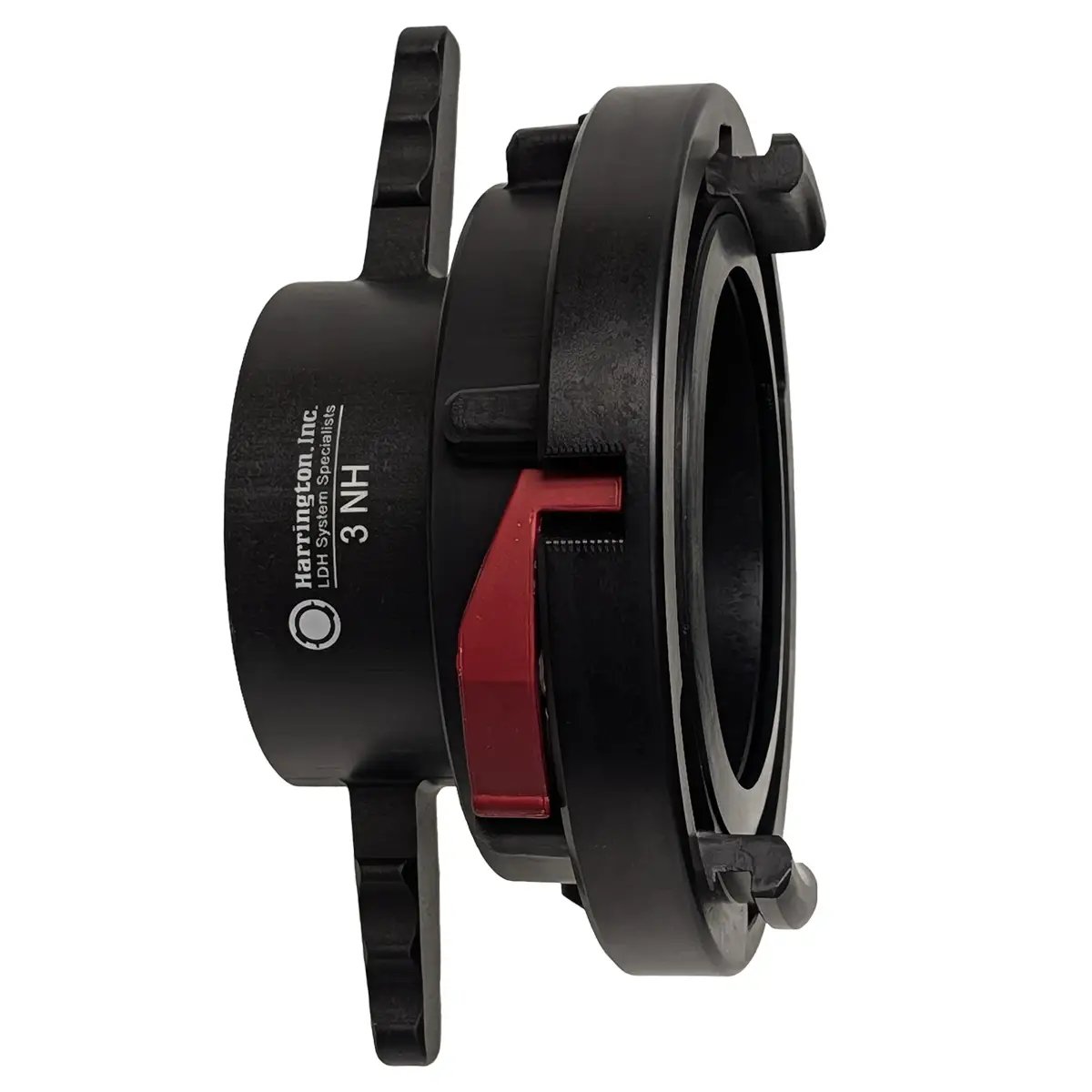

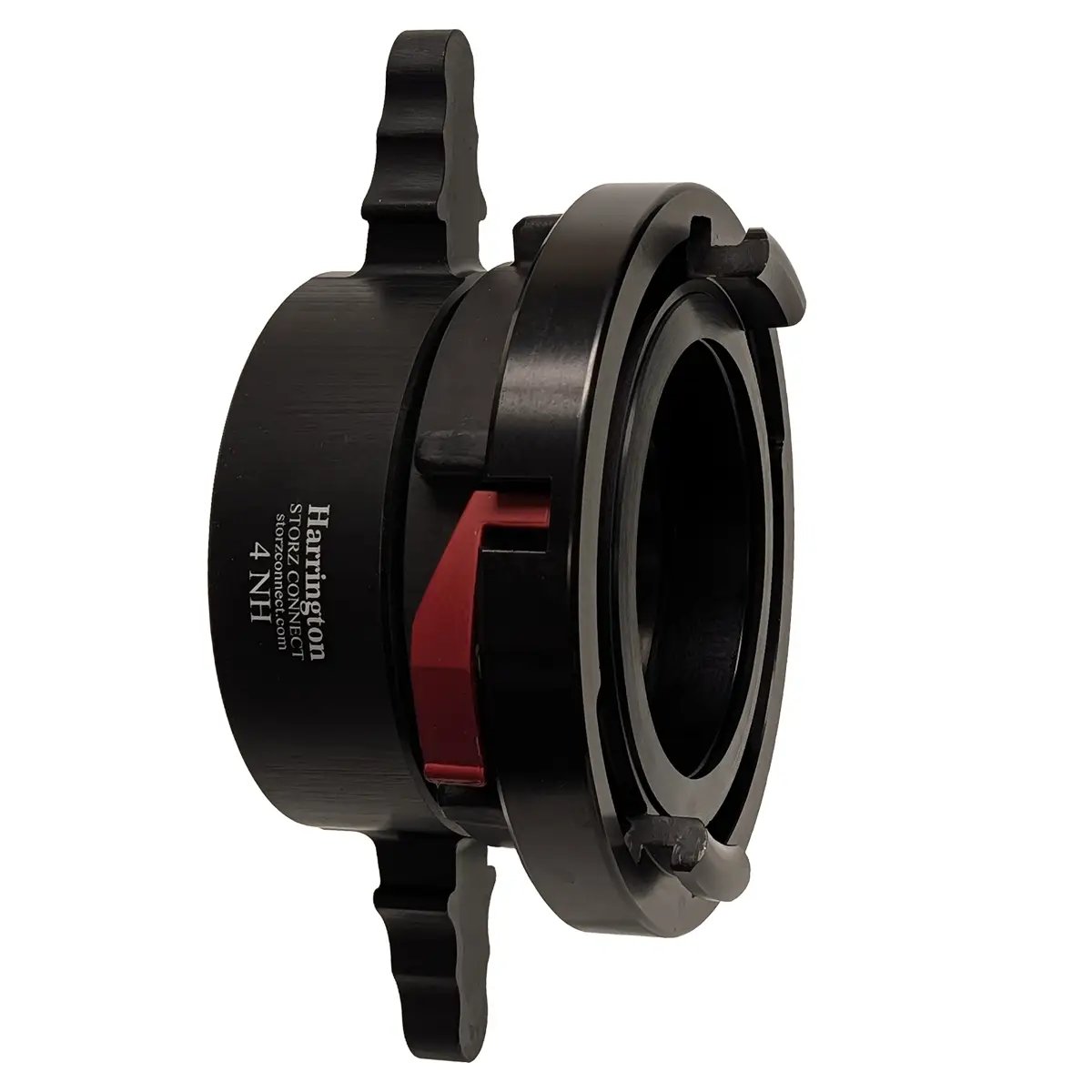

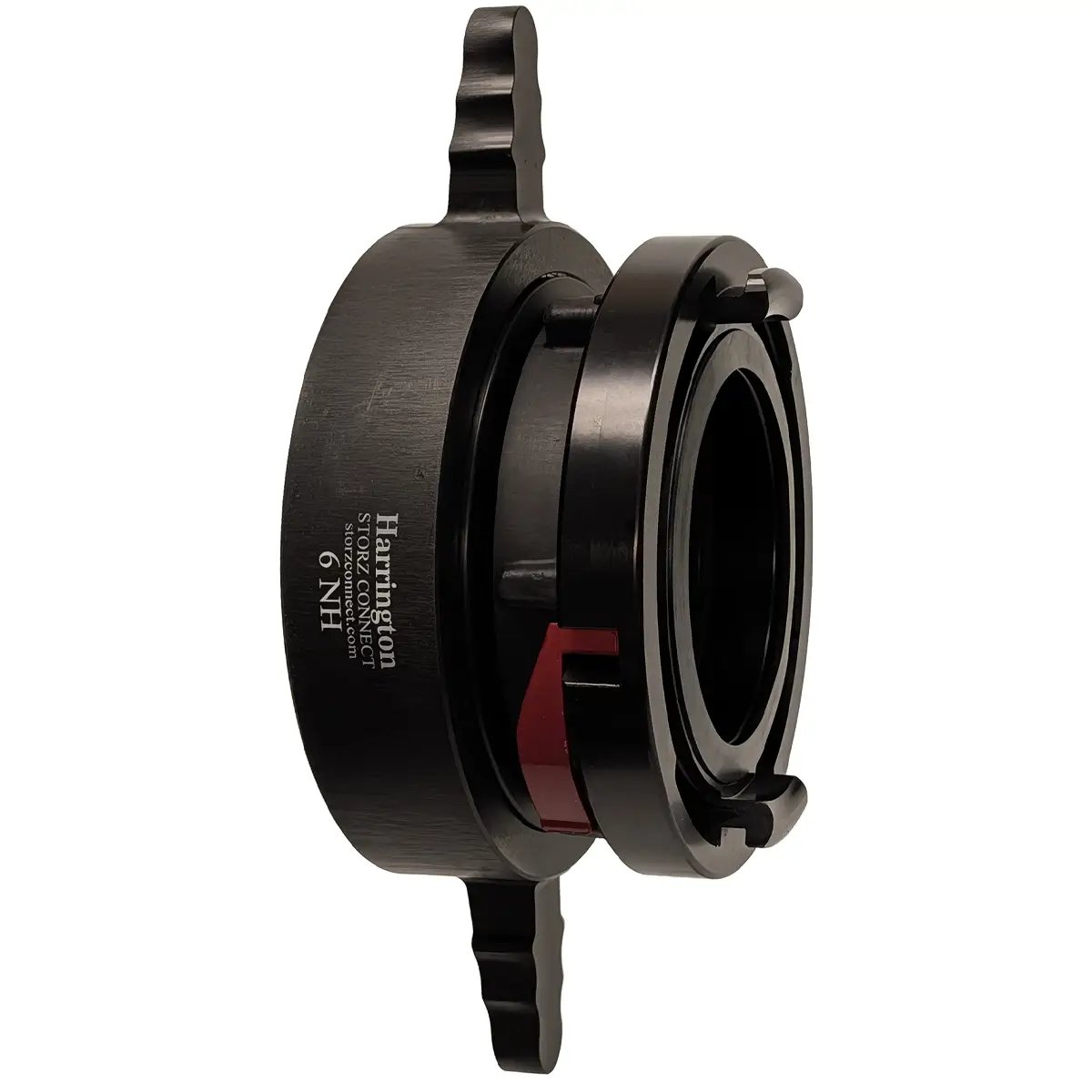

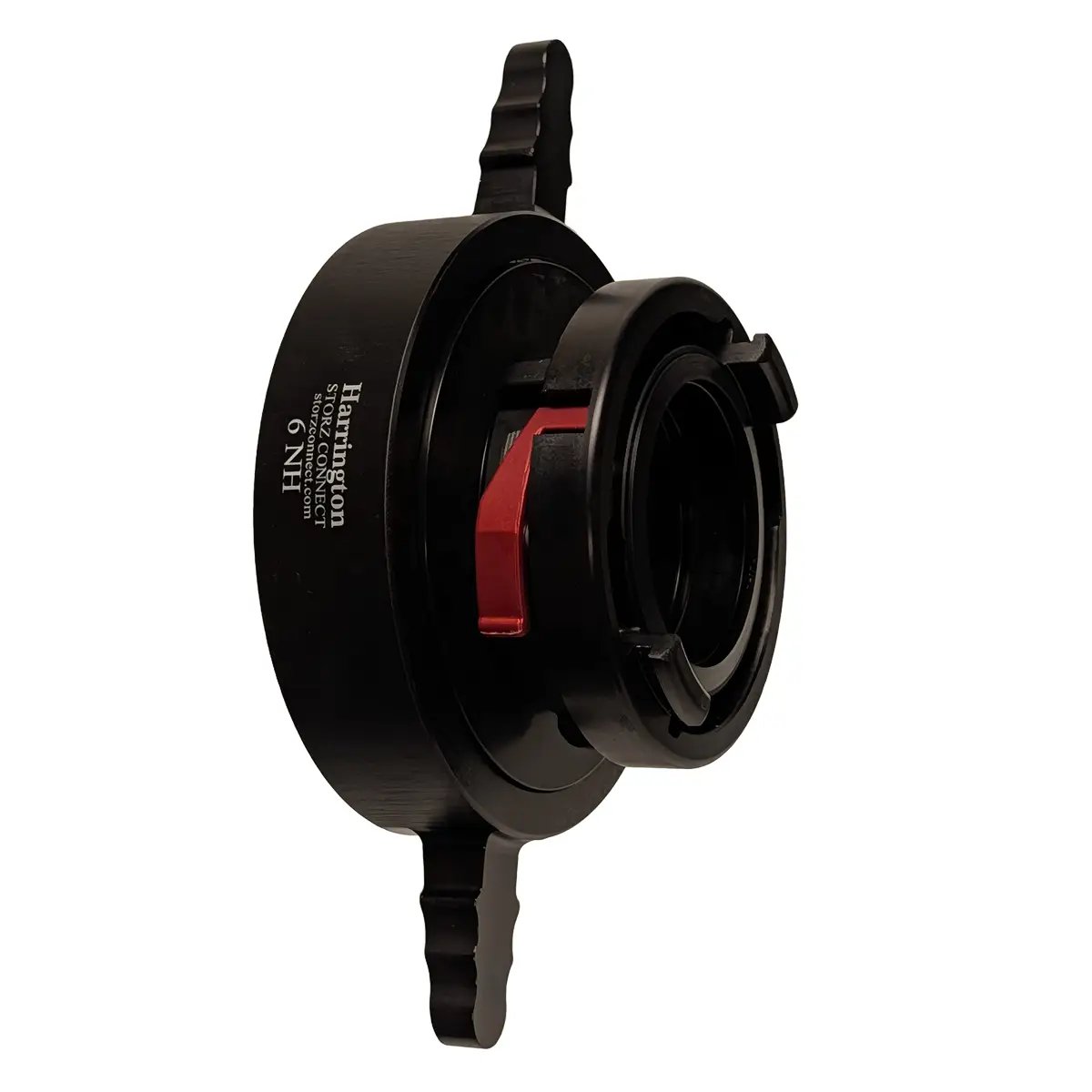

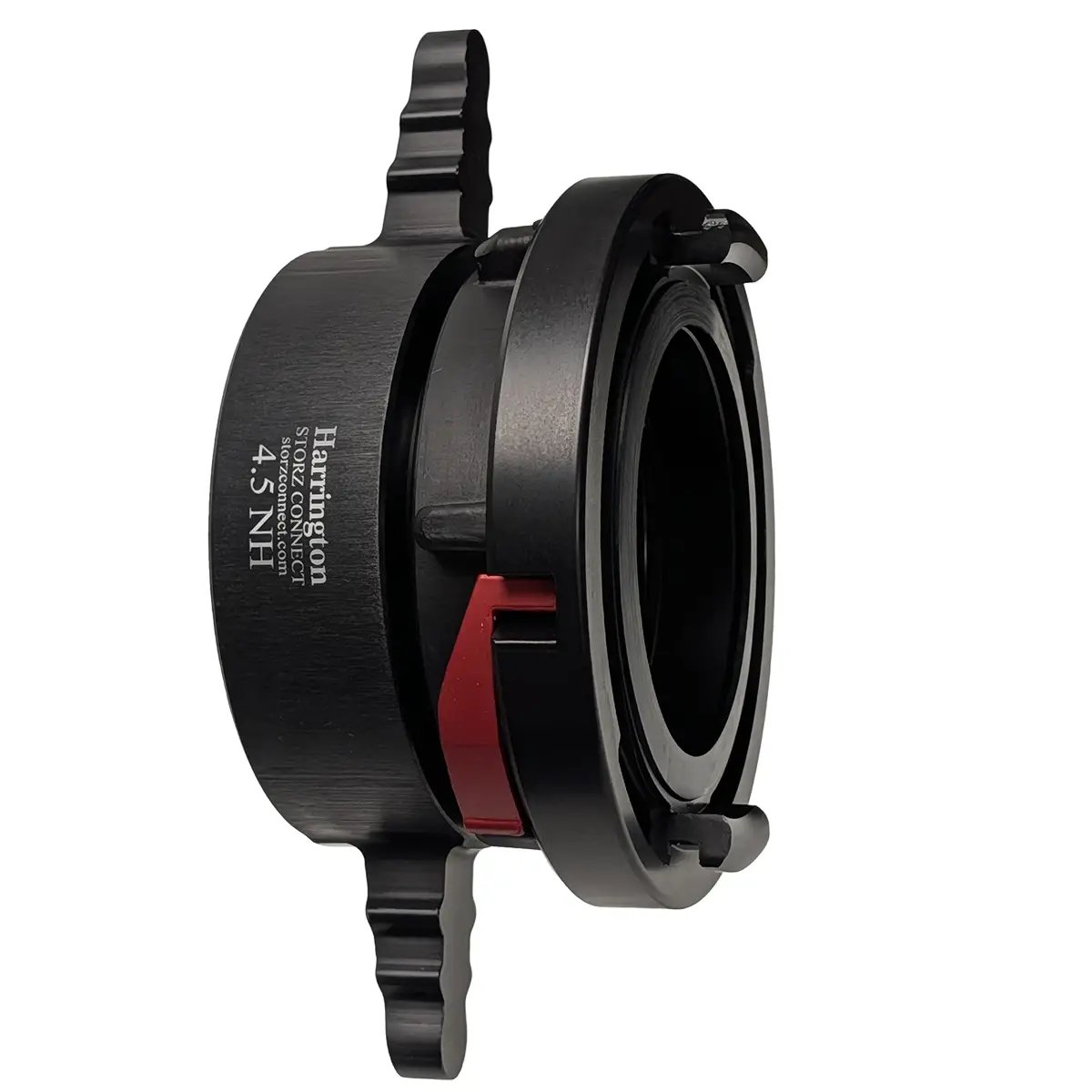

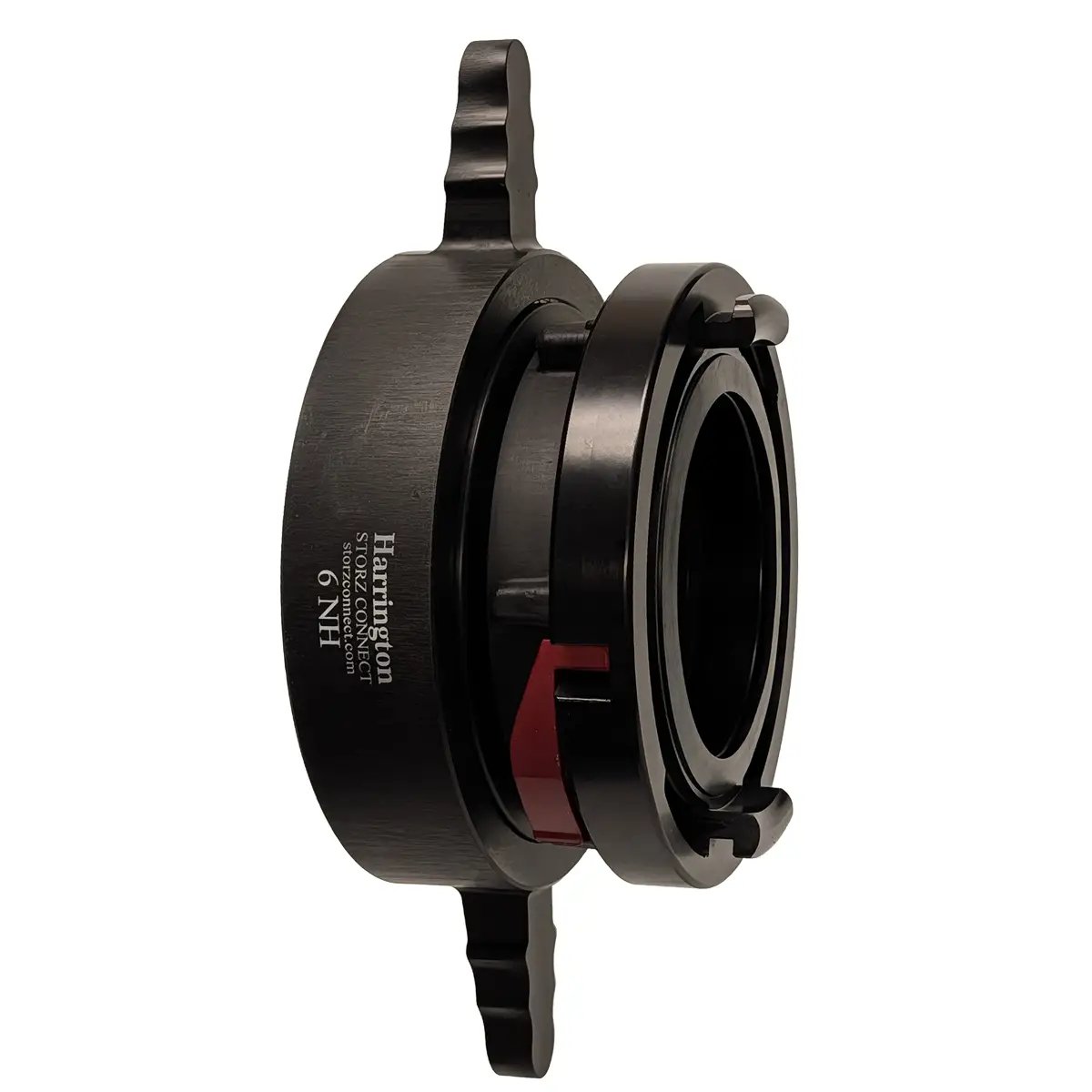

Storz to Long Handle Swivel Female

Features

• Rated Pressure: Tested to withstand up to 250 PSI.
• Forged Storz Heads: Provides maximum strength and durability, eliminating hidden imperfections found in cast couplings.
• Female Swivel Long Handle: Ensures easy and secure attachment, enhancing usability in critical situations.
• Material: Made from high-strength forged aluminum for superior durability and corrosion resistance

What is it?

The HSFS- Storz Adapter is a specialized coupling device used to connect hoses and firefighting equipment. It features a female swivel long handle for ease of use and secure attachment.

How is it used?

• Inspect the Adapter: Before use, check the adapter for any signs of damage or wear. Ensure the swivel mechanism operates smoothly.
• Attach to Hose or Equipment:
  • Identify the Male Storz Fitting: Locate the male Storz fitting on the hose or equipment you wish to connect.
  • Align the Adapter: Position the female swivel end of the adapter over the male Storz fitting.
  • Engage the Connection: Twist the adapter’s long handle to securely engage the Storz heads. Ensure the connection is tight and leak-proof.
• Secure the Connection: Once attached, give the handle a final twist to ensure the connection is secure. The long handle provides leverage for a tight fit.
• Check for Leaks: After connecting, inspect the joint for any leaks. If necessary, tighten the connection further.
• Use in Operation: With the adapter securely in place, proceed with your firefighting or emergency operation. The adapter ensures a reliable connection under high-pressure conditions.

Post-Use Maintenance:

• Disconnect: After use, carefully disconnect the adapter by reversing the attachment process.
• Clean: Clean the adapter to remove any debris or contaminants.
• Inspect: Check for any signs of wear or damage.
• Store: Store the adapter in a clean, dry environment.

Who uses it?

These adapters are primarily used by firefighters, emergency responders, and professionals in the firefighting industry. They are essential for ensuring quick and reliable connections during firefighting operations.

Maintenance Information

Regular maintenance includes inspecting the adapter for any signs of wear or damage, cleaning it after use to prevent corrosion, and ensuring the swivel mechanism operates smoothly. Periodic pressure testing is recommended to ensure the adapter maintains its rated pressure capacity.

What is it used with?

The HSFS- Storz Adapter is used with firefighting hoses, pumps, and other equipment that require secure and reliable connections. It is compatible with standard Storz fittings.

Material

The adapter is made from high-strength forged aluminum, providing excellent durability and resistance to corrosion.

Temperature Range

• Low Temperature: At -20°F (-29°C), the adapter remains operational without becoming brittle or losing its structural integrity. This is crucial for firefighting operations in cold environments.
• High Temperature: At 200°F (93°C), the adapter can withstand high heat without deforming or losing its strength. This is important during firefighting operations where equipment may be exposed to intense heat.

Storage Requirements

1. Clean and Dry Environment: Store the adapters in a clean, dry area to prevent corrosion and contamination. Avoid exposure to moisture and dirt.
2. Temperature Control: Maintain a stable temperature within the operational range (-20°F to 200°F). Avoid extreme temperature fluctuations that could affect the material integrity.
3. Avoid Direct Sunlight: Prolonged exposure to direct sunlight can degrade the anodized finish and affect the adapter's durability.
4. Protect from Physical Damage: Store the adapters in a secure location where they are not at risk of being dropped or crushed. Use protective cases or racks if available.
5. Regular Inspection: Periodically inspect the adapters for any signs of wear, damage, or corrosion. Address any issues promptly to ensure they remain in good working condition.
6. Proper Handling: Handle the adapters with care, especially the swivel mechanism, to prevent unnecessary wear and tear.

Recommended Lubricants

1. Silicone-Based Lubricant: Ideal for metal parts, silicone lubricants provide smooth operation without attracting dust or dirt.
2. PTFE (Teflon) Lubricant: Known for its excellent lubricating properties, PTFE lubricants reduce friction and wear on moving parts.
3. Graphite Lubricant: Provides effective lubrication for metal components and is resistant to high temperatures.

Note: WD-40 can be used as a temporary lubricant, but it's not the best choice for long-term lubrication

Application Tips

• Clean the Surface: Ensure the adapter is clean and dry before applying the lubricant.
• Apply Sparingly: Use a small amount of lubricant to avoid excess buildup.
• Focus on Moving Parts: Apply the lubricant to the swivel mechanism and any other moving parts.
