Storz Blind Cap

Features

• Forged Aluminum Construction: Provides strength and durability for fire service and industrial water-handling applications.
• Secure Storz Connection: Attaches to a compatible Storz coupling to close an unused connection.
• Connection Protection: Helps prevent dirt, debris, moisture, and other contaminants from entering an unused connection.
• Multiple Storz Sizes: Available in 2.5", 3", 4", 5", and 6" configurations.
• Two Finish Options: Select models are available with a clear anodized or black anodized finish.
• Attached Retention Device: Offered with a chain or reflective cable, depending on the model.
• Reflective Cable Options: The 4", 5", and 6" configurations include a reflective cable for increased visibility and cap retention.
• Chain Options: The 2.5" and 3" configurations include a chain to help keep the blind cap attached to the equipment when removed.
• Application Versatility: Suitable for compatible fire hose, hydrant, water supply, and industrial water-system connections.

What Is It?

The Storz Blind Cap is a closure designed for an unused Storz connection. The cap engages with a compatible Storz coupling to cover the connection opening when the outlet or inlet is not in use.

The blind cap helps protect the connection from environmental exposure and prevents debris and moisture from entering the opening during storage, transport, or operation.

How Is It Used?

Align the blind cap with a compatible Storz connection, insert the cap, and rotate the cap until the Storz lugs are fully engaged.

When the connection is needed, rotate and remove the blind cap. The attached chain or reflective cable helps keep the cap secured to the equipment while the cap is not installed.

Always make sure the cap is properly seated before placing connected equipment into service.

Who Uses It?

Storz blind caps may be used by:

• Fire departments
• Municipal water departments
• Emergency response organizations
• Industrial facilities
• Fire apparatus operators
• Water supply personnel
• Equipment maintenance departments
• Facilities using Storz-connected water systems

Maintenance Information

• Inspect the blind cap before and after use.
• Remove dirt, debris, and moisture from the cap and mating connection.
• Inspect the Storz lugs and sealing surfaces for wear, deformation, or damage.
• Check the chain or reflective cable for damage and verify that the attachment remains secure.
• Examine the anodized finish for excessive wear, corrosion, or other deterioration.
• Do not use a blind cap that is cracked, bent, excessively worn, or unable to connect securely.
• Store the blind cap in a clean, dry location when it is not installed.
• Follow applicable departmental inspection and maintenance procedures.

What Is It Used With?

The Storz Blind Cap is used with a correspondingly sized Storz connection. Depending on the system and installation, compatible equipment may include:

• Storz hose couplings
• Fire hose connections
• Hydrant connections
• Fire apparatus connections
• Large-diameter hose systems
• Water supply equipment
• Industrial water-handling systems
• Note: The blind cap size must match the Storz size of the connection.

Material

• Body Material: Forged aluminum
• Finish: Clear anodized or black anodized, depending on the selected model
• Retention Attachment: Chain or reflective cable, depending on the selected model

Model Differences

The main differences between the models are the Storz connection size, finish, and retention attachment.

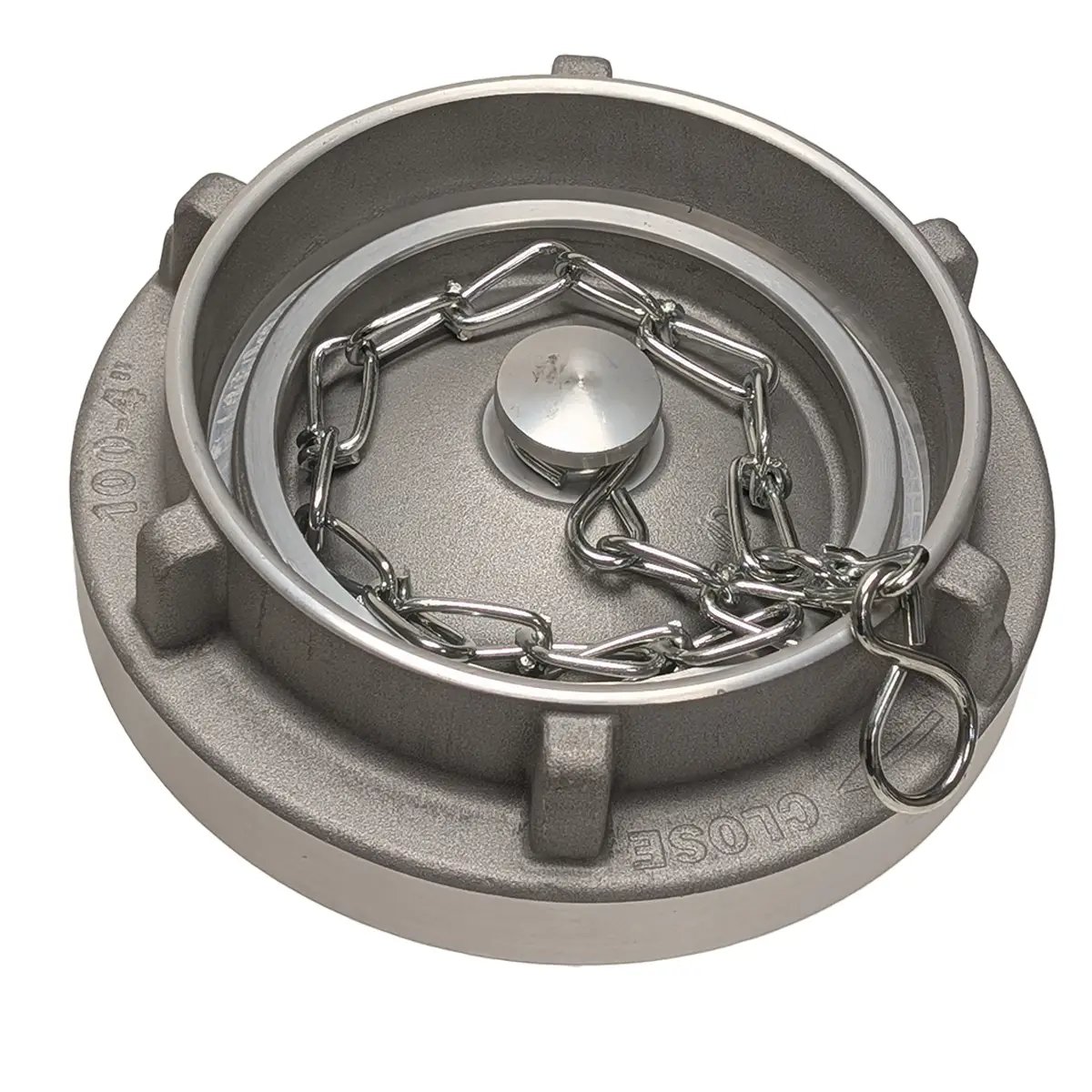

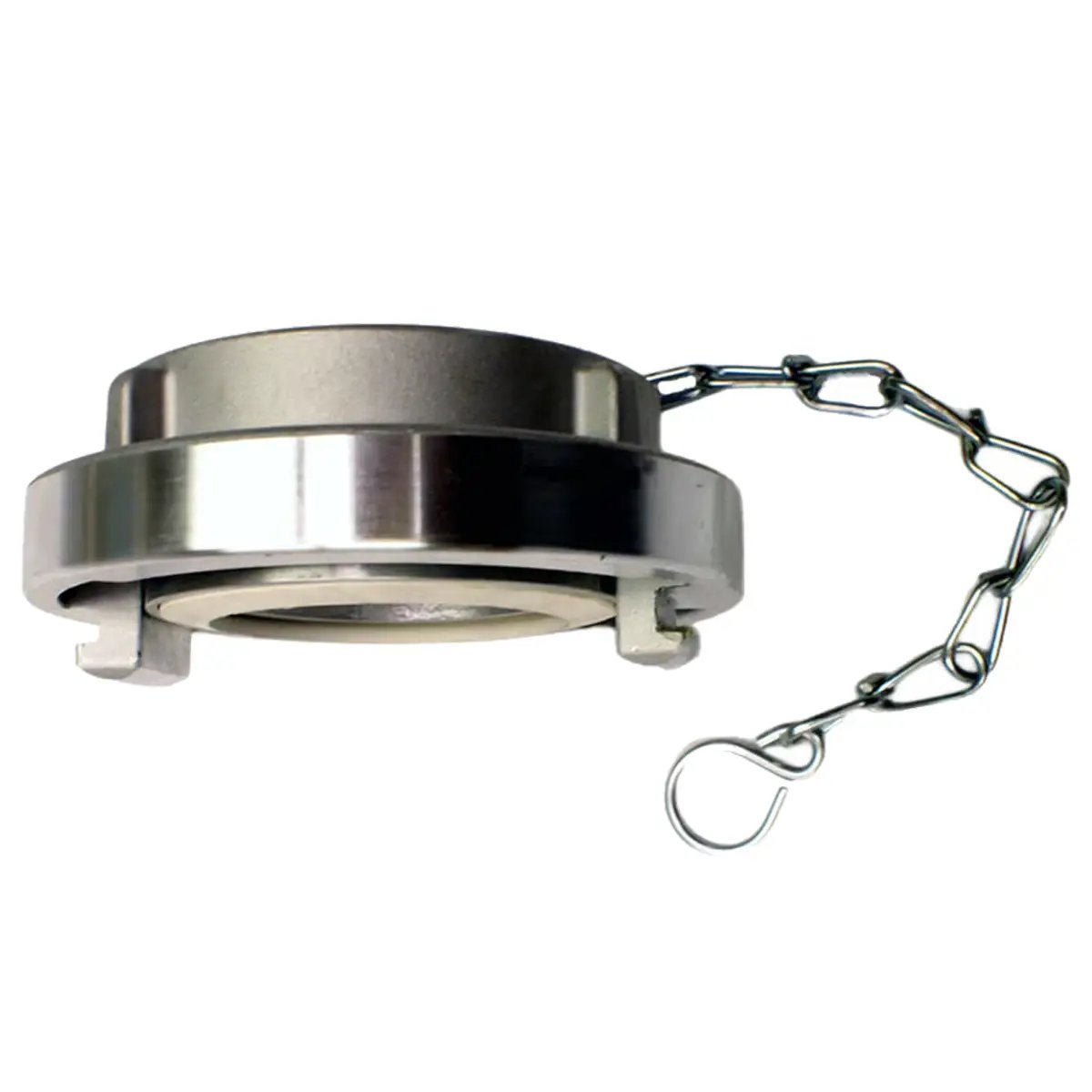

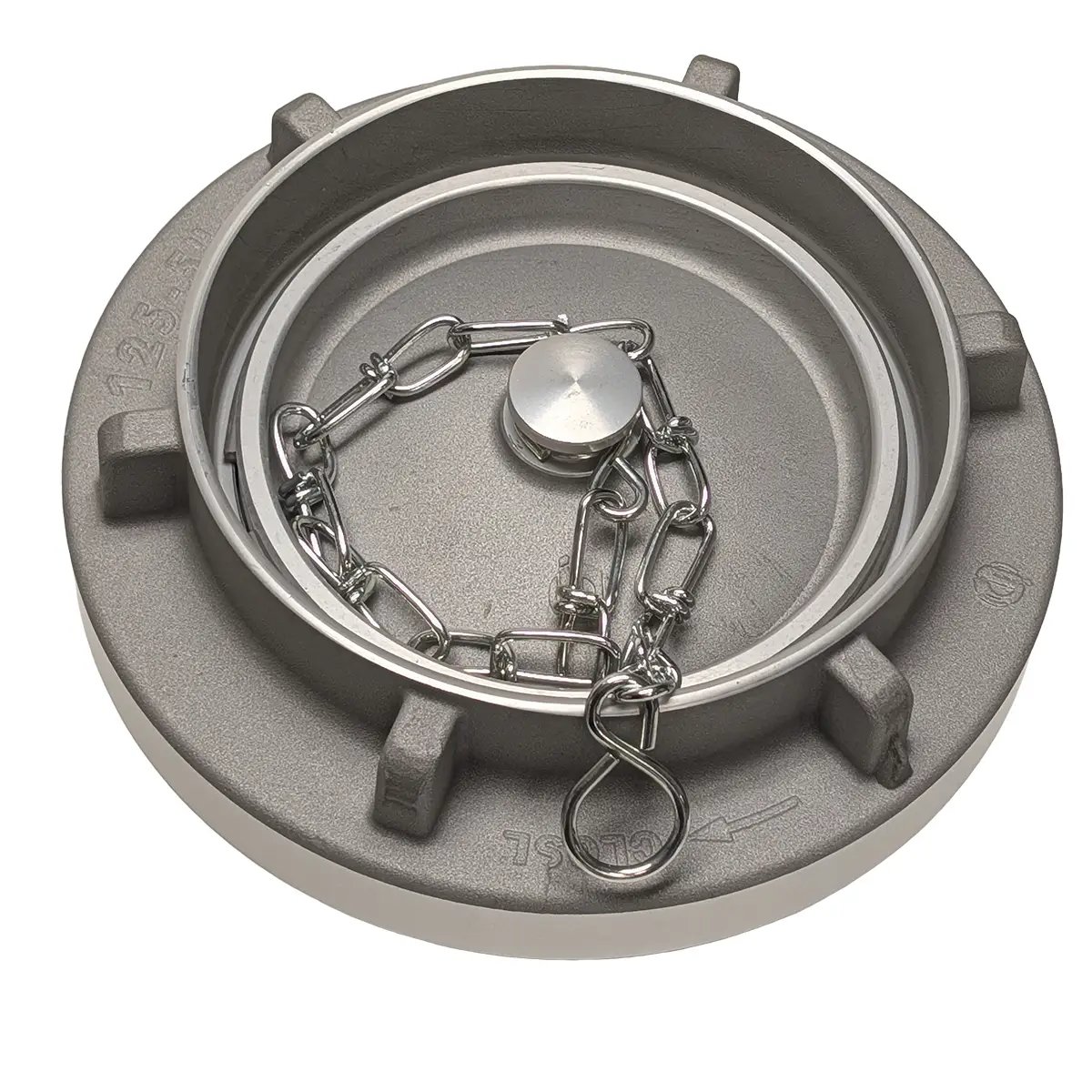

• The 2.5" and 3" models have a clear anodized finish and include a chain.

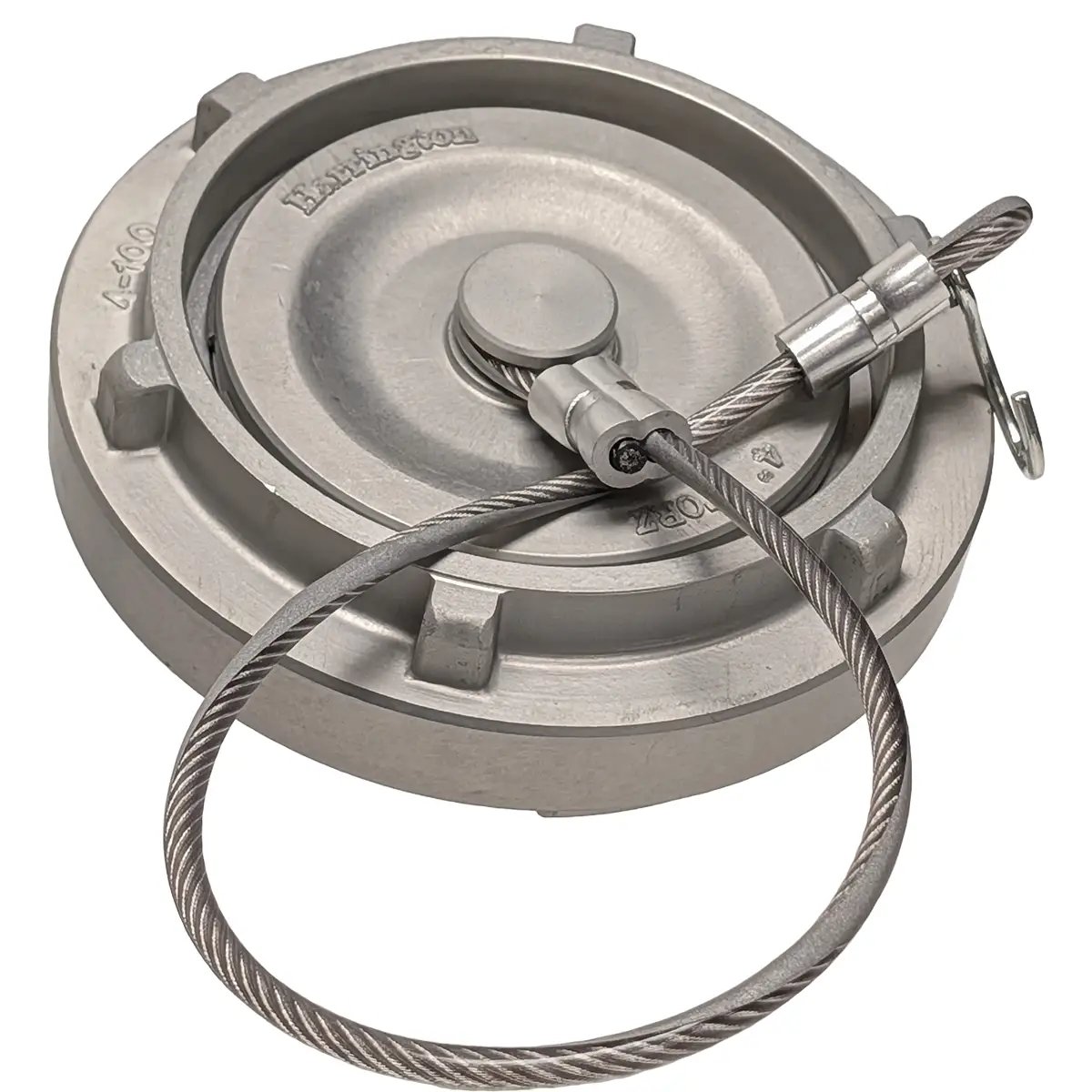

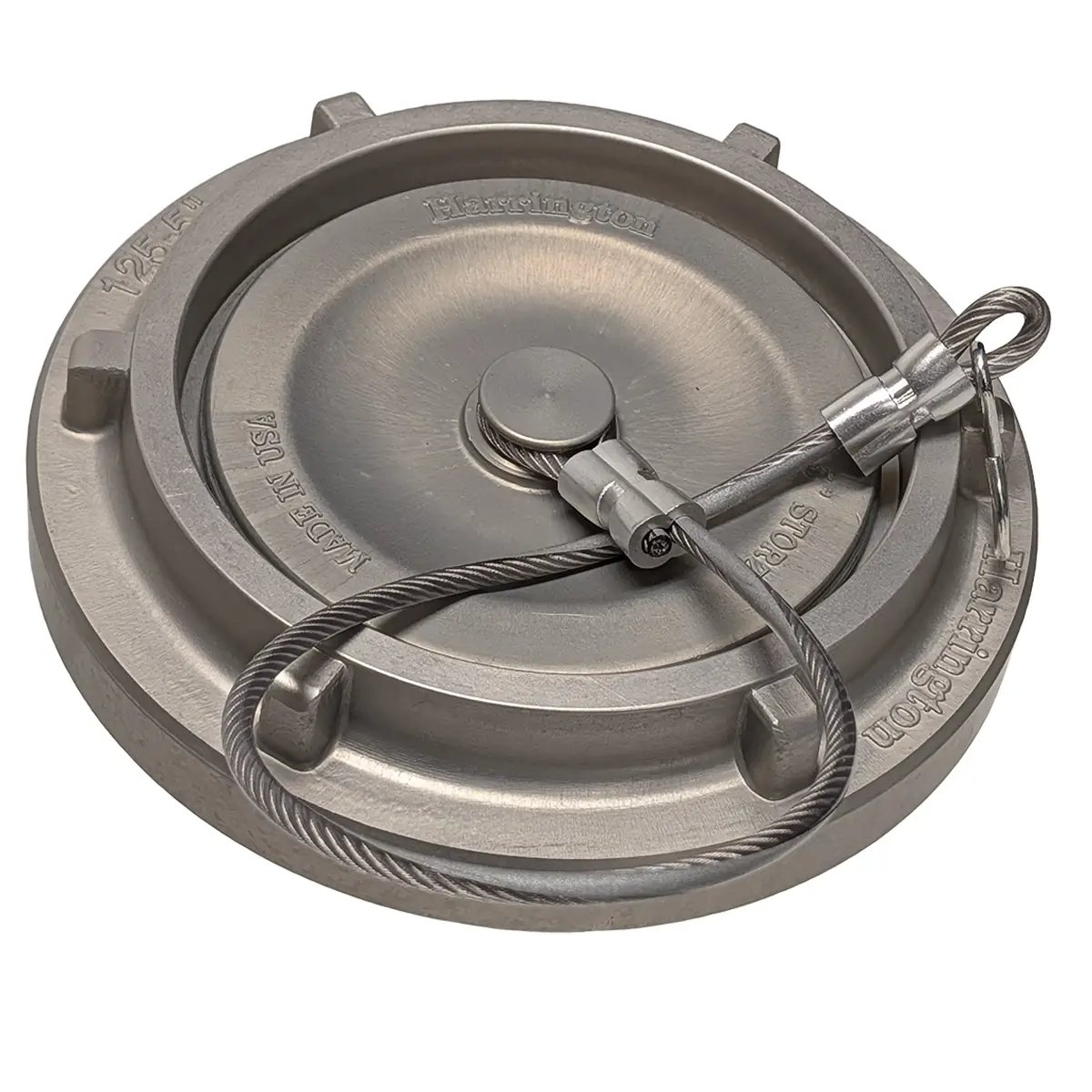

• The 4", 5", and 6" clear anodized models include a reflective cable.

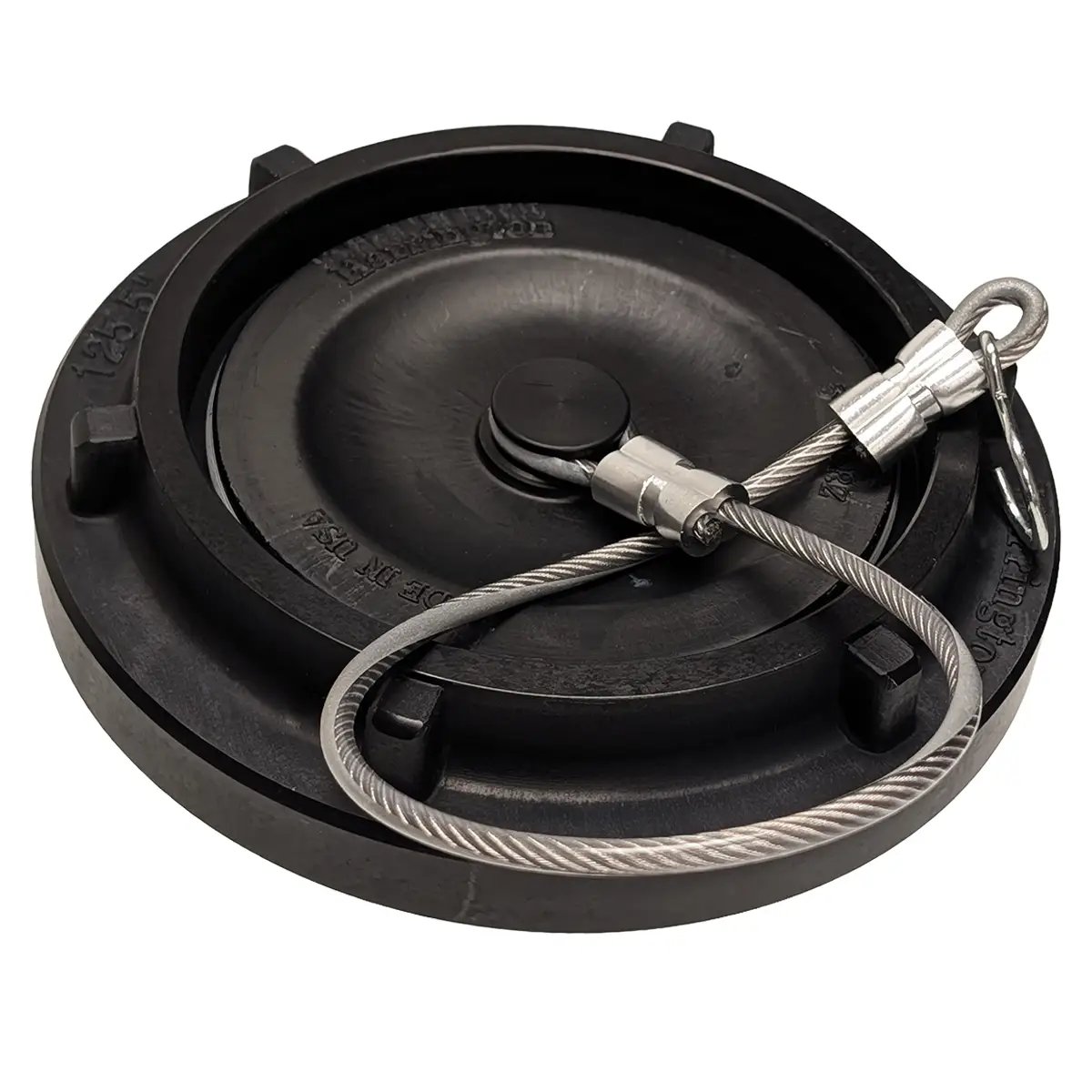

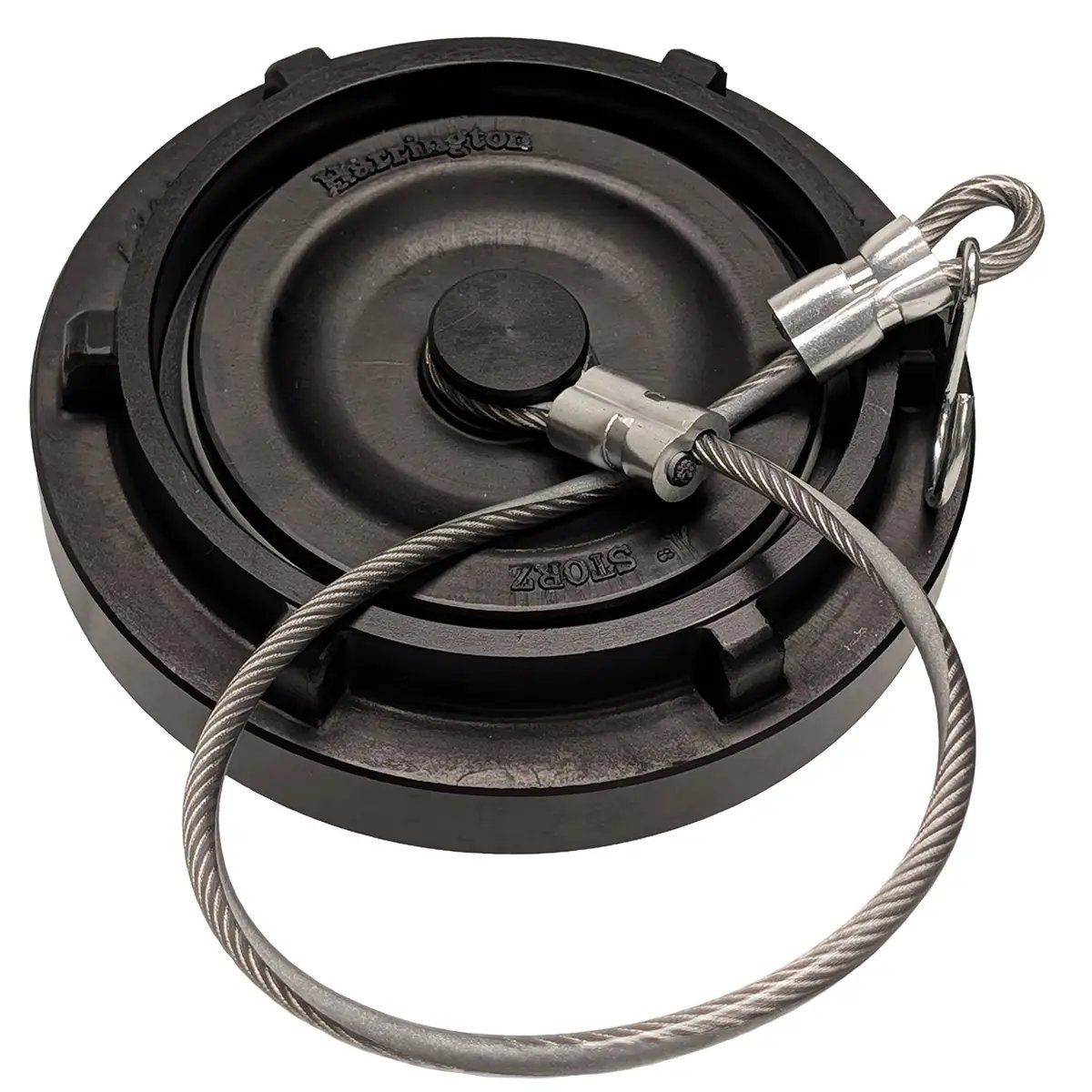

• The 4" and 5" black anodized models include a reflective cable.
• A black anodized 6" model is not included in this product family.
• Chain and reflective cable options are model-specific and are not shown as interchangeable choices.

How to Select the Correct Model

1. Identify the Storz size of the connection.
2. Select the matching 2.5", 3", 4", 5", or 6" blind cap.
3. For 4" and 5" connections, select either the clear anodized or black anodized finish.
4. Confirm the model’s retention attachment:
   1. 2.5" and 3": Chain
   2. 4", 5", and 6": Reflective cable
5. Verify compatibility with the specific equipment before ordering.

What Is Included?

• One Storz blind cap
• One chain or reflective cable, depending on the selected model
• Note: Compatible couplings, hose, hydrant components, adapters, and installation hardware are not included.
