Elkhart Brass

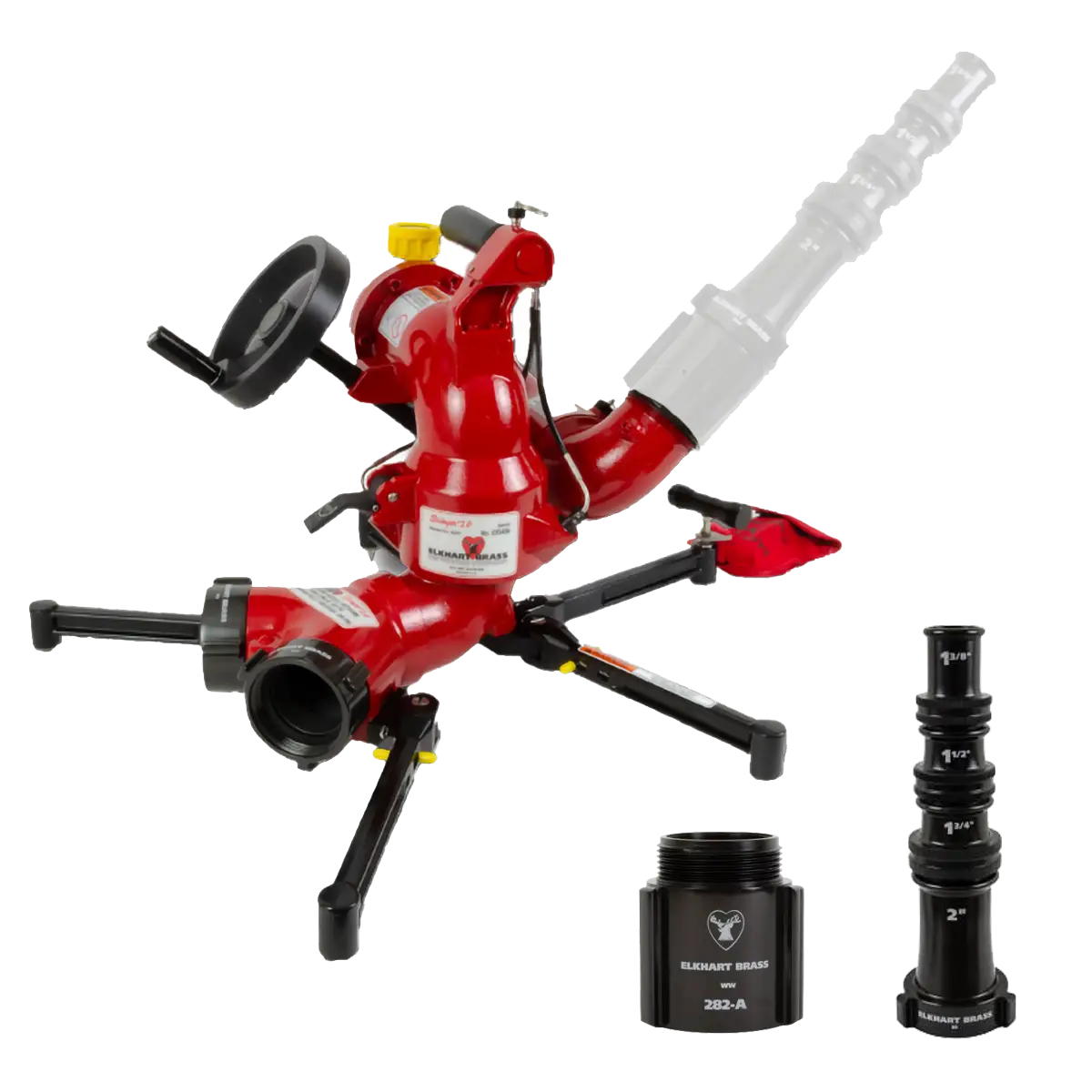

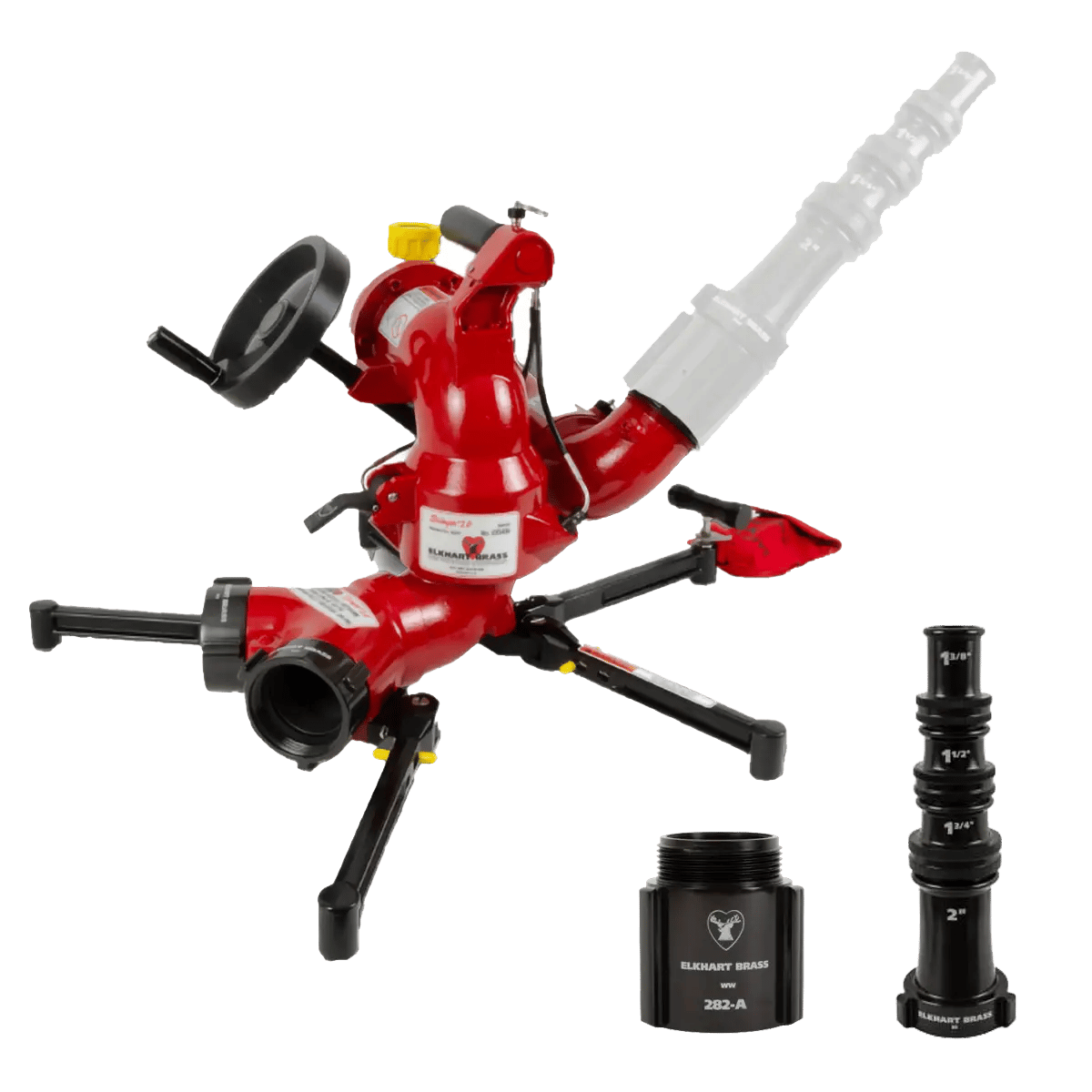

Stinger 2.0 Dual-Purpose Break-Apart Monitor
SKU#: Y245
Typically ships in 10 weeks
Ships via Standard Ground
The Stinger 2.0 is engineered for performance and reliability, making it an essential tool for firefighting operations. Whether mounted on a truck or used as a portable unit, it delivers exceptional flow efficiency and stability.
Price:$5,199.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Stinger 2.0 is a versatile, dual-purpose break-apart monitor designed for use as both a deck gun and a portable monitor. It can be customized to meet various operational needs with a range of truck adapters and portable base options.
Features
- Flow Efficiency: The Stinger 2.0 boasts the highest flow efficiency in its class, thanks to a friction loss reducing 3-3/8″ vaned waterway.
- Stability: In portable mode, it features five forged aluminum legs with self-adjusting, carbide-tipped ground spikes for enhanced stability.
- Safety and Control: Includes a by-passable safety stop at 35° above horizontal, a patented monitor-to-base latching mechanism with visual status indication, and a rotation lock mechanism with positive left/right lock and visual indication.
- Durability: Constructed with lightweight aluminum and finished with red urethane enamel for durability and visibility.
- Convenience: It is equipped with a fully enclosed stainless steel worm gear, a liquid-filled pressure gauge, a safety strap with a storage pouch, and a carrying handle for easy transport.
Included Components
- Upper unit and portable ground base.
- Flow Rate: 1000 gpm (3800 LPM) with 2-2.5″ portable base.
- Inlet: 2 x 2.5″ swivel inlet.
- Outlet: 2.5″ male outlet.
- Model: 8297-25
Operational Modes
- Portable Mode: Vertical: +35° to +75° (40° range)
- Horizontal: L45° to R45° (90° range)
- Deck Mode: Vertical: -15° to +75° (95° range)
- Horizontal: 360° continuous rotation
