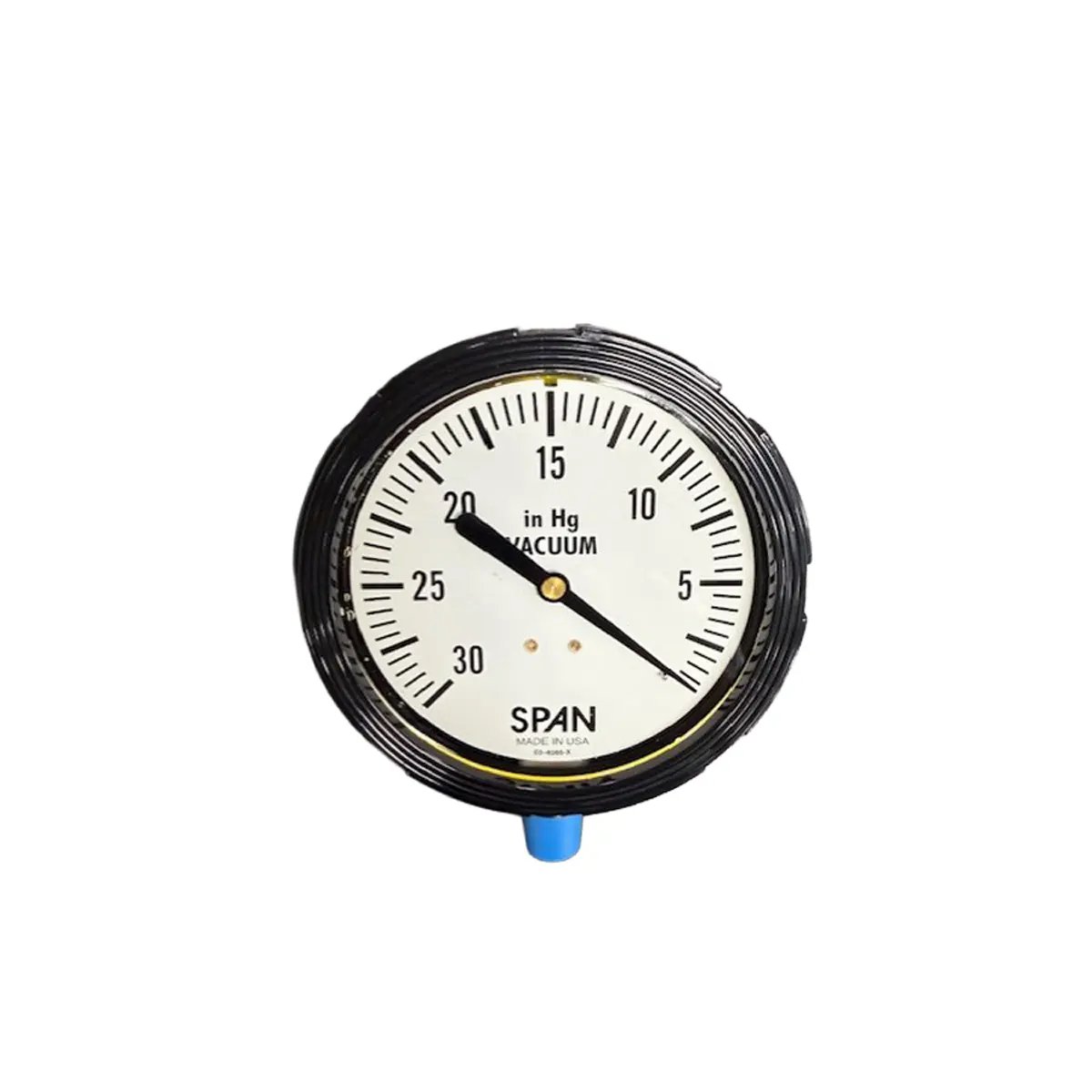

SPAN™ 3.5" Liquid Filled Industrial Gauges
SPAN™ 3.5" Liquid Filled Industrial Gauge: Rugged, accurate, and ideal for high shock/vibration applications. NIST certified. Reliable pressure monitoring.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The SPAN™ 3.5" Liquid Filled Industrial Gauge is designed for rugged service applications, providing reliable and accurate pressure readings in high shock and vibration environments. This gauge is ideal for industries requiring precise pressure monitoring, such as mobile hydraulic equipment, fire apparatus, water purification/irrigation systems, bulk transport trailers, waste water/slurry management, and military and marine applications.
Features
- Liquid Fill Fluid: Dampens gauge pointer movement for improved readings and longer life.
- Zytel Case and Ring: Offers excellent resistance to chemical, weather, and corrosion attack.
- Fully Filled Design: Internal breathing diaphragm eliminates the need for an air bubble, ensuring accurate readings.
- Temperature Compensated: ICD compensates for changes in internal case pressure due to ambient temperature fluctuations.
- Optional Rear Stud “QC” with Bottom Connection: Provides flexibility in mounting configurations.
- NIST Calibration Certificate: Ensures accuracy and reliability.
Usage
The SPAN™ gauge is used to monitor pressure in various industrial applications. It is mounted using the back studs for wall mounting or the optional rear stud “QC” with bottom connection. The liquid fill fluid ensures stable readings even in environments with high shock and vibration.
Users
This gauge is utilized by professionals in industries such as:
- Mobile Hydraulic Equipment
- Fire Apparatus
- Water Purification/Irrigation
- Bulk Transport Trailers
- Waste Water/Slurry Management
- Military and Marine Operations
Maintenance Information
Regular maintenance includes checking the gauge for any signs of damage or wear, ensuring the liquid fill fluid is at the appropriate level, and verifying the accuracy of readings. Calibration should be performed periodically as per industry standards.
Storage Information
Store the gauge in a cool, dry place away from direct sunlight and corrosive substances. Ensure the gauge is protected from physical damage during storage.
What's Included
- SPAN™ 3.5" Liquid Filled Industrial Gauge
- Optional rear stud “QC” with bottom connection
- Case: Zytel Nylon – Black
- Bezel: Zytel Nylon – Removable
- Socket: Brass
- Socket O Ring: EPDM
- Bourdon Tubes: Copper Alloy “C” Tube (Vac to 1000 PSI), Stainless Spiral Tube (1500 to 7500 PSI)
- Lens: Acrylic
- Pointer: Black Aluminum
- Movement: Precision Swiss Movement
- Dial: White Aluminum
- Fill Fluid: High Purity Glycerin
- Ranges: Vacuum, Compound to 7500 PSI
- Accuracy: 1% Full Scale Grade 1A
- Design: ANSI/ASME B40.1
- Operating Temperature: -40 to 150°F
- Certification: NIST Certified with Calibration Points
- Mounting Configuration: Back Mount Studs for Wall Mounting
- Dial Size: 3-1/2"
- Wetted Parts: Phosphor Bronze Tube, Brass Socket
- Fill Options: Glycerin Filled
