Skedco
SKED-EVAC® TRIPOD, EN 795 Certified
SKU#: AS441
Typically ships in 1 week
Ships via Standard Ground
SKED-EVAC® Tripod: EN 795 certified, 10ft height, 3 red anchors, stainless steel bolts, adjustable legs, NFPA rescue load rated, made in USA. Stability chain included.
Price:$1,843.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

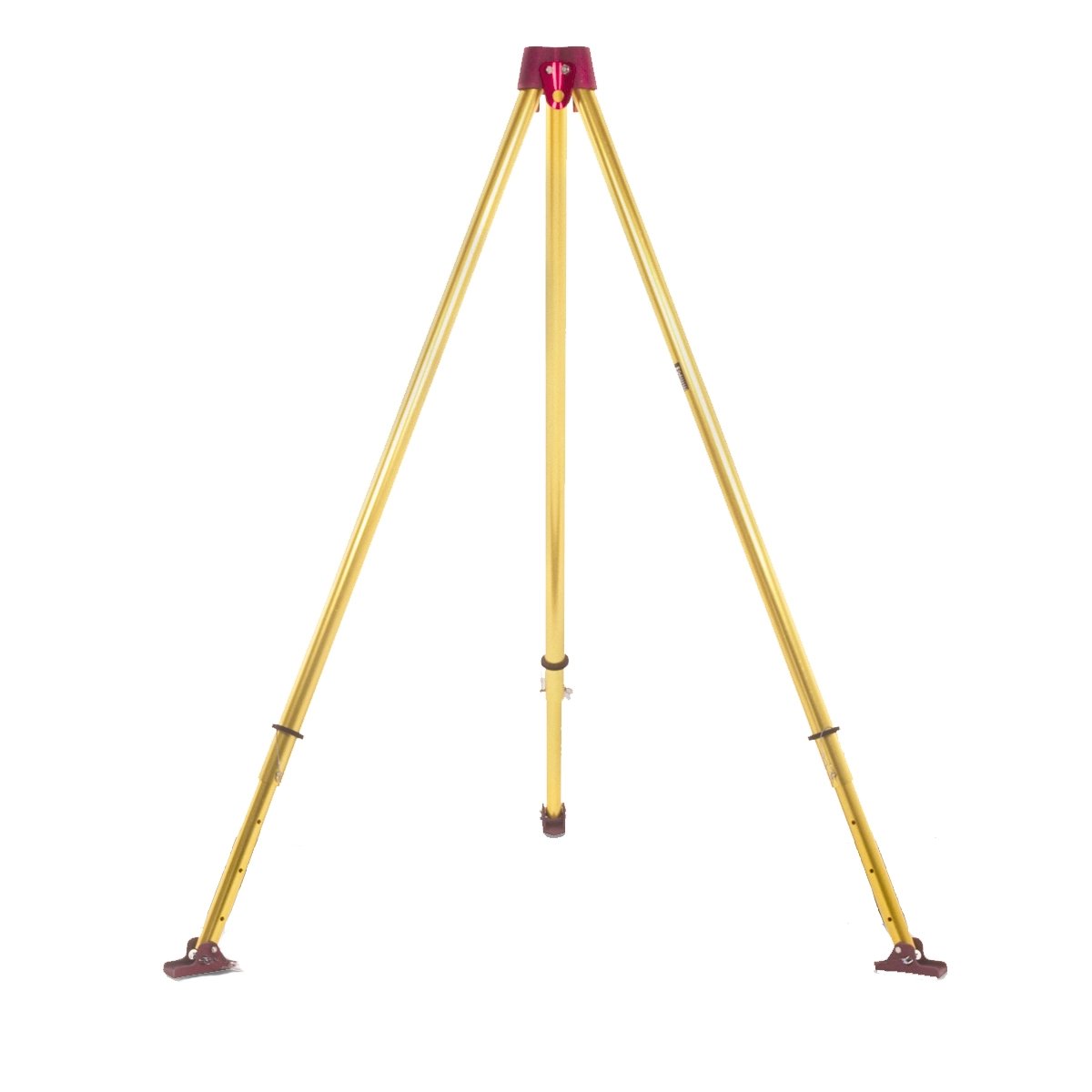

The SKED-EVAC® Tripod is a robust and reliable rescue solution designed to meet the highest safety standards. Certified under EN 795, this tripod is engineered to provide maximum strength and stability in critical rescue operations.
Features
- Height and Anchors: The tripod extends to a height of ten feet, featuring three anodized red anchors for easy identification. Each anchor is centrally positioned to handle loads efficiently.
- Construction: The anchors, header, and legs are interconnected with stainless steel bolts, ensuring maximum strength. The header restricts the leg spread, enhancing stability.
- Rescue Capability: When fully extended, the tripod allows for the complete extraction of a patient in a stretcher from a hole. It is rated to handle an NFPA rescue load.
- Stability Chain: Included with the tripod is a durable chain that passes through the feet, providing additional strength and stability. Unlike nylon straps or ropes, this chain is resistant to degradation from acids or chemicals.
- Adjustable Legs: The legs are adjustable in 5-inch increments, with safe working load data provided for each height. This ensures adaptability to various rescue scenarios.
- Winch Compatibility: Brackets are available for mounting most popular winches, adding to the tripod's versatility.
- Made in USA: Proudly manufactured in the USA, ensuring high-quality standards.
Measurements
- Fully Extended Length: Each tripod leg measures 135 3/4 inches (11 feet 3 3/4 inches) when fully extended.
- Diameter: Approximately 108 inches (9 feet).
Distance Between Tripod Legs
- Hole Position A: 55 inches (4 feet 7 inches)
- Hole Position B: 58.5 inches (4 feet 10.5 inches)
- Hole Position C: 62.5 inches (5 feet 2.5 inches)
- Hole Position D: 66 inches (5 feet 6 inches)
- Hole Position E: 69.5 inches (5 feet 9.5 inches)
- Hole Position F: 73 inches (6 feet 1 inch)
- Hole Position G: 76.5 inches (6 feet 4.5 inches)
- Hole Position H: 80 inches (6 feet 8 inches)
- Hole Position I: 83.5 inches (6 feet 11.5 inches)
- Hole Position J: 87 inches (7 feet 3 inches)
- Hole Position K: 90.5 inches (7 feet 6.5 inches)
- Hole Position L: 94 inches (7 feet 10 inches)
- At the Feet (Bottom): 95 inches (7 feet 11 inches)
- Material: High-strength aluminum with stainless steel bolts
- Height: Adjustable up to 10 feet
- Leg Adjustment Increments: 5 inches
- Weight: Approximately 70 lbs
- Load Capacity: Rated for NFPA rescue loads
- Dimensions 9 × 9 × 90 in
- Anchor Points: 3 anodized red anchors
- Chain Material: Resistant to acids and chemicals
- Winch Compatibility: Brackets available for most popular winches
- Certification: EN 795
- Model: SK-700
