RS-10 Extricator® 5‑Ton Rescue Tool Set

Features

• Complete Extrication System: Designed to accomplish up to 99% of vehicle extrication and rescue tasks using a single integrated tool set.
• 5‑Ton Hydraulic Power: Upgraded 5‑ton ram, pumps, spreader, and wedge provide increased metal-moving capability for demanding rescue scenarios.
• High‑Speed Hydraulic Pumps: Dual heavy-duty steel pumps provide faster tool operation, higher hydraulic flow, and improved reliability in rescue environments.
• Vehicle Access Capability: Opens jammed or damaged doors, raises dashboards, moves seats, and displaces pedals and steering components.
• Multi‑Direction Metal Movement: Allows pushing, spreading, lifting, and pulling simultaneously to safely free trapped victims.
• Rugged Storage Box: Supplied in a lockable 16‑gauge steel storage box with removable tray, folding handles, and secure transport design.
• Lifetime Warranty (Select Components): Pumps, spreader, wedge, and ram are backed by a lifetime warranty against material and workmanship defects.

What Is It?

The RS‑10 EXTRICATOR® 5‑Ton Rescue Tool Set is a mechanical and hydraulic rescue system specifically designed for vehicle extrication and technical rescue operations. It combines hydraulic spreaders, wedges, rams, manual pulling devices, chain slings, and essential hand tools to allow rescuers to remove entrapment hazards and safely extract victims.

How Is It Used?

The RS‑10 is used to force entry into damaged vehicles, displace structural components, and create access points for victim removal. Hydraulic spreaders and wedges open doors and body panels, while the 5‑ton straight ram lifts dashboards, moves seats, pushes firewalls, and raises roofs. The 2‑ton come‑along and chain slings pull steering columns, pedals, doors, and panels out of the rescue path. Hand tools support glass management, cutting, prying, and utility shutdown.

Who Uses It?

The RS‑10 EXTRICATOR® Rescue Tool Set is used by first responders including fire departments, rescue squads, emergency services, and technical rescue teams. It is designed for professionals involved in vehicle extrication, aircraft rescue, industrial rescue, agricultural incidents, and structural collapse rescues.

What Is It Used With?

The RS‑10 is used in conjunction with rescue and extrication operations involving motor vehicles, aircraft, farm machinery, industrial equipment, and collapsed structures. It supports stabilized rescue scenes, patient access procedures, and controlled victim removal.

What Material Is It Made From?

• Steel hydraulic pumps and rescue tools
• High‑strength alloy steel and Grade 100 chain components
• Cast aluminum alloy frames on the come‑along
• Galvanized steel aircraft cable
• Rubber, precision‑machined steel, and hardened alloy attachments
• 16‑gauge steel storage box

Maintenance Information

Hydraulic components are designed for easier inspection and service, with relocated fill ports and optimized sealing systems. Pumps, rams, spreader, and wedge are designed for long service life under rescue conditions. The come‑along incorporates lubricated-for-life bearings, replaceable handles, and factory testing. Routine inspection, cleaning, and proper storage are recommended. Detailed maintenance procedures are provided in the included instruction manual.

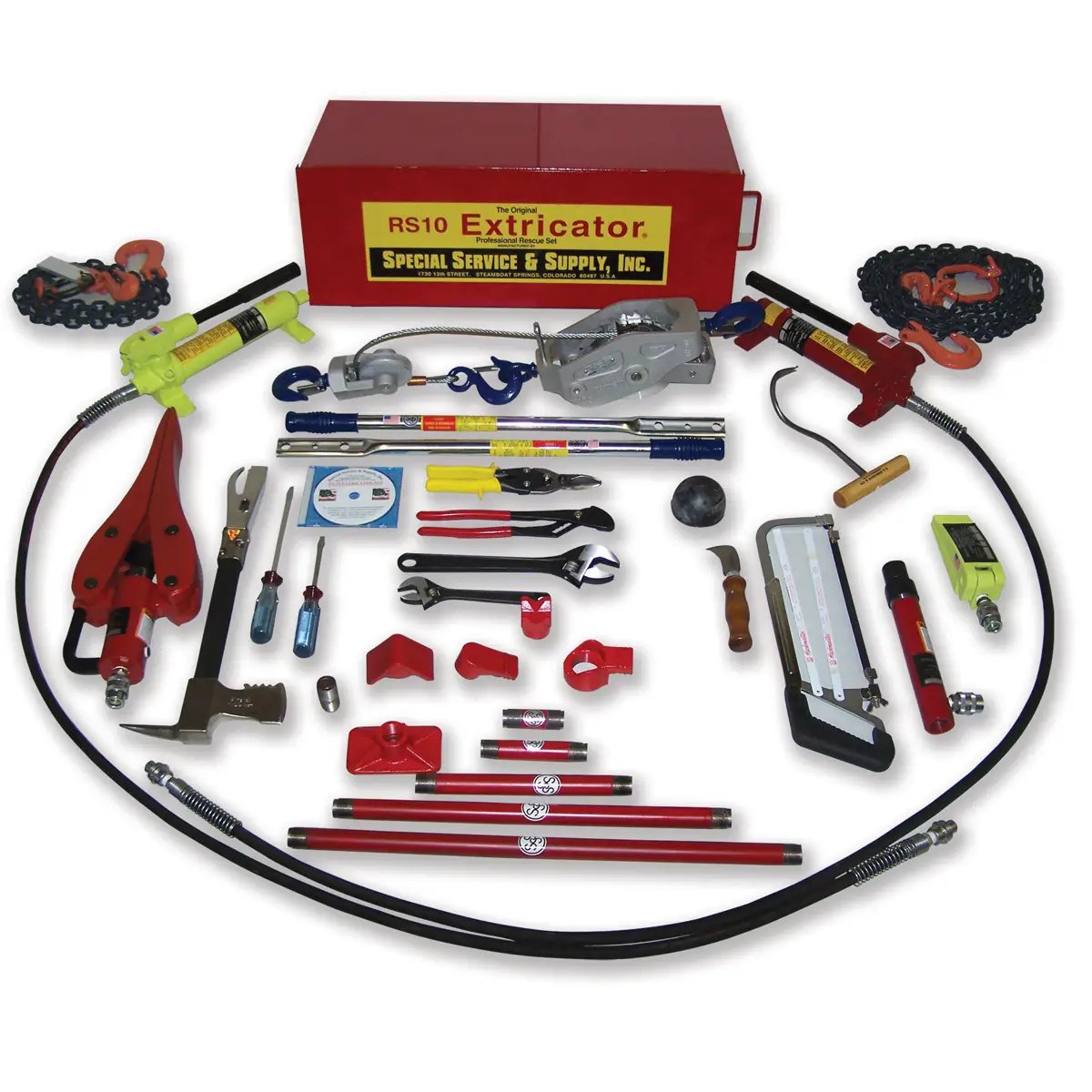

What’s Included?

• 5‑Ton Hydraulic Spreader
• Hydraulic Wedge
• 5‑Ton Straight Hydraulic Ram with 5.25" stroke
• Two Hydraulic Pumps
• Ram Extension Tubes (3", 5", 10", 18", 23")
• Extension Tube Connectors
• Ram Attachments:
  • Rubber Flex Head
  • Flat Steel Base Plates
  • Wedge Heads
  • Serrated Saddles
  • Ram Toe and Plunger Toe
• 2‑Ton Rescue Come‑A‑Long (Marine Grade Model C‑2AM)
• Two Come‑A‑Long Handles
• Rescue Chain Set:
  • 5 ft Chain Sling
  • 12 ft Chain Sling
• Survival Axe® with belt sheath
• Hand Tools:
  • Adjustable Wrenches
  • Screwdrivers
  • Slip Joint Pliers
  • Hacksaw and spare blades
  • Aircraft Metal Cutting Shears
  • Rescue Knife
  • Bale Hook
  • Sockets
  • Gas Valve Shut-Off Key
• Lockable 16‑Gauge Steel Storage Box with removable tray
• Instruction Manual
• Instruction CD
