Roller & Spool Assembly

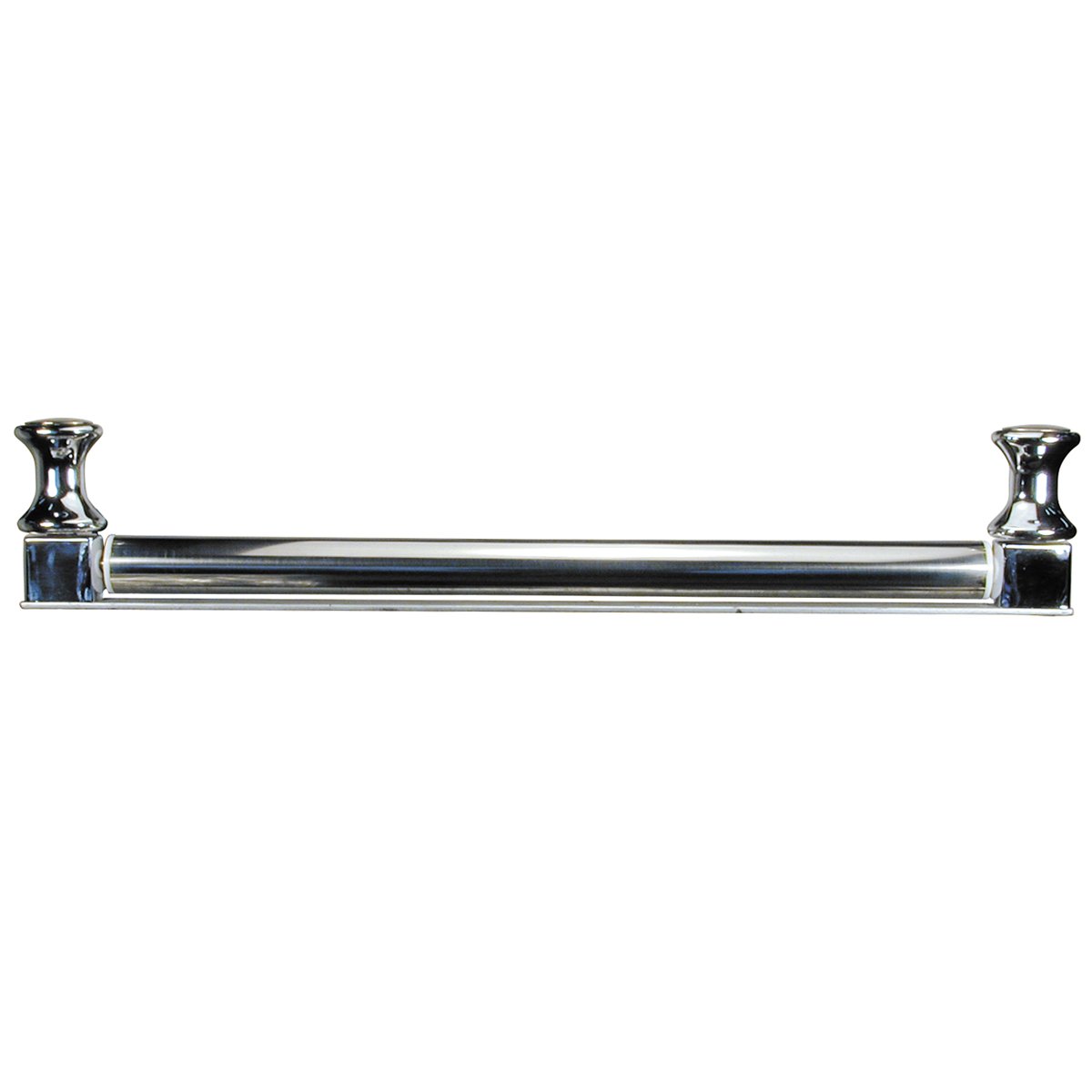

The FH-3 Roller Set is a crucial component for the 24 Series Reel, designed to facilitate the smooth and efficient rolling and unrolling of hoses or cables. It is an essential accessory for maintaining the optimal performance of your reel.

Features

• Durable Construction: Made from robust materials to withstand heavy-duty use.
• Smooth Operation: Ensures seamless rolling and unrolling of hoses or cables.
• Compatibility: Specifically designed for the 24 Series Reel, ensuring a perfect fit.
• Easy Installation: Can be easily installed and maintained with minimal effort.

How is it used?

The roller set is installed on the 24 Series Reel to guide hoses or cables during operation. It ensures that the hoses or cables are rolled and unrolled smoothly, preventing tangles and reducing wear and tear.

Who uses it?

This product is used by professionals in various industries, including firefighting, construction, and industrial applications, where reliable hose and cable management is critical.

Installation Instructions

• Preparation
  • Ensure the reel is securely mounted and stable.
  • Gather all necessary tools and the FH-3 Roller Set components.
• Remove Existing Rollers (if applicable)
  • If replacing existing rollers, use the appropriate wrench or socket to remove the bolts securing the old rollers.
  • Carefully remove the old rollers and set them aside.
• Install the New FH-3 Rollers
  • Position the new FH-3 rollers in the designated mounting locations on the reel.
  • Align the mounting holes on the rollers with the corresponding holes on the reel frame.
• Secure the Rollers
  • Insert the bolts through the mounting holes and secure them with nuts.
  • Use a wrench or socket to tighten the bolts, ensuring the rollers are firmly attached but not overly tight to avoid restricting movement.
• Check Alignment and Operation
  • Once the rollers are installed, check their alignment to ensure they are positioned correctly.
  • Manually roll the hose or cable to test the smoothness of the operation. Apply lubricant to the rollers if necessary to enhance performance.
• Final Inspection
  • Perform a final inspection to ensure all bolts are tightened and the rollers are functioning properly.
  • Make any necessary adjustments to ensure optimal performance.

Maintenance Information

• Inspection: Periodically check for signs of wear or damage.
• Cleaning: Keep the rollers clean from debris to ensure smooth operation.
• Lubrication: Apply appropriate lubricants to moving parts to maintain efficiency.

What is it used with?

The FH-3 Roller Set is used with the Hannay Reels 24 Series Reel. It is compatible with various hoses and cables, making it versatile for different applications.

Real-Life Examples

• Firefighting: Ensures quick deployment and retrieval of hoses during emergency situations.
• Construction Sites: Manages electrical cables or hoses for tools and machinery.
• Industrial Settings: Facilitates the handling of hoses for fluid transfer or pneumatic tools.

Material Used

The roller set is constructed from high-grade materials that provide durability and resistance to harsh conditions. This ensures long-lasting performance even in demanding environments.
