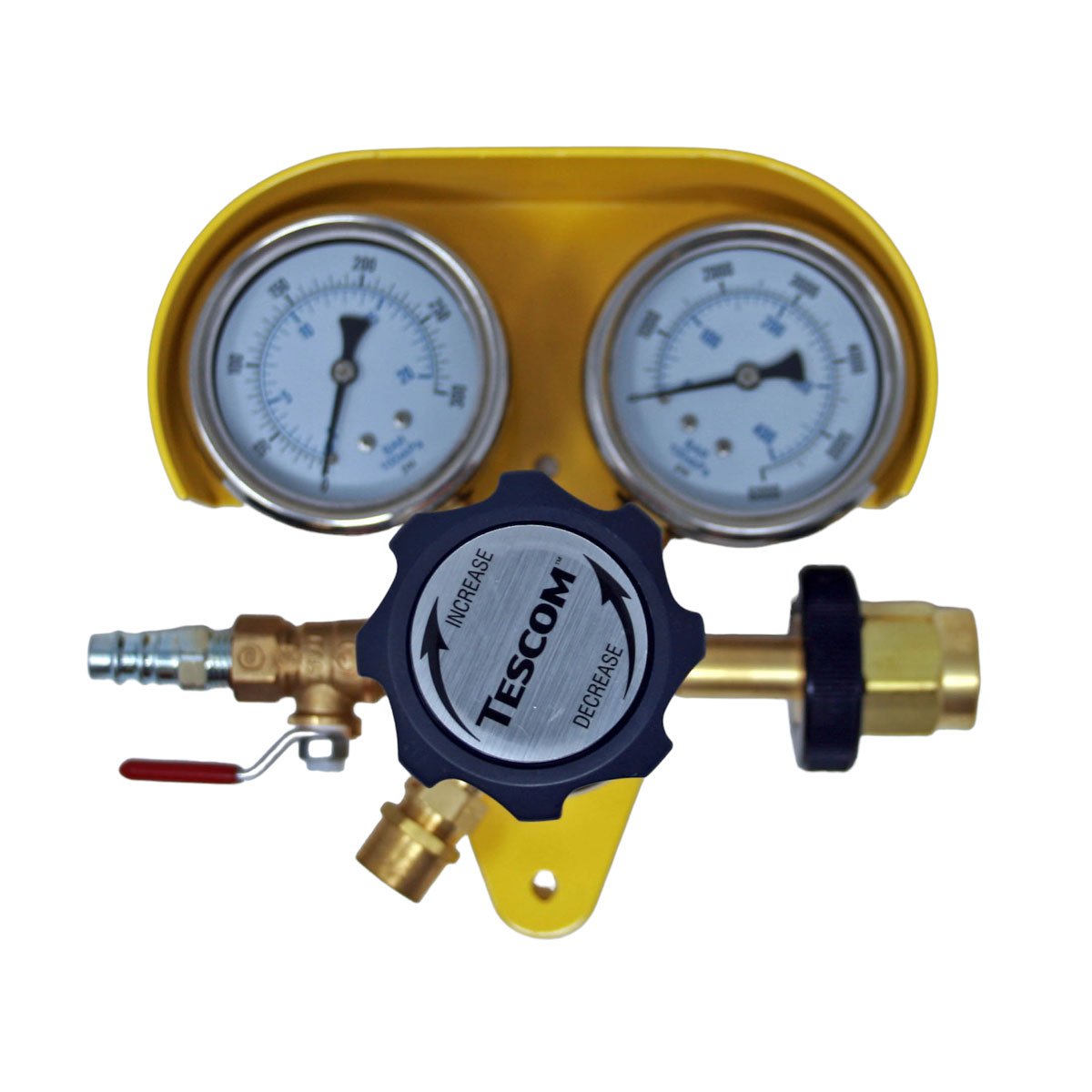

Regulator For Air Bottle 4500 PSI

Regulator for Air Bottle 4500 PSI, Model 74520, is a high-performance, two-stage diaphragm regulator designed for use with SCBA (Self-Contained Breathing Apparatus) cylinders or air bottles up to 4500 PSI (300 Bar). This regulator ensures precise control and safe operation, making it an essential tool for various applications, including rescue operations, industrial use, and more

Features

Two-Stage Diaphragm Regulator: Provides consistent and precise pressure control from 0 to 6000 PSI (0 to 400 Bar).

• High Pressure Compatibility: Designed for use with SCBA cylinders or air bottles up to 4500 PSI (300 Bar).
• Safety Coupler: Ensures secure and reliable connections, preventing accidental disconnections.
• Durable Construction: Built to withstand harsh conditions and provide long-lasting performance.
• CLA 347 or DIN Fitting: Standard fittings for easy and secure attachment.

How is it used?

The MatJack Regulator for Air Bottle 4500 PSI is used to regulate the pressure from high-pressure air bottles or SCBA cylinders. Here’s how it can be utilized:

1. Connection: Attach the regulator to the SCBA cylinder or air bottle using the CLA 347 or DIN fitting.
2. Adjustment: Use the two-stage diaphragm to adjust the pressure to the desired level.
3. Operation: Monitor the pressure gauges to ensure consistent and safe operation.
4. Safety: Ensure all connections are secure and check for any leaks before use.

Who uses it?

This regulator is widely used by:

• Fire Departments: For controlling air pressure in SCBA cylinders during rescue operations.
• Industrial Workers: For regulating air pressure in various industrial applications.
• Rescue Teams: For precise and safe pressure control in emergency situations.

Specific Applications

The MatJack Regulator for Air Bottle 4500 PSI, Model 74520, is a versatile and essential tool designed for precise pressure control in various high-pressure applications. Here are some specific applications:

• Fire Rescue Operations:
  • SCBA Cylinders: The regulator is used with Self-Contained Breathing Apparatus (SCBA) cylinders to control the air pressure during fire rescue operations. This ensures that firefighters have a reliable and consistent air supply.
• Industrial Lifting and Stabilization:
  • Air Lifting Bags: The regulator is used to control the pressure in air lifting bags, which are employed to lift and stabilize heavy machinery and equipment in industrial settings. This application requires precise pressure control to ensure safety and efficiency.
• Vehicle Extrication:
  • Rescue Operations: During vehicle extrication, the regulator is used to control the air pressure in lifting bags and other pneumatic tools. This helps rescue teams safely lift and stabilize vehicles to extricate trapped individuals.
• Construction:
  • Structural Support: In construction, the regulator is used to control the pressure in air lifting bags and other pneumatic devices for lifting and supporting structures. This application is crucial for ensuring the stability and safety of construction projects.
• Aerospace:
  • Aircraft Maintenance: The regulator is used in the aerospace industry to control the pressure in pneumatic tools and lifting devices during aircraft maintenance and repair operations. This ensures precise and safe handling of aircraft components.
• Military Applications:
  • Equipment Recovery: The regulator is used by military personnel to control the pressure in lifting bags and other pneumatic tools for recovering heavy equipment in various operations. This application requires reliable and precise pressure control

Attaching the MatJack Regulator for Air Bottle

• Inspect the Regulator and Air Bottle:
  • Before attaching the regulator, inspect both the regulator and the air bottle for any signs of damage, such as dented surfaces, damaged gauge lenses, or bad threads.
• Connect the Regulator to the Air Bottle:
  • Attach the regulator to the air bottle using the CLA 347 or DIN fitting. Ensure that the fitting is securely tightened to prevent any leaks.
• Loosen the Pressure Adjusting Handle:
  • Loosen the pressure adjusting handle on the regulator to ensure that the initial pressure is set to zero.
• Connect the Regulator Hose:
  • Connect the regulator hose quick disconnect fitting to the regulator. Ensure that the connection is secure and tight.
• Connect the Regulator Hose to the Control Valve:
  • Attach the male nipple of the regulator hose to the inlet on the control valve. This connection allows the regulated air pressure to flow to the control valve.
• Connect the Cushion Supply Hose:
  • Connect the cushion supply hose to the outlet of the control valve. This hose will carry the regulated air pressure to the air lifting cushions.
• Check for Leaks:
  • After all connections are made, check for any leaks by slowly increasing the pressure and monitoring the connections. If any leaks are detected, tighten the fittings as necessary

Maintenance Information

Regular maintenance is essential to ensure the longevity and performance of the MatJack Regulator:

• Inspection: Regularly inspect the regulator for signs of wear, damage, or corrosion.
• Cleaning: Clean the regulator after each use to remove dirt and debris.
• Storage: Store the regulator in a dry, cool place away from direct sunlight to protect it from environmental elements.

Storage Information

Store the MatJack Regulator in a protective case or container to prevent damage. Ensure it is kept in a dry, cool place away from direct sunlight to maintain its condition and performance

What is included?

MatJack Regulator for Air Bottle 4500 PSI - Model: 74520

• Safety Coupler: Ensures secure connections.
• CLA 347 or DIN Fitting: Standard fittings for easy attachment.
• Model: 74520
• Pressure Range: 0 - 6000 PSI (0 - 400 Bar)
• Compatibility: For use with SCBA cylinders or air bottles up to 4500 PSI (300 Bar)
• Regulator Type: Two-stage diaphragm
• Fittings: CLA 347 or DIN fitting2
