Red Hawk™ Thermal Scanner

Features

• SmartSight™ Technology: Provides extremely high contrast sensitivity for faster and more reliable hot‑spot detection
• Structural Fire Optimized: Designed specifically for interior and overhaul operations
• Sees Through Glass: Capable of detecting heat sources behind glass surfaces
• Sunlight Resistant: Maintains sensitivity even in full sunlight conditions
• Audible Alarm: Variable‑pitch tone increases as the scanner approaches a heat source
• Red Aiming Laser: Class II laser allows precise pinpointing of hot spots
• Hands‑Free Awareness: No viewfinder required, allowing continuous visual focus on the scene
• Automatic Self‑Test: Internal IR emitter verifies sensor integrity at startup
• Help‑Needed Alarm: Special activation sequence triggers a continuous alert to signal distress
• Lightweight Design: Weighs less than 1 lb for extended use with minimal fatigue

What Is It?

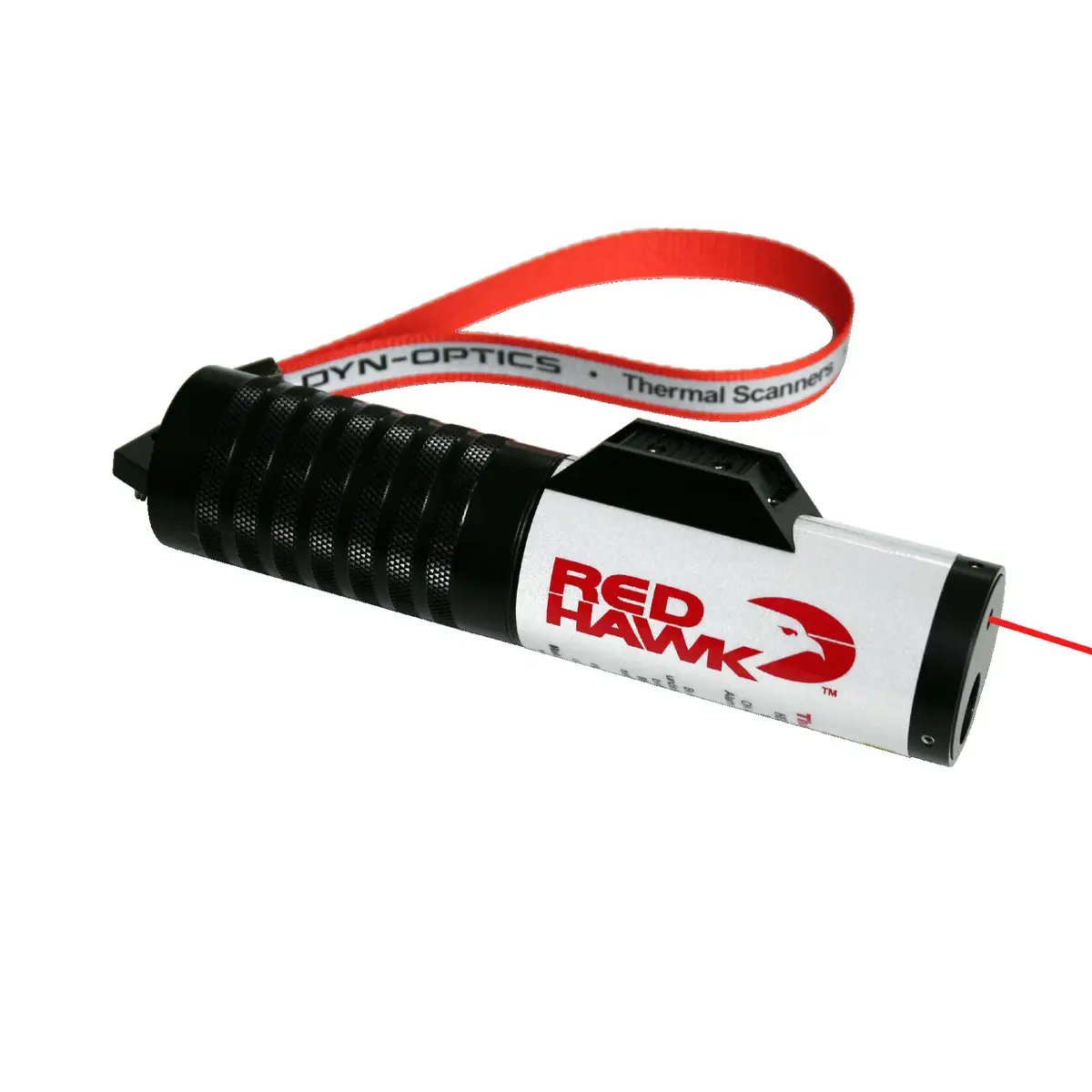

The Model 955L RedHawk™ Thermal Scanner is a non‑imaging thermal detection device used to locate concealed heat sources during fire suppression, overhaul, and inspection operations. Unlike thermal imaging cameras, it does not display an image; instead, it alerts firefighters to heat through highly sensitive detection technology and audible feedback.

How Is It Used?

Held like a flashlight, the 955L is swept across walls, ceilings, floors, and debris during overhaul or investigation. When elevated temperatures are detected, the scanner emits an audible alarm that increases in pitch as the device moves closer to the hot spot, allowing firefighters to locate heat without diverting attention from their surroundings.

Who Uses It?

• Structural fire departments
• Fire investigation units
• Overhaul and mop‑up crews
• Wildland–urban interface teams
• Training facilities for fire behavior analysis

Maintenance Information

The RedHawk™ Thermal Scanner is maintenance‑free aside from periodic battery replacement and occasional exterior cleaning. The anodized aluminum housing is water‑resistant and built for long‑term field use.

What Is It Used With?

• Standard AA batteries
• Included carrying and storage accessories
• Structural firefighting PPE and overhaul tools

Material

• Housing: Anodized machined aluminum
• Finish: Water‑resistant exterior coating

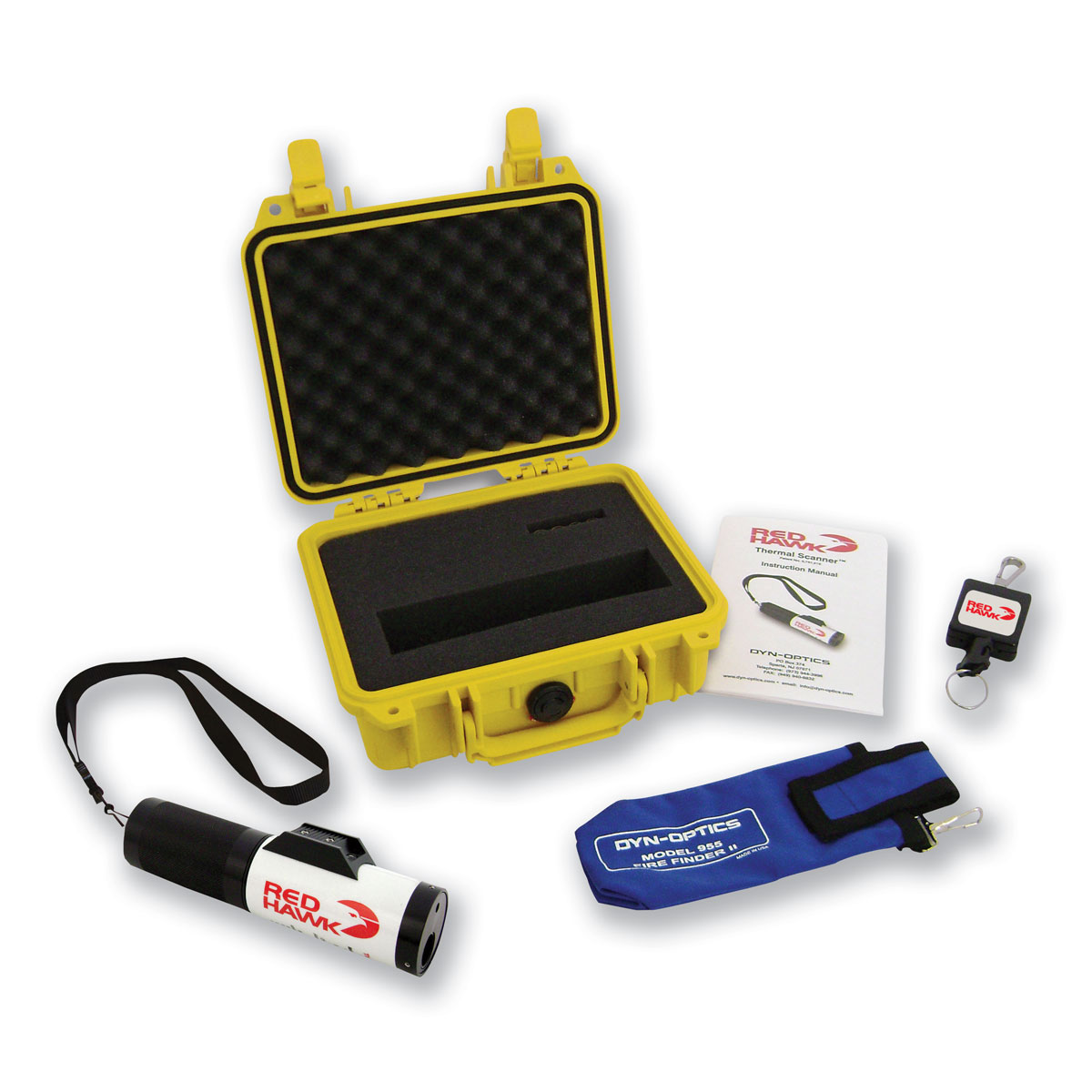

What’s Included?

• Model 955L RedHawk™ Thermal Scanner
• Rugged, Waterproof Storage Case with Lifetime Warranty
• Codura™ Carrying Pouch with Velcro™ Strap and Swivel Snap
• 24″ Retractable Lanyard with Belt Clip
• Operations Manual
• Batteries Included
• 3 Year Warranty
