Verity
Rear Vision Safety System - Diagonal - 7"
SKU#: BN145
Typically ships in 1 week
Ships via Standard Ground
The Verity Rear Vision Safety System enhances commercial vehicle safety with a 7” monitor, 120° night vision camera, and durable, waterproof components. Screen is 7" measured diagonal.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Verity Rear Vision Safety System is a comprehensive backup camera system designed to enhance rear vision safety for commercial vehicles. This system is widely used by OEM and fleet customers to ensure optimal visibility and safety during vehicle operations.
Features
- 7” LED-backlit LCD Monitor: Offers high resolution and longer life, with auto-dimming capabilities for varying light conditions.
- 120-degree Camera: Provides a wide viewing angle and night vision capabilities with 20 high flood output IR LEDs.
- J Series Mount: Ensures secure and stable installation.
- 65' Camera Cable (20m): Durable and waterproof with aviation plugs and copper connections.
- Monitor Power Cable: Reliable power supply with reverse polarity protection.
- Allen Wrench: Included for easy installation and adjustments.
- Clear sound speaker: Easy to use advance operation menu, adjustable parking lines
- Supports 3 Verity cameras: Includes 13-pin harness, Sun Shield, (1) ADD22H Slim Base Monitor Mount, and Manual
How is it used?
The system is installed on commercial vehicles to provide drivers with a clear and comprehensive view of the rear area. The monitor displays real-time video from the rear camera, helping drivers to safely navigate and reverse their vehicles. The system can be integrated with additional cameras for side and forward views, enhancing overall visibility..
Who uses it?
This system is primarily used by OEM and fleet customers who operate commercial vehicles. It is ideal for trucks, buses, and other large vehicles that require enhanced rear vision for safety during operations.
Maintenance Information
Regular maintenance includes checking the camera and monitor connections, ensuring the cables are intact and free from damage, and cleaning the camera lens to maintain clear visibility. The system is designed to self-diagnose certain problems, making it easier to identify and address issues.
Storage Information
The system should be stored in a cool, dry place when not in use. The recommended storage temperature is between -30°C and 80°C to ensure the longevity of the components.

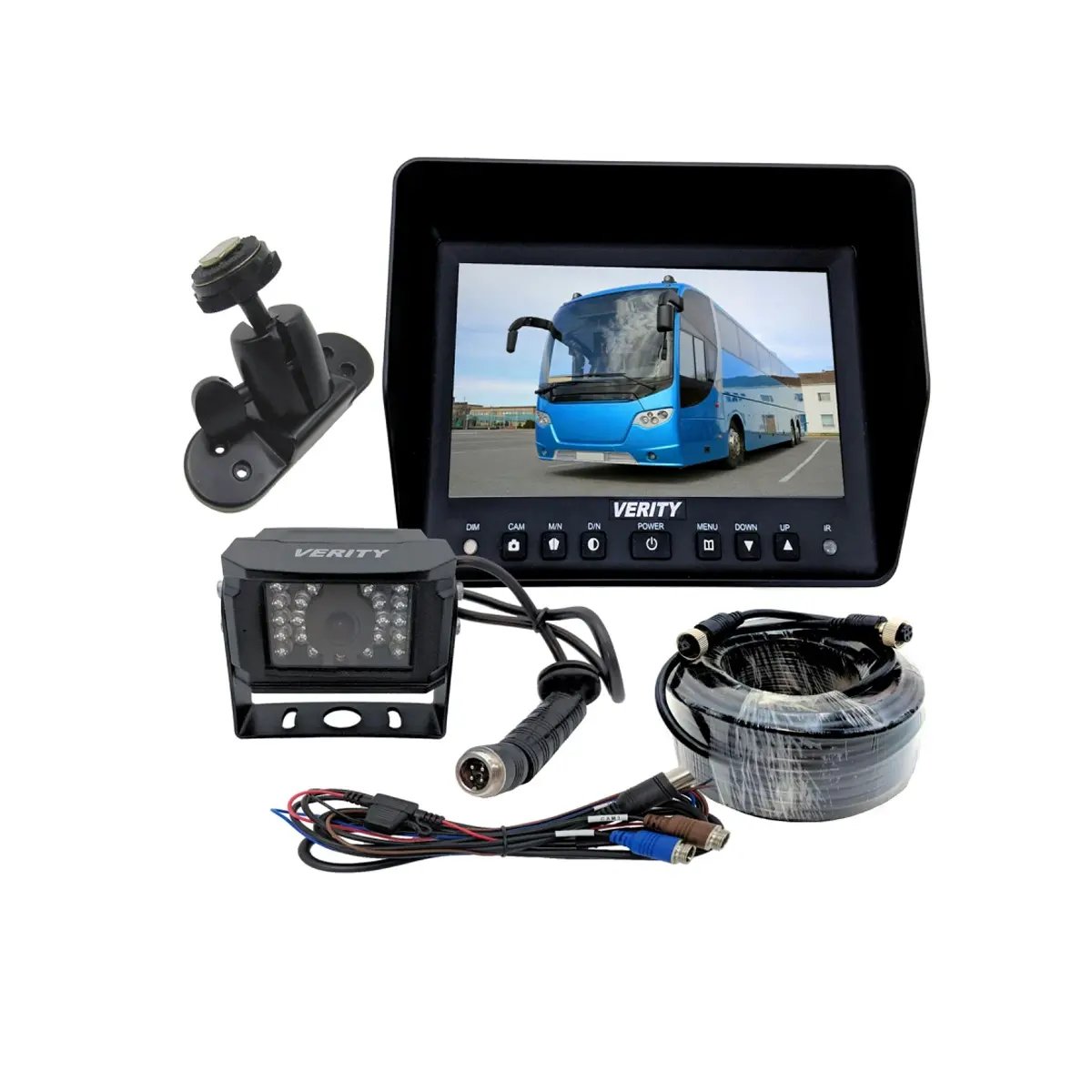

What is included?
- 7" Monitor
- Standard Rear View, IP69 waterproof, 120° lens, color camera with night vision (4 Pin Connector)
- J Series Mount
- 20m (65') camera cable (female/female connectors)
- Monitor Power Cable
- Allen Wrench

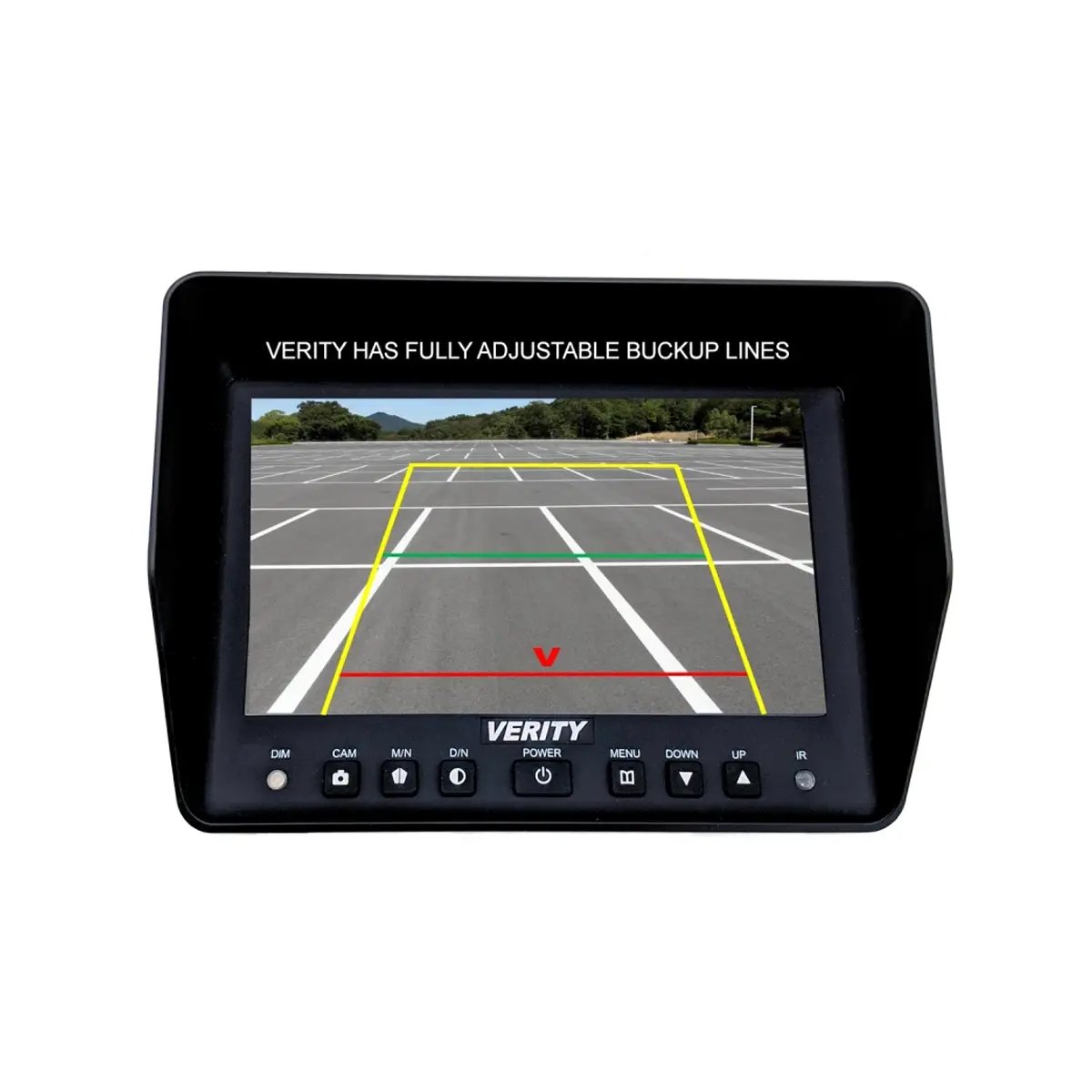

Monitor
- Screen Size: 7” LED-backlit LCD
- Resolution: 1024*600
- Contrast Ratio: 700:1
- Brightness: 520 cd/m2
- Camera Inputs: 3 (audio and video)
- Power Supply: 12V~24V DC with reverse polarity protection
- System Format: NTSC/PAL/AUTO
- Operation Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Model: SM07J
- Additional Features: Auto-dimming, removable sun shield, multi-language support, adjustable backup guidelines

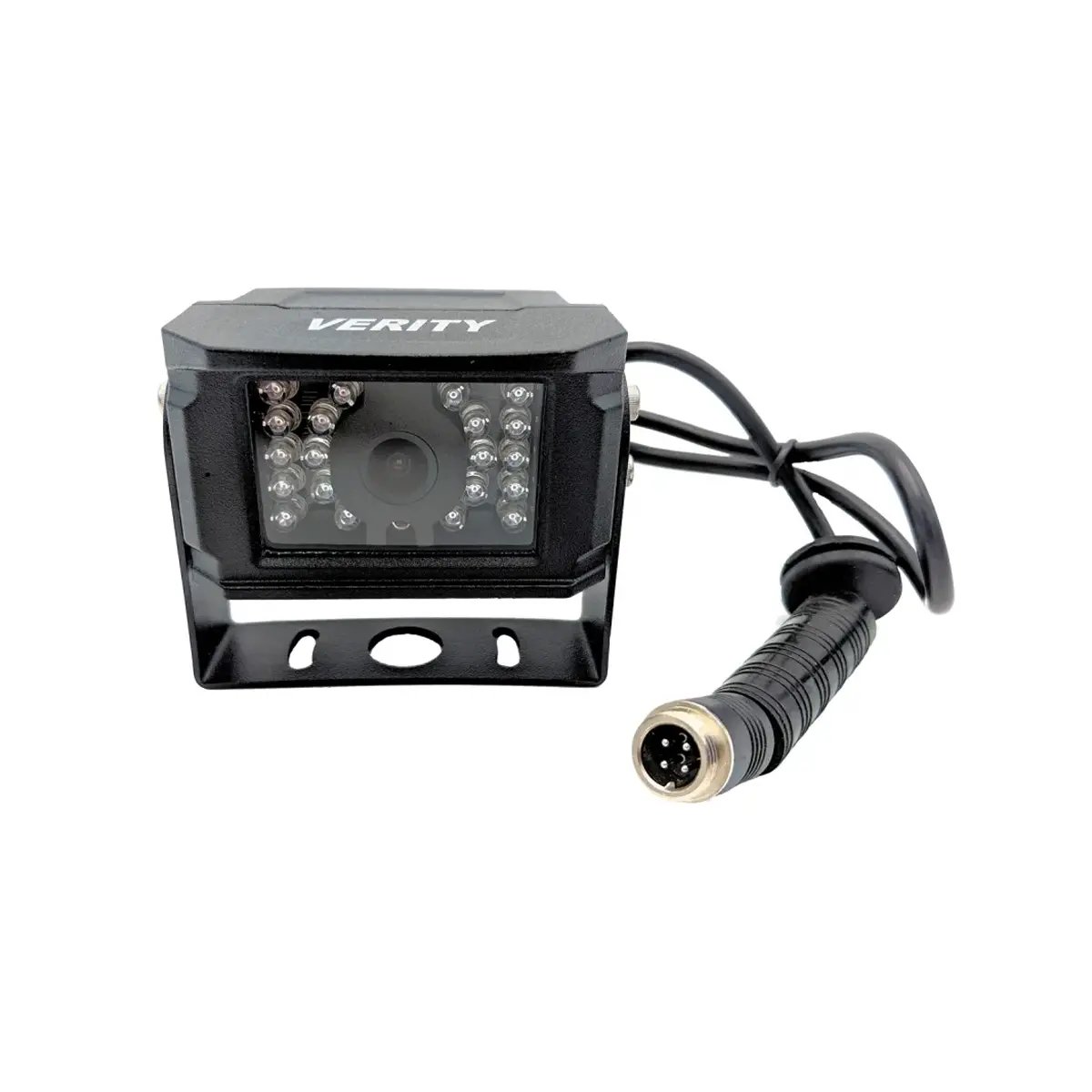

Camera
- Viewing Angle: 120°
- Waterproof Rating: IP69
- Housing: Aluminum with UV protective coating
- Operating Temperature: -30°~70°C
- Resolution: 700TV Lines
- Effective Pixels: 510 × 492
- Illumination: 0 Lux (night vision)
- Shockproof Rating: 10G
- Power Supply: DC 12V
- Viewing Angle: 120°
- Built-in Microphone
