RamFan

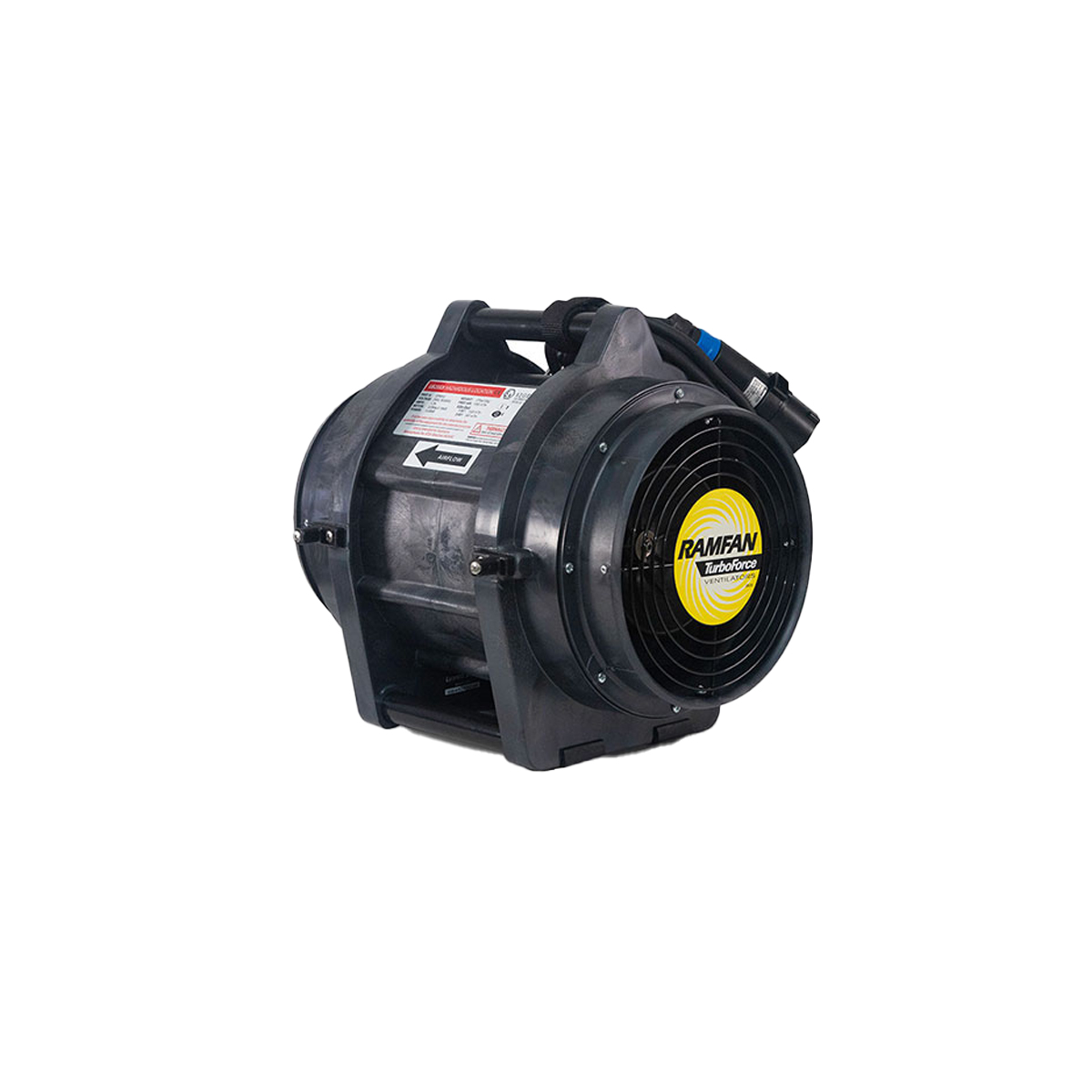

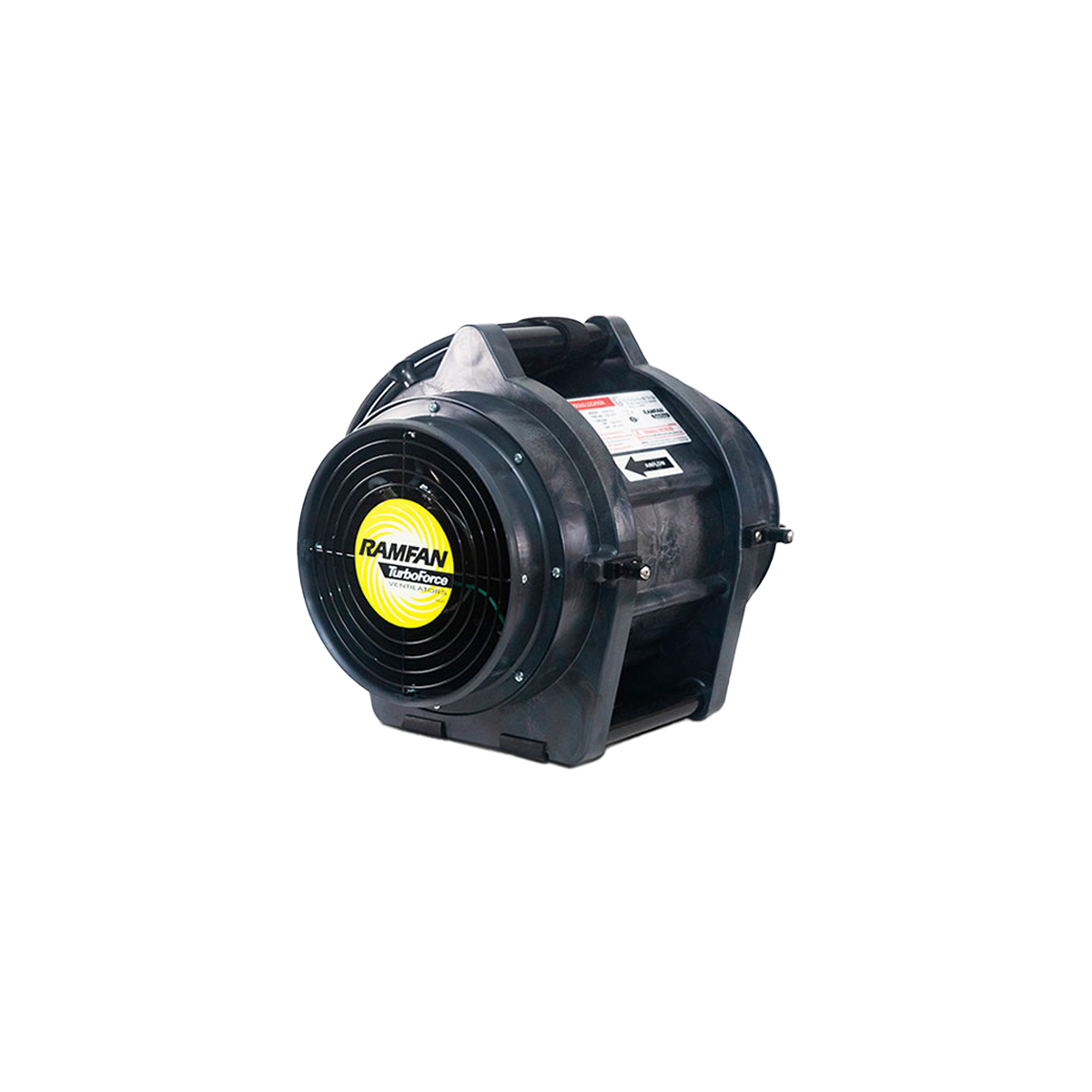

RamFan UB20XX 8" Blower/Exhauster - 1/3 HP Explosion Proof Motor
SKU#: BA001
Ships via Standard Ground
RamFan UB20 8" Blower/Exhauster: Durable, explosion-proof, lightweight, and ideal for hazardous environments. Provides powerful airflow with a 1/3 HP motor.
Price:$2,825.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The RamFan UB20 Turbo is a robust and reliable blower/exhauster designed for high-performance ventilation in hazardous environments. Engineered to meet stringent safety standards, this unit ensures safe operation while delivering powerful airflow.
Features
- High Pressure Axial Blower: Provides efficient and powerful airflow.
- Durable PC/ABS Anti-Static Casing: Weatherproof, dent-resistant, V0 flame retardant, and chemical resistant.
- Integrated Duct Adapters: Two adapters for easy attachment of ducts.
- Flameproof Motor Enclosure: Starter secured to prevent ignition risk; pull switch activates the ventilator.
- Extended Reach: 25' power cable to provide extended reach.
- Compact and Lightweight: Easy to transport and handle.
- IP55 Rain Switch Enclosure: Ensures reliable operation in wet conditions reducing the possibility of short circuits.
- Explosion-Proof Design: Certified to ATEX, IEC, and INMETRO standards for safe use in explosive atmospheres.
- Whole-Unit Certification: Ensures all components are explosion-proof, providing peace of mind and reducing liability.
Applications
- General Use: Ideal for a variety of ventilation needs in different environments.
- Confined Space Ventilation: Ensures safe and effective airflow in tight, enclosed spaces.
- Industrial Ventilation: Perfect for factories and warehouses requiring robust air movement.
- Construction Sites: Helps maintain air quality and worker safety in construction areas.
- Emergency Response: Provides rapid ventilation in emergency situations, such as fire or chemical spills.
- Maintenance Operations: Assists in ventilating areas during maintenance and repair tasks.
Usage
The RamFan UB20 is used to provide ventilation in hazardous environments, ensuring safe and effective airflow. It is commonly used in confined spaces, industrial settings, construction sites, and emergency response scenarios.
Maintenance Information
Regular maintenance includes checking the motor and impeller for wear, ensuring the casing is intact, and verifying the functionality of the rain switch enclosure. Clean the unit periodically to remove dust and debris.
Storage Information
Store the RamFan UB20 in a dry, cool place away from direct sunlight and corrosive materials. Ensure the unit is securely stored to prevent damage.
What's Included
- RamFan UB20 Blower/Exhauster
- Dimensions (H x W x D): 14 x 14 x 15.5 in
- Motor: 0.33 HP, Totally Encapsulated Air Over Flame Proof
- Amps (Start/Run): 7A / 2A
- Cable Length: 25’ (16 AWG)
- Plug Type: A.T.X. 100/130V
- Weight: 27 lbs
- Duct Adapters: 2
- Model: EF7002
- IMPA Code: 591416
- Electric: 115V, 50/60Hz, 1ø
- Operating Temperature: -22°F to +104°F
- Noise Level: 74 dB @ 3’ (1m)
- Run Time: Continuous
- Impeller: 9-Blade
- Free Airflow: 980 cfm (1,666 m³/hr).
- Airflow with Ducts:
- 15 ft/4.6 m with 1-90° turn: 789 cfm (1,341 m³/hr).
- 15 ft/4.6 m with 2-90° turns: 666 cfm (1,132 m³/hr).
- 25 ft/7.6 m with 1-90° turn: 722 cfm (1,227 m³/hr).
- 25 ft/7.6 m with 2-90° turns: 614 cfm (1,044 m³/hr).
