RamFan

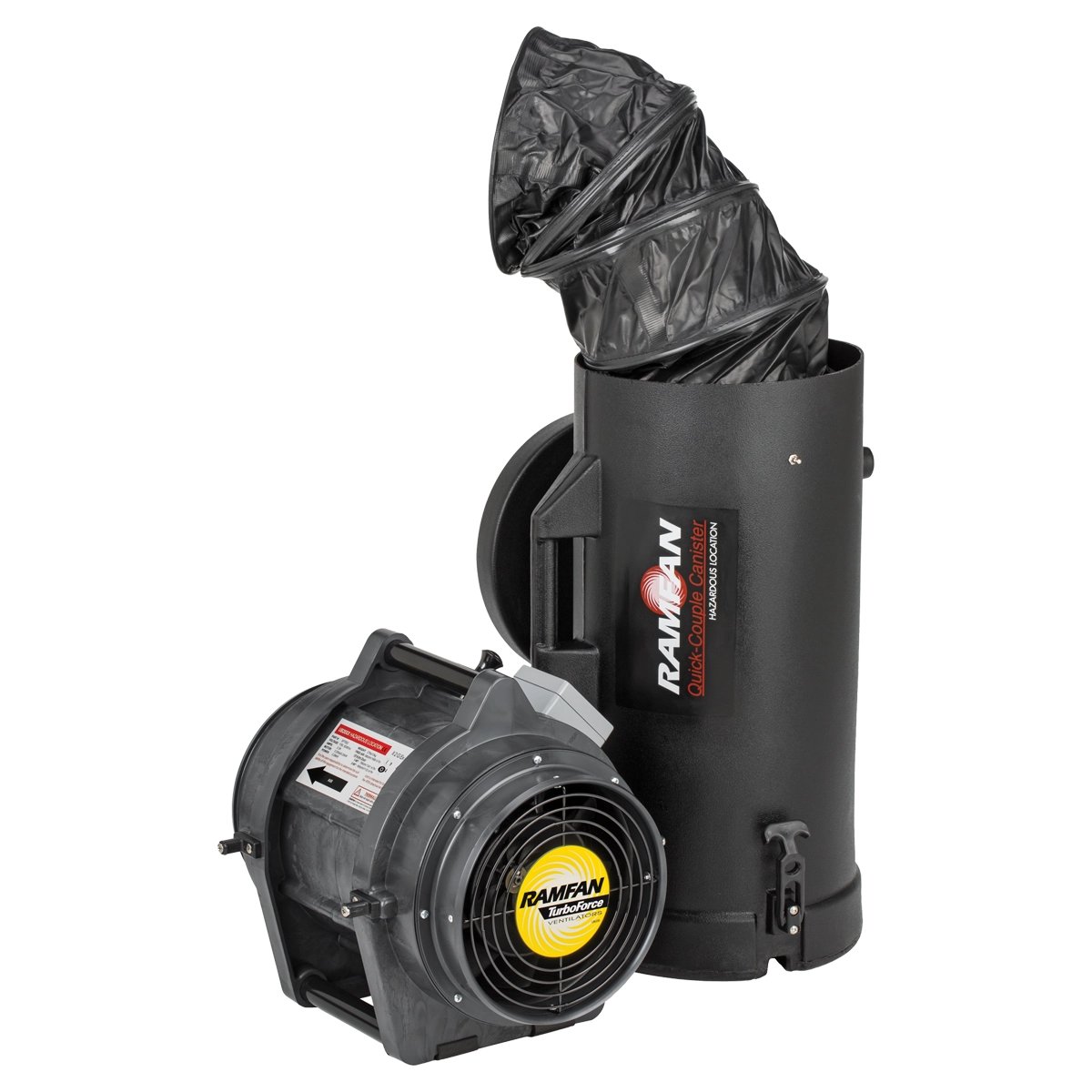

RamFan UB20 Turbo 8" Blower/Exhauster Bundle
SKU#: AS284
Typically ships in 1 week
Ships via Standard Ground
RamFan UB20 Turbo 8" Blower/Exhauster Bundle: Durable, explosion-proof, and lightweight. Ideal for hazardous environments. Includes Quick-Coupling Canister and 25’ anti-static duct.
Price:$4,005.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The RamFan UB20 Turbo Bundle is a comprehensive ventilation solution designed for hazardous environments. This bundle includes the high-performance UB20 Turbo blower/exhauster, a Quick-Coupling Canister, and 25 feet (7.6 meters) of anti-static duct, providing everything you need for efficient and safe ventilation.
Features

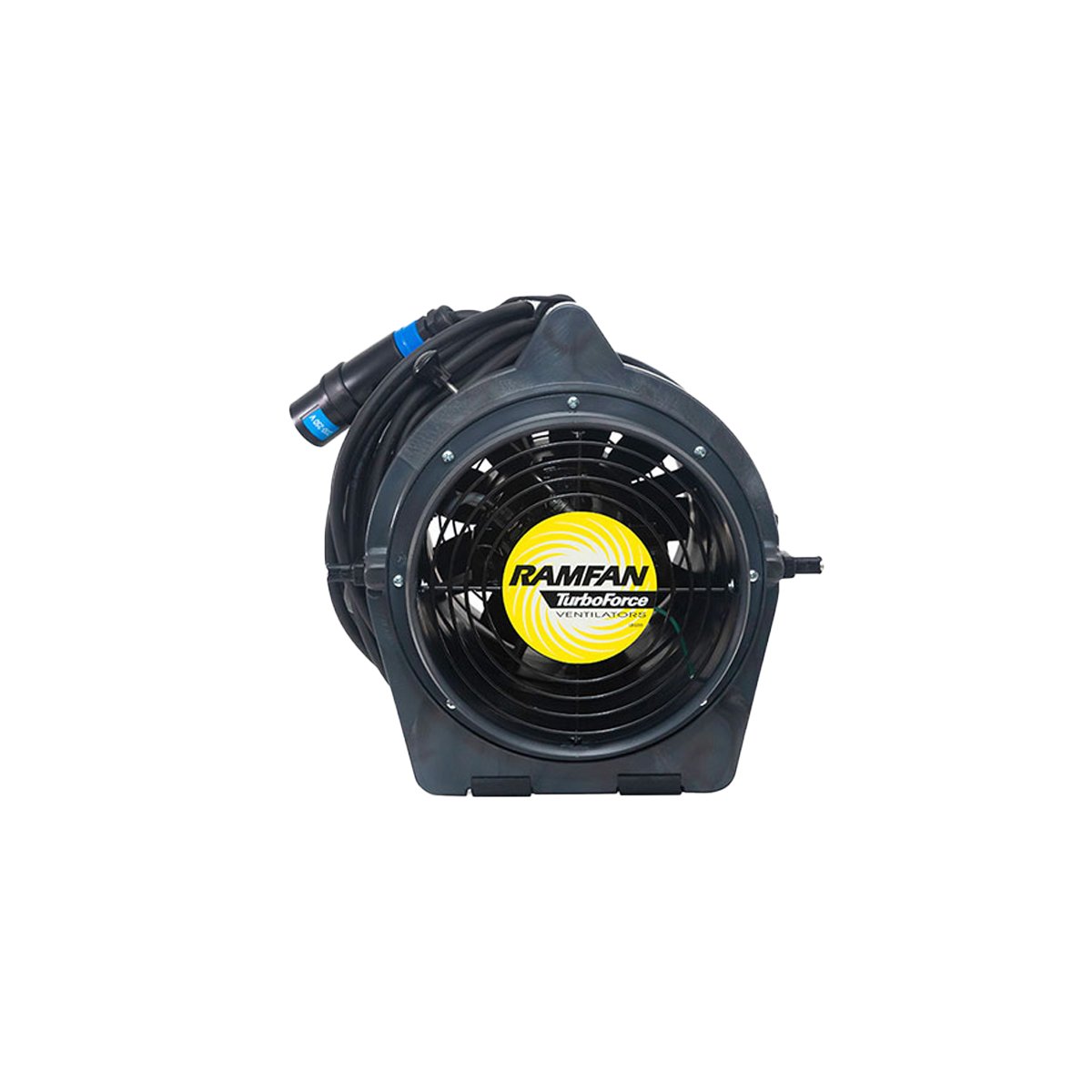

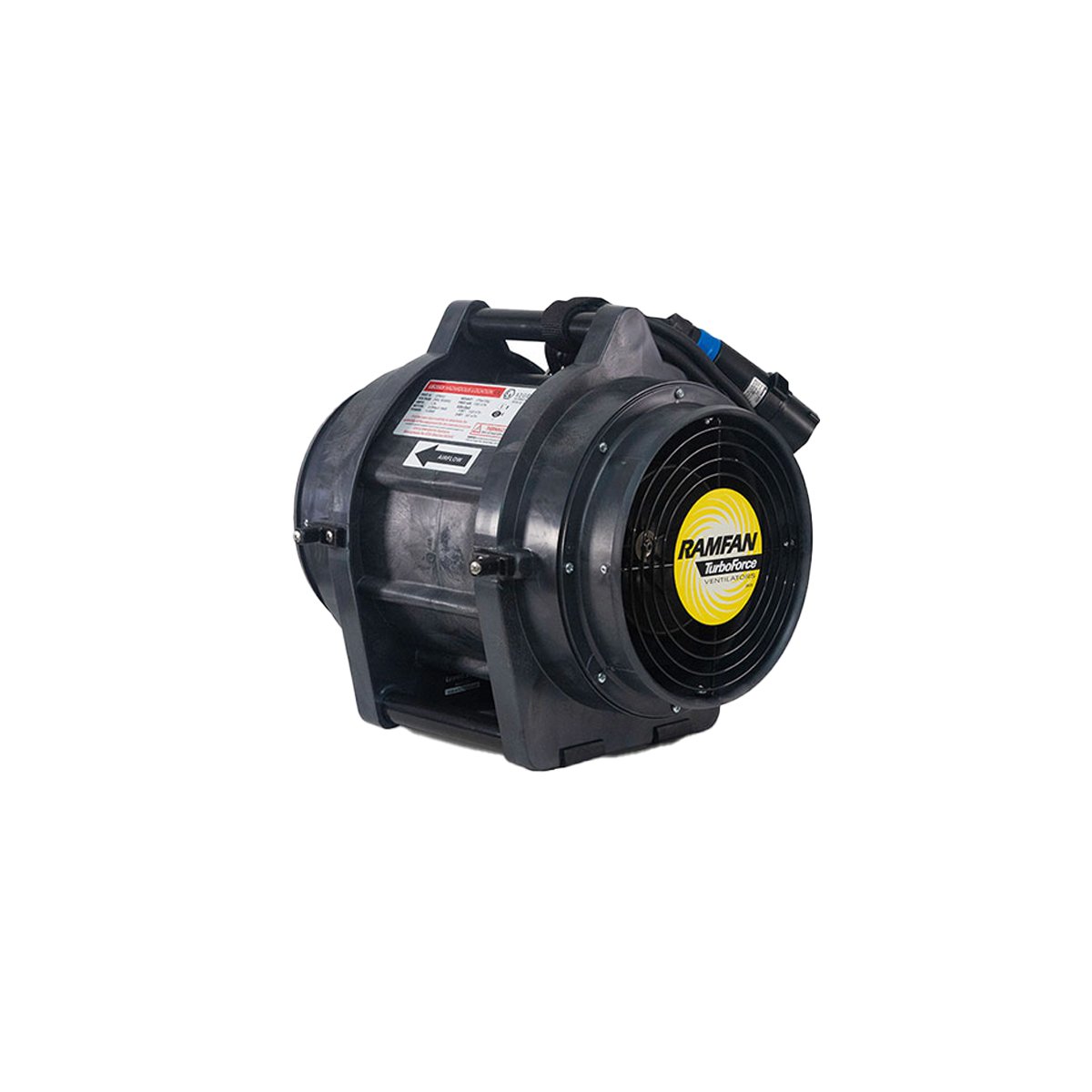

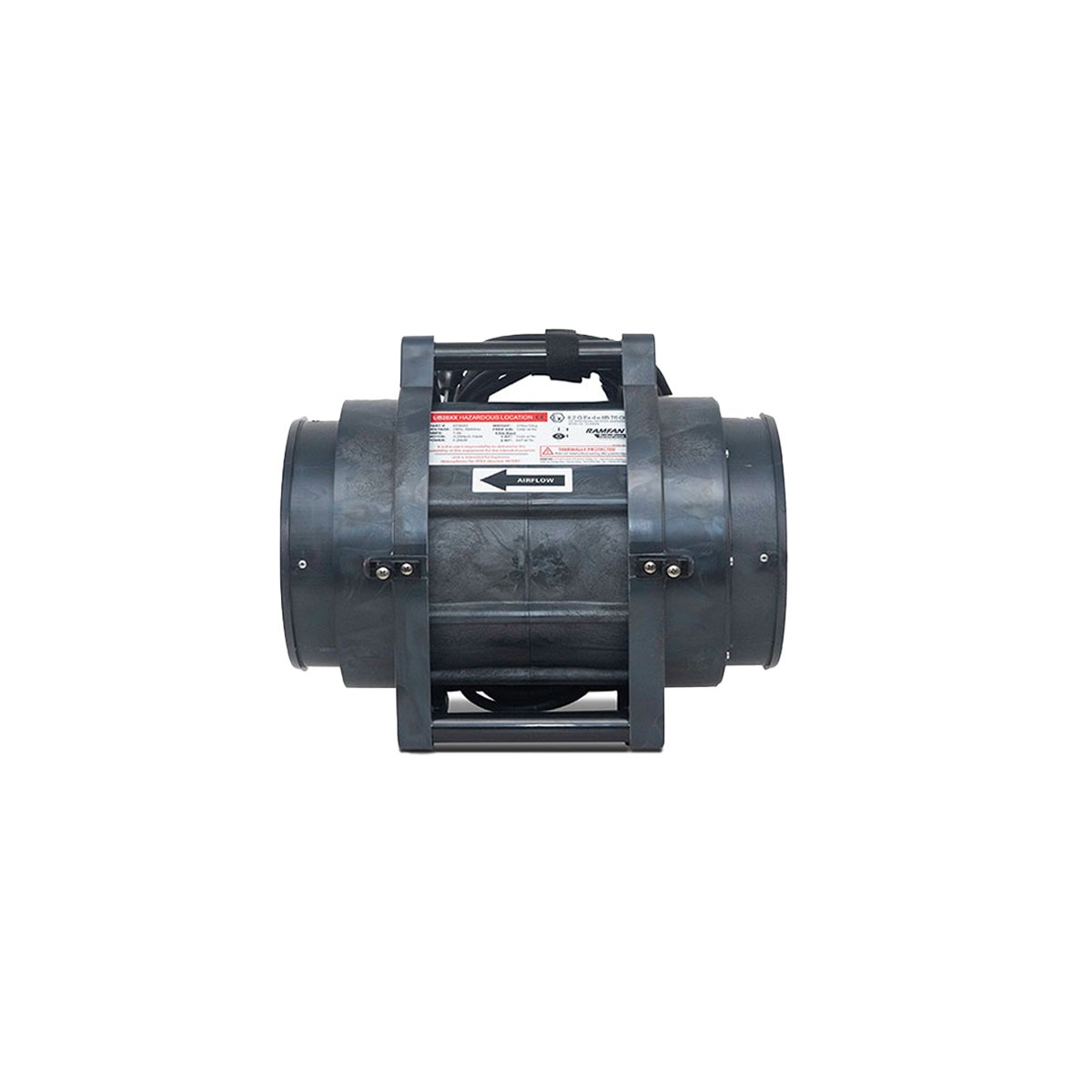

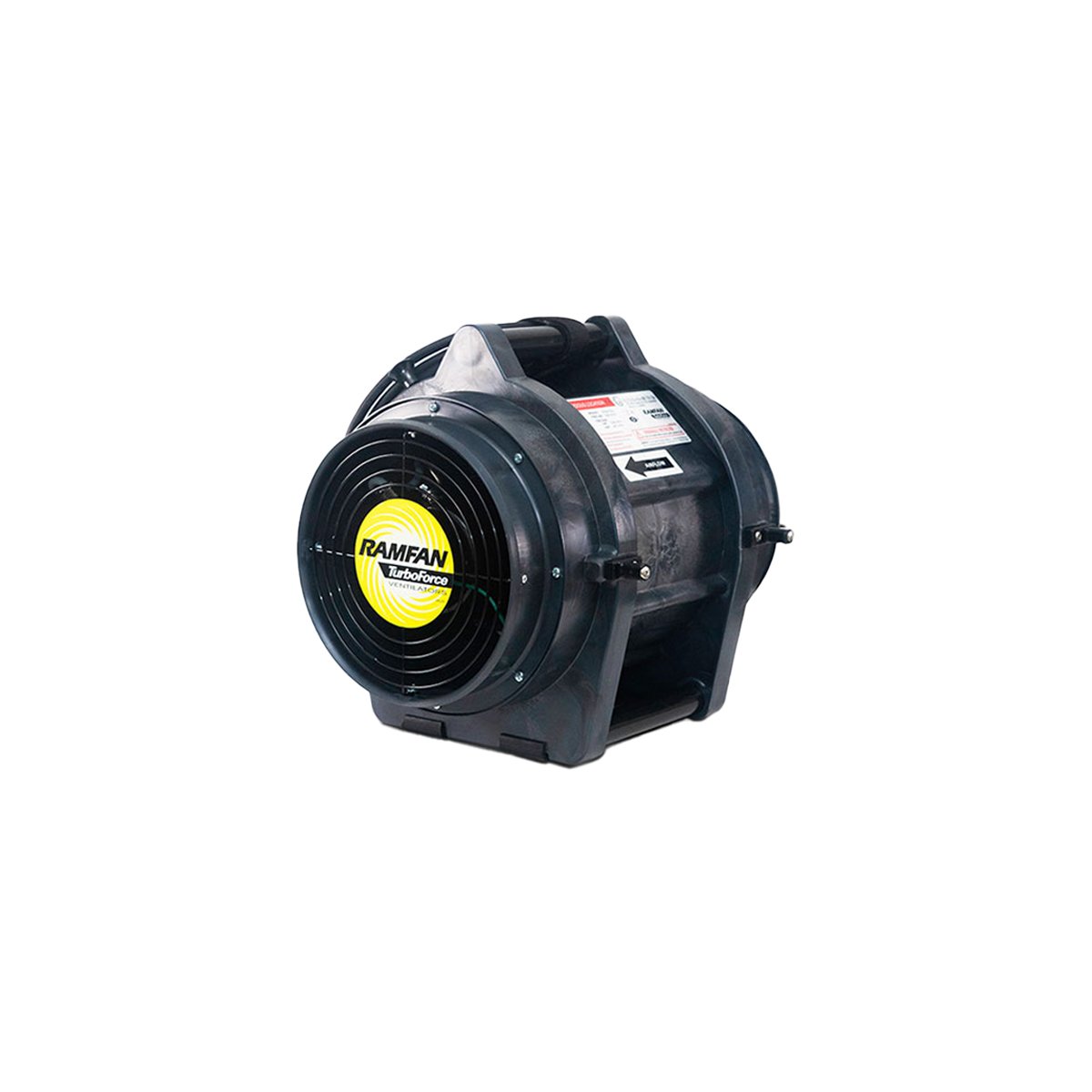

RamFan UB20 Turbo Blower/Exhauster
- High Pressure Axial Blower: Provides efficient and powerful airflow.
- Durable PC/ABS Anti-Static Casing: Weatherproof, dent-resistant, V0 flame retardant, and chemical resistant.
- Integrated Duct Adapters: Two adapters for easy attachment of ducts.
- Flameproof Motor Enclosure: Starter secured to prevent ignition risk; pull switch activates the ventilator.
- Extended Reach: 25’ power cable to provide extended reach.
- Compact and Lightweight: Easy to transport and handle.
- IP55 Rain Switch Enclosure: Ensures reliable operation in wet conditions, reducing the possibility of short circuits.
- Explosion-Proof Design: Certified to ATEX, IEC, and INMETRO standards for safe use in explosive atmospheres.
- Whole-Unit Certification: Ensures all components are explosion-proof, providing peace of mind and reducing liability.
Quick-Coupling Canister
- Protective Storage: Keeps attached duct safe from damage, extending its lifespan.
- Quick and Easy Attachment: Easily attaches or detaches from the UB20 blower/exhauster, allowing for efficient setup and operation.
- Reversible Design: Can be used for both blowing and exhausting air, providing versatile ventilation solutions.
- Durable Construction: Built to withstand tough conditions, ensuring reliable performance.
- Included Duct: 25 feet (7.6 meters) of anti-static ducting for extended reach and flexibility.
Applications
- General Use: Ideal for a variety of ventilation needs in different environments.
- Confined Space Ventilation: Ensures safe and effective airflow in tight, enclosed spaces.
- Industrial Ventilation: Perfect for factories and warehouses requiring robust air movement.
- Construction Sites: Helps maintain air quality and worker safety in construction areas.
- Emergency Response: Provides rapid ventilation in emergency situations, such as fire or chemical spills.
- Maintenance Operations: Assists in ventilating areas during maintenance and repair tasks
- Dimensions (H x W x D): 14 x 14 x 15.5 in
- Motor: 0.33 HP, Totally Encapsulated Air Over Flame Proof
- Amps (Start/Run): 7A / 2A
- Cable Length: 25’ (16 AWG)
- Plug Type: A.T.X. 100/130V
- Weight: 27 lbs
- Duct Adapters: 2
- Model: EF7002
- IMPA Code: 591416
- Electric: 115V, 50/60Hz, 1ø
- Operating Temperature: -22°F to +104°F
- Noise Level: 74 dB @ 3’ (1m)
- Run Time: Continuous
- Impeller: 9-Blade
- Free Airflow: 980 cfm (1,666 m³/hr)
- Airflow with Ducts:15 ft/4.6 m with 1-90° turn: 789 cfm (1,341 m³/hr)
- 15 ft/4.6 m with 2-90° turns: 666 cfm (1,132 m³/hr)
- 25 ft/7.6 m with 1-90° turn: 722 cfm (1,227 m³/hr)
- 25 ft/7.6 m with 2-90° turns: 614 cfm (1,044 m³/hr)
