Task Force Tips

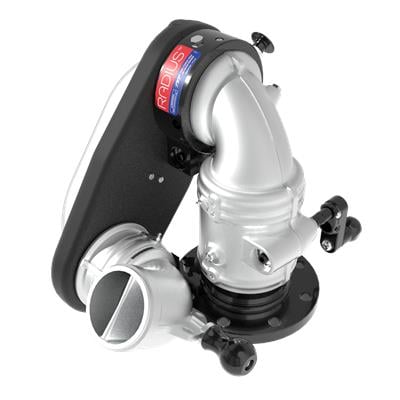

Radius Dual Crank 1500 GPM Extendable Monitor - Standard, 4″ ANSI 150/DN100 PN16 Inlet, 3.5″ NHM Outlet, 12 VDC Power, Silver
SKU#: BP489
Ships via Standard Ground
High-performance Radius 1500 GPM extendable monitor with dual cranks, 360° rotation, elevated nozzle height, and durable deck-mounted design.
Price:$6,778.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Radius Dual Crank 1500 GPM Extendable Monitor is a high‑performance deck-mounted firefighting monitor engineered to deliver elevated water stream reach, exceptional maneuverability, and high-volume flow for demanding apparatus applications. Designed for both new builds and retrofits, it provides nearly 24 inches (600 mm) of nozzle height along with full 360° rotation and a high-flow capability of up to 1500 GPM (6000 LPM).
Features
- High‑Flow Capacity: Provides up to 1500 GPM (6000 LPM) output for high-demand operations
- Elevated Nozzle Outlet: Offers nearly 24 in (600 mm) of nozzle height for improved reach and reduced obstructions
- Wide Vertical Range: Delivers 90° upward and -45° downward travel for flexible targeting
Operational Control & Maneuverability
- 360° Continuous Rotation: Enables unrestricted motion with a compact swing radius
- Dual Crank Control: Provides smooth, precise horizontal and vertical adjustments
- Flow in Any Position: Fully operational whether stowed or deployed
Deployment & Safety
- Quick Deployment: Pull-and-lift operation with quick-release knob for immediate readiness
- Stow Sensor Kit: Standard integrated indicator confirming stowed or deployed state
Compatibility & Durability
- Flexible Connections: Mounts easily to 3″ or 4″ (75 mm or 100 mm) apparatus fittings
- Durable Construction: Built to withstand harsh firefighting environments
- Rigid Flange Inlet & Outlet: Ensures secure, stable connections
How It Is Used
Operators mount the monitor to the apparatus deck and use the dual crank controls to direct high-volume water streams during firefighting operations. Its quick-deploy mechanism allows crews to rapidly position the monitor and begin flowing water in high-intensity, high-reach scenarios.
Who Uses It
Fire departments, emergency response teams, and apparatus manufacturers relying on rugged, high-flow deck monitors for municipal, industrial, and specialized firefighting applications.
Maintenance Information
Routine inspection is recommended to ensure smooth crank operation, confirm sensor functionality, and verify all swivels, seals, and rigid mount points remain secure. Lubricate moving components and inspect for wear consistent with heavy-duty firefighting use.
Storage Information
The Radius Monitor should be stored in its locked stowed position when not in operation. Keep the unit clean, dry, and free of debris to maintain mechanical performance and prolong service life.
What Is Included
- Radius Monitor
- Dual crank control assembly
- Stowed sensor kit
- Color: Silver
- Brand: Radius™
- Weight: 36.950 lbs
- Bundle: Monitor Only
- Monitor Type: Standard Mounting
- Monitor Accessory Power: 12 VDC
- Monitor Supply Size (Imp): 4″
- Monitor Supply Size (Met): 100 mm
- Monitor Supply Type: ANSI 150/DN100 PN16
- Monitor Supply Style: Flange
- Monitor Supply Swivel: Rigid
- Monitor Horizontal Control: Crank
- Monitor Horizontal Range: 360°
- Monitor Vertical Control: Crank
- Monitor Vertical Range: -45° to 90°
- Monitor Control: Dual Cranks
- Monitor Supply Inlets: Single
- Monitor Outlet Size (Imp): 3.5″
- Monitor Outlet Size (Met): 90 mm
- Monitor Outlet Type: NH Male
- Monitor Outlet Style: Male Threads
- Monitor Outlet Swivel: Rigid
- Max Flow Rate (GPM): 1500
- Max Flow Rate (LPM): 6000
- Swing Radius (in): 11.4
- Swing Radius (mm): 289.6
- Model: Y35-D11A
