Quic-Lock Mechanical SCBA Bracket

Features

• Strapless Retention System: Uses a PVC-coated flip-down top clamp and adjustable footplate to secure the SCBA cylinder by its ends.
• Quick One-Pull Release: Pulling the release cord completely frees the SCBA without snagging or additional manipulation.
• Adjustable Design: Fits most SCBAs with only minor adjustments.
• On-the-Fly Footplate Adjustment: Convenient adjustment knob allows quick footplate height changes to accommodate cylinder variations.
• Footplate Guide: Helps firefighters stow air packs quickly and accurately, even without direct visual alignment.
• Front-Access Adjustments: All cylinder-fit adjustments can be made from the front of the bracket without removing it from the seat.
• Secure Mechanical Locking System: Red locking knob engages the top clamp securely and minimizes vibration and rattling.
• Flexible Release Cord Placement: Release mechanism can be positioned where needed to suit vehicle and seating configurations.

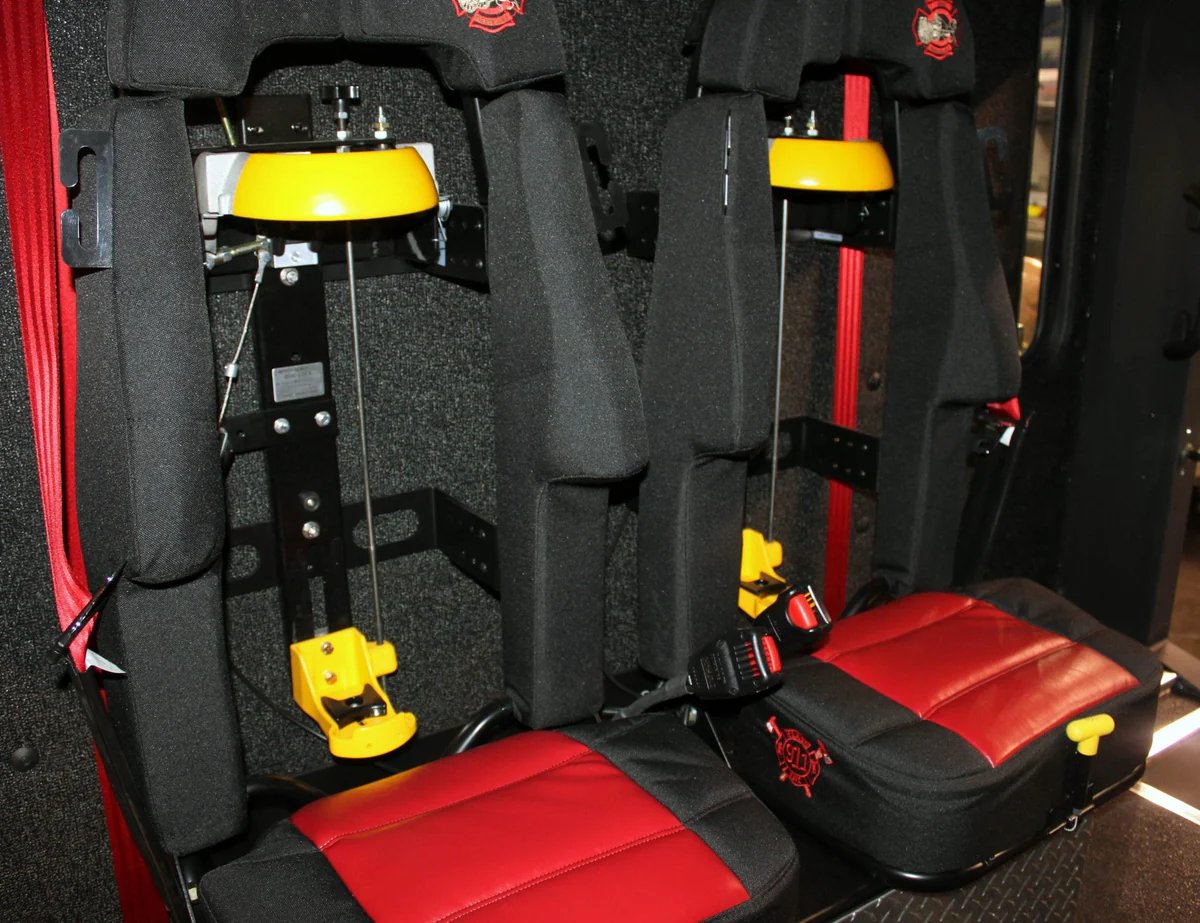

• Retrofit Friendly: Easily installs in existing or new seats and works with most center-pull release systems.
• NFPA Compliant: Meets applicable NFPA requirements for SCBA mounting systems.
• 11G Tested: Third-party tested to exceed the 11G equipment retention standard.

What Is It?

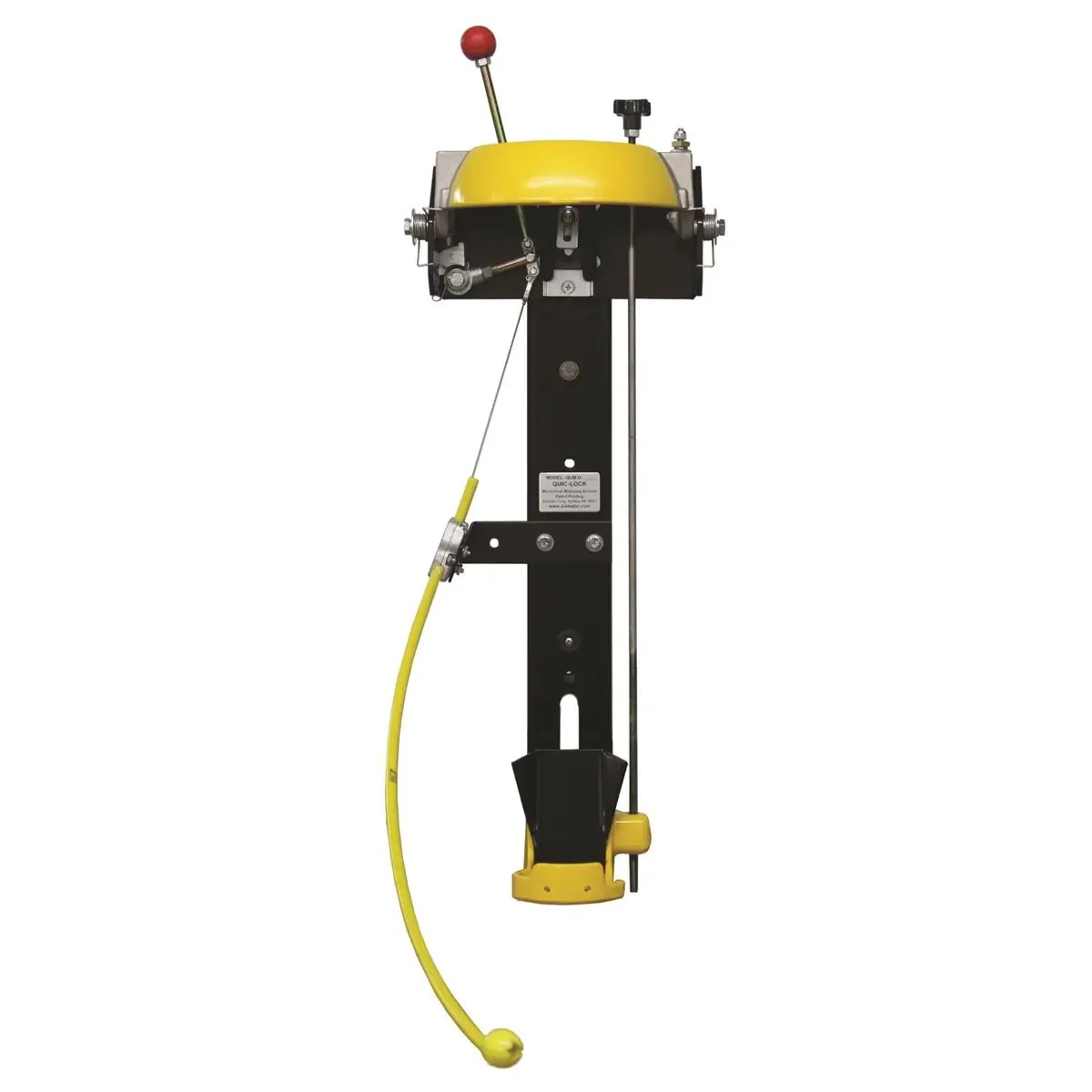

The Quic-Lock Mechanical SCBA Bracket (QLM-U) is a mechanical air pack restraint system designed to securely store SCBAs in fire apparatus and emergency response vehicles. Its strapless design simplifies air pack storage while providing dependable retention and rapid release during emergency response operations.

How Is It Used?

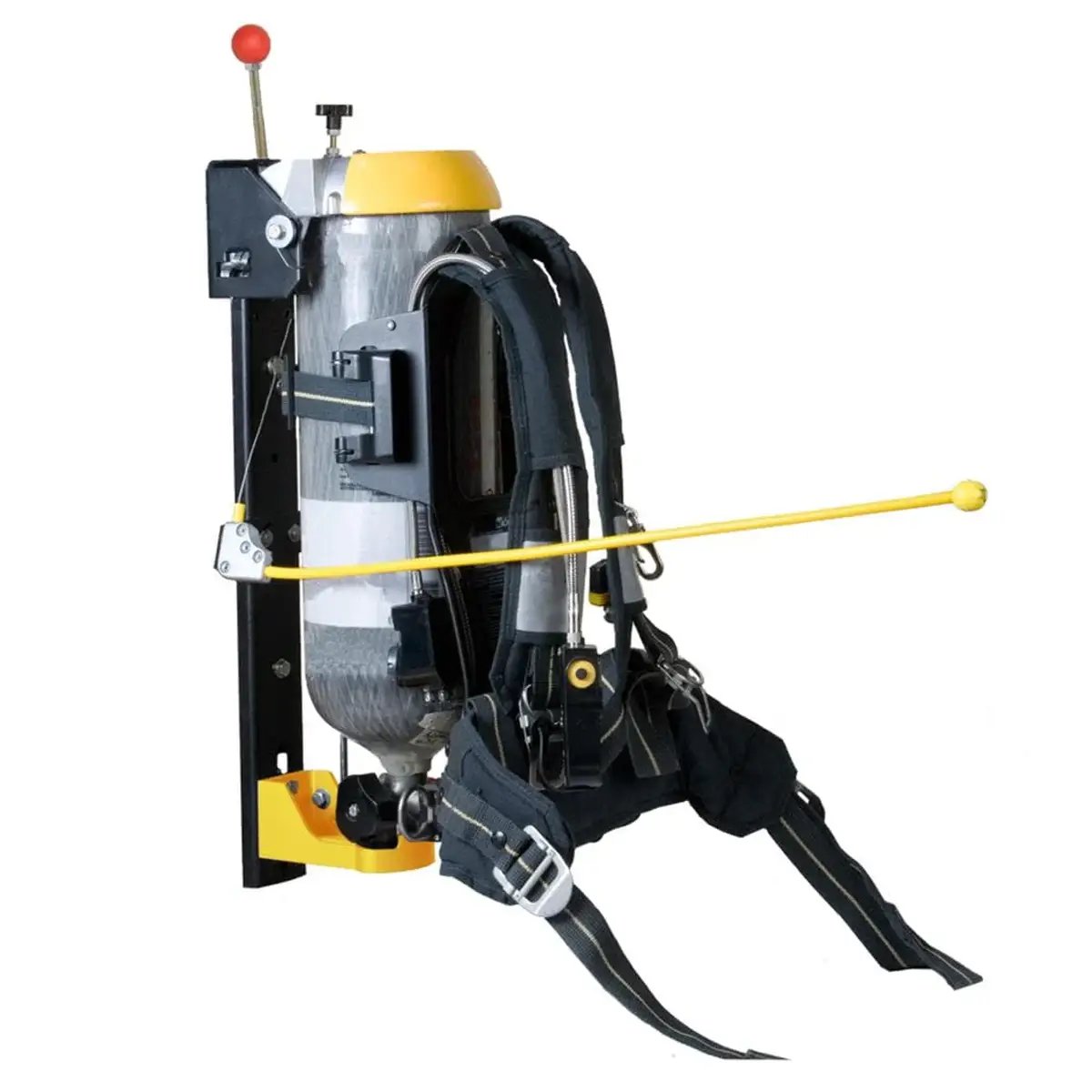

To secure an SCBA, place the cylinder valve into the adjustable footplate, lower the PVC-coated top clamp around the cylinder, and pull up on the red locking knob until the bracket locks into place. When the SCBA is needed, simply pull the release cord to instantly release the cylinder. The bracket's adjustable design accommodates a wide range of SCBA brands and cylinder sizes.

Who Uses It?

• Municipal fire departments
• Volunteer fire departments
• Industrial fire brigades
• Airport rescue and firefighting teams
• Emergency response organizations
• Fire apparatus manufacturers
• Apparatus service and retrofit providers

Maintenance Information

• Inspect the bracket regularly for wear, damage, or loose hardware.
• Verify proper operation of the locking knob and release mechanism.
• Check the footplate adjustment system for smooth movement.
• Ensure the top clamp coating remains intact to help protect cylinders.
• Test SCBA retention and release functions periodically.
• Clean components as needed to remove dirt and debris.

What Is It Used With?

• Self-contained breathing apparatus (SCBA)
• Composite and metal SCBA cylinders
• Fire apparatus seating systems
• Emergency response vehicles
• Center-pull seat release systems

Material

• Heavy-duty metal construction
• PVC-coated top clamp
• Mechanical locking components
