Pelican
Pelican Protector Case - Series 1620
SKU#: BD131
Ships via Standard Ground
Large Pelican 1620 Protector Case with wheels, IP67 rating, and for protecting sensitive equipment in extreme conditions.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

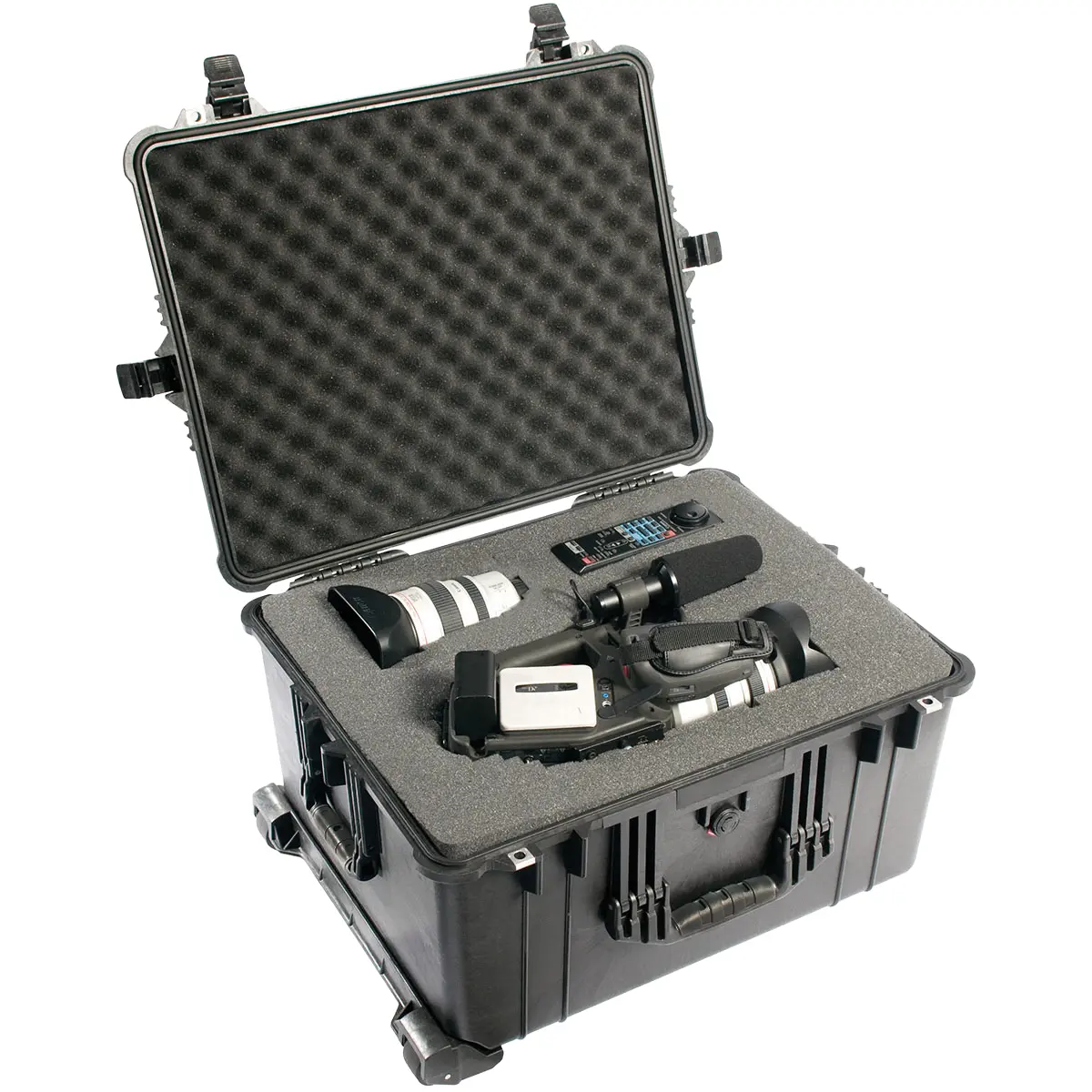

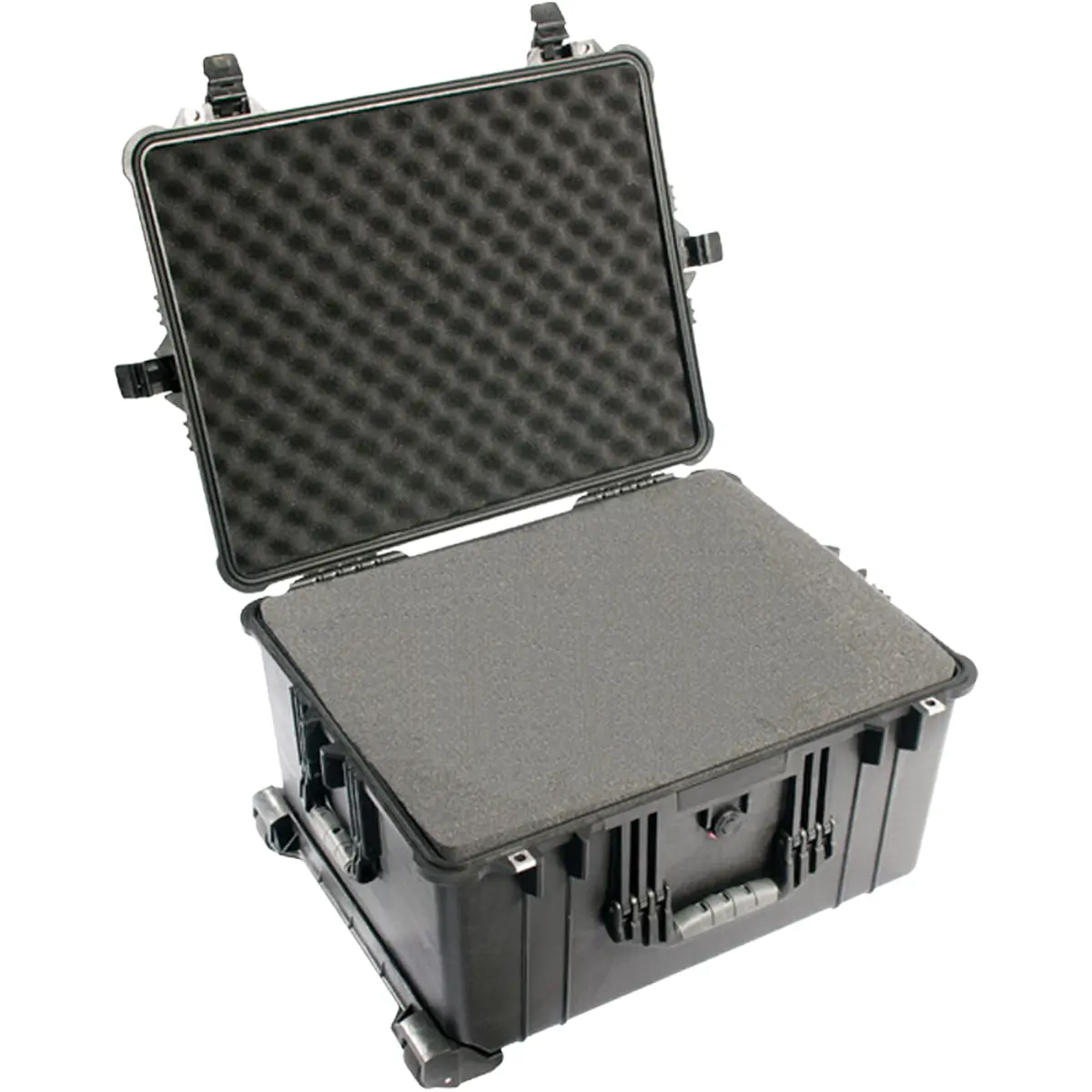

The Pelican Protector Case Series 1620 is a large-capacity, wheeled hard case engineered to protect sensitive equipment in extreme environments. Made in the USA, it reflects Pelican’s long-standing reputation for rugged performance since 1976.
Features
- Watertight: watertight, crushproof, and dustproof design for harsh conditions
- Durable: open cell core with solid wall design for strength with reduced weight
- Temperature-rated: built to perform from -40°F to 190°F
- Material: polypropylene body designed for demanding use
Sealing and Pressure Control
- O-ring seal: silicone O-ring lid provides a secure watertight seal
- Pressure valve: automatic pressure equalization valve balances interior pressure while keeping water out
Mobility and Handling
- Wheels: strong polyurethane wheels with stainless steel bearings for smooth rolling

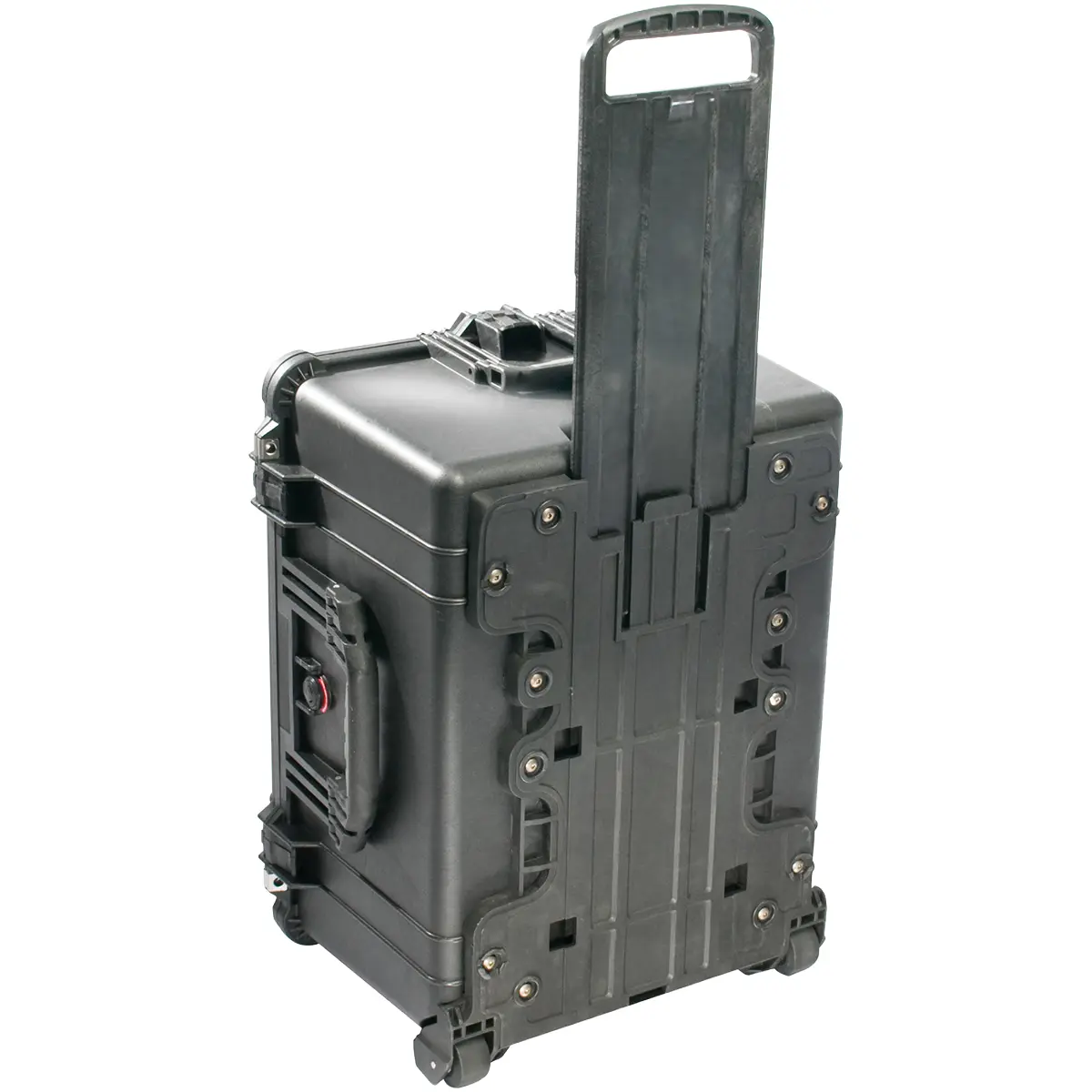

- Trolley handle: retractable extension handle for easier transport
- Handles: fold-down handles with rubber over-molding for comfortable lifting
Latches and Security
- Double-throw latches: easy open latches designed to stay secure during drops and impact
- Lock-ready: stainless steel padlock protectors for added equipment security
- Hardware: stainless steel hardware and pins for corrosion resistance
Interior and Customization
- Pick N Pluck foam: four-level Pick N Pluck foam with convoluted lid foam
- Foam material: 1.3 lb polyurethane foam for customizable equipment fit
Standards and Protection Level
- Military-grade: designed to meet US and NATO mil-spec certifications
- IP rating: IP67 rated for protection against water and dust intrusion
How is it used
This case is used to transport and store sensitive or valuable equipment during travel and operations where exposure to impact, moisture, dust, and temperature extremes is a concern.
Intended for
Designed for users who need a high-capacity, mobile protective case for demanding field, industrial, or military environments.
Maintenance information
Inspect and clean the O-ring seal, latches, wheels, and handles regularly to ensure reliable sealing and smooth operation.
Storage information
Store the case closed in a clean, dry environment within the rated temperature range to maintain seal integrity and foam performance.
What is included
- Pelican Protector Case Series 1620
- Four-level Pick N Pluck foam
- Convoluted lid foam
- Exterior dimensions: 24.76 x 19.57 x 13.9 in
- Interior dimensions: 21.48 x 16.42 x 12.54 in
- Interior volume: 2.56 ft³
- Lid depth: 2.01 in
- Bottom depth: 10.53 in
- Total depth: 12.54 in
- Padlock hole diameter: 0.31 in
- Weight with foam: 24.62 lbs
- Weight without foam: 21.20 lbs
- Master pack weight: 26.90 lbs
- Buoyancy: 149.91 lbs
- Body material: polypropylene
- Latch material: ABS
- O-ring material: polymer
- Pin material: stainless steel
- Foam material: 1.3 lb polyurethane
- Purge body material: ABS
- Purge vent material: 3 micron hydrophobic non-woven
- Purge O-ring material: 70 shore nitrile
- Minimum temperature: -40°F
- Maximum temperature: 190°F
- Pelican foam included: yes
- Extendable handle: yes
- Wheels: 2
- Model: 1620
