Darley
Max Tactical Pumper™
SKU#: MaxTactical
Quick Delivery
Equipped with Darley’s Super Single Tire & Wheel Package, the new Max Tactical Pumper™ is engineered to safely get to the fire quickly and into places that a full-size pumper can’t access. Upgraded taller tires on DOT-rated wheels get the most power to the ground through all speed ranges and the lift package increases ground clearance for better off-road
capability.
Darley’s Tactical Pumpers™ are designed to enhance first responders’ agility and effectiveness. Our tailored solutions offer a high-quality, economical option that meets the rigorous demands of emergency management applications. The Max Tactical Pumper™ is as effective as a full-sized truck and agile as a pickup.
Features
- NFPA Compliant: Meets rigorous safety, performance, and reliability standards the National Fire Protection Association sets.
- Lift package: Increases ground clearance for better off-road capability
- Single rear tire: Improves off-road traction
- 335/80R20 40″ tall tires: With fender flares

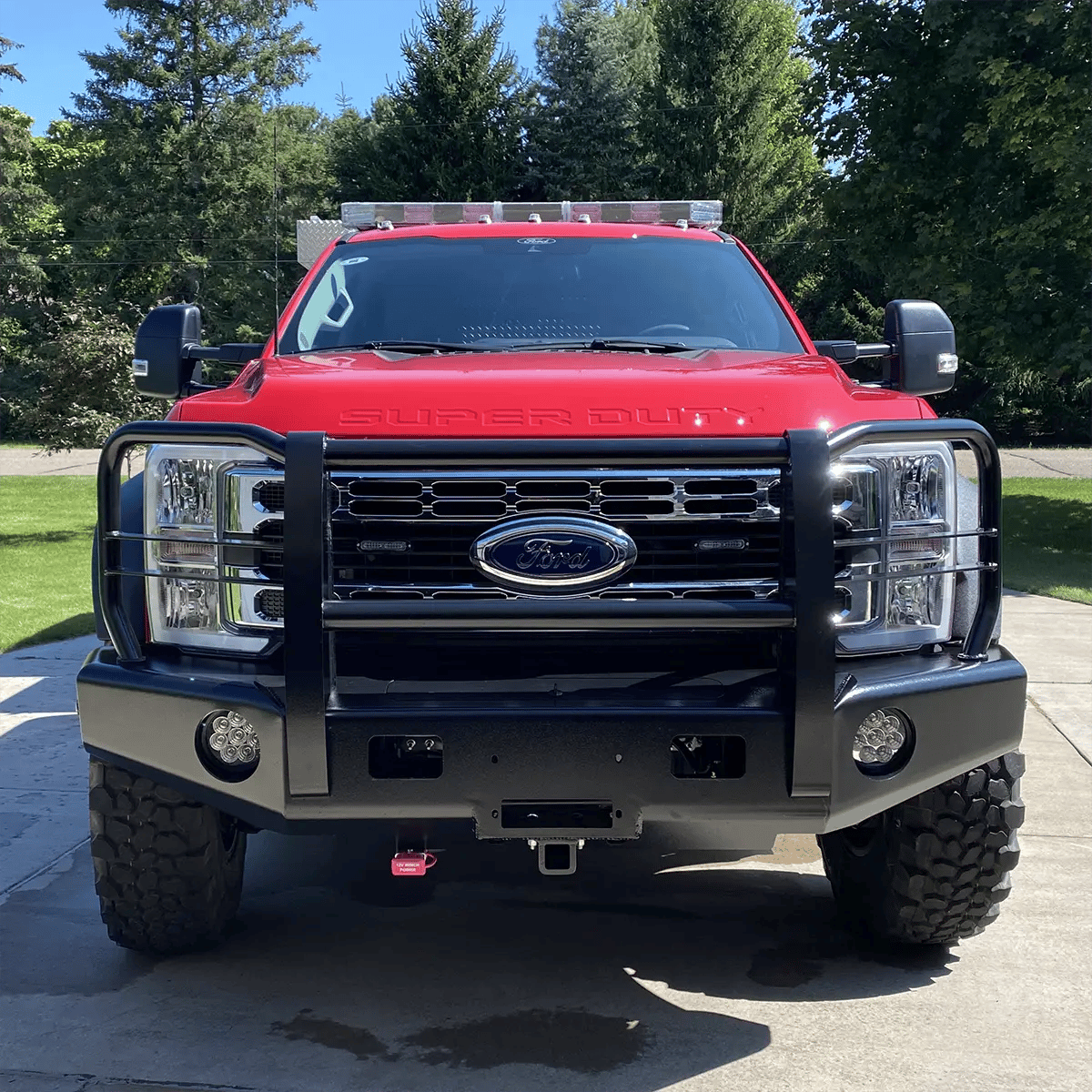

- Heavy duty front bumper: Includes grille and headlight guards and a 2″ receiver
- 7200 lumen LED driving lights
Contact Darley for a full set of specifications or to schedule a demonstration.
Chassis
- Model: Ford F550
- Configuration: 4 door 4×4 chassis (203″ wheelbase, 84″ CA)
- Engine: 6.7 L diesel engine rated at 330 hp
- Drive: “Shift on the fly” 4-wheel drive
- Transmission: Automatic transmission

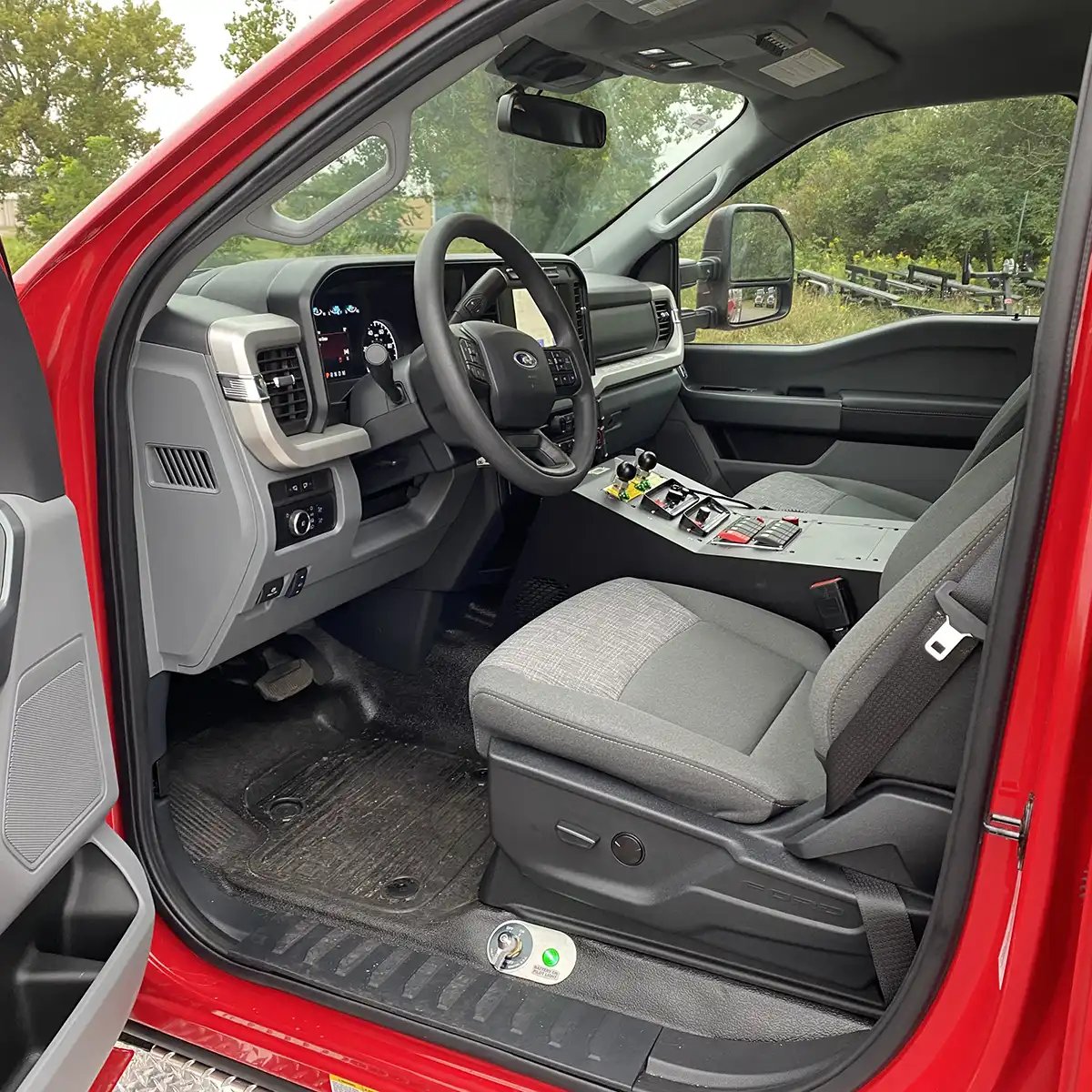

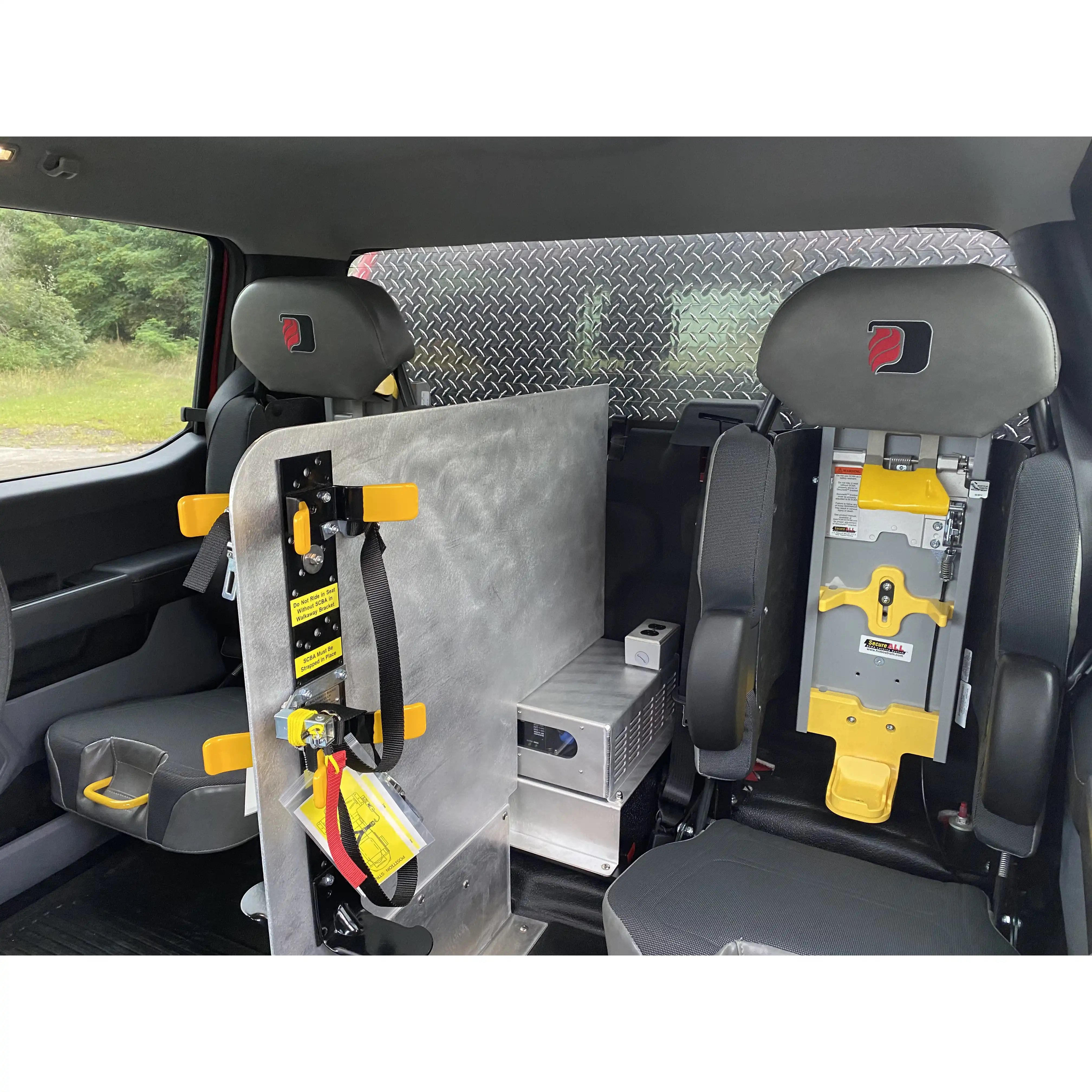

- Seating: Seating for four with two SCBA seats (Both rear SCBA seats)
- Additional Features: Battery conditioner with AutoEject™, Aluminum wheels
- Tires & Wheels: Super Single Tire & Wheel Package
Fire Pump
- Model: Darley PSMC midship pump with a UL rating of 1500 gpm at 150 psi
- Compressor: Gear driven 120 cfm rotary screw air compressor for the AutoCAFS® pumping system with a FoamPro 2001 foam proportioned
- Plumbing: All stainless steel plumbing package
- Seal: Maintenance free, reliable mechanical seal
- Discharges: 3 CAFS crosslay discharges (2 – 1-1/2″ NSTM and 1 – 2-1/2″ NSTM)
- Options: Up to two optional discharges, including: hose bed preconnect, deckgun, or hose reel (optional 2-1/2″ preconnect)
Body
- Material: PolyBilt™ copolymer
- Water Tank: Integral 300-gallon water tank (25-gallon foam tank)

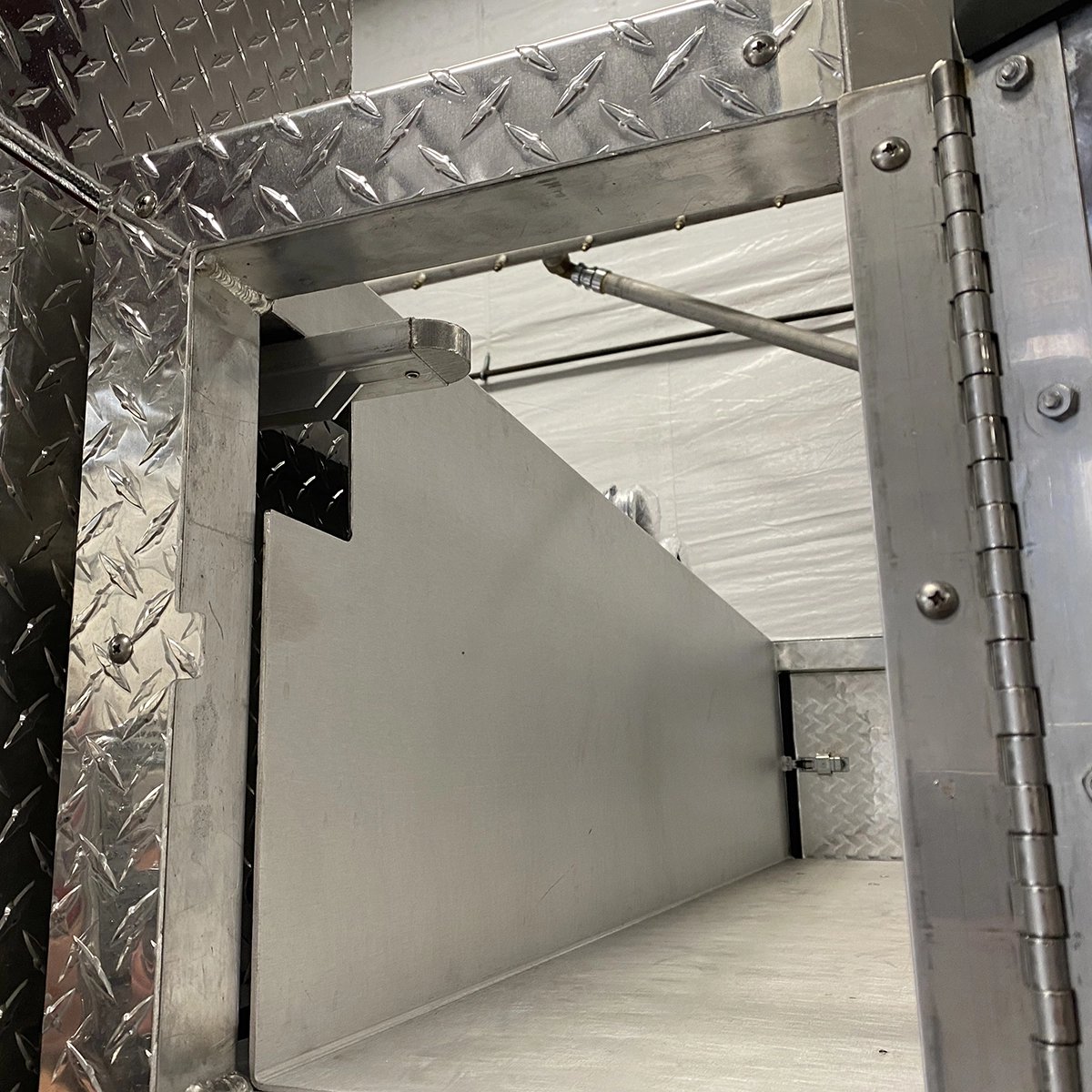

- Compartments: 5 large compartments with roll-up doors, 1 SCBA Bottle Storage compartment, 1 Misc. tool storage compartment
- Storage: Open top mounted ladder and suction hose storage

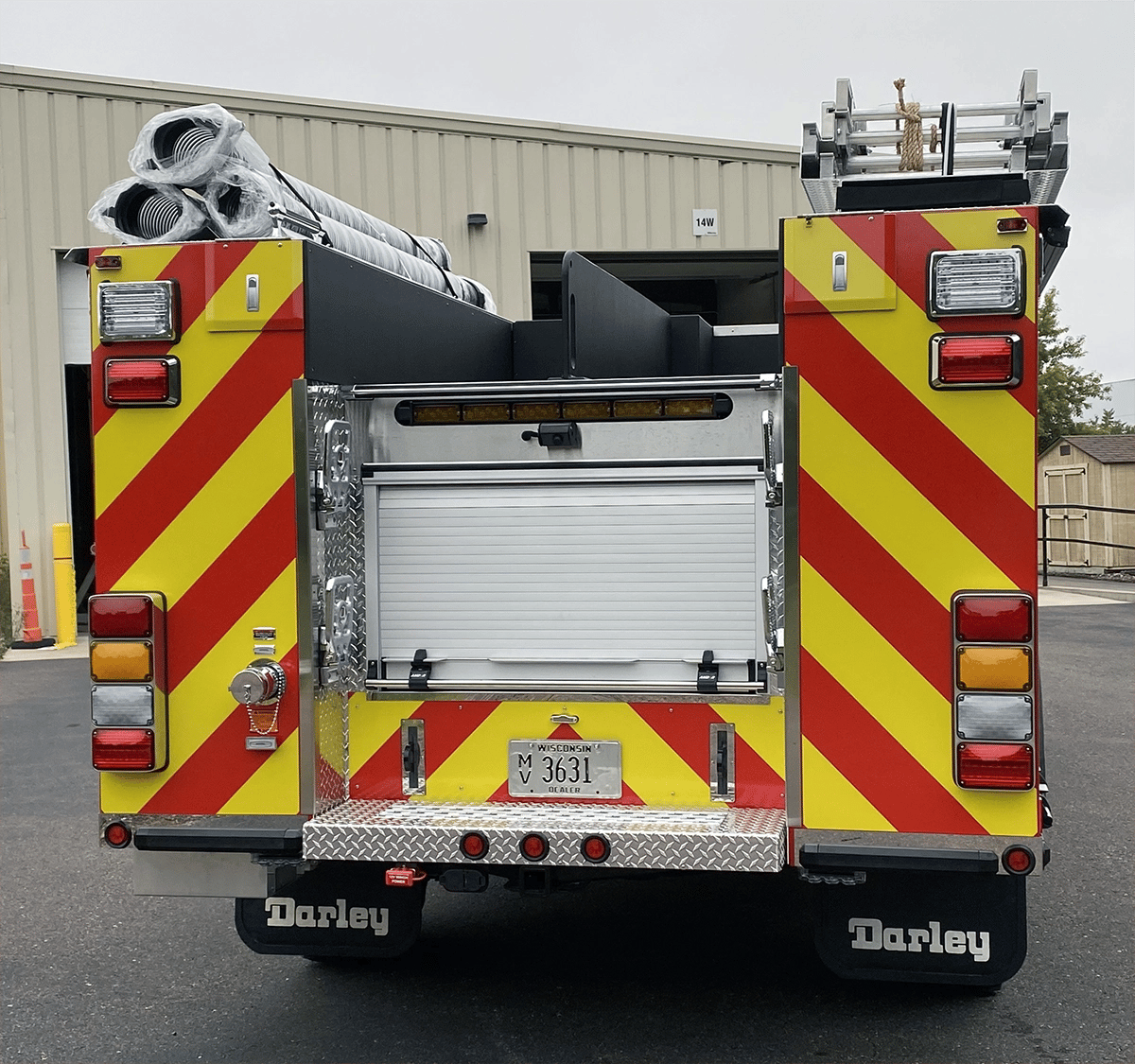

- Rear compartment: Can be used for optional 150′ booster reel
Super Single Tire & Wheel Package

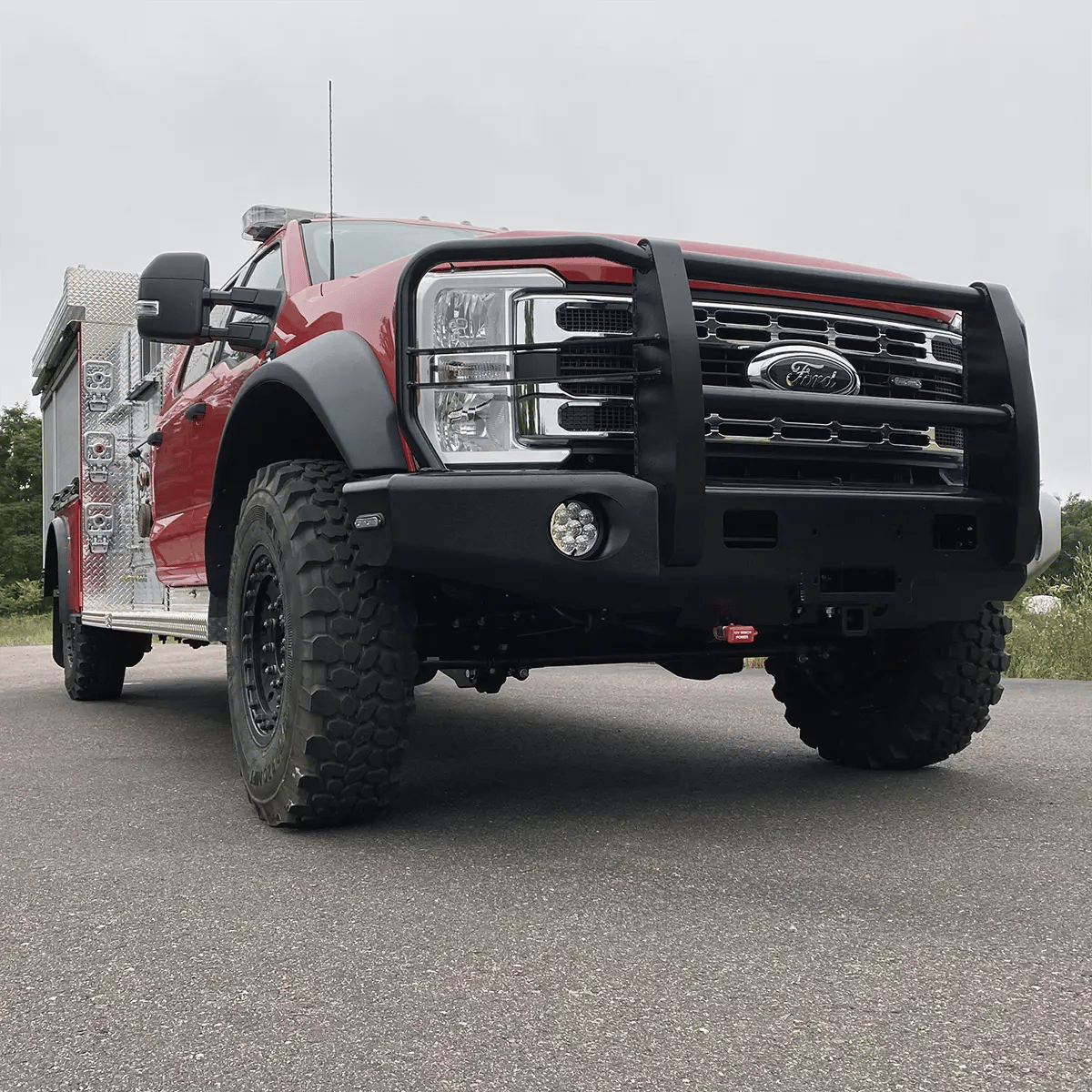

The Darley Super Single Tire & Wheel Package includes 335/80R20 Continental MPT81 tires on DOT-rated wheels with bead locks to get the most power to the ground through all speed ranges. A 2″ suspension lift is also provided both front and rear. This lift, along with the taller 40″ tires, will gain you an additional 6″ of ground clearance under your Darley Max Tactical Pumper™.
- Adds an Additional 6″ of Ground Clearance to Your Max Tactical Pumper™
- Quick Response and Full Access
