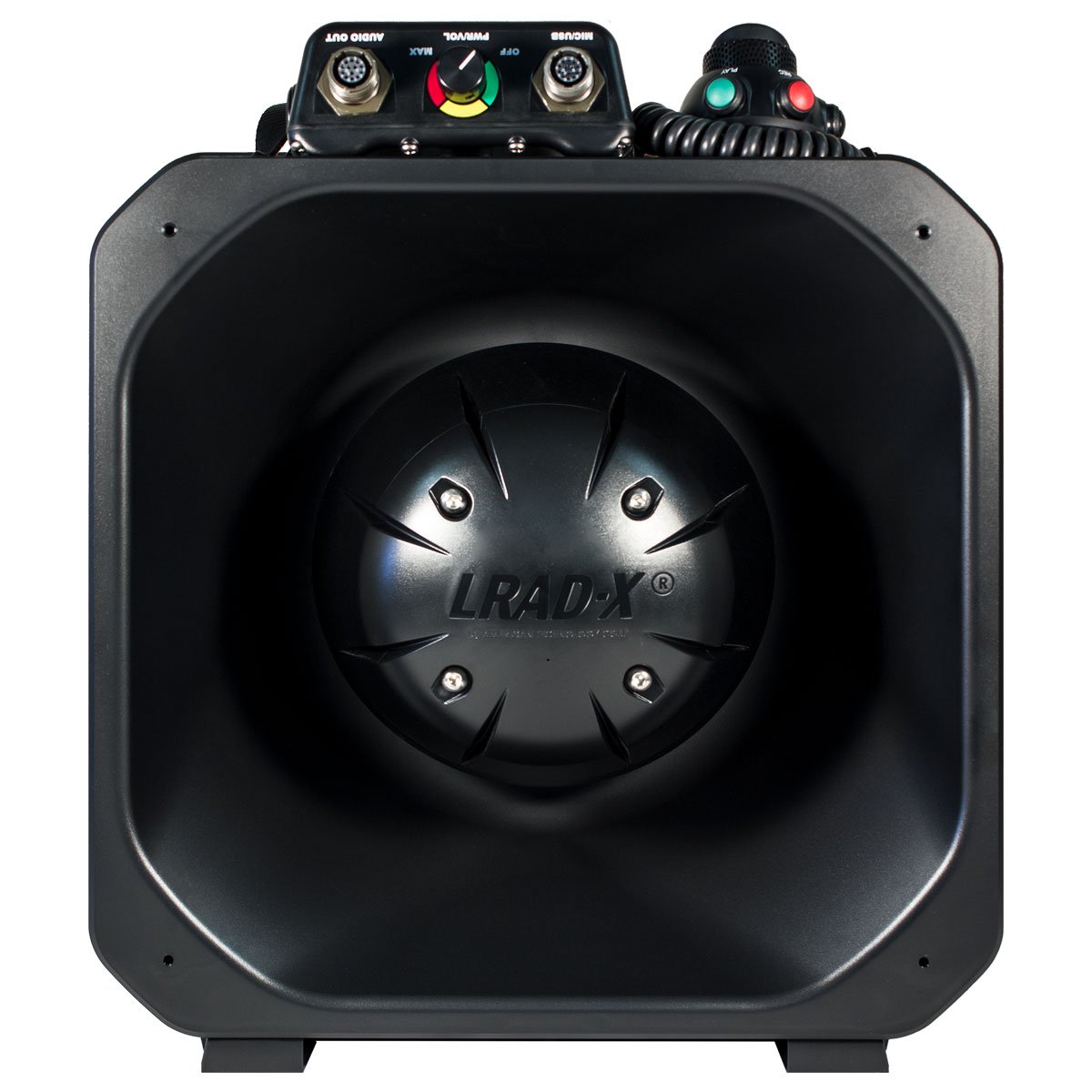

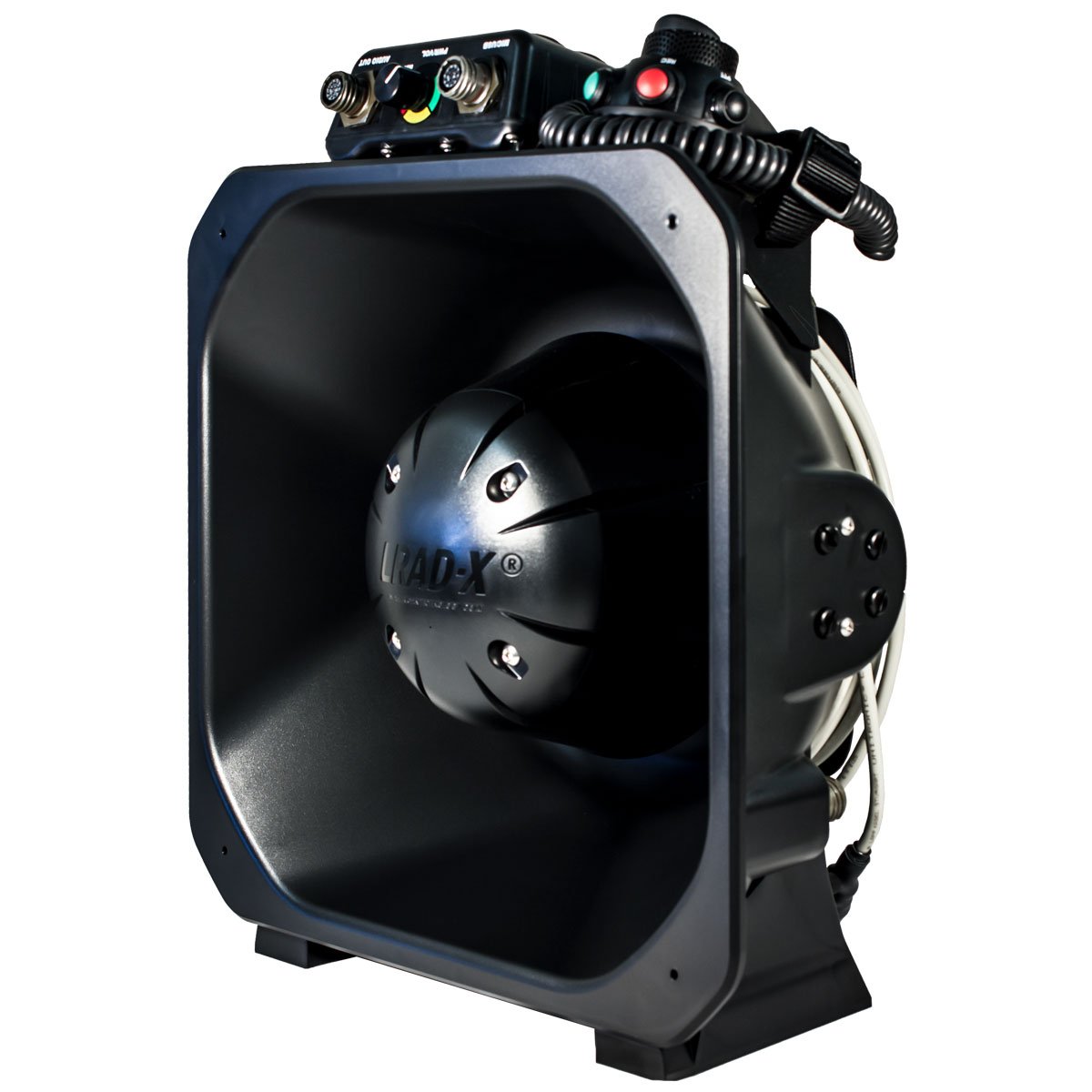

LRAD 100X

The LRAD 100X is a self-contained, portable communication system designed for on-scene and tactical communication. With unparalleled vocal clarity and up to 30 dB louder than traditional bullhorns, megaphones, and vehicle P.A. systems, it ensures every message is clearly broadcast, heard, and understood, even above engine, crowd, siren, and background noise.

Features

• 8-hour rechargeable battery
• Operate easily with gloves or MOPP gear
• Optional power sources
• Simple operator interface
• Water-resistant
• HD Camera (optional): Quickly connect/disconnect camera and mount for recording video and audio during LRAD operation. Includes 4GB micro SDHC for up to 210 minutes of date and time-stamped recordings.

Directional Capabilities

• Powerful, intelligible voice communications up to 600 meters
• Focused, directional broadcasts for targeted communication
• Safely communicate beyond standoff distances
• Create instant acoustic standoff perimeter
• Deliver clearly heard and understood communications into buildings & vehicles

Markets Served

• Law Enforcement
• Defense
• Commercial Security
• Critical Infrastructure Security
• Maritime
• Homeland Security
• Fire Rescue & Incident Management
• Port & Border Security
• Emergency Warning
• Mass Communication
• Wildlife Preservation & Control

Base System

• LRAD 100X battery-powered portable long-range communication system

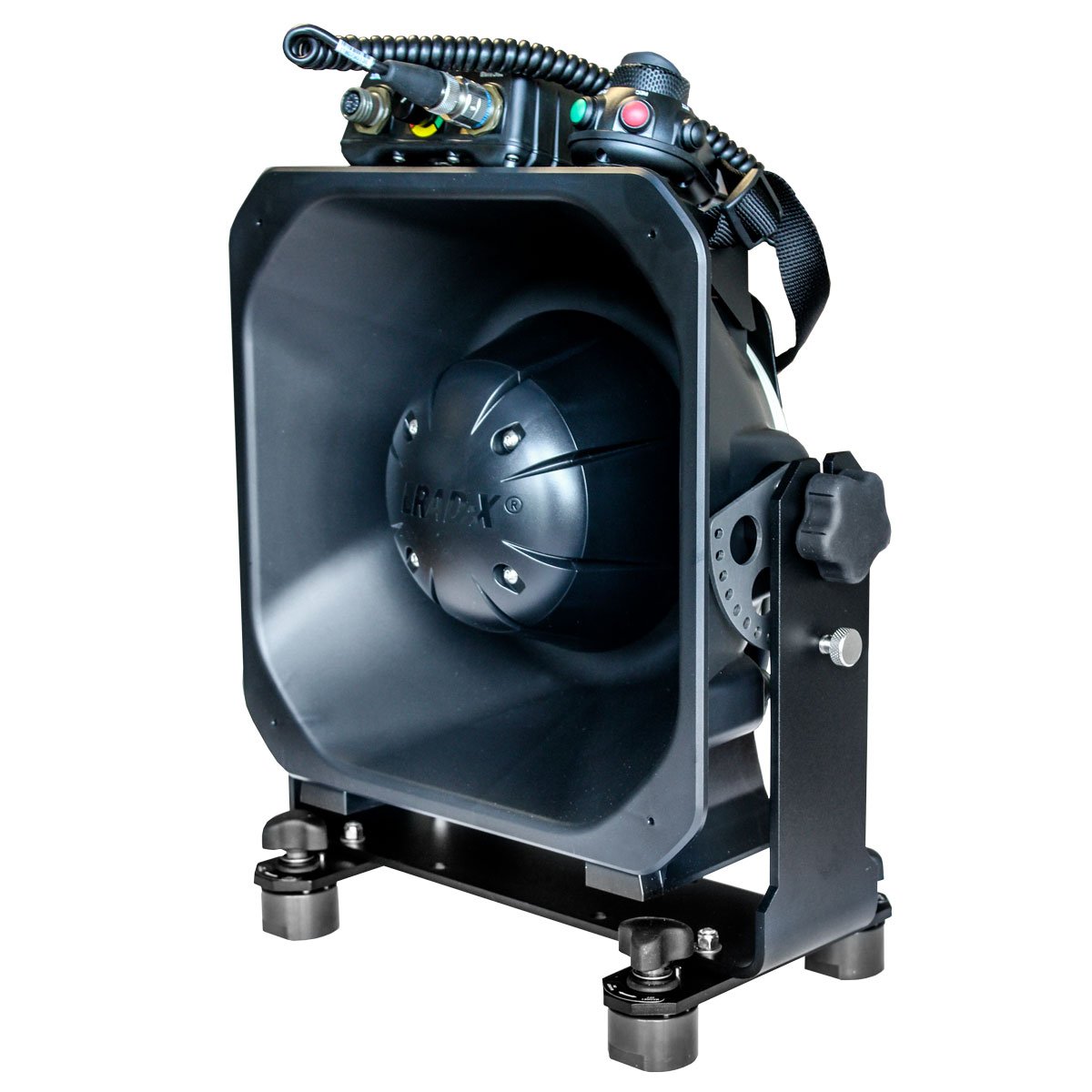

• LRAD 100X with Magnetic Base - Includes magnetic base and accompanying mounting yoke to secure the LRAD to metallic surfaces, including vehicle roofs

Included Accessories

• MP3 Player: Records/plays up to 2GB of messages and tones
• Record on the Fly Mic: Microphone with record and playback feature for immediate playback
• MP3 Auxiliary Cable: Allows connection to any audio device with a headphone jack
• USB Cable: For downloading files to the MP3 player
• Li-Fe-PO4 Battery: 8-hour Lithium Iron Phosphate rechargeable battery
• Battery Charger: AC-powered battery charger with LED battery charge status display
• Hard Case: Watertight, dustproof, rugged enclosure for storage and transport

Optional Accessories

Contact a Darley representative to learn more about the accessories below.

• Wireless Kit: This kit allows for wireless operation of LRAD systems over ranges up to 300 meters. The 35mm phone jack connects to a standard MP3 audio device (UHF, US only). A lightweight hypercardioid headset microphone is included.
• HD Action Camera: This compact, rugged digital camera records high-definition, date/time-stamped video and audio during LRAD operation.
• AC Power Supply: A standard AC source can be powered in place of the battery.
• Cigarette Lighter/Plug Cable: Powers LRAD through 12 VDC cigarette lighter.
• Stud Mount: Mounting yoke kit for LRAD-100X, compatible with LRAD tripods (tripod not included).
• Stud Kit: Weldment Stud Kit
• Medium-Duty Tripod Kit: Includes reusable hard case.
• Table Mount Kit: Fixed mount for flat surfaces.
• Tactical Pack: Rugged backpack for operation of the LRAD 100X within the pack or on the move.
• Front Carry Pack: For mobile or stationary operation of the LRAD 100X.

Acoustic Performance

• Maximum Peak Output: 140dB SPL @ 1 meter, C-weighted
• Maximum Continuous Output: 137dB SPL @ 1 meter, A-weighted
• Sound Projection: +/- 15° @ 1kHz/-3dB
• Communication Ranges: The maximum range is up to 600 meters (1,968 feet) in ideal conditions, and the operational range is up to 250 meters over 88dB of background noise. The ranges are based on continuous output.
