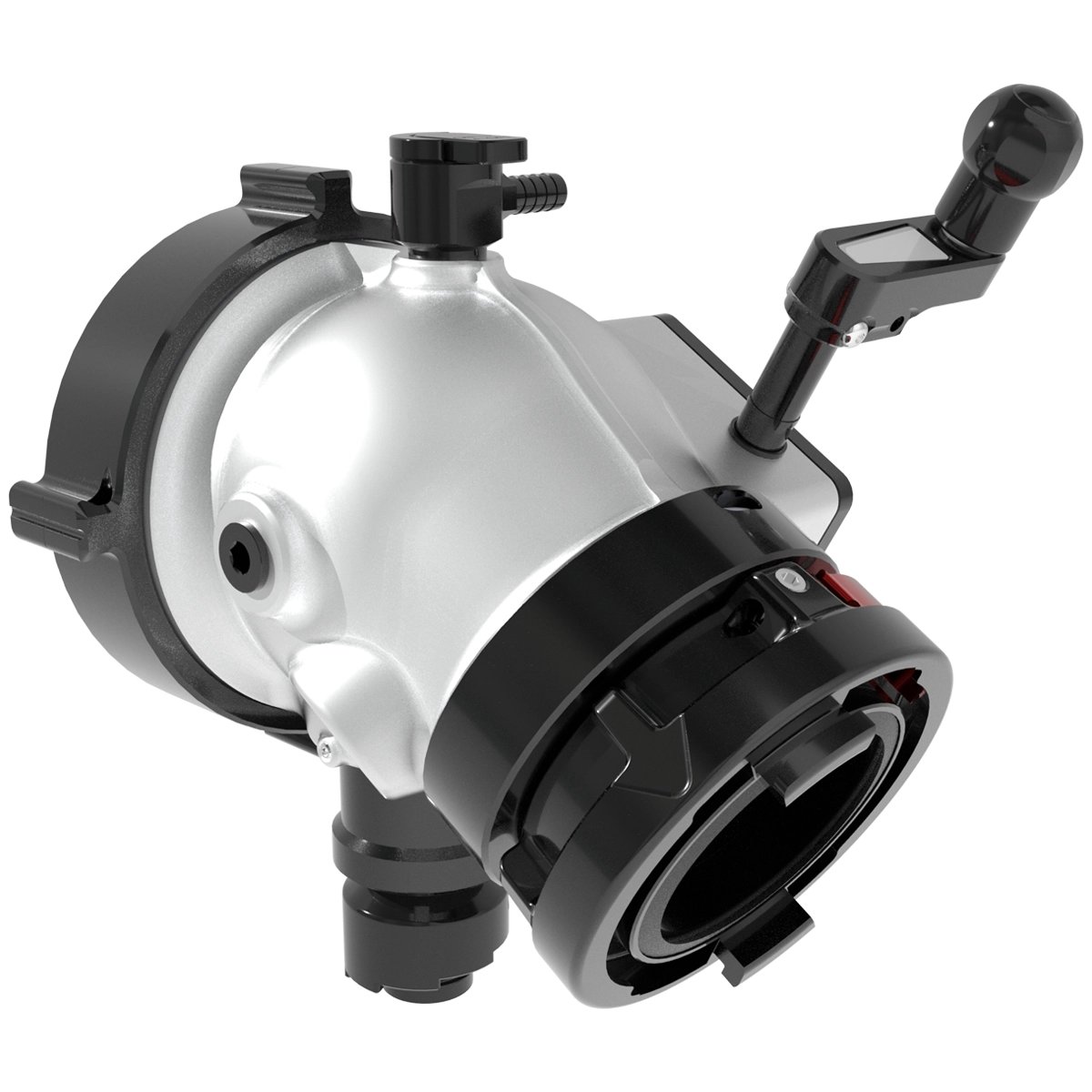

Low Profile Ball Intake Valve

Introducing the Task Force Tips Low-Profile Intake Valve, available in four models: ABD3ST-NX, ABD3ST-NT, ABD3SP-NT, and ABD3SP-NX. These valves are designed for efficient and reliable water intake in firefighting operations, featuring top crank controls, rigid elbows, and pressure relief capabilities.

Features

• Low-Profile Design: Compact and easy to maneuver in tight spaces.
• Top Crank Controls: Conveniently located for easy operation.
• Rigid Elbow: Ensures stable and secure connections.
• Pressure Relief Valve: Provides safety and prevents over-pressurization.
• Swivel Connections: Available in various configurations for flexible attachment.

What is it?

The Task Force Tips Low-Profile Intake Valve is a specialized valve designed to facilitate the intake of water from hydrants or other sources into fire trucks. Its low-profile design and top crank controls make it easy to use and maneuver, while the pressure relief valve ensures safe operation.

How is it used?

To use the intake valve:

1. Connect the Storz swivel to the hydrant or water source.
2. Attach the NHF swivel to the fire truck's intake.
3. Operate the top crank controls to regulate water flow.
4. Monitor the pressure relief valve to ensure safe operation.

Who uses it?

This intake valve is primarily used by:

• Fire Departments: For efficient water intake during firefighting operations.
• Municipal Services: For maintenance and testing of hydrant systems.
• Industrial Facilities: Where fire safety systems are in place.

Maintenance Information

• Regular Inspection: Check for signs of wear and tear.
• Cleaning: Rinse with water and mild detergent after use.
• Lubrication: Apply a suitable lubricant to moving parts periodically to ensure smooth operation.
• Pressure Relief Valve Check: Regularly test the pressure relief valve to ensure it is functioning correctly.

Tools Needed for Installation

• Adjustable Wrench: Useful for tightening connections to ensure a secure fit.
• Lubricant: A suitable thread lubricant can help ensure smooth operation and prevent corrosion.
• Clean Cloth: For wiping down connections to remove any debris before installation.
• Inspection Light: Handy for checking connections and ensuring there are no leaks or gaps.

Installation Steps

• Prepare the Hydrant and Fire Truck Intake:
  • Ensure both the hydrant and fire truck intake are clean and free from debris.
  • Check that the threads and connections are in good condition.
• Attach the Storz Swivel:
  • Align the Storz swivel with the hydrant or water source.
  • Twist the swivel to lock it securely in place.
• Connect the NHF Swivel:
  • Align the NHF swivel with the fire truck's intake.
  • Twist the swivel to lock it securely in place.
• Operate the Top Crank Controls:
  • Use the top crank controls to regulate the flow of water.
  • Monitor the pressure relief valve to ensure safe operation.
• Check for Leaks:
  • Turn on the water source and check for any leaks around the connections.
  • Tighten if necessary.

What is included?

• Low-Profile Intake Valve: One valve per package.
• Pressure Relief Valve: Integrated into the intake valve.
• Swivel Connections: Various configurations depending on the model.
