Liberatormax™ - Radio-Transmit Headsets

Features

• Full-Duplex Communication: Hands-free intercom and radio-transmit with no push-to-talk required
• Extended Range: Operates up to 1,500 feet in line-of-sight conditions
• Multi-User Capability: Supports up to 7 headsets per channel across 8 talk groups
• Radio Integration: Connects to mobile and portable radios via accessories
• Motion Sensor Activation: “Instant On” feature saves battery and activates on movement
• Noise Reduction: 23dB NRR for clear audio in loud environments
• Long Battery Life: Up to 15 hours of continuous use per charge
• Durable Design: Built for rugged field conditions and long-term use
• Easy Installation: No panel mounting, soldering, or cable runs required
• Universal Fit: Behind-the-head style compatible with helmets and headgear

What is it?

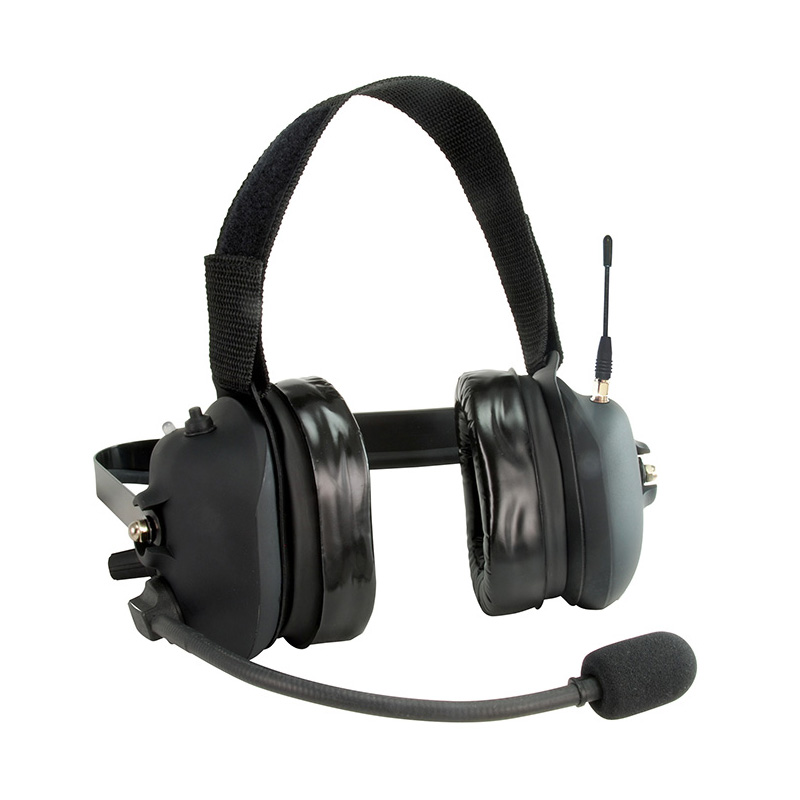

The Setcom LiberatorMAX™ CSB-900MAX KIT is a wireless, full-duplex radio-transmit headset system designed for fire apparatus and emergency response teams. It enables seamless communication between crew members and integrates with mobile and portable radios for enhanced fireground coordination. Built for rugged environments, this system delivers unmatched clarity, range, and reliability.

How is it used?

The CSB-900MAX headsets are used for both intercom and radio-transmit communication. They connect wirelessly to the MS-900MAX Master Station for mobile radio integration or directly to portable radios via PRAC cables. Users simply power on the headset, match the channel, and begin communicating—no syncing or pairing required.

Who uses it?

Fire departments, EMS teams, search and rescue units, pump operators, and industrial crews use LiberatorMAX headsets to maintain clear communication in dynamic environments. It’s ideal for brush trucks, engines, ladders, ambulances, command vehicles, and marine units.

Maintenance information

Headsets should be cleaned with a damp cloth and mild detergent. Avoid submerging or using harsh chemicals. Inspect regularly for wear on the mic, ear cups, and connectors. Recharge using the included cable and store in a dry, secure location. Firmware updates are not required.

What is it used with?

Used with the MS-900MAX Master Station for mobile radio integration, PRAC cables for portable radio connection, and compatible with mobile radios from Motorola, Kenwood, Harris, and others. Each headset includes a wall charger, power cable, and hanger hook.

What material is it made from?

Constructed with heavy-duty polycarbonate and reinforced components for durability. Features dual-speaker ear cups with 23dB NRR noise reduction, a noise-canceling boom mic, and a behind-the-head neckband style compatible with helmets and headgear.

LiberatorMAX offers the option to use the headsets standalone for intercom purposes or add radio integration:

Full-duplex intercom capabilities are available within the headsets, no base station required.

• Instantly connect to a portable radio with a portable radio accessory cable.
• One base station wirelessly connects up to seven headsets for both intercom and radio-transmit capabilities when mobile radio integration is needed.

Easiest System to Install on the Market

Installation consists of one master station, a radio cable, and however many headset charging cables and hanger hooks you need for your apparatus crew size

• No panel mounting required
• No cable runs for intercom components
• No soldering or cable crimping

Ruggedized for Demanding Work Environments

• Setcom systems are built tough
• Long history of building products for public safety and industrial personnel since the 70"s
• Our systems can withstand the conditions your work crews face in the field

No Syncing or Pairing Process Required

• The intercom system is channelized which eliminates the need for pairing
• Simply match your headset channel to the Setcom channel in the apparatus and you can talk to the crew

Enhanced Fire Ground Communications

• Up to 1500' of operational range
• Truck-to-truck intercom capabilities
• Headsets can be used away from/without MS-900MAX if needed
• Example: headsets from a truck can be used on a boat and still have intercom Connects to Multiple Radio Types
• Option: connect headset to customer supplied handheld, 2-way radio
• Allows firefighter to monitor/transmit over multiple radios away from the apparatus
• Integration with (2) different mobile radios or (3) of the same mobile radios

Plenty of Bandwidth for Your Fleet

• (8) total talk groups available
• Up to (7) firefighters/users on each talk group

Long Lasting Battery Life

• Crews can depend on up to 15 hours of continuous talk time per charge
• Internal lithium polymer battery rated for years of service
• Charge anywhere with either a 120V or 12V/24V power source

"Instant On" Motion Sensor Assisted

• Integrated motion sensor
• After 15 minutes of undetected motion, the system will turn off to save the battery
• Instant ON: motion sensor will instantly turn on headset when picked up. Saving you time.
• Physically disable the motion sensor by turning the headset off

Ordering is Simple

• Step 1: Choose quantity of headsets (Each headset includes a wall charger, power cable and hanger hook)
• Step 2 (If mobile radio integration is needed): Choose one master station and the appropriate radio cable
• Step 3 (If portable radio integration is needed): Choose the appropriate portable radio adapter cable

What’s Included

• (1) CSB-900MAX Radio-Transmit Wireless Headset
• (1) Charge Cable (Part #25-1027)
• (1) Hanger Hook (Part #14-7014)
• Internal Lithium Polymer Battery (pre-installed)
• User Guide and Operating Instructions
• 24-Month Warranty
