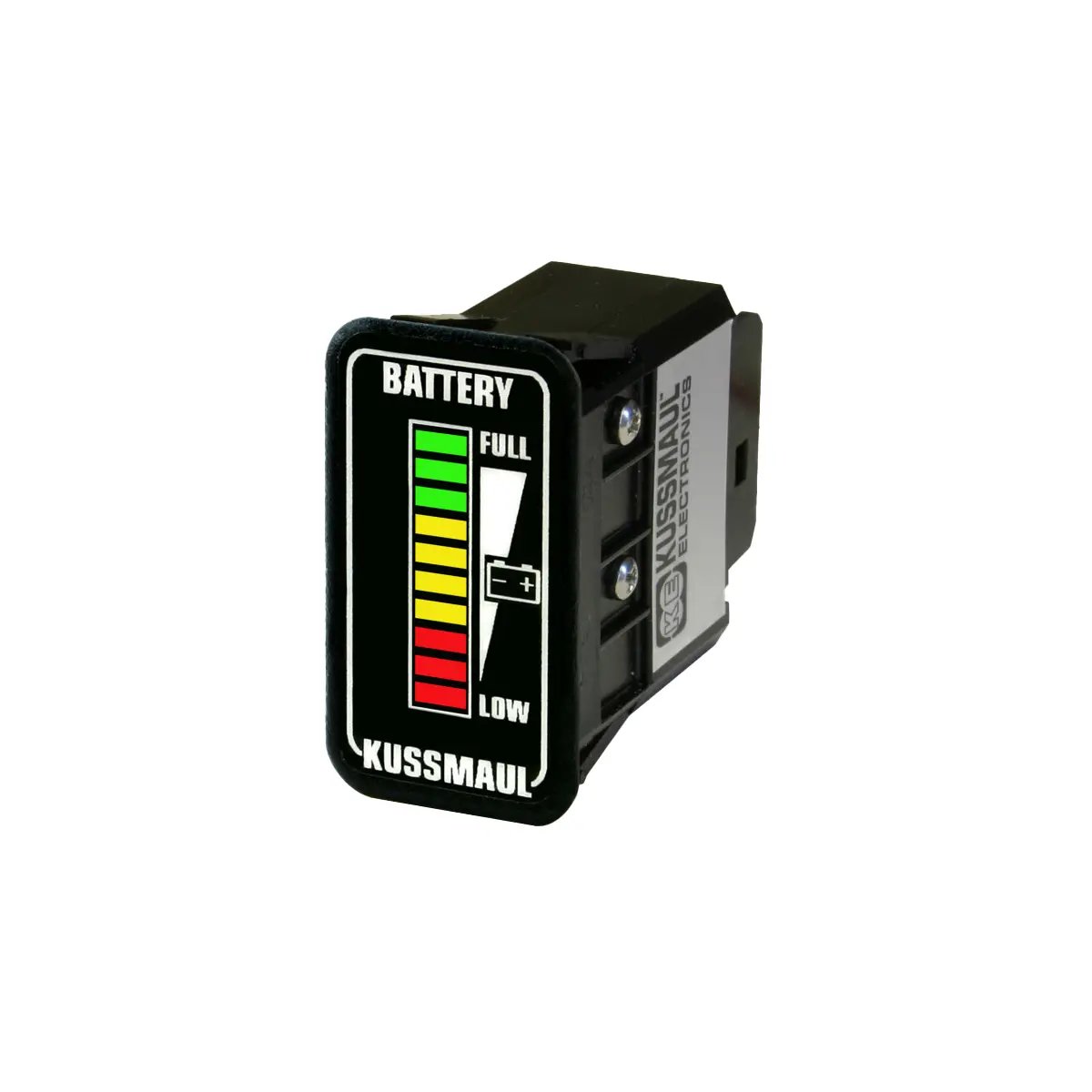

Kussmaul Mini Single Bar Graph Display
SKU#: BN001
Ships via Standard Ground
Compact 10 LED bar graph display for vehicle battery status. Detects high/low voltage. Compatible with Kussmaul chargers. Easy install. 3-year warranty.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Mini Single Bar Graph Display is a compact and efficient solution for monitoring the battery status of your vehicle. Featuring a 10 LED bar graph, this display provides a clear and immediate visual indication of your battery's voltage levels. It is designed to work seamlessly with all new generation single output Kussmaul Battery Chargers, ensuring compatibility and reliability.
Features
- 10 LED Bar Graph Display: Offers a straightforward visual representation of battery status.
- Voltage Detection: Detects high and low voltage levels, flashing the top LED for high voltage (> 14.8 VDC) and the bottom LED for low voltage (< 12.0 VDC).
- Compatibility: Works with all new generation single output Kussmaul Battery Chargers.
- Easy Installation: Designed for simple integration into vehicle switch panels.
- Durable Design: Operates efficiently in a wide temperature range from -40°F to 120°F.
- Warranty: Comes with a 3-year warranty for peace of mind.
Usage
The Mini Single Bar Graph Display is used to monitor the battery status in vehicles, providing real-time feedback on voltage levels. It is ideal for use in emergency vehicles, commercial fleets, and any application where battery monitoring is critical. The display is easy to install in vehicle switch panels, making it a convenient addition to your vehicle's electrical system.
Maintenance
The Mini Single Bar Graph Display requires minimal maintenance. Regularly check the connections to ensure they are secure and free from corrosion. Clean the display with a soft, dry cloth to remove any dust or debris.
Storage
When not in use, store the Mini Single Bar Graph Display in a cool, dry place. Avoid exposure to extreme temperatures and moisture to maintain its longevity and performance.
What's Included
- Mini Single Bar Graph Display unit
- Warranty: 3 years
- Temperature Range: -40°F to 120°F
- Input Current: 30mA, Max
- Cutout Size: 1.45” x 0.83”
- Bar Graph Range: 12-13 +/- 2% (bottom to top)
- Low Voltage Indicator: < 12.0 VDC (bottom LED flashes)
- High Voltage Indicator: > 14.8 VDC (top LED flashes)
- Model: 091-234
