Knockdown Walkaway® Spring Clip Bracket (Standard)

Ziamatic WALKAWAY® Knock‑Down (KD) SCBA Spring Clip Brackets provide a cost‑effective, flexible solution for storing SCBA cylinders while maintaining quick access for First Responders. These unassembled brackets allow departments to perform field assembly while retaining the same WALKAWAY® spring clip functionality used in assembled models.

The KD‑UN‑SF models are designed for station and non‑crew compartment installations where secure SCBA storage and rapid deployment are required.

Features

• Knock‑Down (Unassembled) Design: Bracket components are supplied unassembled for field installation, providing a more economical option.
• WALKAWAY® Spring Clip Retention: Uses hardened steel spring clips to hold the SCBA cylinder securely while allowing fast push‑in storage and pull‑out removal.
• Standard (UN) Protective Coating: All bracket components are coated with a durable thermoplastic finish designed to help protect against wear and corrosion.
• Short Footplate (SF): Includes a short footplate suitable for 30‑ and 45‑minute SCBA cylinders.
• Cylinder‑Specific Clip Sizes: Available in multiple clip sizes to match common SCBA cylinder diameters.
• Simple Operation: Cylinder valve is placed on the footplate and pushed into the spring clips to secure.
• Non‑Crew Area Use: Intended for use in stations or non‑crew compartments in accordance with applicable apparatus standards.

What is it?

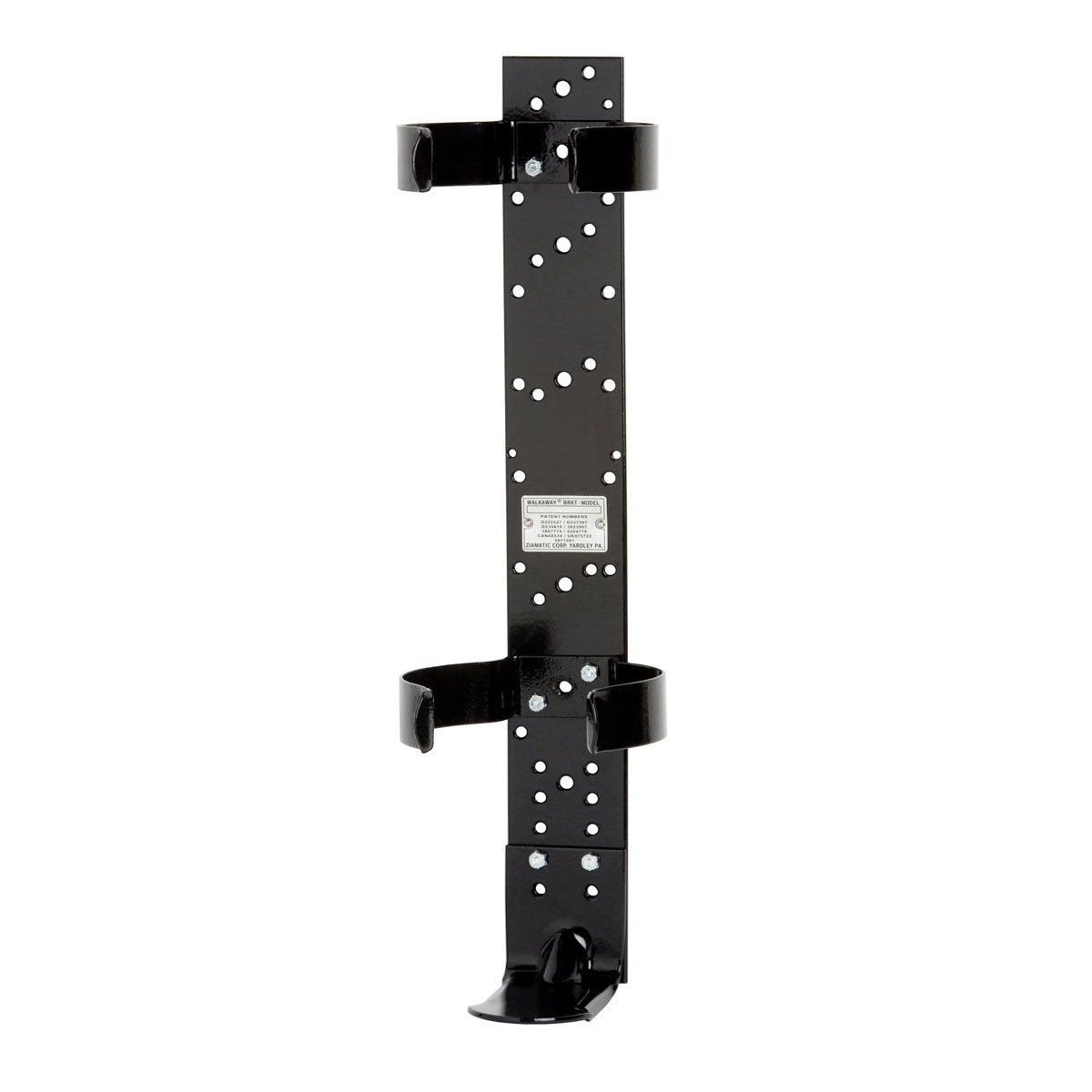

The Ziamatic WALKAWAY® Knock‑Down SCBA Spring Clip Bracket is an unassembled mounting bracket designed to store SCBA cylinders securely. The knock‑down configuration allows assembly in the field while maintaining the same WALKAWAY® spring clip functionality as factory‑assembled brackets.

How is it used?

After assembly, the bracket is mounted to a suitable surface. To stow an SCBA cylinder, the valve is placed onto the footplate and the cylinder is pushed into the spring clips. To remove, the cylinder is pulled free. This design allows for quick access during emergency response or training operations.

Who uses it?

• Fire Departments
• Emergency Medical Services (EMS)
• Hazardous Materials (HAZMAT) Teams
• Technical Rescue Teams
• Fire Training Facilities
• Municipal and Industrial First Responder Organizations

Maintenance Information

Routine inspection is recommended to ensure the bracket remains securely mounted and that spring clips and coatings are intact. Maintenance should be performed as part of standard apparatus or station equipment inspections.

What is it used with?

• Self‑Contained Breathing Apparatus (SCBA) cylinders
• SCBA air packs and harness assemblies
• Fixed mounting surfaces in stations or apparatus compartments

What material is it made from?

• Steel backplate and spring clip assembly
• Thermoplastic‑coated bracket components
• Metal short footplate for cylinder support
