Ironslok - Standard
SKU#: AW391
Typically ships in 2 weeks
Ships via Standard Ground

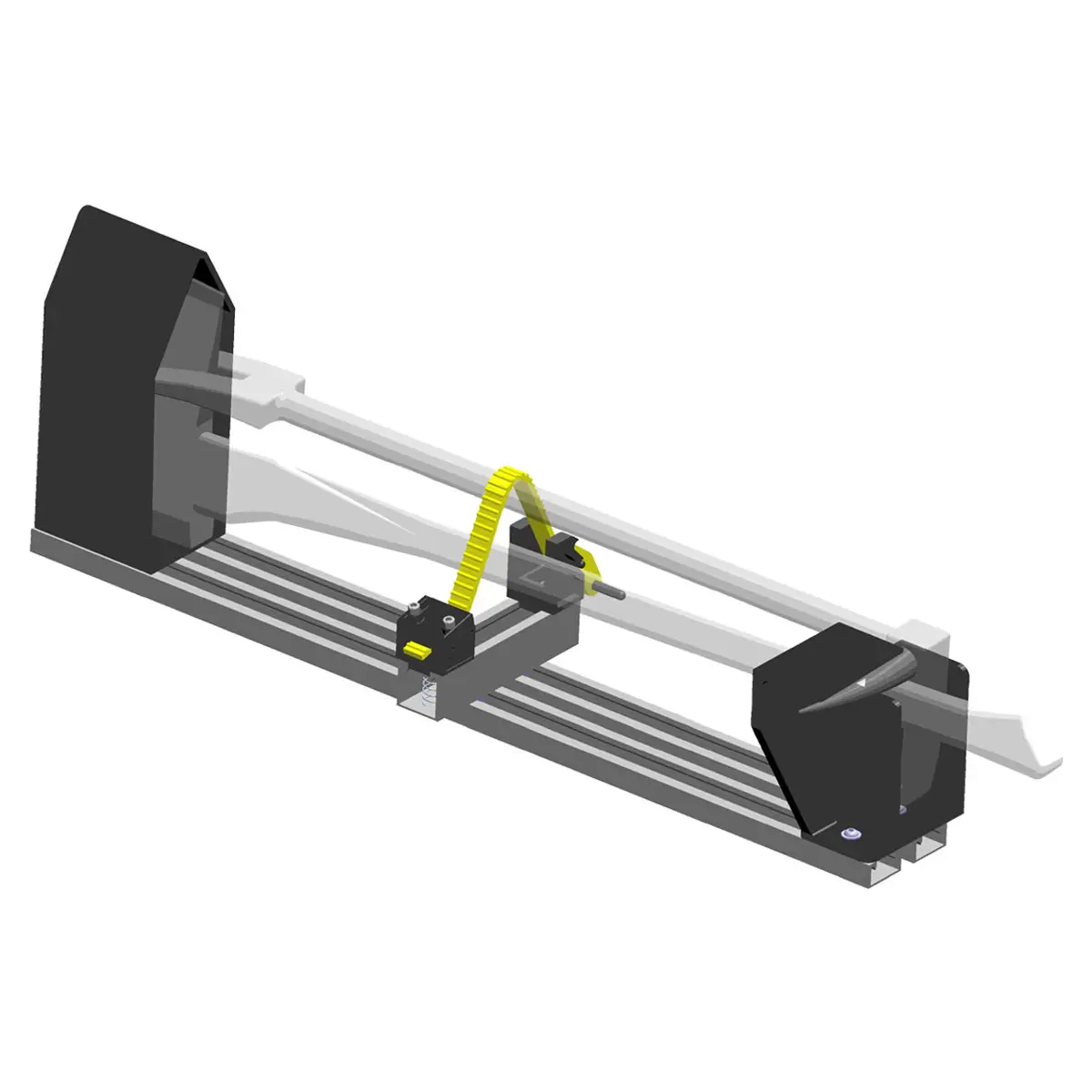

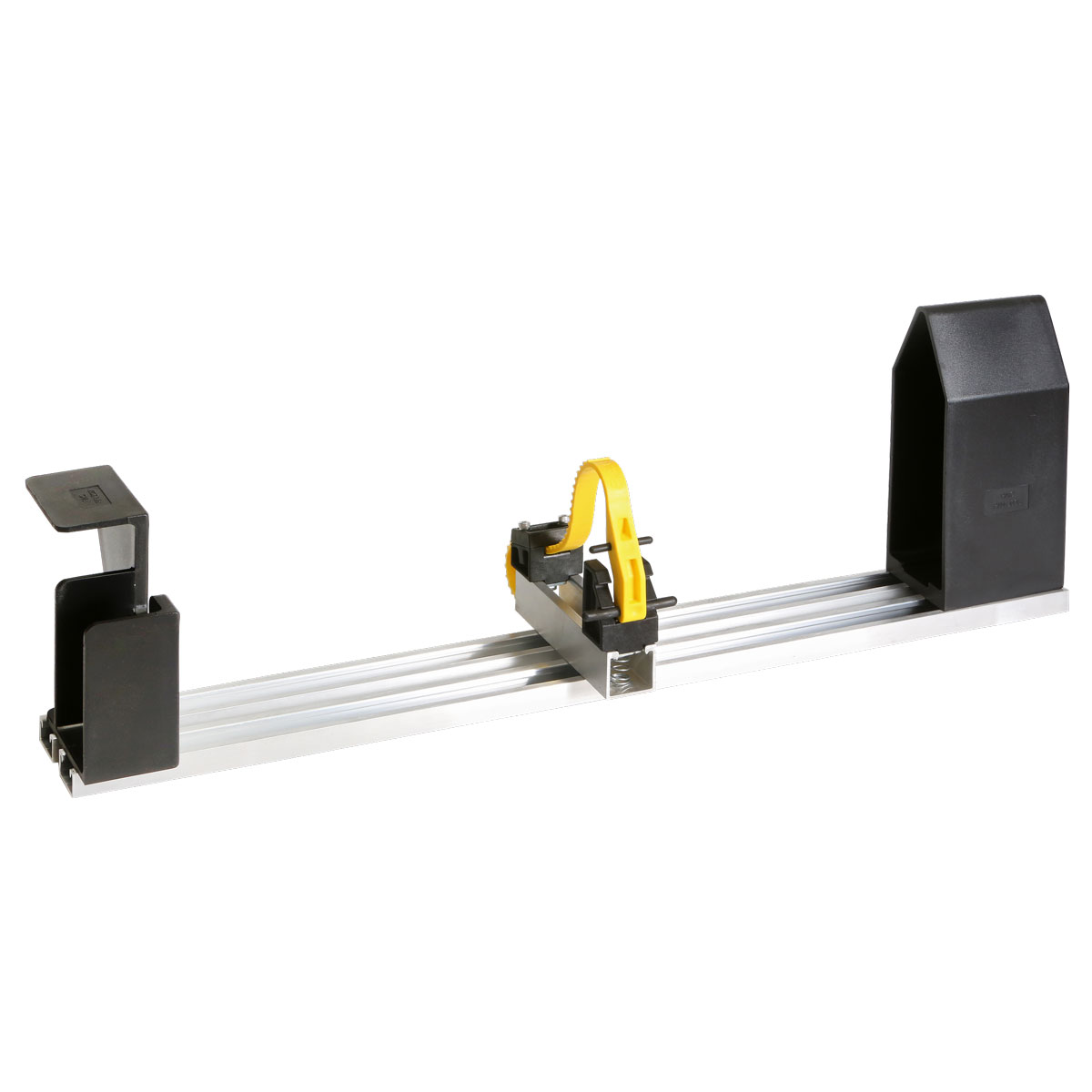

The Irons Lok are specialized mounting brackets designed to securely hold firefighting tools, specifically a set of "irons" which includes a 30" Halligan tool and a 36" flathead axe. The HD model is designed for larger tools such as the PIG Axe and the FIRE MAUL
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- Positive Locking Mechanism: Ensures tools are securely fastened with a high-strength lock strap.
- Durable Construction: Components are molded from high-quality materials for long-lasting use.
- Versatile Mounting Options: Can be mounted both horizontally and vertically.
- NFPA 1901 Compliant: Meets the standards set by the National Fire Protection Association for fire apparatus.
How is it used?
The Irons Lok brackets are used to mount and secure firefighting tools within fire apparatus. The positive locking mechanism ensures that the tools remain in place during transit, providing quick and easy access when needed. The brackets can be installed in various orientations to fit the layout of the vehicle.
Who uses it?
These brackets are primarily used by fire departments and emergency response teams. They are essential for ensuring that critical tools are readily accessible and securely stored, enhancing both safety and efficiency during emergency operations.
Maintenance Information
Regular maintenance involves inspecting the brackets for any signs of wear or damage. Ensure that the locking mechanism is functioning correctly and that all mounting hardware is secure. Clean the brackets as needed to remove dirt and debris.
Storage Information
When not in use, the Irons Lok brackets should be stored in a dry, clean environment to prevent corrosion and damage. Ensure that the brackets are not exposed to extreme temperatures or harsh chemicals.
Installation Instructions for Irons Lok
Tools and Materials Needed
- Drill
- Hex Wrench (3/16)
- Screwdriver
- Mounting Hardware (included with the bracket)
Step-by-Step Instructions
- Position the Bracket:
- Determine the desired location for the Irons Lok bracket on your fire apparatus.
- Ensure the surface is stable and suitable for mounting.
- Mark and Drill Holes:
- Position the assembled bracket and mark the hole locations.
- Drill four holes through the center of the aluminum channels and the mounting surface.
- Attach the Bracket (Standard Bolt-Through):
- Use the included hex head screws (P/N 2038) and hex nuts (P/N 2069LN) to attach the bracket to the mounting surface.
- Tighten securely to ensure stability.
- Attach the Bracket (PAC TRAC):
- Use the included Phillips pan head screws (P/N 2049) and TracLok inserts (P/N 7016) for mounting on PAC TRAC systems.
- Tighten to the recommended torque specifications.
- Adjust the Lock Strap:
- If needed, reverse the strap direction or make adjustments using the hex wrench (P/N 2030).
- Ensure the strap is securely fastened around the tools.
- Final Checks:
- Verify that all fasteners are tightened securely.
- Ensure the bracket and tools are stable and secure before putting into service.
What is included?
- Irons Lok Bracket (K5003 or K5003HD)
- High-Strength Lock Strap
- Mounting Hardware: Suitable for flat surfaces and PAC TRAC systems
- Torque Specifications
- Hex Head Screws (P/N 2038): Tighten to 20-25 in-lbs.
- Hex Nuts (P/N 2069LN): Tighten to 20-25 in-lbs.
- Phillips Pan Head Screws (P/N 2049): Tighten to 15-20 in-lbs.
- TracLok Inserts (P/N 7016): Tighten to 15-20 in-lbs
- Designed for a 30" Halligan tool and a 36" flathead axe
- Weight: 9.6 lbs
- Dimensions: 33.0”L x 10.0”W x 12.2”H
- Usage: Ideal for standard firefighting tools commonly used in fire departments
- Model: K5003
