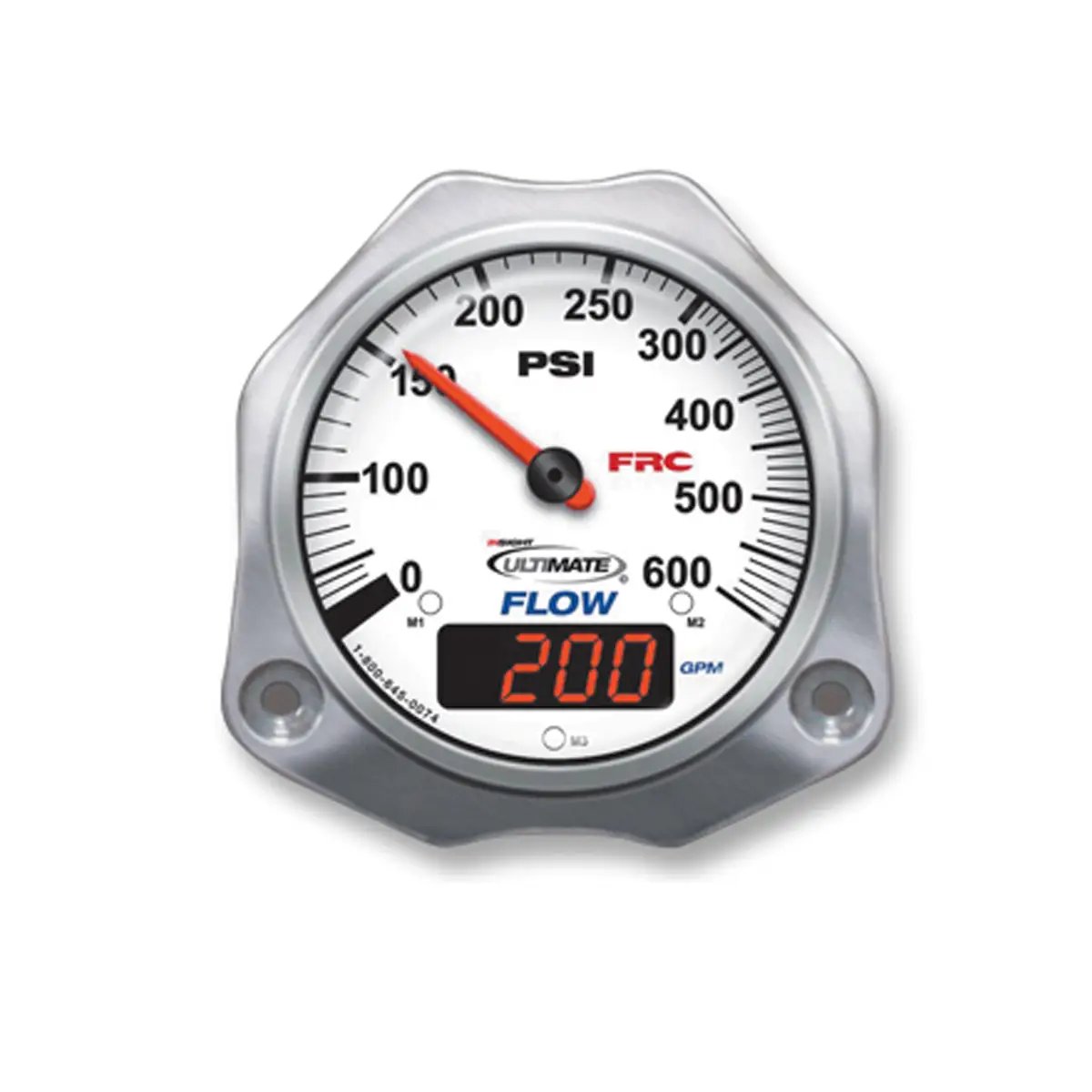

Insight Ultimate Flow & Pressure Combo-Meter Kit

The Insight Ultimate Flow & Pressure Combo-Meter Kit is an advanced tool designed to measure and display both the flow rate (GPM) and pressure (PSI) of water at the discharge point. This innovative device is equipped with a new Linearizer feature that allows for multiple flow point calibration, ensuring precise and accurate measurements. Additionally, the unique Safeflow feature enables operators to program warning points, enhancing safety and operational efficiency.

Features

• Dual Display: Shows both PSI and GPM on the same gauge for comprehensive monitoring.
• Analog Electric Needle Movement: Provides a clear and intuitive pressure reading.
• Stretched Scale Dial: Offers more precise readings within the normal operating range.
• High Accuracy: Pressure readings accurate to within +/- 3 PSI and flow readings accurate to within 1% of the full range.
• 4-Digit LED Display: Ensures clear and easy-to-read flow measurements.
• Paddle Wheel Flow Sensor: Reliable and efficient flow measurement technology.
• Operational Voltage Range: 9-30V DC, making it versatile for various power sources.
• Compact Design: Display dimensions of 4-1/4" W x 4-1/4" H with a 3-1/2" panel cutout required.
• Internal Micro-Processor: Enhances the device's functionality and reliability.

Usage

The Insight Combo-Meter is used to monitor and control water flow and pressure in various applications, including industrial processes, water treatment facilities, and irrigation systems. It is ideal for professionals who require precise and reliable measurements to ensure optimal performance and safety.

Users

This device is perfect for engineers, technicians, and operators in industries such as water management, agriculture, and manufacturing. It is also suitable for use in research and development settings where accurate flow and pressure data are crucial.

Maintenance

Regular maintenance includes:

• Cleaning: Ensure the sensor and display are free from debris and buildup.
• Calibration: Periodically calibrate the device using the Linearizer feature to maintain accuracy.
• Inspection: Check for any signs of wear or damage and replace components as necessary.

Storage

Store the Insight Combo-Meter in a cool, dry place when not in use. Avoid exposure to extreme temperatures and humidity to prolong the device's lifespan.

Included in the Kit

• Insight Ultimate Flow & Pressure Combo-Meter
• Paddle Wheel Flow Sensor
• Mounting Hardware
• User Manual
