Task Force Tips

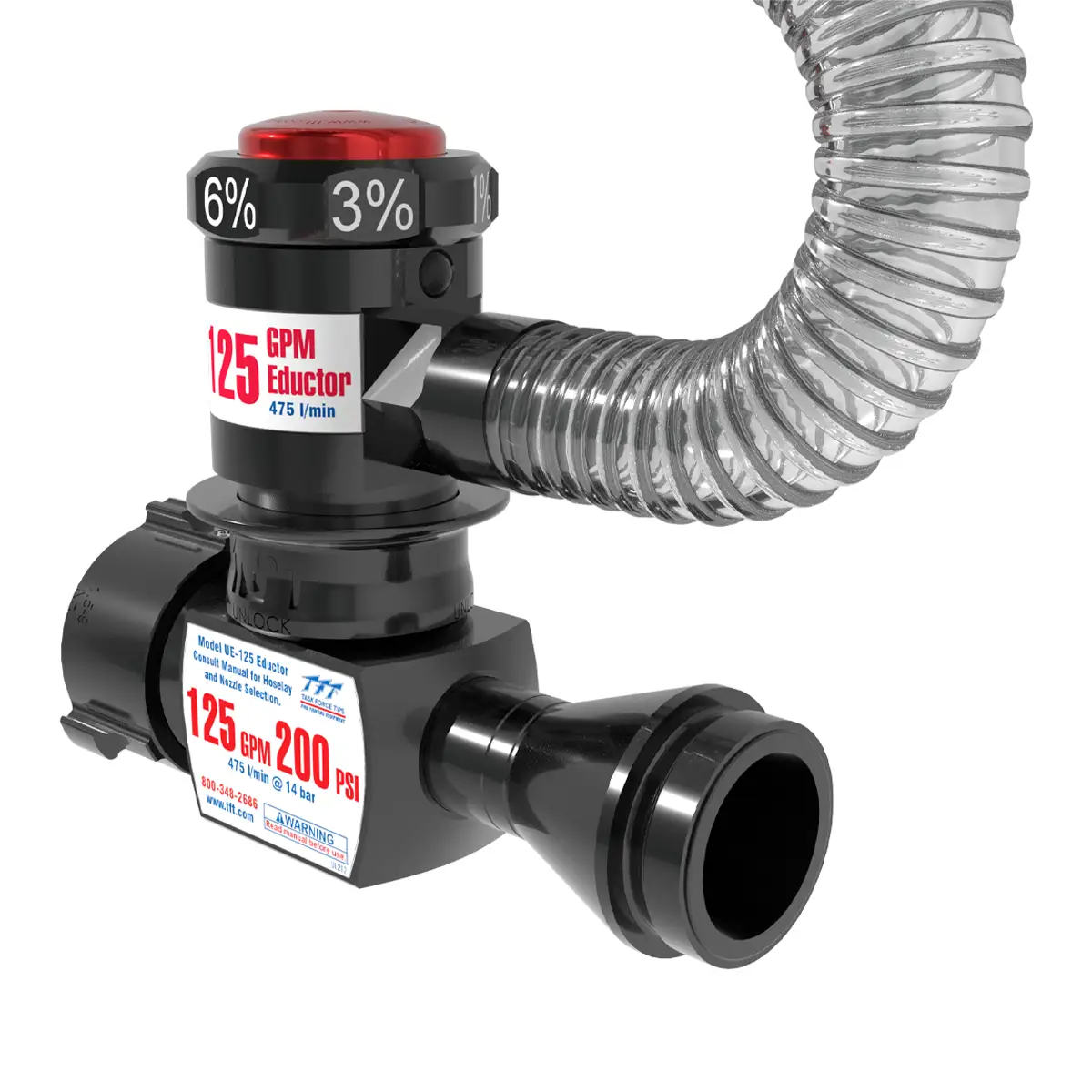

In Line Foam Eductors - 1.5" NH - 125 GPM
SKU#: BL380
Typically ships in 2 weeks
Ships via Standard Ground
Fixed‑flow firefighting foam eductors available in multiple GPM ratings and connection configurations, designed to introduce foam concentrate into water streams for fire suppression operations.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Features
- Fixed Flow Rate: Available in 60 GPM, 95 GPM, and 125 GPM models for predictable foam delivery
- Multiple Connection Options: Offered with 1.5″ NH female and male threads, and select 2.5″ female inlet configurations
- Inline Foam Introduction: Designed to draw foam concentrate into the water stream using the Venturi principle
- Fireground Compatible: Sized for common firefighting hose and nozzle configurations
- Simple Mechanical Design: No power source required for operation
What is it?
This product is a fixed‑flow firefighting foam eductor used to introduce foam concentrate into a flowing water stream. The eductor operates mechanically by creating a pressure differential that draws foam concentrate into the system.
How is it used?
The eductor is connected inline between the water supply and discharge hose or nozzle. As water flows through the eductor at its rated flow, foam concentrate is drawn into the water stream through the pickup tube and carried downstream for foam application.
Who uses it?
- Fire departments
- Municipal fire services
- Industrial fire brigades
- Airport fire and rescue units
- Emergency response and hazmat teams
What is it used with?
- Firefighting water supply sources
- Compatible fire hoses
- Fire nozzles rated for the eductor’s flow
- Foam concentrate pickup tubes
- Approved firefighting foam concentrates
Maintenance Information
- Flush with clean water after use to remove foam residue
- Inspect connections and threads for damage or debris
- Verify unobstructed flow paths before storage
- Store in a clean, dry environment when not in use
What’s Included?
- One (1) fixed‑flow foam eductor unit
- No additional accessories are specified as included
- Shipping Box Dimensions: 24.00 × 6.00 × 18.00 in
- Weight: 4.500 lbs
- Outlet Coupling Style: Male Threads
- Flow Rate: 125 gpm (475 l/min)
- Pressure: 200psi (14bar)
- Inlet Coupling Style: Rocker
- Inlet Coupling Swivel: Full Time Swivel
- Outlet Coupling Swivel: Rigid
- Inlet: 1.5" (38 mm)
- Outlet: 1.5" (38 mm)
- Model: UE-125-NF
