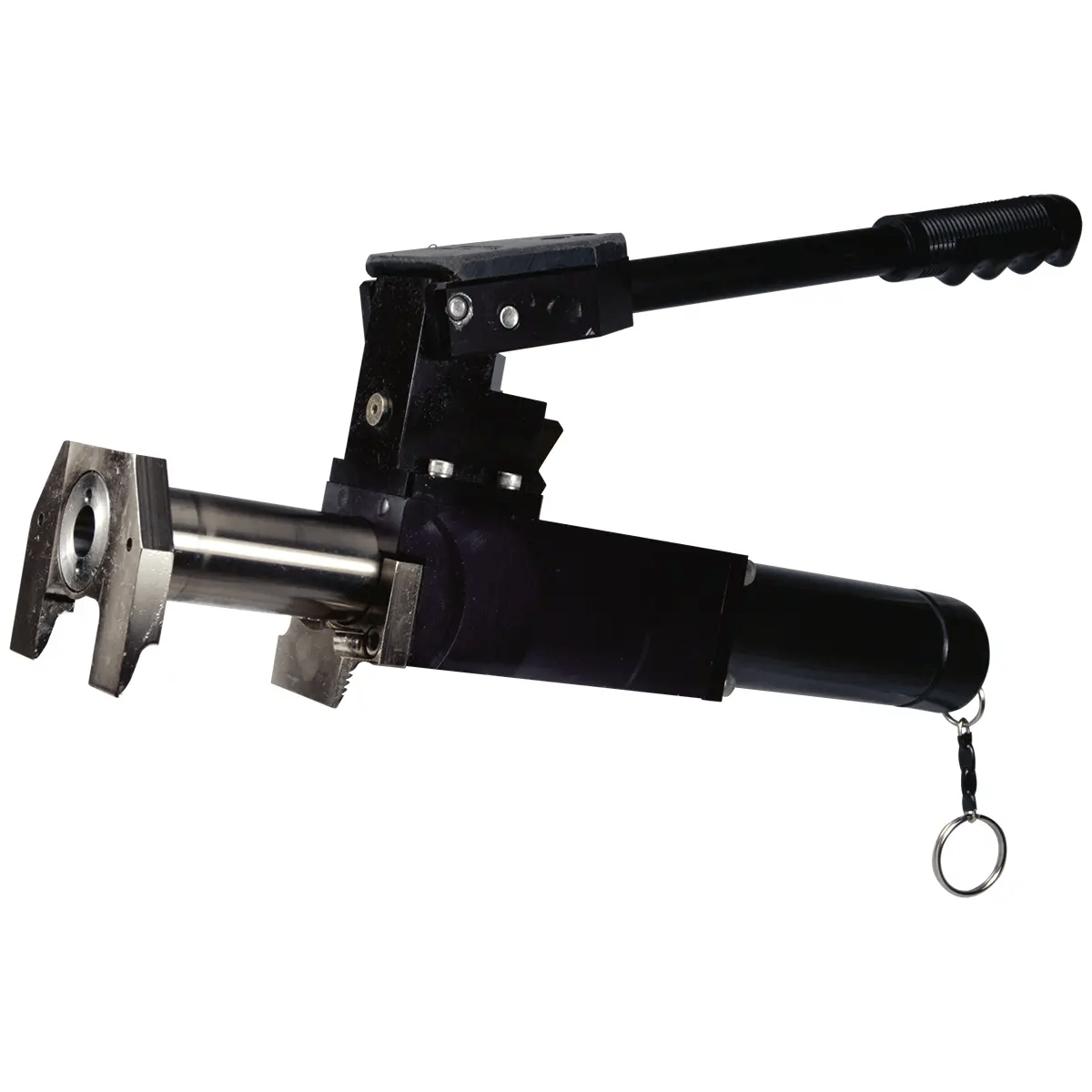

Hydra-Ram Hydraulic Emergency Entry Tool

The Fire Hooks Unlimited HYDRA-RAM is a state-of-the-art hydraulic forcible entry tool designed for emergency responders who require a reliable and efficient solution for gaining access during critical situations. This tool is renowned for its compact size, powerful performance, and ease of use, making it an essential addition to any rescue operation.

Features

• High-Force Output: Delivers 10,000 pounds of force with just 138 lbs. of pumping, allowing for a 3/4" stroke to a maximum thrust opening of 4 inches.
• Compact and Lightweight: Weighs only 12 lbs. and measures 13 inches in length, making it easy to carry and maneuver.
• One-Person Operation: Designed for single-user control, eliminating the need for additional personnel.
• No Maintenance Required: The HYDRA-RAM operates without hoses, tanks, or pumps, ensuring no maintenance or fluid leaks.
• Durable Construction: Made with stainless steel jaws that have a tensile strength of 220,000 psi, and a hard-coated aluminum alloy tube body.
• Non-Slip Grip: Features machined diamond grip for a secure hold and maximum control.

Additional Information

• The Hydra Ram is the first and only one piece integrated hydraulic forcible entry tool. No hoses or auxiliary pumps to leak or trip on.
• We boast that the Hydra Ram is truly a one-man operation since the whole unit is in the hands of the user.
• Weighs only 11 lbs. (same as the Pro-Bar Halligan) and is 13 inches long.
• No worry about maintenance or leaking fluid. We use a patented process incorporating integral aircraft seals of triplex quality.
• Our hydraulic fluid is non-flammable, non-toxic and non-freezing.
• Special stainless steel of 220,000 tensile strength makes up the jaws.
• To ensure lightness, the body is of a special aluminum heat treated and hard anodized to a darkened color of tactical black.
• Special finger grips are attached for non-slip holding surface.
• 10,000 lbs. of force is presented at 138 lbs. of pumping to acquire 3/4 inch a stroke to a maximum thrust opening of 4 inches.
• The Hydra Ram can be placed in any position even upside down without any effect on its operation – a first in hydraulics.
• A heavy duty Cordura bag and mallet compliments the unit.
• For narcotics officers, the unit’s unique size (13″) and weight (11 lbs.) allows it to be carried under a coat like a hand weapon.
• While others take 30 to 40 pumps to gain full extension, the Hydra Ram does it in 8 pumps.

What is it?

The HYDRA-RAM is a hydraulic emergency entry tool used by firefighters, rescue teams, and law enforcement to quickly and efficiently gain access to locked or barricaded areas. Its powerful hydraulic mechanism allows it to exert significant force to open doors, windows, and other barriers.

How is it used?

The HYDRA-RAM is placed against the barrier to be breached, and the user pumps the handle to generate hydraulic pressure. This pressure forces the jaws of the tool to open, applying up to 10,000 pounds of force to the barrier. The tool can be used in any position, including upside down, without affecting its operation.

Who uses it?

• Firefighters: For forcible entry during fire and rescue operations.
• Rescue Teams: For extrication and emergency response.
• Law Enforcement: For breaching doors and barriers during tactical operations.

Maintenance Information

The HYDRA-RAM is designed to be maintenance-free:

• No Fluid Leaks: The tool operates without hoses, tanks, or pumps, eliminating the risk of fluid leaks.
• Regular Inspection: Check for any signs of wear or damage before and after each use.
• Cleaning: Wipe down the tool with a clean, dry cloth after use to remove dirt and debris.

Storage Information

• Storage Conditions: Store the HYDRA-RAM in a dry, cool environment to prevent rust and corrosion.
• Storage Solutions: Use the included Cordura® carrying bag for easy transport and protection.

What is included?

• HYDRA-RAM Tool: The main hydraulic entry tool.
• Cordura® Carrying Bag: For convenient storage and transport.
• Mallet: Included for additional striking force if needed.
• Carrying Sling: For easy portability.
