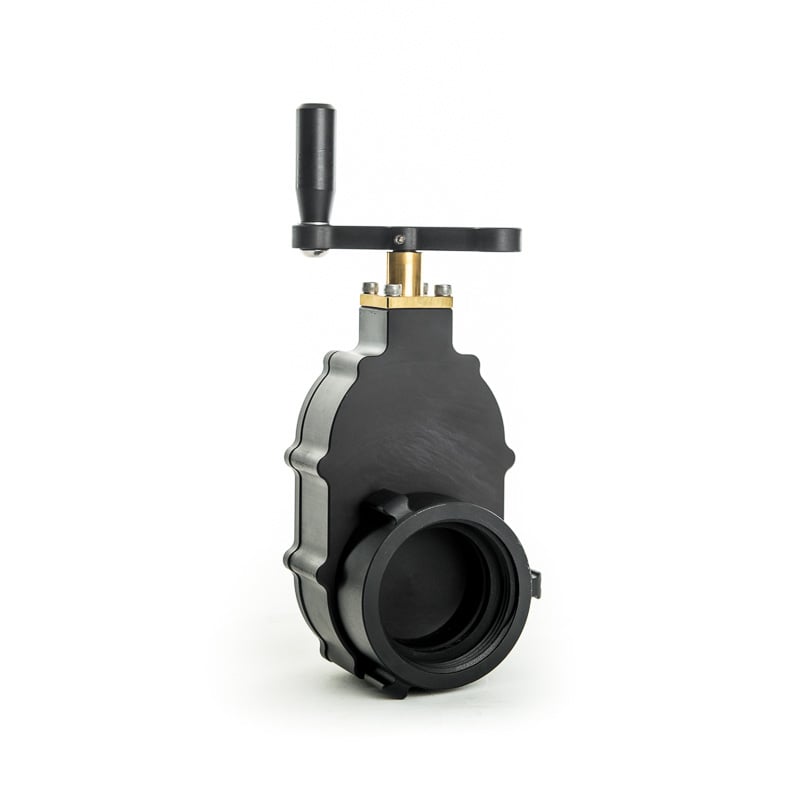

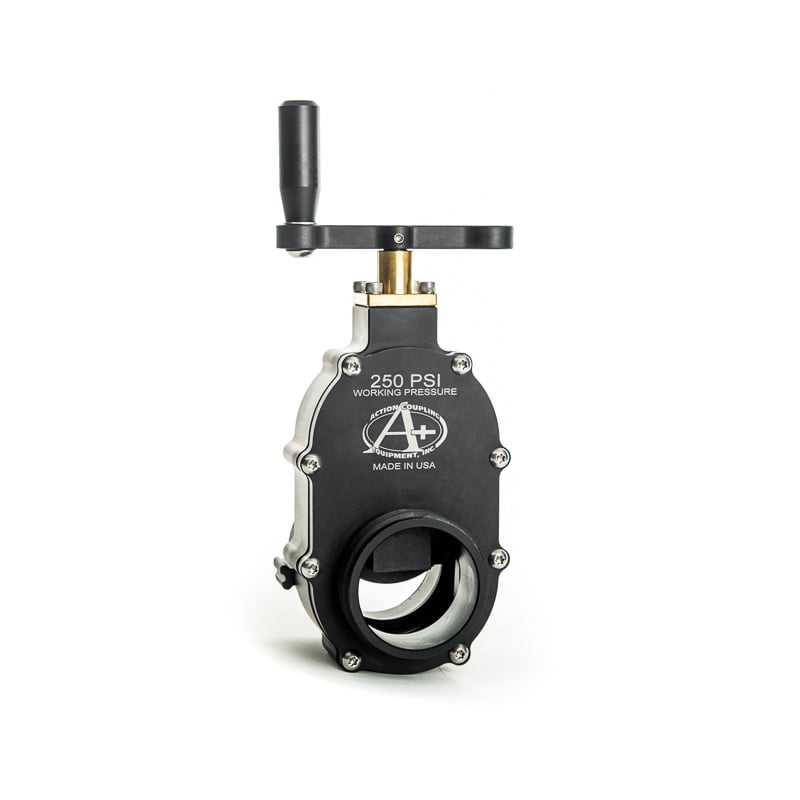

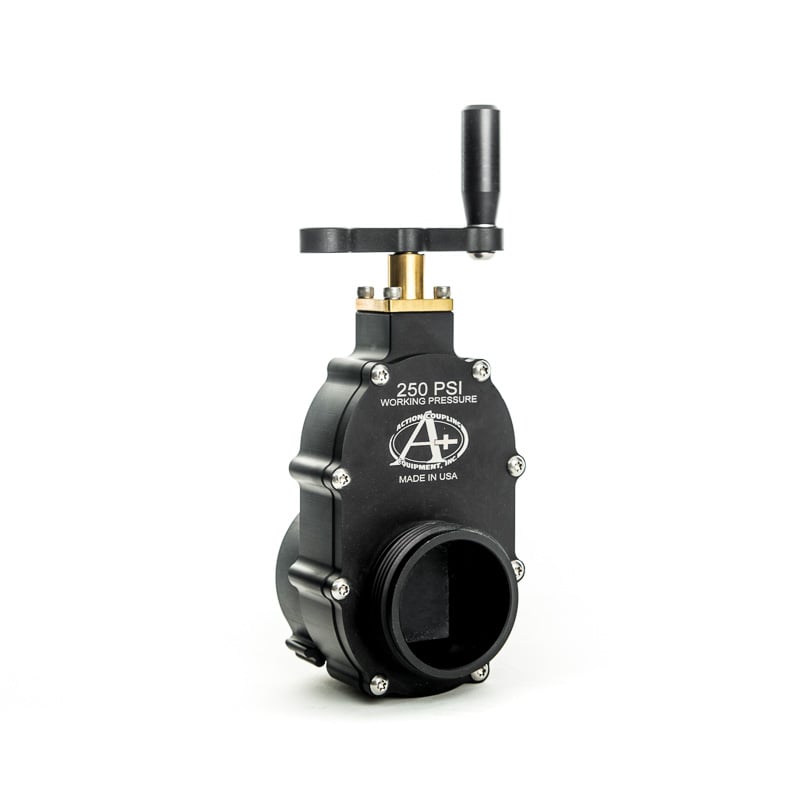

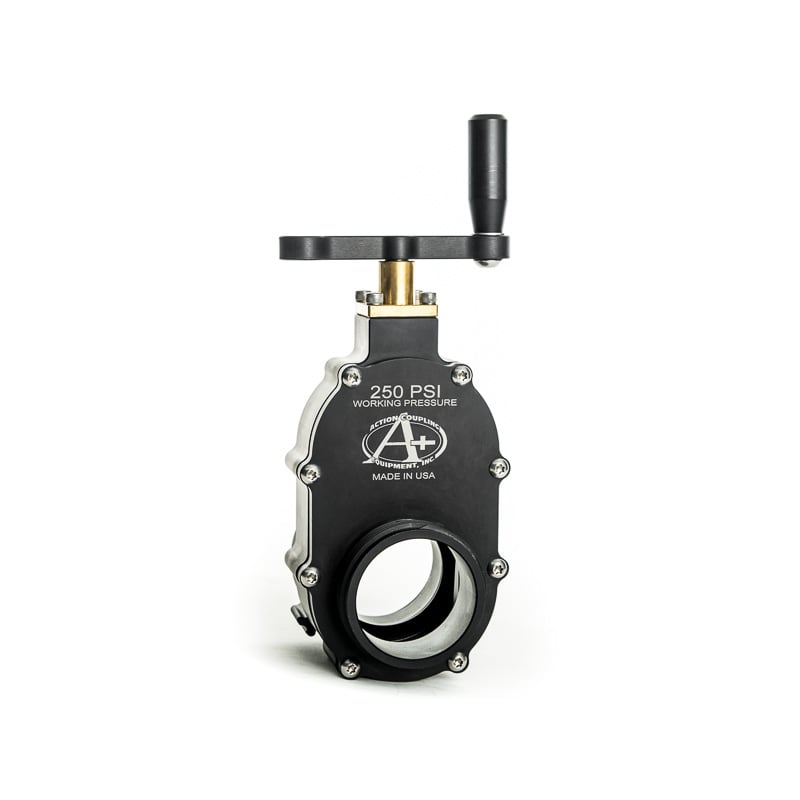

Hydrant Gate Valve - 2.5"

Action Coupling’s lightweight, heavy-duty 2-1/2" NH Female X NH Male gate valve is crafted from 6061-T6 extruded aluminum. Unlike cast valves, this one is machined from solid billet aluminum, ensuring superior durability and performance. This valve provides excellent shutoff control directly from the hydrant or other water sources. Its unique design ensures the valve body is not pressurized when closed, enhancing safety and longevity.

Features

• Non-Rising Spindle: Full 2-1/2" waterway flow, allowing complete range from open to closed in just 11 revolutions.
• Durable Finish: Black Hard Anodized Type III Class 2 surface finish for long-lasting protection.
• Body, Handle, and Gate: Constructed from 6061-T6 Aluminum, this valve boasts exceptional strength and corrosion resistance. The hard anodized Type III finish further enhances its durability, making it suitable for harsh environments.
• Spindle and Packing Gland: Made from CDA 360 Brass, these components offer excellent machinability and corrosion resistance, ensuring smooth operation and a long service life.
• Fasteners: The use of 18-8 Stainless Steel fasteners provides superior strength and resistance to rust and corrosion, maintaining the integrity of the valve assembly.
• Gasket & O-rings: Crafted from Buna N, these seals provide excellent resistance to oils, fuels, and other chemicals, ensuring a tight and reliable seal.
• Face Gasket: Made from SBR (Styrene-Butadiene Rubber), this gasket offers good abrasion resistance and durability, contributing to the overall reliability of the valve.
• Dimensions: With a length of 4-1/4", width of 5", and height of 11", this valve is compact yet powerful. It weighs 4-1/2 lbs., making it easy to handle and install.
• Pressure Rating: The valve is rated for 250 PSI, making it suitable for high-pressure applications. It also features a safety factor of 3, ensuring reliable performance under demanding conditions.

Usage

The Action Coupling Hydrant Gate Valve is primarily used to control the flow of water from a hydrant. It allows firefighters and maintenance personnel to regulate water flow efficiently during emergencies or routine maintenance. The valve can be fully opened or closed to either allow maximum water flow or completely shut off the water supply.

Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of the hydrant gate valve. Here are some maintenance tips:

• Inspection: Periodically inspect the valve for any signs of wear, corrosion, or damage. Check the seals and gaskets for any leaks.
• Lubrication: Ensure that the spindle and other moving parts are adequately lubricated to prevent seizing and ensure smooth operation.
• Cleaning: Keep the valve clean from debris and dirt, especially around the moving parts and seals.
• Testing: Regularly test the valve to ensure it operates correctly. Open and close the valve fully to check for smooth operation and proper sealing.

Installation

Installing the Action Coupling Hydrant Gate Valve is straightforward. Follow these steps for proper installation:

1. Preparation: Ensure the hydrant and connecting pipes are clean and free from debris. Verify that the valve size matches the hydrant outlet.
2. Positioning: Align the valve with the hydrant outlet and ensure it is positioned correctly.
3. Connection: Secure the valve to the hydrant using the appropriate fasteners. Ensure all connections are tight and secure to prevent leaks.
4. Testing: Once installed, test the valve by opening and closing it to ensure it operates smoothly and seals properly.

By following these guidelines, you can ensure the Action Coupling Hydrant Gate Valve provides reliable and efficient performance in your fire protection system.
