Hydrant Diffuser
SKU#: S672
Ships via Standard Ground

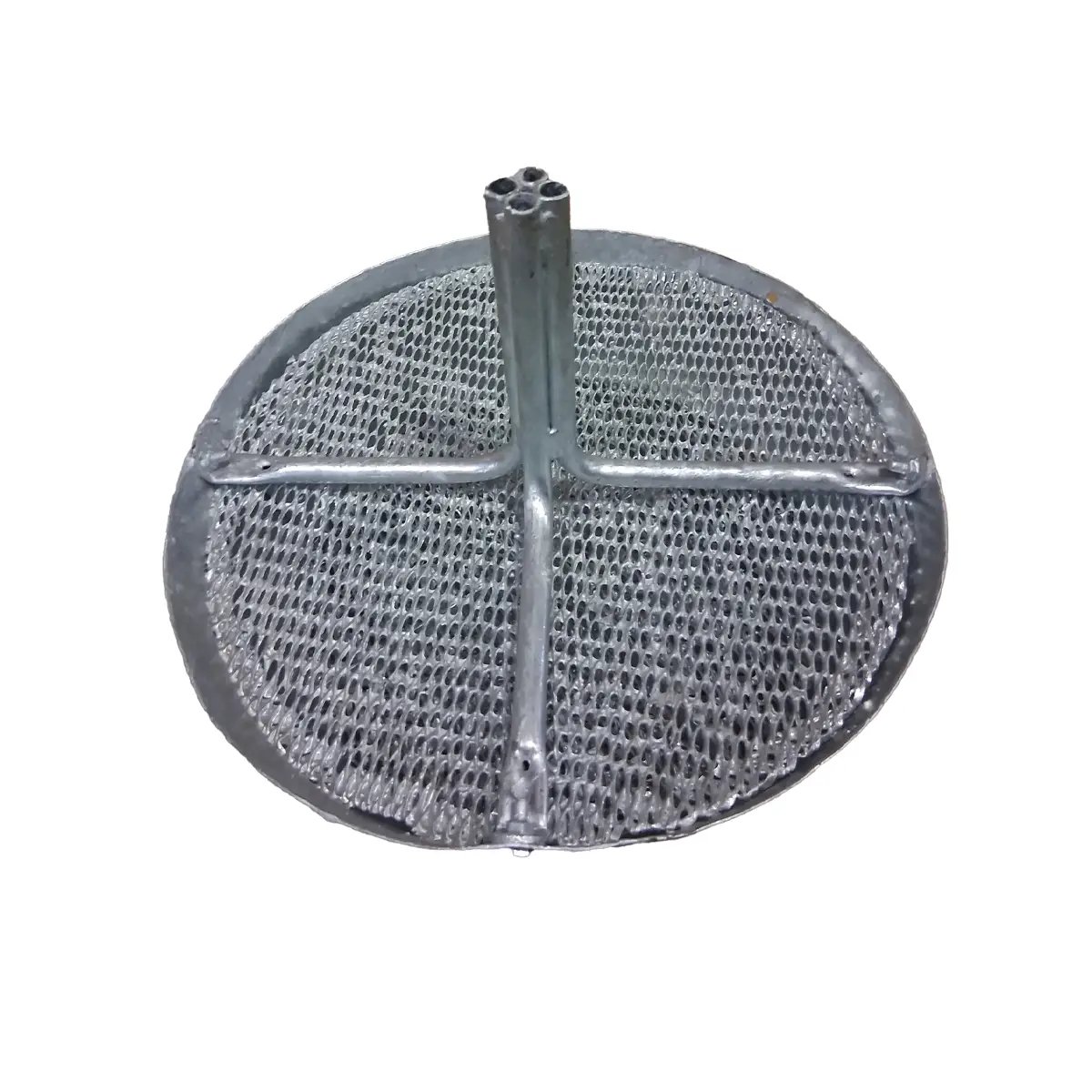

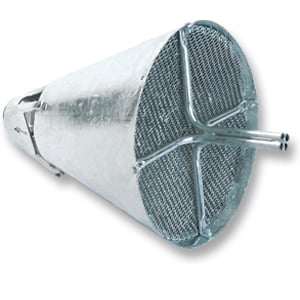

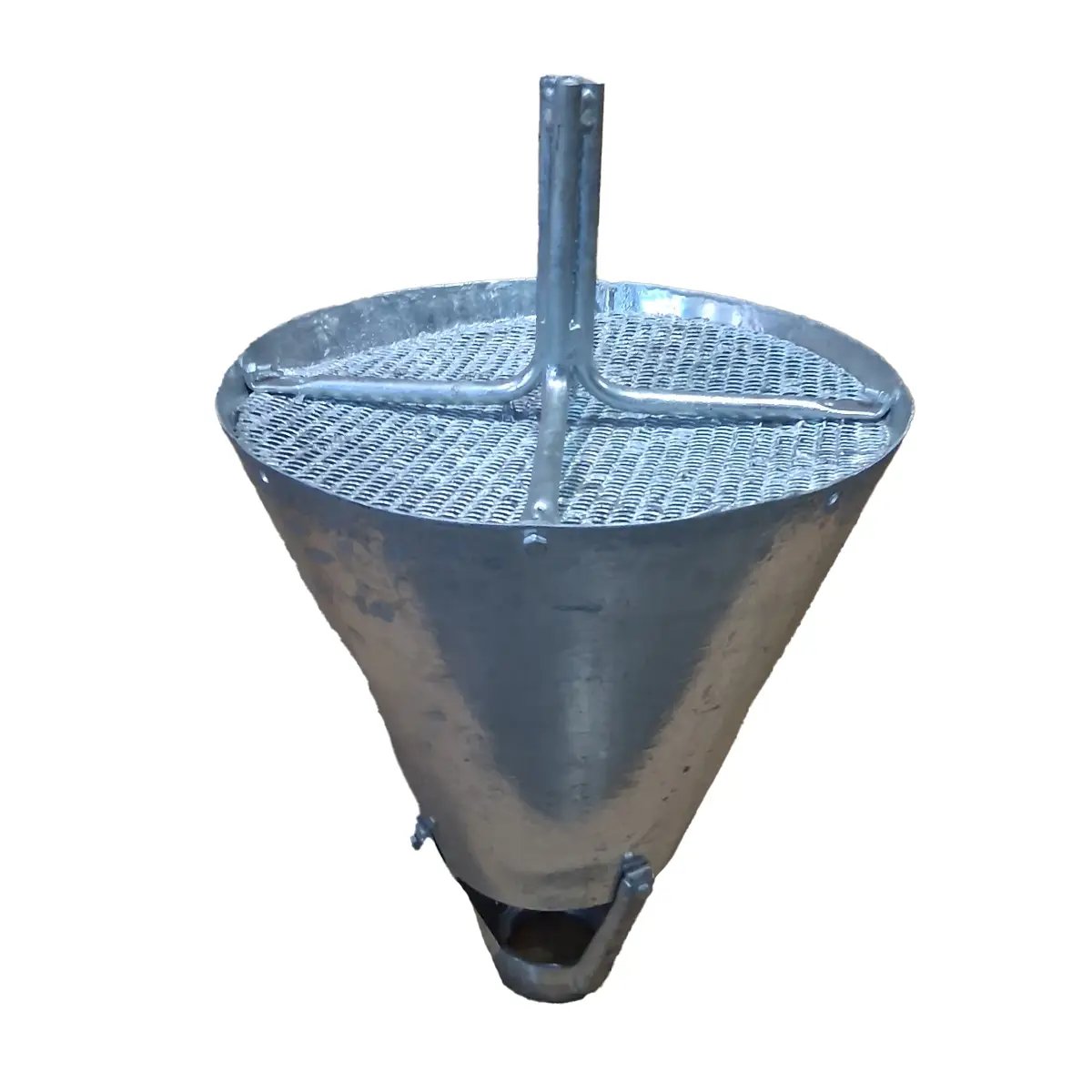

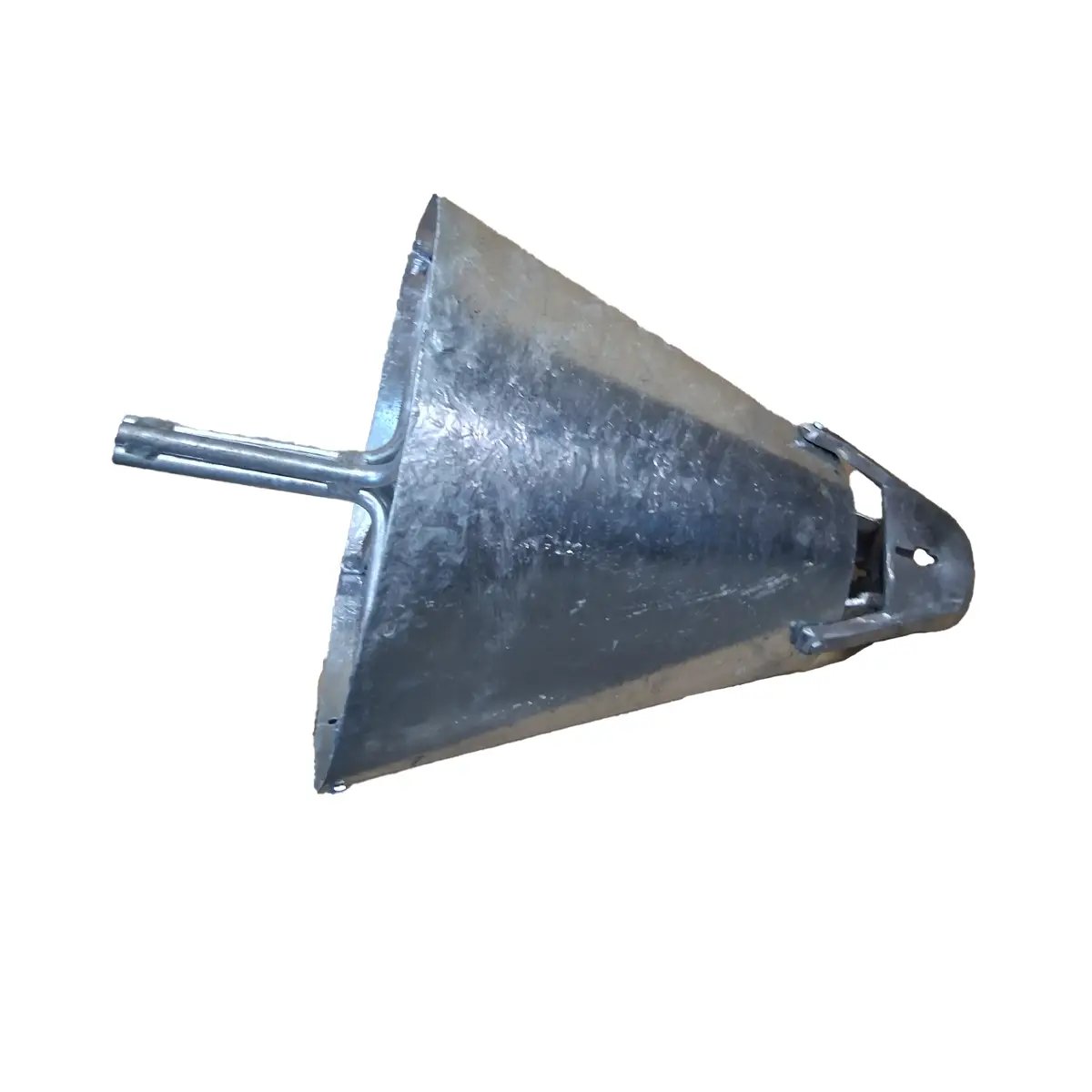

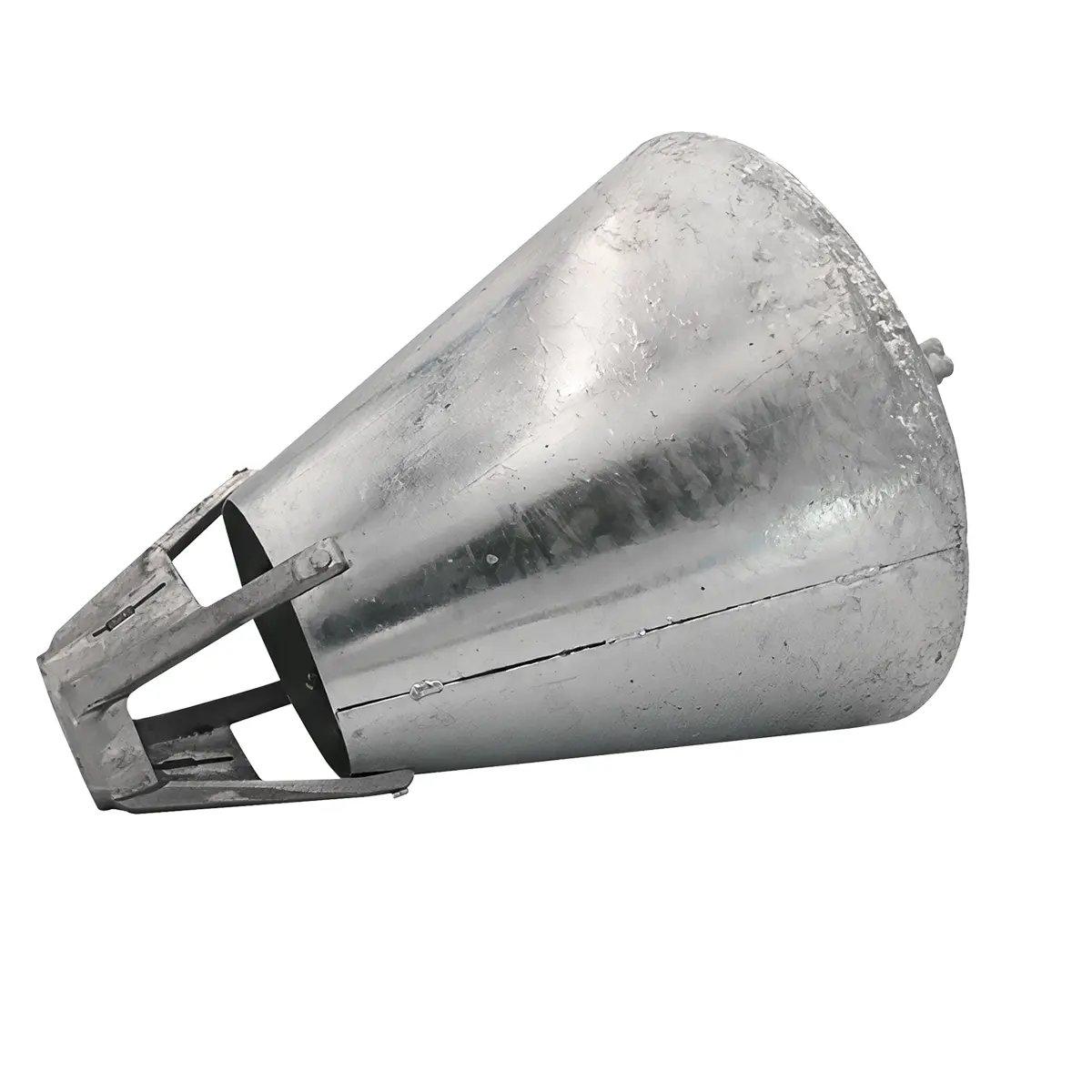

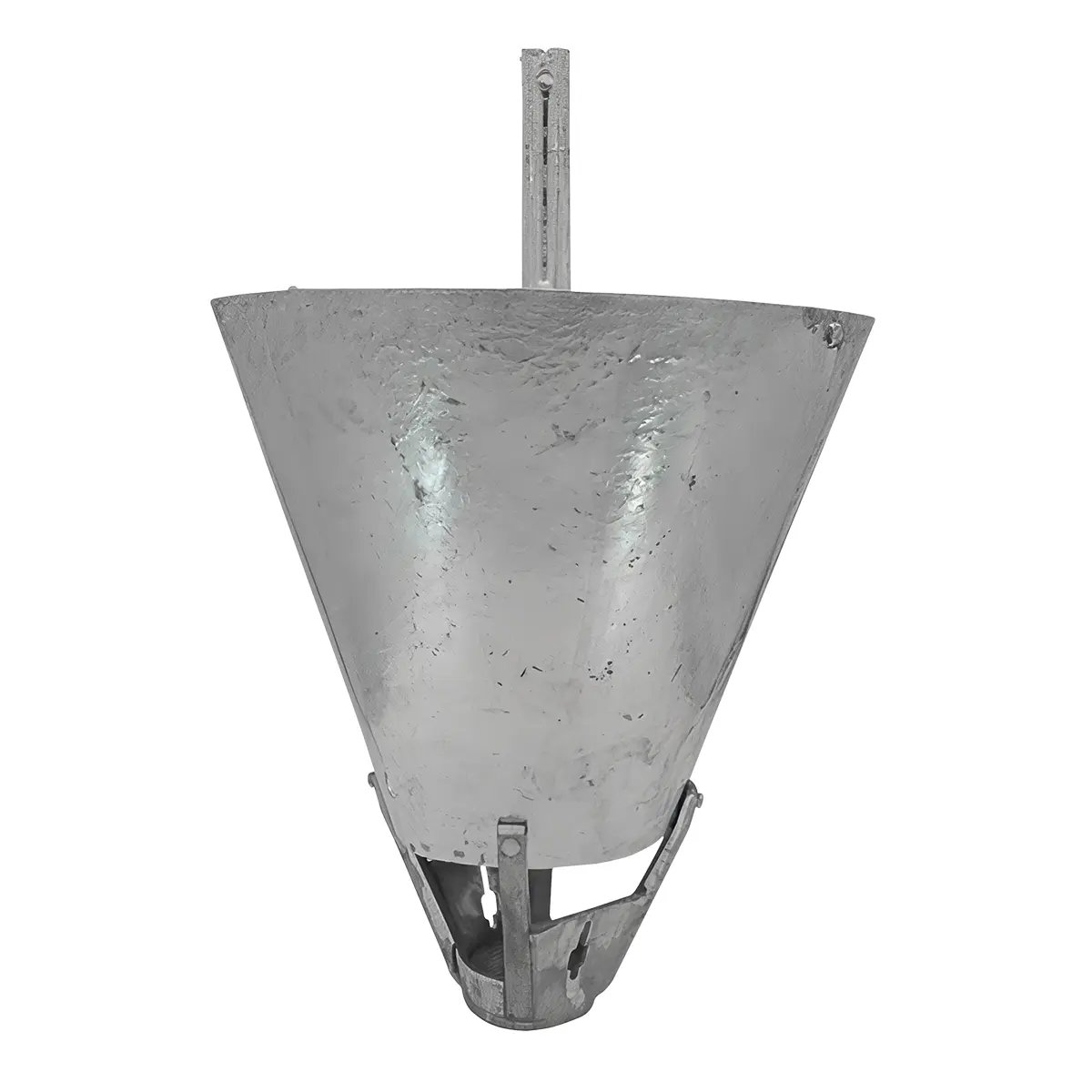

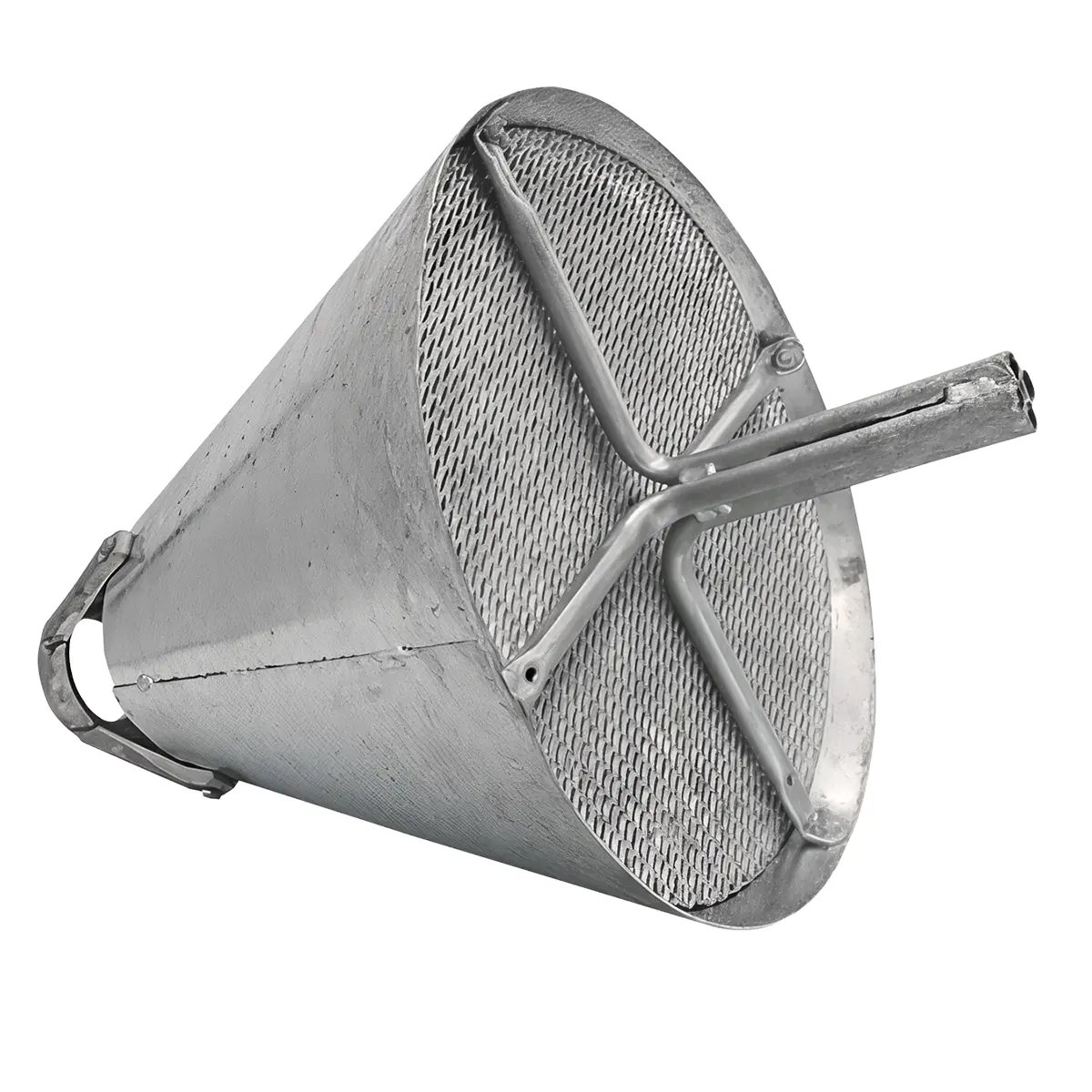

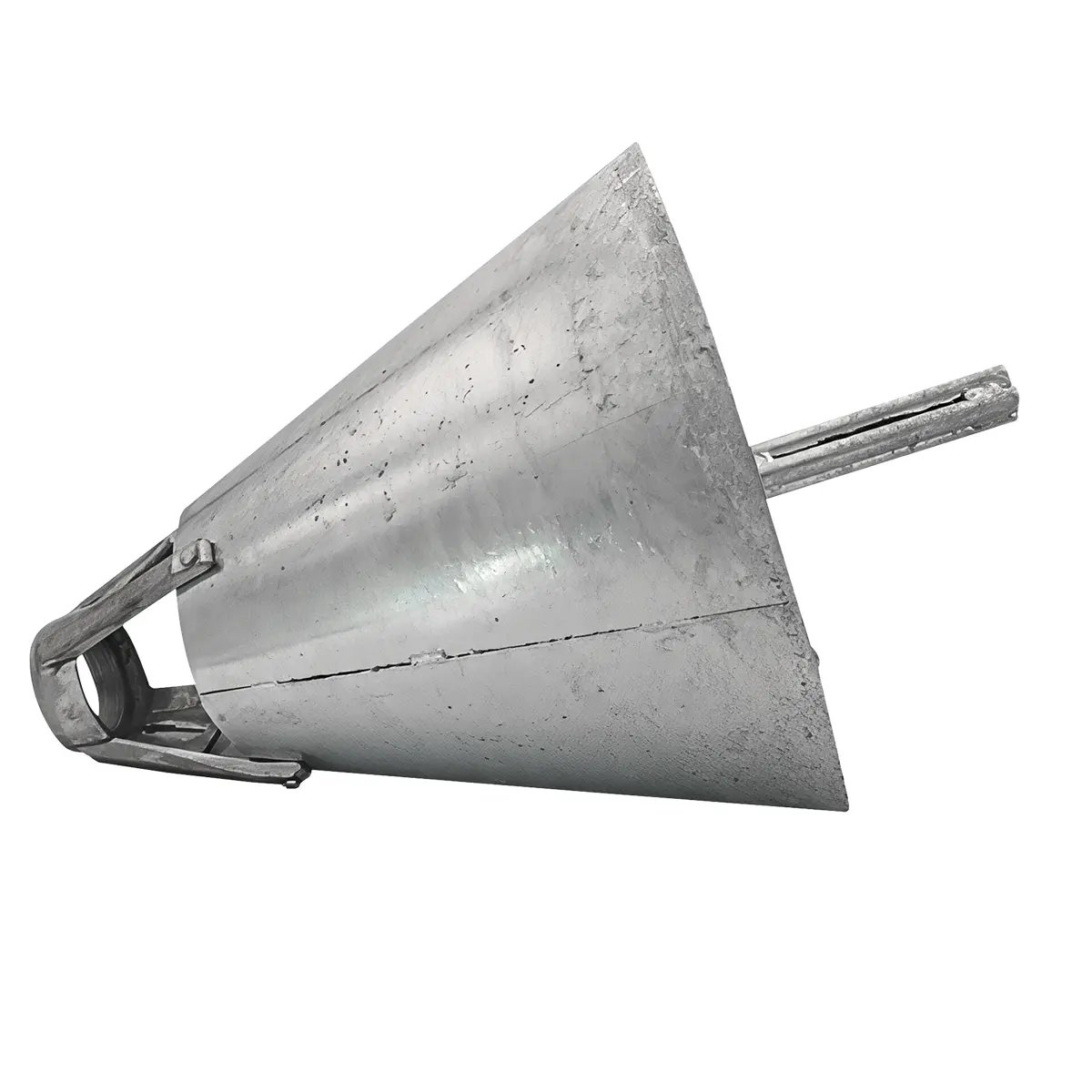

The Hydrant Diffuser is a heavy‑duty hydrant testing accessory engineered to safely control high‑velocity water discharge during hydrant flushing and flow testing. Internal steel diffusion grids and an adjustable diverter reduce discharge force and spray distance, helping protect surrounding property while allowing accurate pressure and flow measurements in urban and high‑traffic environments.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The Darley Hydrant Diffuser is a heavy-duty hydrant testing accessory designed to safely reduce and redirect high-velocity water discharge during hydrant flushing and flow testing. It protects nearby property, vehicles, and landscaping while allowing accurate system performance measurements.
Features
- Slows and disperses hydrant discharge through internal steel diffusion grids to reduce water force damage
- Adjustable pattern diverter redirects water flow downward or to the side for controlled discharge
- Inlet adapter includes gauge slots for secure pitot tube placement and accurate pressure readings
- Limits discharge distance to approximately 5 feet, even at flows up to 1,125 GPM
- Pipe-style projection functions as a handle for easy threading onto hydrants
- Fully compliant with American Insurance Association Special Interest Bulletins
How It Is Used
The hydrant diffuser threads directly onto a standard 2½-inch hydrant outlet before opening the hydrant. As water flows through the unit, internal steel grids diffuse and slow the stream while the adjustable diverter directs discharge to a safe direction. A pitot gauge can be inserted into the inlet slots to measure pressure before diffusion, ensuring accurate flow testing results.
Who Uses It
- Fire departments conducting hydrant inspections and flow testing
- Municipal water departments performing routine flushing and maintenance
- Fire protection contractors and inspectors
- Water system maintenance crews operating in urban or high-traffic areas
Maintenance
- Inspect diffuser grids regularly for debris buildup after use
- Rinse with clean water following hydrant testing to remove sediment
- Check threads and inlet adapter for wear or damage
- Verify diverter adjustment mechanism operates smoothly before each use
Storage
- Store in a dry area to prevent corrosion
- Keep away from debris and loose tools that may damage the steel grids
- Do not stack heavy equipment on top of the diffuser during storage
- Ensure threads are clean and capped when not in use
- Connection Size: 2.5-inch NST threads
- Maximum Flow Handling: Up to 1,125 GPM
- Discharge Distance: Limited to approximately 5 feet
- Weight: Approximately 10 lbs
- Construction: Steel diffusion grids with durable metal housing
- Compliance: American Insurance Association Special Interest Bulletins
- Model: CEB-PHD-25
