GFCI Compatible Variable Speed Blowers

The VSG PPV fan is a robust and versatile tool designed to meet the demanding needs of fire services and industrial applications. Its advanced features and durable construction ensure reliable performance and ease of use in various operating conditions.

Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.

Enter a value between 1 and 100000000 in increments of 1.

Earn Darley Dollars with this purchase

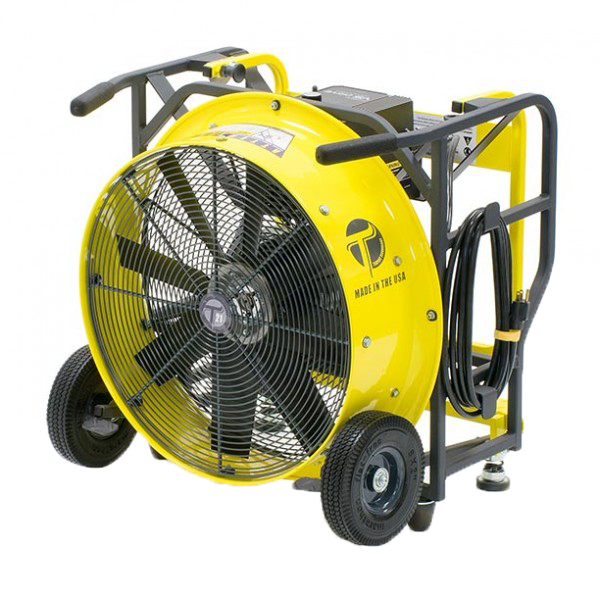

The VSG Positive Pressure Ventilation (PPV) fan is a pioneering variable speed, GFCI-compatible Power Blower™ designed for the fire service. Renowned for its high performance and reliability, the VSG PPV fan operates efficiently on nearly any rig or household wall outlet, thanks to its powerful 1.5 HP motor. The variable speed control makes it ideal for ventilating both small and large structures.


Features

GFCI Compatibility: Compatible with all GFCI-protected circuits.

  • Powerful 1.5 HP Motor: Provides sufficient power for all blade sizes (16", 18", 21", 24") while operating on a 20amp circuit.
  • NEMA-4 Rated Motor & Drive: Ensures water and weather resistance to withstand extreme operating conditions.
  • Excellent Blower Visibility: Safety yellow shroud and motor enhance job site visibility.
  • Variable Speed Drive: Equipped with a durable, reliable, and easy-to-operate GFCI-compatible, NEMA 4-rated control box.


What is it?

The VSG PPV fan is a high-performance ventilation tool designed to provide reliable and efficient ventilation for various structures. It is equipped with advanced features such as a variable speed drive, a powerful motor, and a robust frame, making it a versatile and essential tool for fire services and other demanding environments.


How is it used?

The VSG PPV fan is used to ventilate structures by creating positive pressure, which helps to clear smoke, heat, and other hazardous gases. The variable speed control allows users to adjust the airflow to suit different ventilation needs. The fan can be easily transported and positioned using its flip-up/fold-down handle and non-pneumatic wheels.


Who uses it?

The VSG PPV fan is primarily used by fire services and emergency responders who require reliable and efficient ventilation tools to manage smoke and hazardous gases during firefighting operations. It is also suitable for use in industrial settings where effective ventilation is crucial.


Maintenance Information

The VSG PPV fan is designed for durability and ease of maintenance. The welded steel roll cage frame eliminates the need for continuous tightening of nuts and bolts. The composite blades are designed to disintegrate upon impact with foreign objects, reducing the risk of injury and the need for frequent blade replacements.


Storage Information

The VSG PPV fan features a flip-up/fold-down handle that allows for compact storage. The handle quickly swings up to a comfortable height for use and folds down easily for storage at the fan's listed dimensions.


What is included?

VSG Positive Pressure Ventilation Fan

  • Variable Speed Drive Control Box
  • Welded Steel Roll Cage Frame
  • 8” Non-Pneumatic Wheels (6” for 16" models)
  • Turbo 2000 Shroud
  • AirFlex Composition Impeller
  • Flip-Up/Fold-Down Handle
  • Dual "Winning Step" Foot-Operated Tilt Mechanism
  • Safety Grille
  • Information/Safety Bar


  • Type: Positive Pressure Ventilation Fan, Cone Air Flow (CAF)
  • Blade: 16″, 18″, 21″, or 24" Diameter Assembly Made Up of AirFlex Fiberglass Reinforced Polyamide Blades
  • Frame: Rugged, Lightweight, Square-Steel Tubing with Powder-Coat Finish
  • Shroud: Turbo 2000 Design, Tapered Aluminum with Durable Powder-Coat Finish
  • Wheels:
    • 16″ Models: 6″ Non-Pneumatic with Steel Hubs
    • 18″, 21″, and 24″ Models: 8″ Non-Pneumatic with Steel Hubs
  • Grille: Continuous Circular-Wound, External-Weld Steel Wire with 8 Tie Points for Additional Safety
  • Motor/Drive: Direct-Drive Variable Speed 110-120V, 60Hz Electric Motor, GFCI Compatible, NEMA-4 Rated Drive
  • Vibration Dampeners: Steel-Reinforced Rubber and Welded Steel Spring Feet
  • Tilt: Foot-Operated Tilt Mechanism
    • 16" Models: Four Position Tilt, +10°, +5°, 0°, -5°
    • 18", 21", 24" Models: Five Position Tilt, +15°, +10°, +5°, 0°, -5°
