Gated Wye Valve

The Gated Wye Valve from C & S Supply Inc. is a versatile and essential tool for firefighting operations, designed to efficiently split water flow from a single inlet into two separate outlets. This allows for greater control and flexibility in managing water distribution during firefighting efforts.

Features

• Construction: Made from high-quality aluminum and plastic with hard-coated threads for durability.
• Operation: Quarter-turn valves for easy and reliable operation.
• Compliance: Meets or exceeds GSA requirements for use by the US Forest Service.
• Durability: Tough anodized aluminum construction ensures superior performance.
• Efficiency: Hard anodized aluminum balls with full 1.5" waterways reduce friction loss.
• Stability: Front and rear seats stabilize valve operation.
• Design: Low-profile handles prevent snagging when the valve is dragged.
• Efficient Water Distribution: It allows a single water source to be split into two separate streams, enabling firefighters to direct water to multiple locations simultaneously
• Enhanced Control: The gated feature provides individual control over each outlet, allowing precise management of water flow to different areas.
• Versatility: It can be used with various hose sizes and configurations, making it adaptable to different firefighting scenarios.
• Durability: Typically constructed from robust materials like brass or aluminum, gated wye valves are designed to withstand harsh conditions and high pressures.
• Prevention of Water Hammer: Some models come with slow-close handles that help prevent water hammer, ensuring smoother operation and reducing the risk of damage to the equipment.
• Compact and Portable: These valves are generally lightweight and easy to transport, making them convenient for rapid deployment in emergency situations

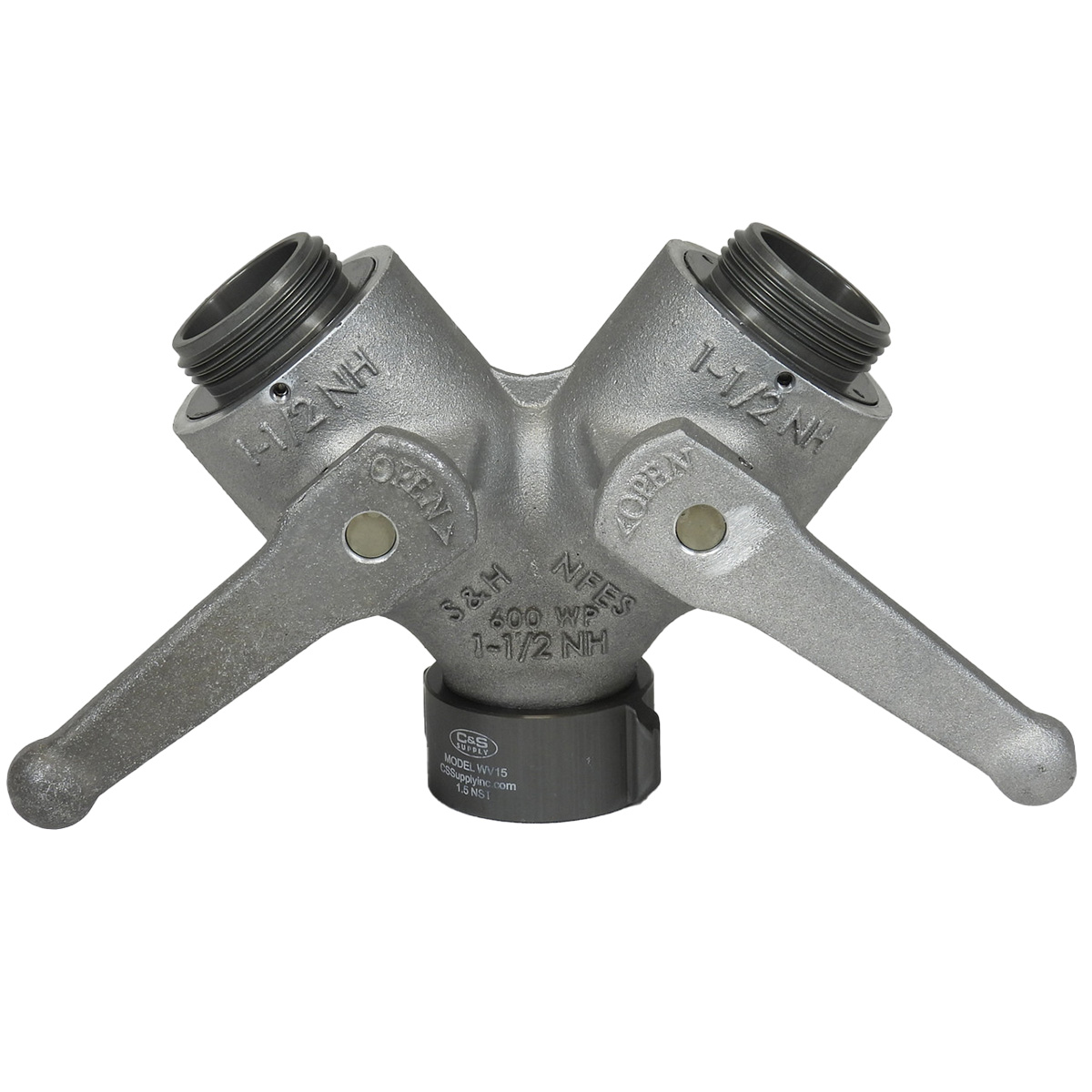

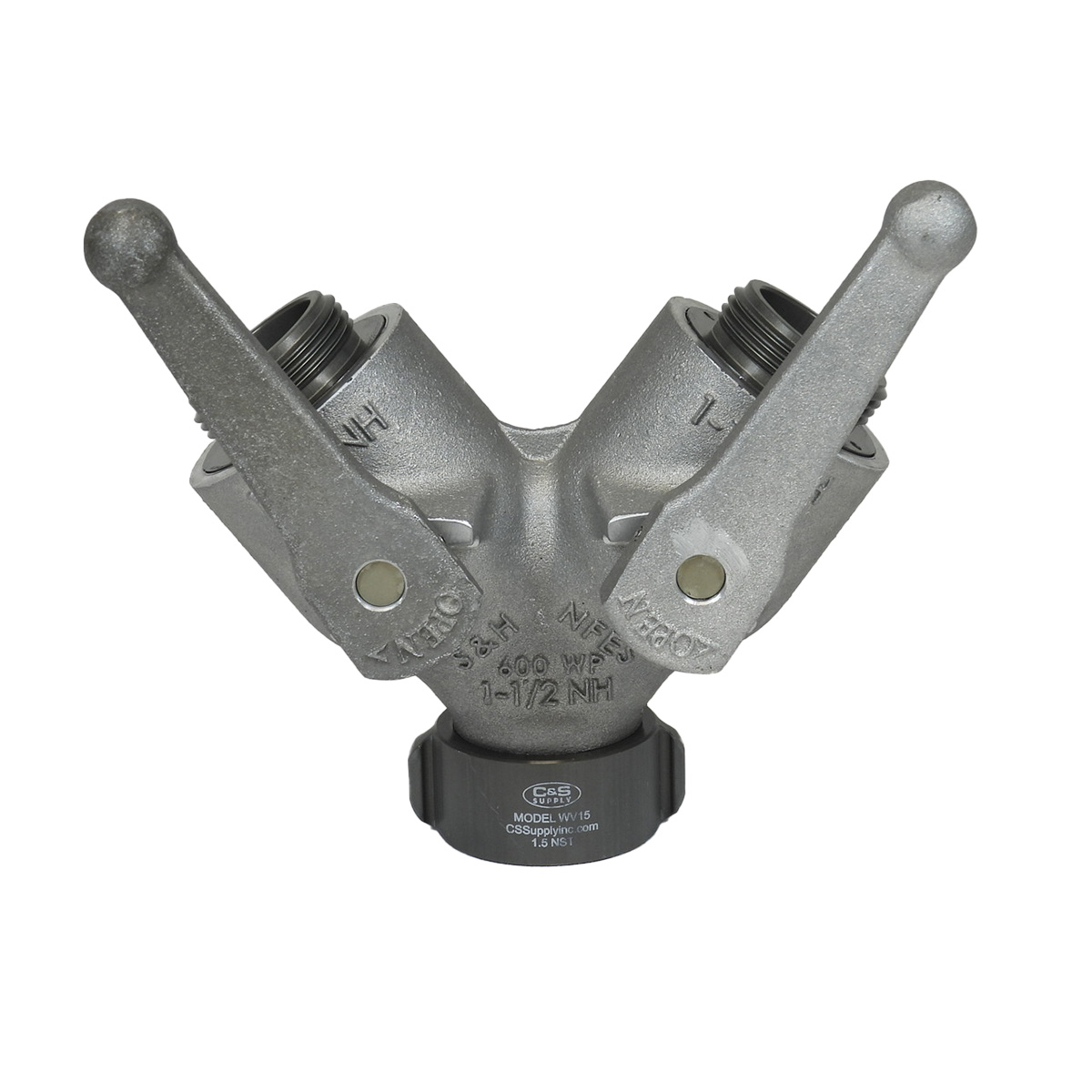

Note: The handles in the image may differ from the product.

How is it used?

The Gated Wye Valve is used to split a single water source into two separate streams, allowing firefighters to direct water to multiple locations simultaneously. This is particularly useful in situations where multiple hoses are needed to combat a fire from different angles or to cover a larger area. The gated feature allows for individual control of each outlet, enabling precise water flow management.

Maintaining a gated wye valve is crucial for ensuring its longevity and reliable performance.

Here are some key maintenance steps:

Regular Inspection

• Inspect the valve for any visible damage, wear, or corrosion.
• Check for any leaks around the seals and connections.

Cleaning

• Periodically flush the valve with clean water to remove any dirt, grit, or debris.
• Clean the exterior moving parts to ensure smooth operation.

Lubrication

• Lubricate moving parts such as handles, valve balls, and couplings with a silicone-based grease like Dow Corning.
• Ensure that all seals are properly greased to prevent leaks and ensure smooth operation.

Operational Checks

• Open and close the valve slowly to avoid water hammer, which can cause high-pressure spikes and damage the equipment.
• Test the valve under pressure to ensure it operates correctly and does not leak

Corrosion Prevention

• If used with salt water, thoroughly clean the valve with fresh water after each use to prevent corrosion.
• Apply anti-corrosive lubricant to the threads if dissimilar metals are coupled together

Replacement of Damaged Parts

• Replace any missing or damaged parts before returning the valve to service
• Touch up any scrapes that expose bare metal with enamel paint to prevent corrosion.

Storage

• Store the valve in a dry, clean environment to prevent rust and corrosion.
• Ensure the valve is fully drained before storage to avoid damage from freezing conditions.
• By following these maintenance steps, you can ensure that your gated wye valve remains in optimal working condition and is ready for use when needed.
