Foamate™ ATP Model 1.0 - Class A - GPM Dial - Foam Proportioner

The Foamate™ ATP Model 1.0 is a high-performance foam proportioner for Class A foam applications. This versatile unit is perfect for wildland firefighting, municipal pumpers, and retrofit installations on existing units. The Foamate™ ATP Model 1.0 ensures reliable and efficient foam delivery with its robust construction and user-friendly design.

Features

• All Brass Body Construction and Connections: Durable and corrosion-resistant for long-lasting performance.
• Maximum Pressure: 600 PSI, suitable for high-pressure applications.
• GPM Flow Range: Up to 400 GPM, providing flexibility for various firefighting scenarios.
• Simple Operation and Training: Easy to use, ideal for quick deployment and minimal training.
• Quick Installation: It can be installed in under one hour, which is perfect for retrofit applications.

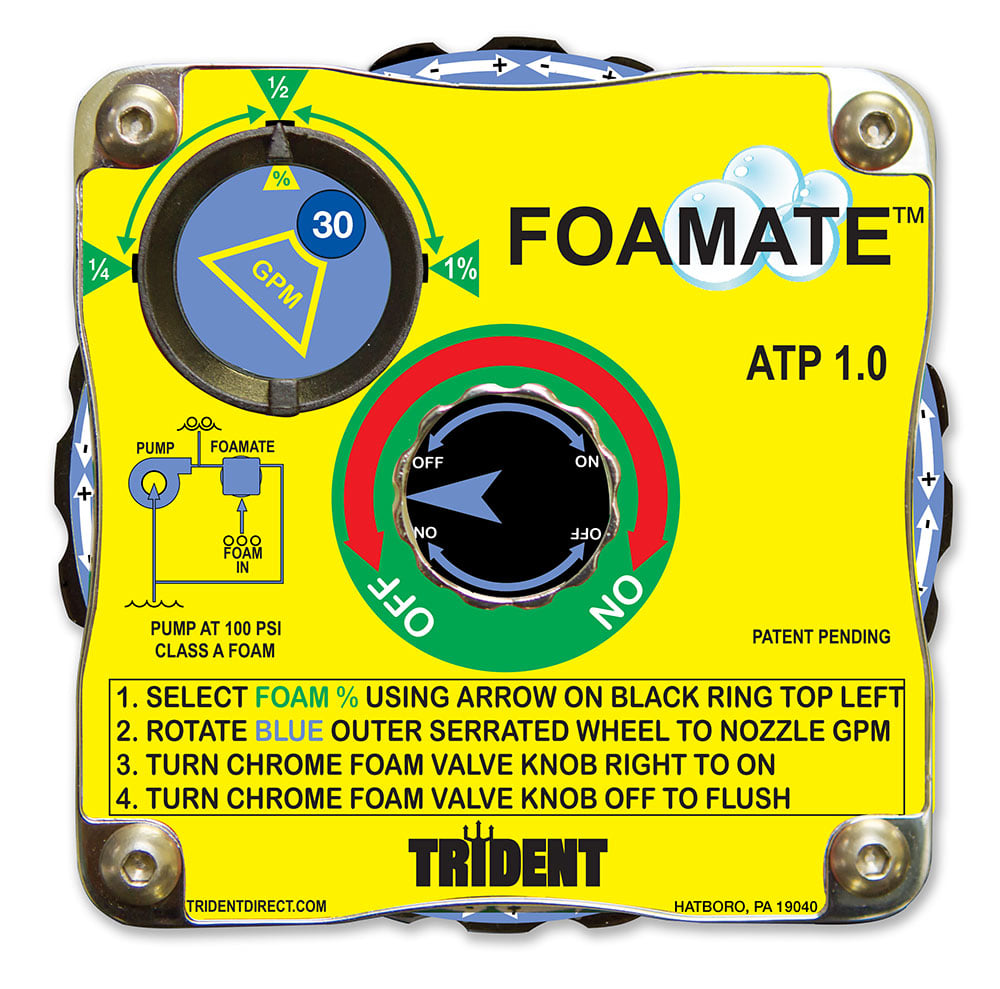

• Compact Control Panel: It measures 4" high x 4" wide x 4" deep and has a chrome-plated finish. It also has an integral polycarbonate label for operating instructions and a foam diagram.

Construction Details

• Brass Metering Valve: Equipped with EPDM rubber-replaceable foam-compatible seals.
• Integral Brass Check Valve: Prevents backflow of foam into the water supply.
• Wye Strainers: Includes two brass wye strainers for added protection and reliability.

Applications

• Wildland Slip-On Units
• Municipal Pumpers
• Retrofit Installations

Additional Information

• Factory Calibrated: Ensures accurate foam proportioning.
• Certified to NFPA Standards: Meets industry safety and performance standards.
• Complete Assembly: Low-cost and ready to use out of the box.

What's Included

• .25" F NPT Eductor Water In Connection
• 0.375" F NPT Eductor Water Out Connection
• .75" M GHT Eductor Foam In Connection
• Driving Water Flow: 5 GPM @ 100 PSI
• Wye Strainer Connection: .75" F NPT at each end
• Wye Strainer Cleanout Thread: .5" F NPT
