FOAMATE 2.1 Class B Foam Proportioner with Vic Ends

The FOAMATE 2.1 is an around-the-pump Class B foam proportioning system that installs on the discharge side of a fire pump. It uses a brass eductor and metering valve to inject foam concentrate into the water stream at selectable 1%, 3%, or 6% ratios, making foam solution available at every discharge outlet on the apparatus.

Features

• Selectable injection rates: Provides accurate foam injection at 1%, 3%, or 6% depending on operational needs.
• Around-the-pump design: Sends foam solution back to the suction side of the fire pump for distribution to all discharges.
• Simultaneous discharge capability: Supplies foam solution to multiple discharge outlets at the same time.
• High flow capacity: Supports system flow rates up to 2000 GPM at 1% and 3% injection and up to 1000 GPM at 6% injection.
• Factory calibrated system: Designed to deliver consistent and repeatable foam proportioning.
• NFPA compliant design: Meets applicable NFPA standards.

Construction and Compatibility

• All brass components: Eductor and metering valve are constructed of brass for durability and corrosion resistance.
• Venturi eductor operation: Uses proven venturi action to create vacuum for foam concentrate induction.
• Multiple connection options: Available with Victaulic or FNPT connections.
• GPM calibrations: Offered with flow dials calibrated in GPM
• Foam concentrate compatibility: Compatible with any type of foam concentrate and foam-making nozzle.
• No back pressure sensitivity: Hose length or elevation changes do not affect foam proportioning.

Operational and Installation Features

• Simple operation: Fire pump operations do not change when using the foam system.
• Variable flow operation: Allows changing discharge flows with corresponding metering valve adjustment.
• External foam capability: Can draw foam from external drums, pails, or totes when equipped with an auxiliary pickup.
• Minimal maintenance design: Requires very little routine maintenance beyond flushing after use.

How is it used?

The FOAMATE 2.1 is operated by engaging the fire pump, establishing water flow, and opening the water supply valve to the eductor. The operator then sets the metering valve to the desired flow and injection percentage and opens the foam concentrate supply valve from either the on-board tank or an external source. Foam solution is then delivered through all discharge outlets. After use, the system is shut down and flushed with clean water to remove residual foam concentrate.

Who used it?

The FOAMATE 2.1 is used on fire apparatus by fire departments and emergency response teams that require Class B foam capability for flammable liquid and hazardous materials incidents.

Maintenance Information

The FOAMATE 2.1 requires minimal maintenance due to its simple mechanical design. It is strongly recommended that the system be thoroughly flushed with clean water after each use to prevent dried foam concentrate from affecting valve operation. No additional routine maintenance is required beyond periodic inspection and flushing.

Storage Information

When not in use, the system remains installed on the apparatus. Proper flushing after operation ensures that foam concentrate does not remain in the eductor or metering valve during storage. Foam concentrate should be stored according to manufacturer recommendations in the on-board tank or approved external containers.

What’s Included

• 2-inch Foam Concentrate Metering Valve, Victaulic Ends

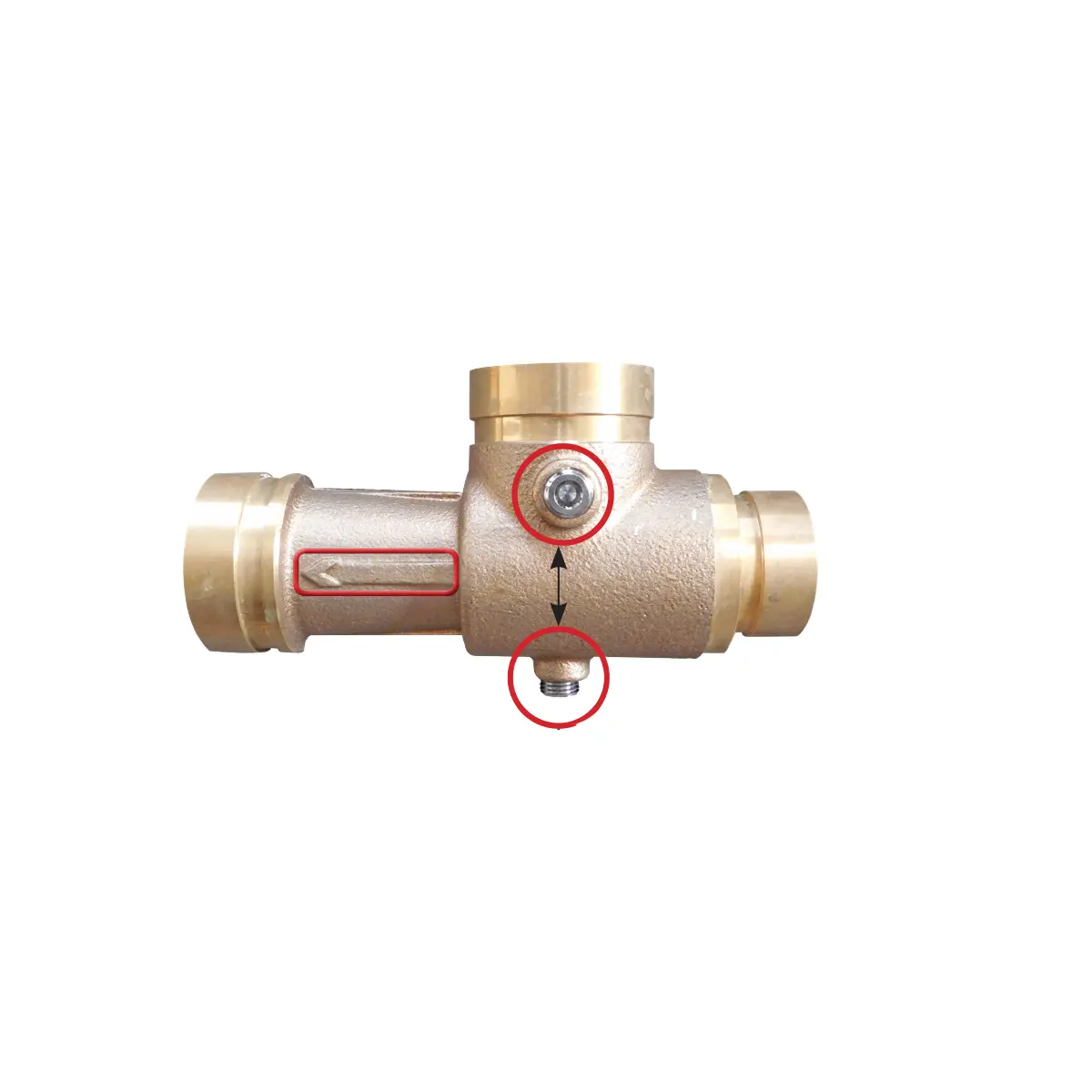

• 1 1/2-inch x 2-inch Brass Eductor, Victaulic Ends
• Foamate 2.1 GPM Flow Rate Label
• Foamate 2.1 Instruction Label
• Instruction Label Backing Plate
• 2-inch FNPT Swing Check Valve
