FLIR K53 Thermal Imaging Camera with FSX
SKU#: BN319
Typically ships in 3-4 weeks
Ships via Standard Ground
FLIR now gives you two new lower-cost, easier-to-use options without sacrificing the reliable clarity and performance for which FLIR K-Series TICs are well-known.
Quantities Limited
Original Price:Crossed Out$5,099.95 Price:$3,215.00
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

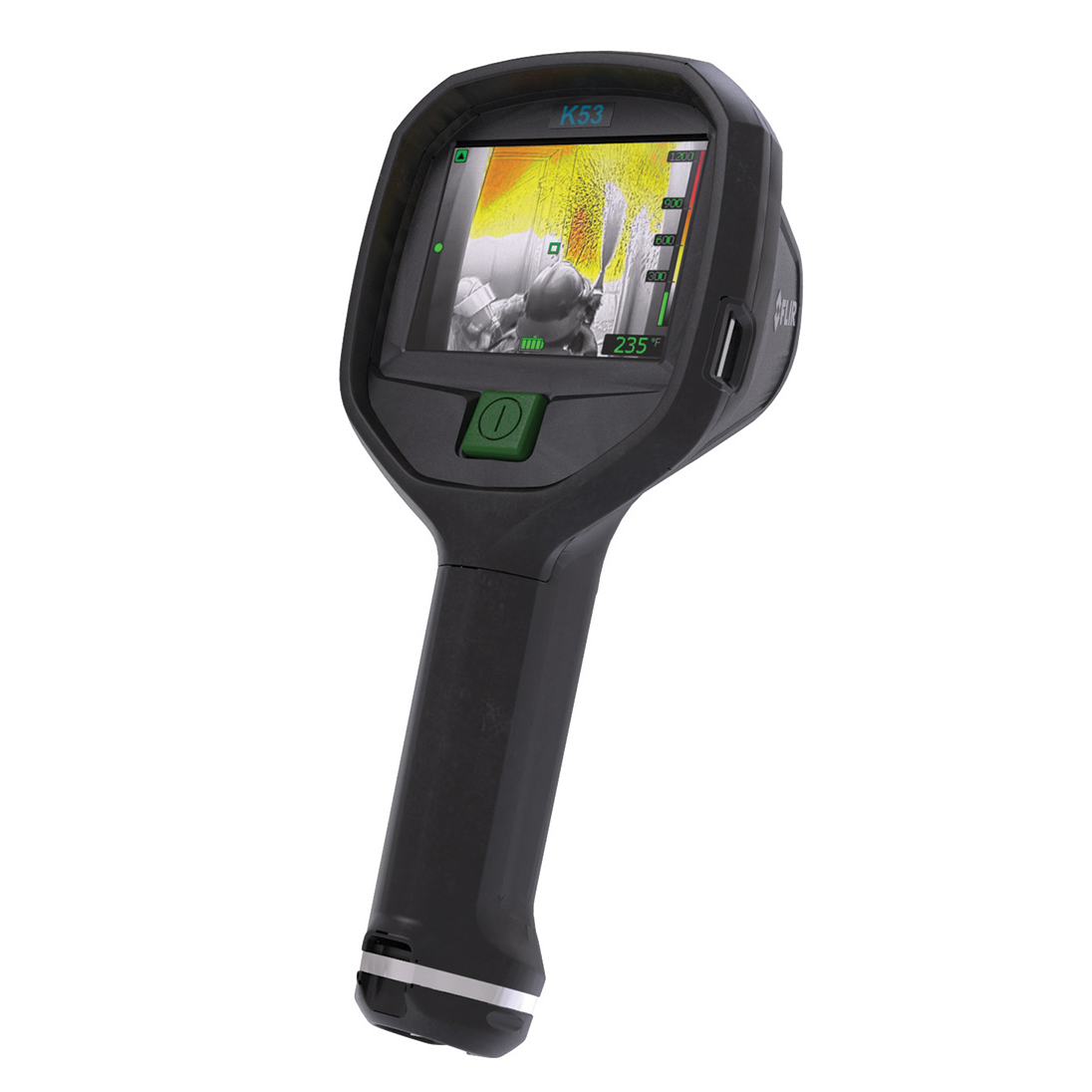

The FLIR K53 Handheld Thermal Imaging Camera is a reliable and efficient tool designed specifically for public safety applications. Built with advanced thermal imaging technology, it enables firefighters, law enforcement officers, and first responders to quickly assess and respond to potential threats in challenging environments. The K53 offers superior performance and crucial insights, enhancing safety and saving lives.
Features
- High-Quality Thermal Imaging: Equipped with a powerful thermal sensor, the FLIR K53 delivers high-resolution thermal images, allowing users to detect heat signatures, temperature differences, and hidden objects, even in complete darkness or adverse weather conditions. It provides enhanced situational awareness and aids in critical decision-making.
- Temperature Measurement and Analysis: The K53 offers accurate temperature measurement capabilities, enabling users to identify hotspots, cold spots, and temperature gradients. This feature is essential for identifying fire sources, assessing structural integrity, and locating individuals in emergency situations.
- Superior Image Clarity: The camera features a high-resolution display that provides clear and detailed thermal images, ensuring optimal visibility and easy interpretation of critical details. The user-friendly interface allows for effortless navigation and quick access to essential functions.
- Durable and Portable Design: The FLIR K53 is built to withstand demanding conditions. Its rugged design meets stringent IP67 water and dust resistance standards, ensuring reliable performance in harsh environments. The compact and lightweight form factor allows for easy handling and convenient portability during operations.
- Wireless Connectivity: With integrated wireless capabilities, the K53 enables seamless data transfer and real-time streaming to compatible devices. This allows remote personnel to view the thermal images and collaborate effectively, enhancing coordination and decision-making in the field.
- Extended Battery Life: The camera has a long-lasting, rechargeable battery that provides extended operational time. The K53's efficient power management system ensures reliable performance during extended missions or critical situations without interruptions.
- Flexible Mounting Options: FLIR offers a range of optional accessories and mounting solutions to enhance the versatility of the K53 camera. These include tripods, helmet mounts, and handle accessories, allowing users to customize their setup based on specific requirements.
Quick Specifications
- Detector Type: Uncooled microbolometer
- Image Resolution: 240 x 180 pixels
- Thermal Sensitivity: <70mK
- Field of View: 57° x 44°
- Temperature Range: -20°C to 400°C (-4°F to 752°F)
- Display: 4" LCD with 320 x 240 resolution
- Image Modes: Thermal, visual, picture-in-picture
- Battery Life: Up to 5 hours (continuous use)
- Connectivity: Wi-Fi
- Dimensions: 225 mm x 117 mm x 82 mm (8.9" x 4.6" x 3.2")
- Weight: 0.77 kg (1.7 lbs)
Applications
- Fire Safety and Firefighting: The FLIR K53 assists firefighters in detecting hotspots, evaluating fire dynamics, and assessing hazardous environments. It enables quick decision-making, improving overall firefighting effectiveness and safety.
- Law Enforcement and Surveillance: Law enforcement officers can utilize the K53 to conduct surveillance operations, locate suspects, and enhance situational awareness during low-light or challenging conditions.
- Search and Rescue Operations: The K53 aids search and rescue teams in locating missing persons, identifying potential dangers, and conducting efficient search operations in various environments.
- Emergency Response and Disaster Management: During emergencies or natural disasters, the K53 assists in assessing damage, identifying survivors, and coordinating effective response efforts.
- Industrial Inspections: The camera's thermal imaging capabilities help inspect equipment, identify anomalies, and ensure the safety of personnel working in industrial environments.
In the Box
- FLIR K53 Handheld Thermal Imaging Camera
- Two Rechargeable Batteries
- AC Power Adapter/Charger
- USB Cable
- Wrist Strap
- Lens Cap
- User Manual
- Carrying Case
| IR Resolution | 320 × 240 pixels |
| Display | 4 in. LCD, 320 × 240 pixels, backlit |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| Camera weight incl battery | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Camera size (L x W x H) | 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.) |
Imaging & Optical
| Contrast optimization | Digital image enhancement using FSX |
| Depth of Field | 0.84 m to infinity (33 in. to infinity) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) | 51° × 38° |
| f-number | 1.25 |
| Focal Length | 9 mm (0.35 in.) |
| Focus | Fixed |
| Image Frequency | 60 Hz |
| IR Resolution | 320 × 240 pixels |
| Non-radiometric IR video recording | MPEG-4 to internal flash memory |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB |
| Pitch | 25 µm |
| Spatial resolution (IFOV) | 2.8 mrad |
| Spectral Range | 7.5–13 µm |
| Storage Capacity | 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images. |
| Thermal Sensitivity/NETD | <30 mK @ 30°C (86°F) |
Environmental & Certifications
| Directives | Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability |
| Drop | 2 m (6.6 ft.) on a concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | –20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min. |
| Relative Humidity | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 85°C (–40°F to 185°F) |
| Tripod Mounting | UNC ¼"-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
Power
| Battery capacity | 4.4 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-Ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.152 kg (0.3 lb.) |
| Charging system | The battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power Management | Automatic shutdown and sleep mode |
| Safety [power supply] | CE/EN/UL/CSA/PSE 60950-1 |
| Start-Up Time | <17 s. (IR image, no GUI) |
| Start-up time from sleep mode | <4 s. |
Measurement & Analysis
| Accuracy | ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) |
| Auto Range | Yes, selectable on/off using FLIR Tools® |
| Camera size (L x W x H) | 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.) |
| Camera weight incl battery | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Isotherm | Yes |
| Languages | English |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| Set-up Commands | Local adaptation of units, date and time formats |
| Spot Meter | 1.0 |
General
| Compatible with FLIR software | FLIR Tools® |
| Material | PPSU Silicon rubber Aluminium cast Flame-resistant magnesium alloy |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.) |
User Interface
| Display | 4 in. LCD, 320 × 240 pixels, backlit |
| Report Generation | Communication & Data Storage |
Communication & Data Storage
| File Formats | Standard JPEG |
| Image Storage | Standard JPEG; Image freeze: configurable |
| Image Storage Capacity | 200 files in total the total number of files is co-dependent on the number of saved video clips. |
| Image Storage Mode | IR only |
| Interface | Update from PC devices Data transfer to and from PC |
| Storage Media | Internal flash memory |
| USB | USB Mini-B |
- Model: 72203-0511
