Fire Research Corporation
Fire Research TankVision Pro Class B Foam Tank Level Display
SKU#: AS311
Ships via Standard Ground
Programmable LED Class B foam tank level display providing accurate, real-time monitoring for fire apparatus foam systems.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase

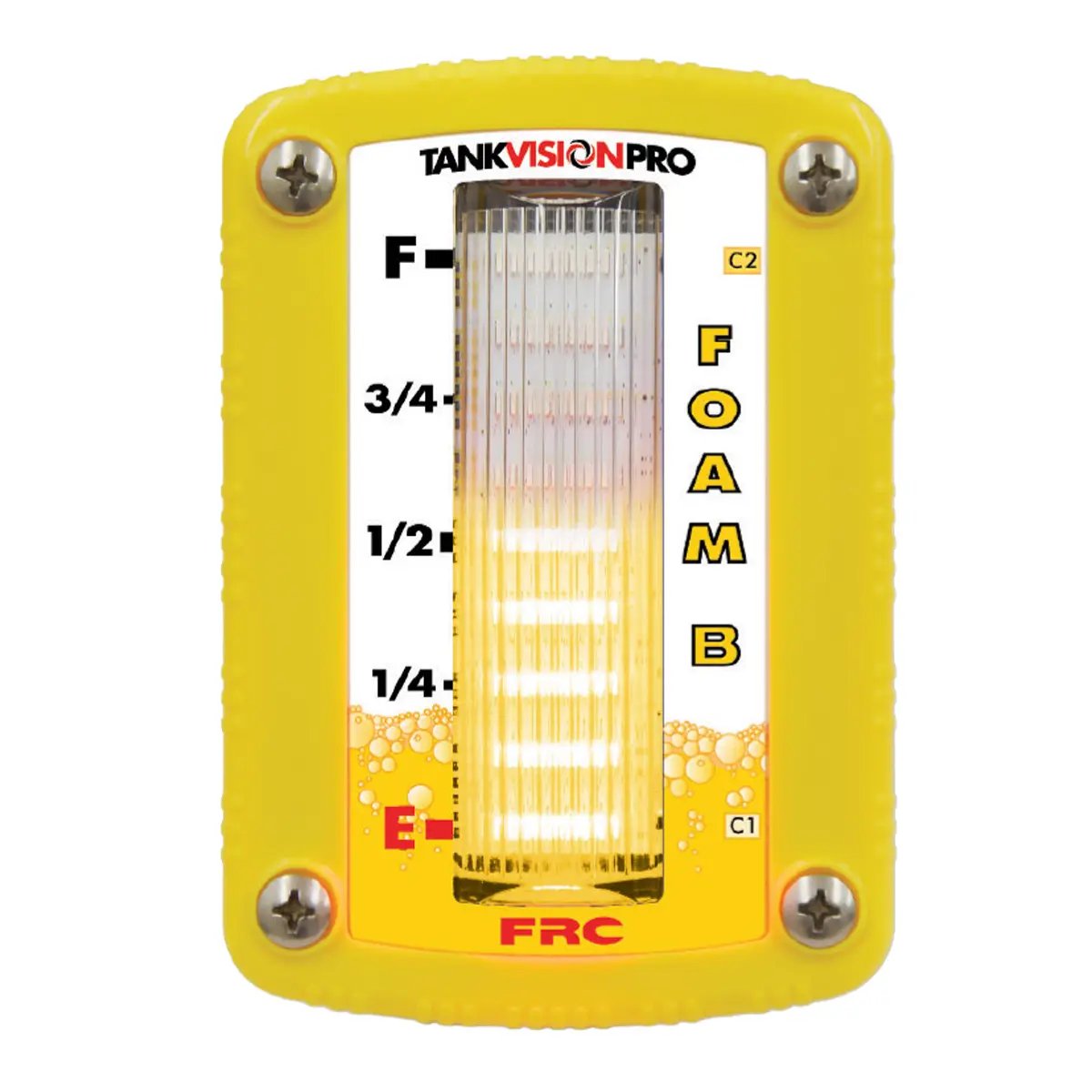

The Fire Research TankVision Pro Class B Foam Tank Level Display is a programmable LED monitoring system designed to provide real-time visual indication of Class B foam tank levels on fire apparatus using pressure-based sensing technology.
Features
- Multi-color LED segments: Provides clear visual indication of foam level status
- Ultra-bright display: Designed for visibility in a wide range of lighting conditions
- Wide viewing angle: Allows tank level visibility from multiple positions around the apparatus
Measurement and Accuracy
- Pressure-based sensing: Measures hydrostatic pressure to determine actual foam volume
- No internal probes: Eliminates mechanical components inside the foam tank
- Consistent readings: Maintains accuracy regardless of tank shape or configuration
System Configuration
- Programmable display modes: Supports fractional-based level indication
- Expandable system design: Supports primary and remote display configurations
- Integrated alarm capability: Provides visual and audible alerts for low foam levels
How is it used
The system continuously monitors Class B foam tank pressure and translates it into a visual LED level display, allowing operators to instantly assess remaining foam supply during operation without opening compartments or relying on mechanical gauges.
Intended for
Designed for fire apparatus and emergency response vehicles equipped with Class B foam systems where accurate foam level awareness is critical to operational planning and response effectiveness.
Maintenance information
The TankVision Pro system is designed with no internal tank components, reducing routine maintenance requirements. Periodic inspection of external sensors, wiring, and display operation is recommended to ensure proper functionality.
Storage information
When not installed, system components should be stored in a clean, dry environment and protected from physical damage until installation.
What is included
- Primary display module
- Pressure sensor
- Cables
- Application: Class B foam tank level monitoring
- Display type: Programmable LED level indicator
- Measurement method: Pressure-based sensing
- Overall dimensions: 4.375 in (H) x 3.00 in (W)
- Metric dimensions: 111.13 mm (H) x 76.2 mm (W)
- Display mode: Fractional
- Mounting: External apparatus mounting
- System compatibility: Fire Research TankVision Pro platform
- Model: WLA370-A00
