Darley

Fast Attack 1 Skid Unit - Economy

SKU#: FASU-1E

Ships via Standard Ground

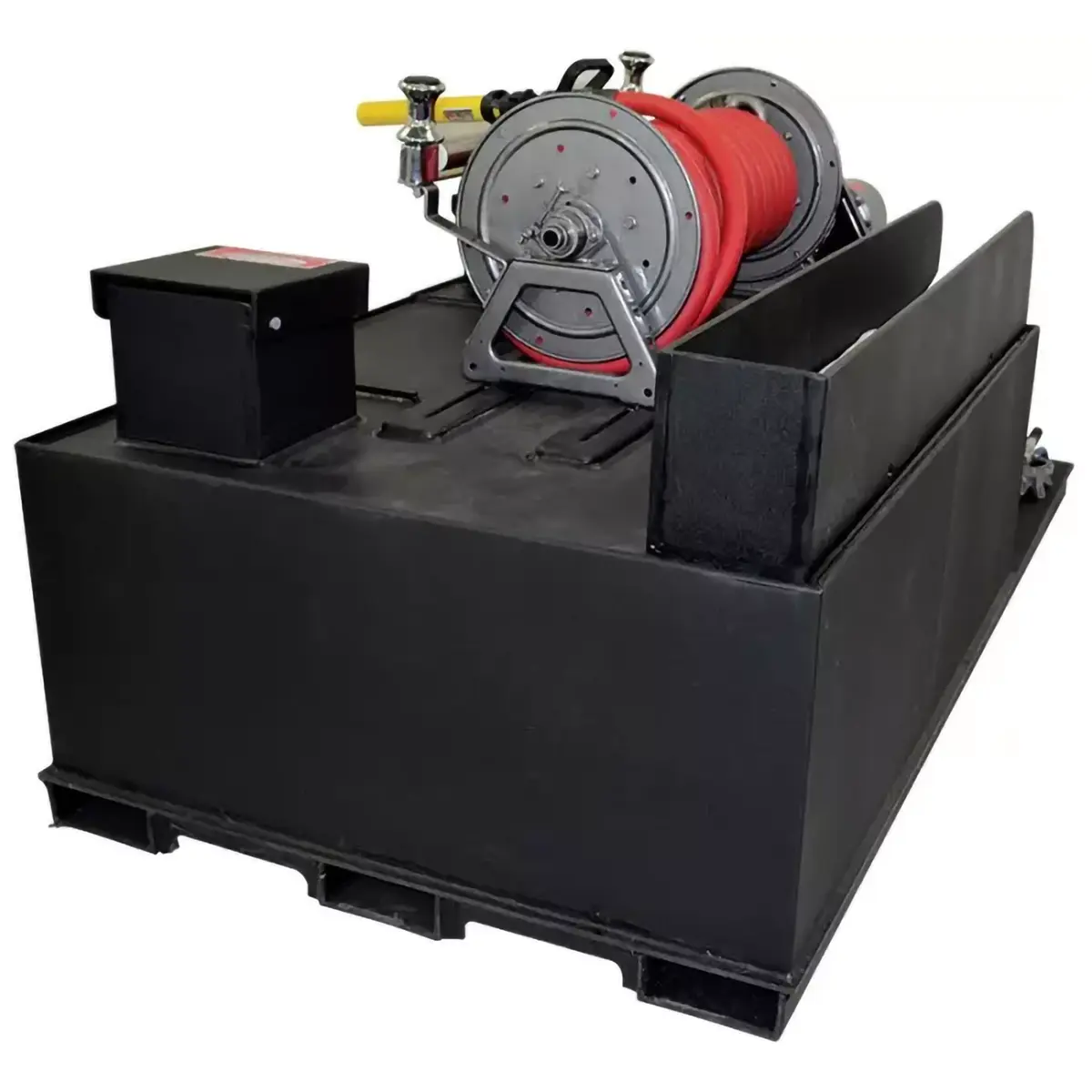

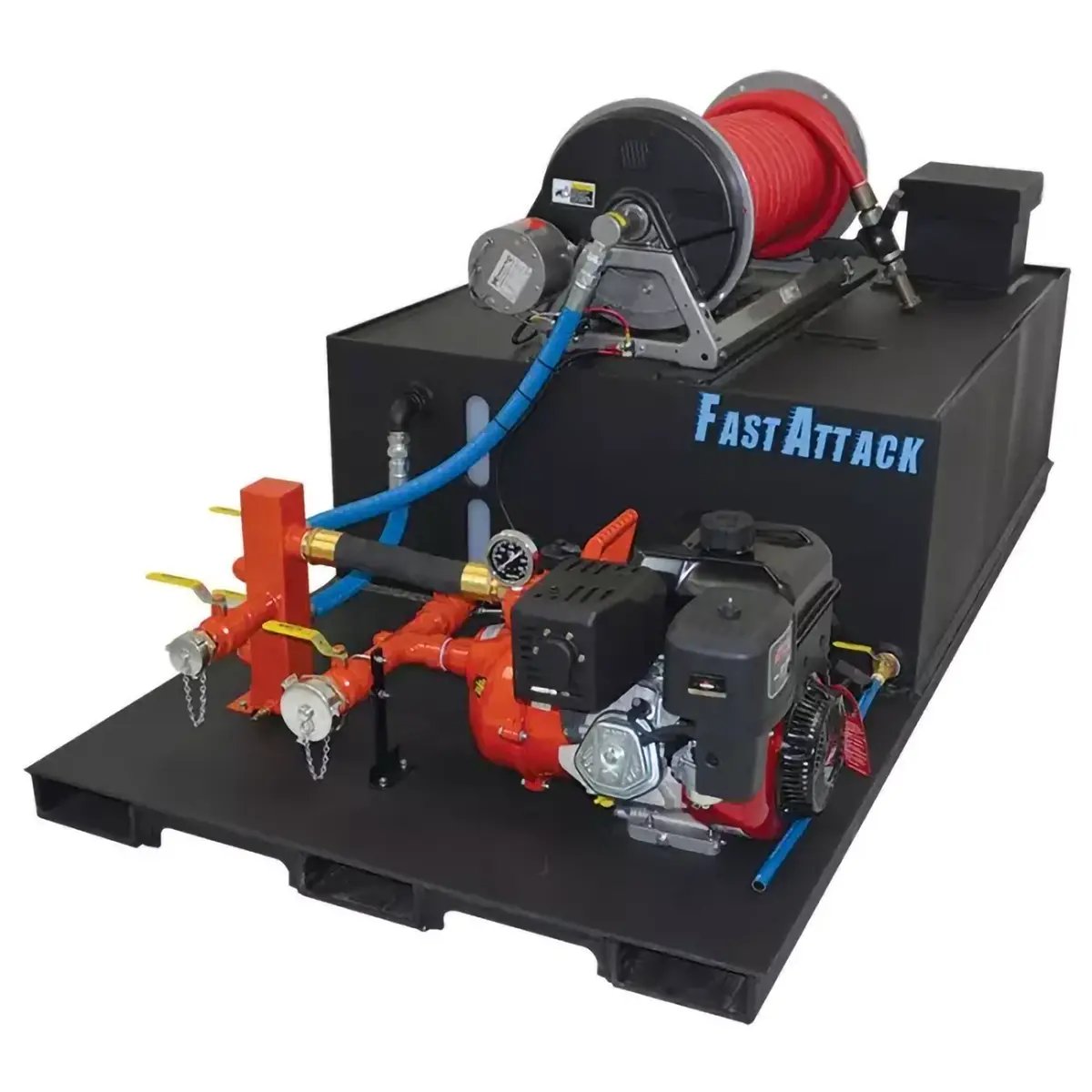

The Darley Fast Attack 1 Skid Unit - Economy features a Two-Stage Davey Pump ideal for brush firefighting. It is engineered to fit seamlessly into the bed of a standard 8-foot pickup truck.


Standard Features

  • Davey 13HP - Honda Twin Impeller Pump: Equipped with an electric start for easy operation.
  • 200 Gallon Poly Water Tank: Provides ample water storage for firefighting needs.
  • Pressure Gauge: Allows for precise monitoring of water pressure.
  • 1.5" Welded Stainless Steel Auxiliary Suction: Comes with a 2.5" adapter for versatile connections.
  • All Welded Stainless Steel Manifold: Painted red, includes a 1" tank fill for durability and visibility.
  • 1" Pump to Booster Reel: Ensures efficient water flow to the booster reel.
  • 1.5" NST Discharge: Standard discharge size for compatibility with various hoses.
  • Chrome Caps: Adds a sleek, professional finish.
  • Electric Booster Reel: Includes 100 feet of 1" booster hose for extended reach.
  • Guzzler Hand Primer: Ensures the pump is primed and ready for use.

Contact Us for Price

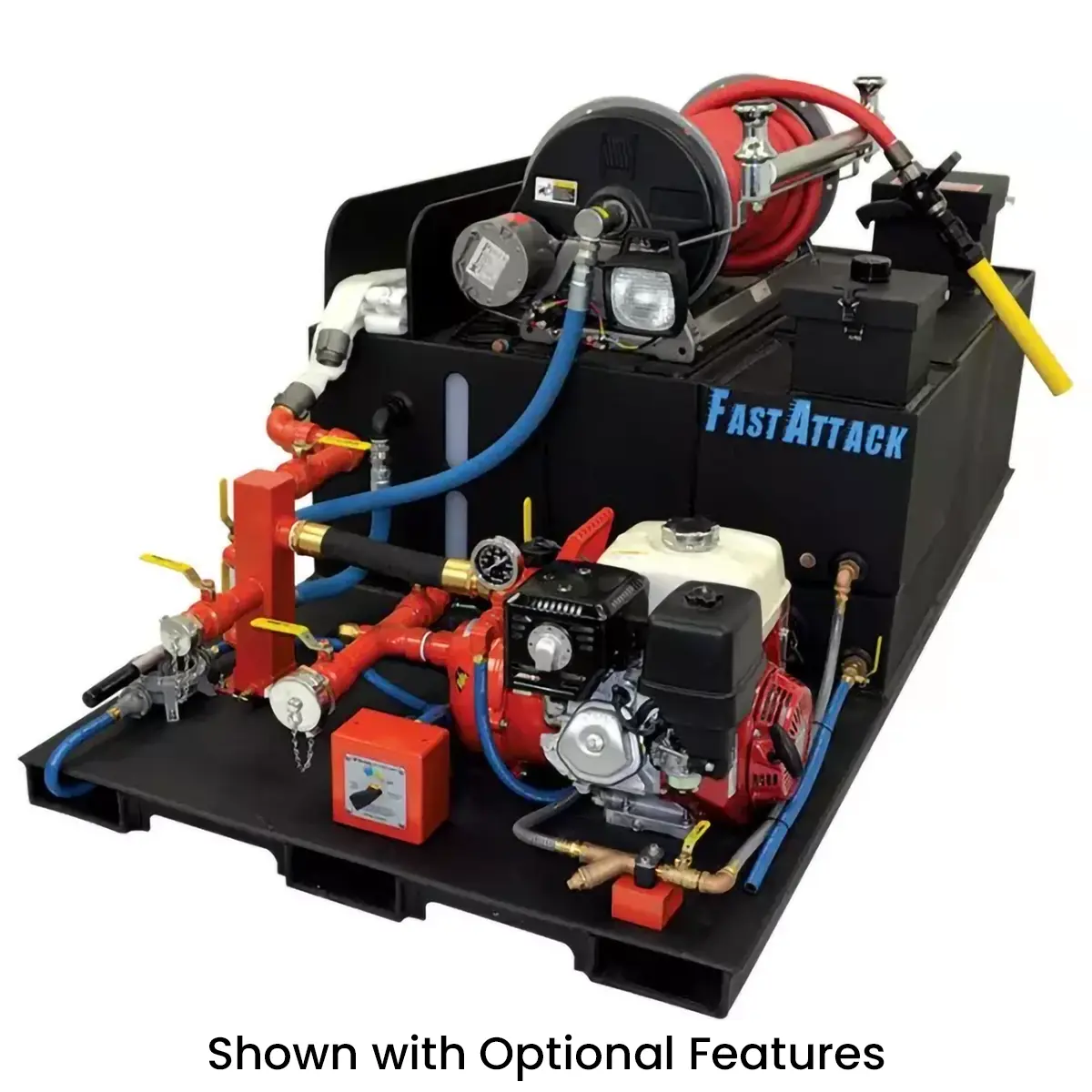

Optional Features

  • Foam Systems: Available around the pump (ATP) or as downstream injection to enhance firefighting capabilities.
  • Hose Tray with Mattydale Swivel Preconnect: Provides convenient storage and quick deployment of hoses.
  • Storage Risers: Additional storage solutions for equipment and tools.
  • Work Light: Illuminates the area for nighttime or low-visibility operations.
  • Nozzle Packages: Various nozzle options to optimize water delivery and firefighting efficiency.
  • Custom Tanks: Tailored tank options to meet specific needs and requirements.
  • Optional Reels & Hose Guiders: Additional reels and hose guides for improved hose management.
  • Diesel Drive: Option for a diesel-powered drive system for enhanced performance and reliability.

These optional features allow you to customize the Darley Fast Attack 1 Skid Unit 1 – Economy to suit your specific operational needs and preferences.


Pump Features

  • Marine-grade aluminum casing
  • 3-way discharge port with One 1-1/2" NPTM, Two 1" NPTM
  • 1-1/2" NPTM suction
  • Zinc-plated casing bolts
  • Mechanical shaft seal
  • Nitrile rubber seal and casing "O" rings
  • Self-priming up to 19'

  • Weight: 700 lbs. (318 kg)
  • Dimensions: 94″L x 48″W x 42″H


13HP Davey Twin Impeller Pump Performance

  • 120 gpm (454 L/M) @ 40 psi (2.8 bar)
  • 95 gpm (378 L/M) @ 108 psi (7.4 bar)
  • 60 gpm (227 L/M) @ 133 psi (9.2 bar)
  • 20 gpm (76 L/M) @ 146 psi (10.0 bar
