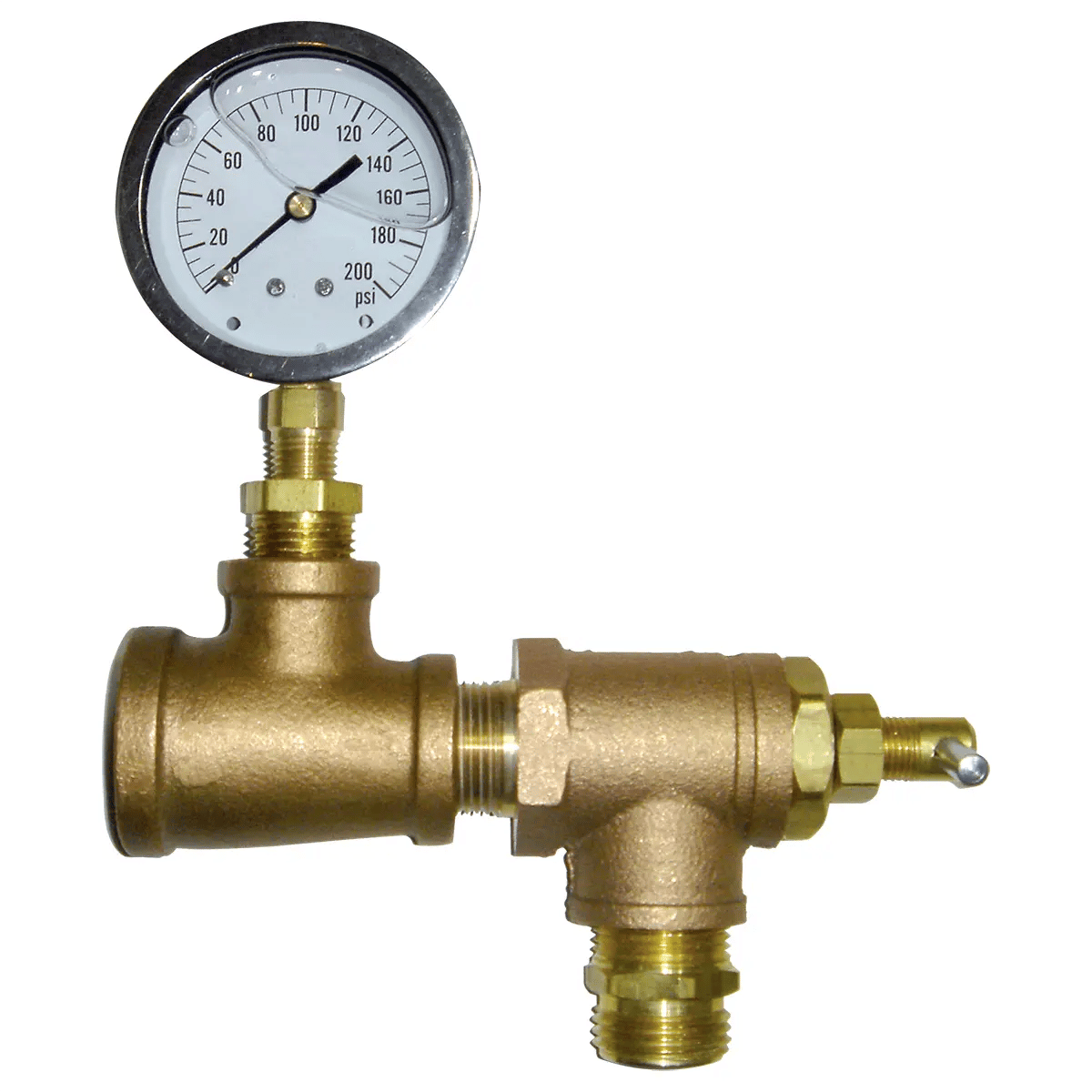

Engine Driven Pump Pressure Relief Valve Kit - 1" NPT
SKU#: BE078
Ships via Standard Ground
Protect your pump from overheating with this adjustable 0-200 PSI pressure relief valve kit. Includes all necessary parts for automatic return flow to the water source.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Earn Darley Dollars with this purchase
Protect your pump from overheating! This essential kit attaches to any 1" NPT discharge and includes all the necessary parts to allow for automatic return flow to the water source when the pump discharges are closed.
Features
- Adjustable Pressure Range: 0-200 PSI
- Durable Construction: Long-life Chrome Ball/Brass Valve Seat
- Accurate Monitoring: 200 psi Glycerin Filled Pressure Gauge
- Convenient Discharge: 3/4" MGH Discharge
- Heavy-Duty Use: Stainless steel ball bearing valve & brass seat
- Complete Kit: Includes all brass fittings for easy installation
Who Uses It?
- Fire Departments
- To protect portable fire pumps from overheating when discharge lines are closed.
- Emergency Response Teams
- For mobile water delivery systems in disaster relief or wildfire suppression.
- Industrial Facilities
- Where high-pressure water systems are used for cleaning, cooling, or processing.
- Agricultural Operations
- In irrigation systems with engine-driven pumps.
- Contractors
- For dewatering or water transfer tasks on job sites.
How It’s Used
- Purpose: Prevents pump overheating when discharge is closed.
- Operation: When pressure builds up beyond the set limit, the valve opens and redirects water through the discharge fitting.
- Automatic Reset: Once pressure drops, the valve closes and normal operation resumes.
Installation Guide for Pressure Relief Valve Kit
Tools Needed
- Adjustable wrench
- Teflon tape or thread sealant
Steps
- Locate the 1" NPT Discharge Port on your pump.
- Wrap Teflon Tape around the male threads of the discharge port to ensure a watertight seal.
- Attach the Valve Assembly:
- Screw the pressure relief valve onto the discharge port.
- Ensure the valve is oriented so the discharge outlet (3/4" MGH) points away from the pump.
- Connect a Hose to the 3/4" MGH discharge fitting to direct excess water safely back to the source or a drain.
- Check the Pressure Gauge:
- Ensure the gauge is visible and upright.
- Adjust the valve to your desired pressure setting (0–200 PSI).
- Test the System:
- Run the pump and close the discharge.
- Confirm that water flows through the relief valve and the gauge reads correctly.
- Pressure Gauge: Liquid-filled for accurate pressure readings and durability
- Discharge Fittings: 3/4" GHT discharge for compatibility with standard garden hoses
- Material: High-quality brass and stainless-steel components for longevity
- Compatibility: Attaches to any 1" NPT Male discharge
- Safety: Prevents pump damage by allowing automatic return flow to the water source when discharges are closed
- Model: PRVKG200
