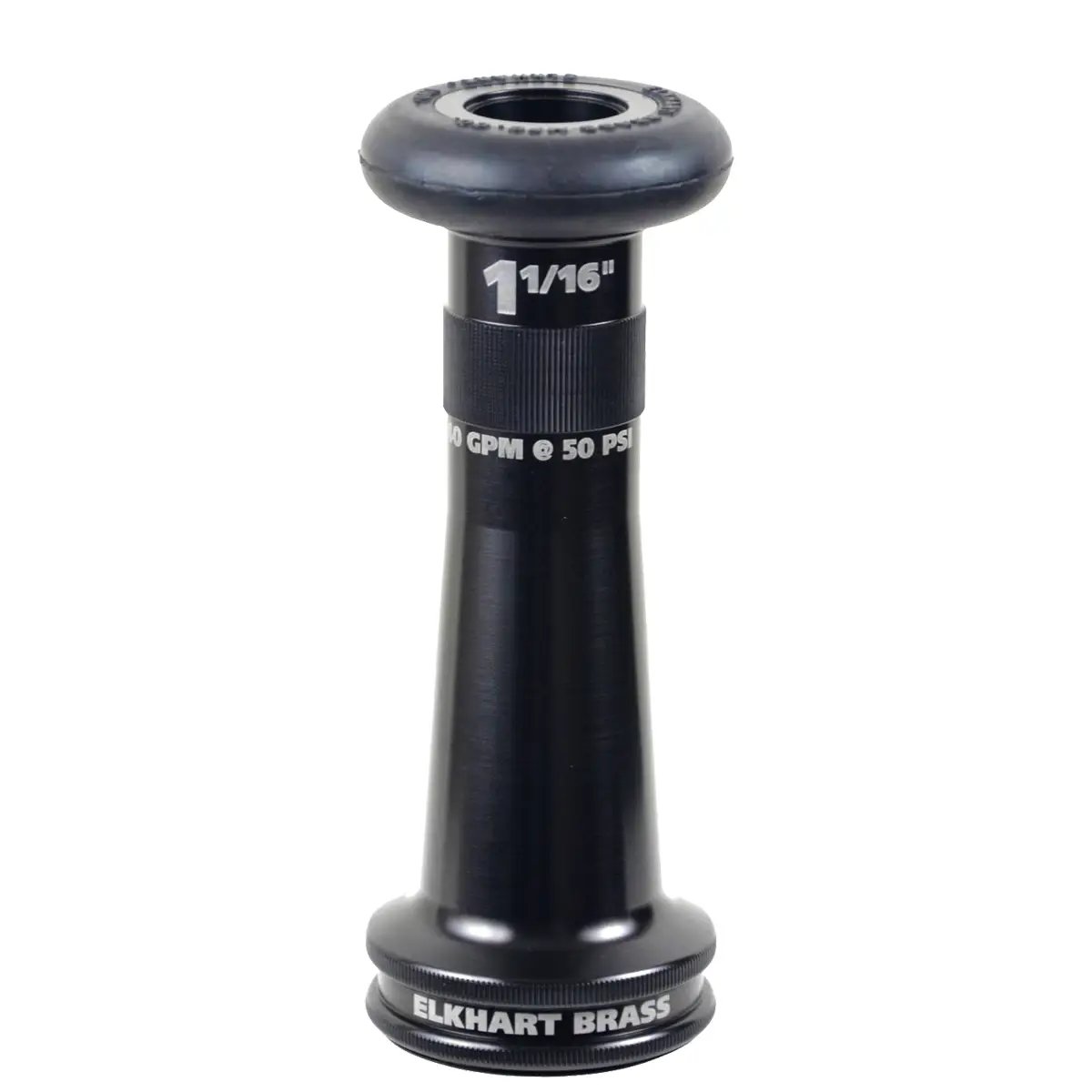

Elkhart Brass XD™ Smooth Bore Tip – Long Barrel, 1.5" FNH Inlet

Features

• Long Barrel Design: Model 188-XD features a 7" (177 mm) overall length.
• Smooth Bore Single Tip: Fixed-discharge smooth bore design for fire-service nozzle applications.
• Lightweight Aluminum Construction: Durable aluminum construction helps minimize weight.
• Durable Urethane Bumper: Molded urethane bumper provides protection around the tip.
• Laser-Etched Flow Rates: Flow-rate information is laser etched onto the tip.
• Enhanced Grip: Extra knurling provides increased grip and control.
• Inlet: 1.5" FNH
• Bore Sizes: Available in 7/8", 15/16", 1", 1-1/16", 1-1/8", 1-3/16", and 1-1/4" discharge sizes.
• Black Bumper: Black is the standard bumper color for XD Smooth Bore tips.

What is it?

The Elkhart Brass 188-XD is a long-barrel, single smooth bore tip designed for fire-service nozzle applications.

The 188-XD features a 1.5" inlet and a 7" (177 mm) overall length. The XD design incorporates lightweight aluminum construction, a molded urethane bumper, laser-etched flow-rate markings, and additional knurling for grip and control.

With a 1.5" FNH inlet and bore size of:

• 7/8"
• 15/16"
• 1"
• 1-1/16"
• 1-1/8"
• 1-3/16"
• 1-1/4"

How is it used?

The 188-XD is installed as the smooth bore discharge tip on a compatible fire-service nozzle or shutoff equipped with the appropriate male connection.

Water passes through the fixed circular bore at the end of the tip. The selected bore diameter determines the discharge opening.

The long-barrel design provides a 7" overall tip length, while additional exterior knurling helps improve grip and control during handling.

Because each model has a fixed bore diameter, firefighters can select the appropriate size for their department's nozzle configuration and operating requirements.

Who uses it?

The Elkhart Brass 188-XD is designed for municipal firefighting applications.

Typical users include:

• Municipal fire departments
• Firefighters
• Engine companies
• Nozzle operators
• Fire departments using smooth bore handline nozzle configurations

Material

• Body: Lightweight aluminum construction
• Bumper: Molded urethane

Maintenance Information

• Keep the smooth bore tip clean and inspect the bore opening, inlet threads, bumper, and exterior surfaces regularly for damage or excessive wear.
• Keep the bore opening free from debris or obstructions that could interfere with water discharge.
• Inspect threaded connections before use and remove damaged equipment from service in accordance with department procedures and applicable manufacturer recommendations.
