Super Vacuum Manufacturing

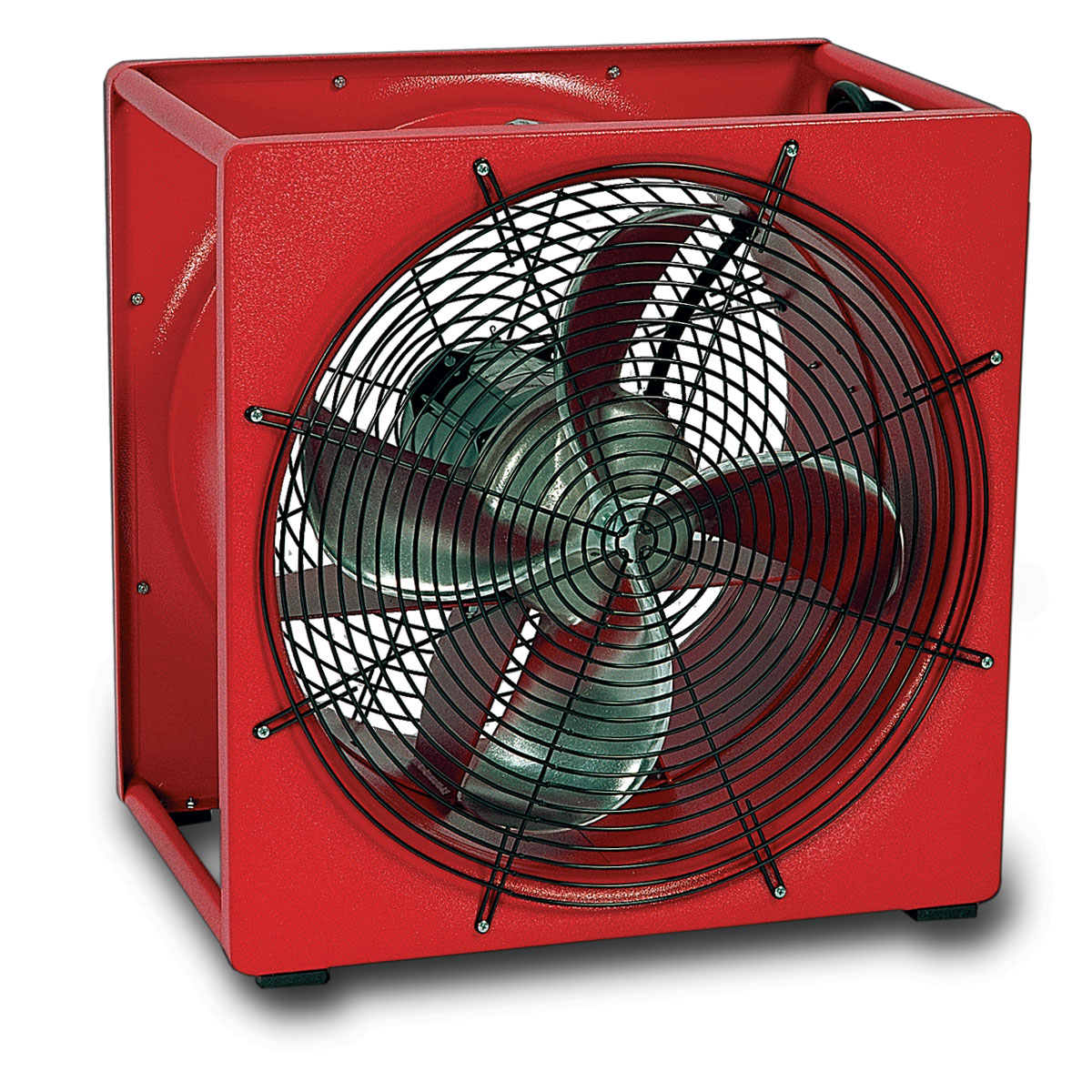

Electric Smoke Ejectors - Explosion Proof - Aluminum Housing - 20" Blade
SKU#: M912A
Ships via Standard Ground
Lightweight P200SE-AL Electric Smoke Ejector with patented aluminum blade and precision-balanced for maximum output. Ideal for hazardous locations
Price:$3,789.95
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
The P200SE-AL Electric Smoke Ejector is a versatile tool designed for hazardous locations. It features a lightweight aluminum frame and a powerful motor rated for Class 1, Group D environments.
Features
- Aluminum Frame Design: Lightweight compared to traditional steel smoke ejectors.
- Patented 4-Tip Recurved Aluminum Blade: Holds up better than plastic in high heat.
- Precision-Balanced Blade: Maximizes output.
- Heavy-Duty Rubber Feet: Adds friction to keep the fan in place.
- 4 Carry Handles: Makes transportation easy with one or two people.
- Front and Rear Guards: Prevents accidental contact with key components.
Material Used
The entire frame of the unit is constructed of aluminum, providing a lightweight yet durable structure. The blade is made of precision cast aluminum alloy #319, ensuring efficient performance and longevity.
Benefits of Aluminum Frame
The aluminum frame offers several advantages:
- Lightweight: Easier to transport and maneuver compared to steel frames.
- Durability: Aluminum is resistant to corrosion and holds up well in high heat environments.
- Efficiency: The lightweight design does not compromise the strength and stability of the unit.
Usage
The P200SE-AL Electric Smoke Ejector is used to pull smoke from structures using negative pressure but can be flipped around for positive pressure tactics. It is most effective when working with natural airflow and not against Mother Nature.
Maintenance Information
Regular maintenance includes:
- Cleaning: Ensure the blade and motor casing are free from debris.
- Inspection: Check the rubber feet, carry handles, and guards for wear and tear.
- Lubrication: Periodically lubricate moving parts as per the manufacturer's guidelines.
Storage Information
Store the smoke ejector in a dry, cool place. Ensure it is kept away from direct sunlight and moisture to prevent damage to the motor and blade.
Installation Tips
- Positioning: Place the smoke ejector at the optimal location for airflow.
- Power Source: Ensure the power source meets the required specifications (115/230V AC, 50/60Hz).
- Safety: Always use the front and rear guards to prevent accidental contact with the blade.
Compatibility
Compatible with these Super Vac Accessories:
- Spiral Duct
- Mountain Mister
- Tilt Frame
- Foam Generator
- Door Bar/Hanger
- Blades: 20"
- Dimensions: 25.5" x 24.75" x 16.25" (650 mm x 630 mm x 415 mm)
- Model Weight: 78 lbs (36 kg)
- Motor: Bluffton, single-speed, hazardous location rated Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC
- RPM: 1,725
- Start Run Output: 4,000 w
- Power Requirement: 15-amp circuit
- Output: 1,500 w
- Airflow: 9,800 cfm (16,650 cmh)
- Model: P200SE-AL
