Super Vacuum Manufacturing

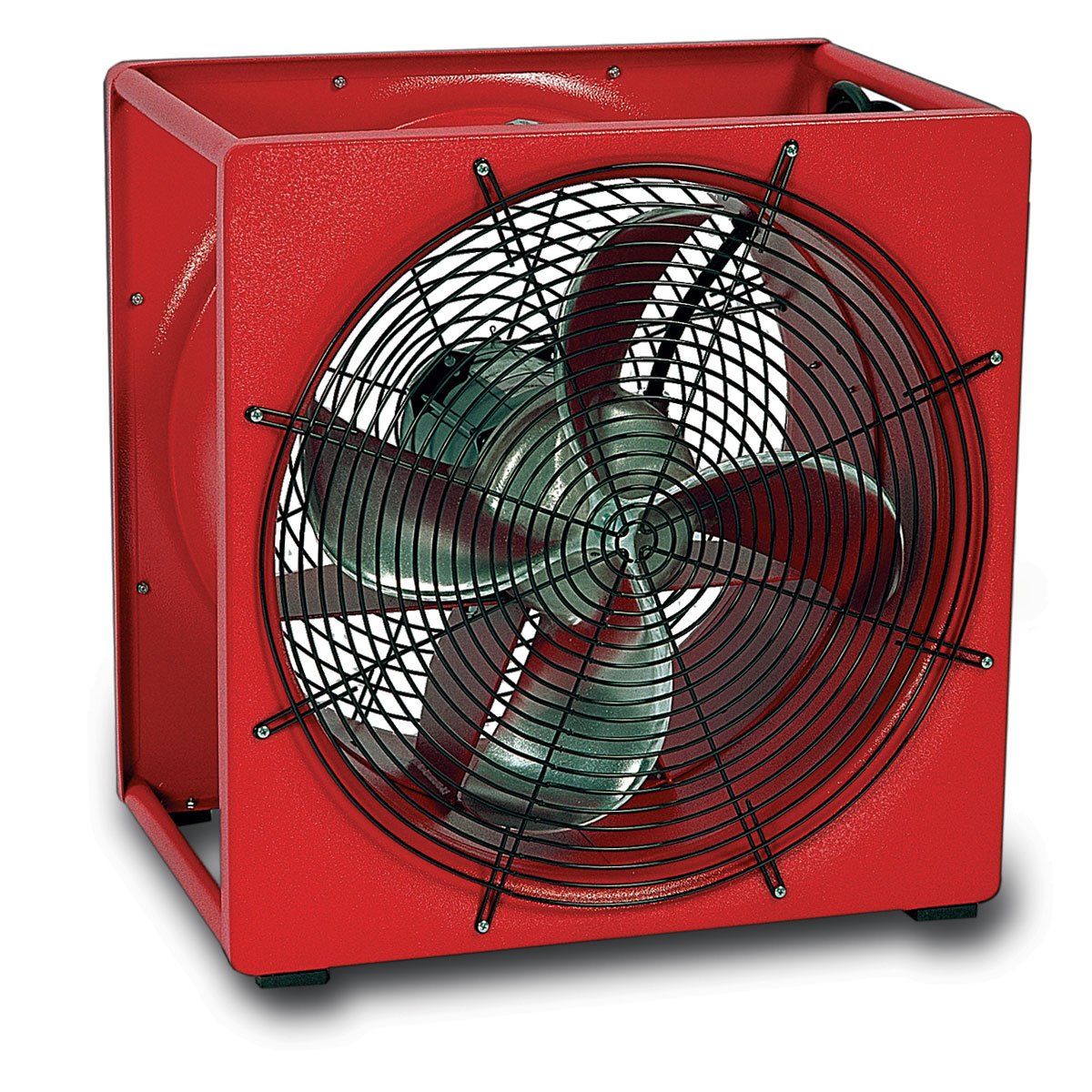

Electric Smoke Ejector - Explosion Proof Motor
Super Vac electric smoke ejectors efficiently remove smoke with patented aluminum blades, precision-balanced for maximum output. Ideal for hazardous locations.
Looking for a quote? Simply add your items to the cart and choose Request for Quote during checkout.
Enter a value between 1 and 100000000 in increments of 1.
Earn Darley Dollars with this purchase
Super Vac's electric smoke ejectors are designed to efficiently remove smoke and fumes from buildings, making them ideal for fire departments and emergency services. These smoke ejectors are built to handle various environments, including hazardous locations with unknown gases.
Features
- Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building; aluminum holds up better than plastic in high heat.
- Precision-Balanced Blade: Maximizes output and ensures smooth operation, reducing wear and tear on the motor.
- Heavy-Duty Rubber Feet: Adds friction to keep the fan in place during operation.
- 4 Carry Handles: Makes transportation easy with one or two people, allowing for rapid deployment.
- Front and Rear Guards: Prevents accidental contact with key components, ensuring user safety.
- Made in the USA
The Electric Smoke Ejector is a versatile tool designed for hazardous locations. It features a sturdy frame and a powerful motor rated for Class 1, Group D environments.
Benefits of Aluminum Blade
The blade is constructed of precision cast aluminum alloy #319, which offers several benefits:
- Durability: Aluminum holds up better than plastic in high heat environments, ensuring longevity and reliability.
- Efficiency: The recurved design creates a tight spiral of air, enhancing the smoke ejection process.
- Safety: Precision balancing ensures smooth operation, reducing wear and tear on the motor.
Material Used
The entire frame of the unit is constructed of steel or aluminum, providing strength and stability. The blade is made of precision cast aluminum alloy #319, ensuring durability and efficient performance.
Usage
The Electric Smoke Ejector is used to pull smoke from structures using negative pressure but can be flipped around for positive pressure tactics. It is most effective when working with natural airflow and not against Mother Nature.
Maintenance Information
Regular maintenance includes:
- Cleaning: Ensure the blade and motor casing are free from debris.
- Inspection: Check the rubber feet, carry handles, and guards for wear and tear.
- Lubrication: Periodically lubricate moving parts as per the manufacturer's guidelines.
Installation Tips
- Positioning: Place the smoke ejector at the optimal location for airflow.
- Power Source: Ensure the power source meets the required specifications (115/230V AC, 50/60Hz).
- Safety: Always use the front and rear guards to prevent accidental contact with the blade.
Storage Information
Store the smoke ejector in a dry, cool place. Ensure it is kept away from direct sunlight and moisture to prevent damage to the motor and blade.
Compatibility
Compatible with these Super Vac Accessories:
- Spiral Duct
- Mountain Mister
- Tilt Frame
- Foam Generator
- Door Bar/Hanger
- Blade Sizes: Available in 16", 20", and 24" sizes.
- Dimensions: Vary by model, ensuring a fit for different operational needs.
- Model Weight: Ranges from 44 lbs to 115 lbs, depending on the model.
- Motor: Bluffton, single-speed, hazardous location rated Class 1 Group D, with horsepower ranging from 1/3 HP to 1-1/2 HP.
- RPM: 1,725
- Start Run Output: Varies by model, from 2,000 w to 6,000 w.
- Power Requirement: 15-amp or 20-amp circuit, depending on the model.
- Output: Ranges from 700 w to 2,100 w.
- Airflow: Ranges from 5,200 cfm (8,835 cmh) to 11,800 cfm (20,050 cmh).
